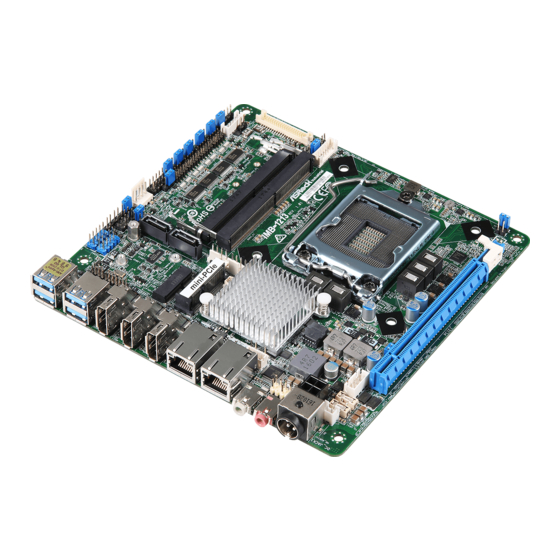

ASROCK IMB-1213 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
IMB-1213
User Manual
Version 1.1
Updated September 4, 2020
Copyright©2020 ASRock INC. All rights reserved.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IMB-1213 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ASROCK IMB-1213

Summary of Contents for ASROCK IMB-1213

  • Page 1 IMB-1213 User Manual Version 1.1 Updated September 4, 2020 Copyright©2020 ASRock INC. All rights reserved.
  • Page 2 (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
  • Page 3 CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

  • Page 4: Table Of Contents

    Contents 1 Introduction ............5 1.1 Package Contents ............5 1.2 Specifications ..............6 1.3 Motherboard Layout ............8 1.4 I/O Panel ................ 10 2 Installation ............11 2.1 Screw Holes ..............11 2.2 Pre-installation Precautions ........... 11 2.3 Installation of Memory Modules (SO-DIMM) ....12 2.4 Expansion Slots ............

  • Page 5: Introduction

    In case any modifications of this manual occur, the updated version will be available on ASRock website without further notice. You may find the latest VGA cards and CPU support lists on ASRock website as well. ASRock website http://www.asrock.com If you require technical support related to this motherboard, please visit our website for specific information about the model you are using.

  • Page 6: Specifications

    1.2 Specifications Form Dimensions Mini-ITX (6.7-in x 6.7-in) Factor ® Socket LGA 1151 for 9th/8th Intel Core i7/i5/i3/ Celeron (Supports up to 65W) Processor * The Performance of CPUs over 65W will be System limited due to power design. ® Chipset Intel Q370...
  • Page 7 HDMI DisplayPort 3 Rear I/O Ethernet 4 x USB support USB3.1 Audio 2 (Mic-in, Line-out) Serial 4 x USB 2.0 LVDS/ 1 (shared with eDP use jumper switch) inverter 2 x COM (RS-232/422/485), 2 x Serial Internal COM(RS-232) Connector SATA 2 x SATA3 (6.0Gb/s) GPIO 4 x GPI, 4 x GPO...

  • Page 8: Motherboard Layout

    1.3 Motherboard Layout...
  • Page 9 1 : USB2.0 Header (USB2_4_5) 2 : USB2.0 Header (USB2_6_7) 3 : System Panel Header 4 : PWR_BAT2 5 : Buzzer 6 : BLT_PWM1 7 : SATA Power Output Connector 8 : Digital Input / Output Pin Header (JGPIO1) 9 : Digital Input / Output Power Select (JGPIO_PWR1) 10 : Digital Input / Output Default Value Setting (JGPIO_SET1) 11 : COM Port Headers (COM1, 2, 3, 4) 12 : COM Port PWR Setting Jumpers (SET_CM1, 2, 3, 4)

  • Page 10: I/O Panel

    1.4 I/O Panel USB 3.0 Ports (USB3_0_1) LAN RJ-45 Port (LAN1)* USB 3.0 Ports (USB3_2_3) LAN RJ-45 Port (LAN2)* DisplayPort (DP1) Line out (Lime) DisplayPort (DP2) Microphone (Pink) DisplayPort (DP3) DC Jack (DC_JACK1)** * There are two LED next to the LAN port. Please refer to the table below for the LAN port LED indications.

  • Page 11: Installation

    Chapter 2: Installation This is a Mini-ITX form factor (6.7” x 6.7”) motherboard. Before you install the moth- erboard, study the configuration of your chassis to ensure that the motherboard fits into it. Make sure to unplug the power cord before installing or removing the motherboard.

  • Page 12: Installation Of Memory Modules (So-Dimm)

    2.3 Installation of Memory Modules (SO-DIMM) IMB-1213 provides two 260-pin DDR4 (Double Data Rate 4) SO-DIMM slots. Step 1. Align a SO-DIMM on the slot such that the notch on the SO-DIMM matches the break on the slot. 1. The SO-DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the SO-DIMM if you force the SO-DIMM into the slot at incorrect orientation.

  • Page 13: Expansion Slots

    2.4 Expansion Slots There is 1 PCI Express slot, 1 mini-PCIe slot and 2 M.2 sockets on this mother- board. PCIE slot: PCIE1 (PCIE x16 slot) is used for PCI Express x16 lane width cards. Mini-PCIE slot: MINI_PCIE1 (mini-PCIe slot; half/full size) is used for PCI Express mini cards.

  • Page 14: Jumpers Setup

    2.5 Jumpers Setup The illustration shows how jumpers are setup. When the jumper cap is placed on pins, the jumper is “Short”. If no jumper cap is placed on pins, the jumper is “Open”. The illus- tration shows a 3-pin jumper whose pin1 and pin2 are “Short”...
  • Page 15 Backlight Power Select (LCD_BLT_VCC) 1-2 : LCD_BLT_VCC : +5V 2-3 : LCD_BLT_VCC : +12V (5-pin BKT_PWR1) 4-5 : LCD_BLT_VCC : DC_IN (see p.8, No. 13) COM Port Pin9 PWR Setting Jumpers 1-2 : +5V 2-3 : +12V (3-pin SET_CM1, 2, 3, 4) (see p.8, No.

  • Page 16: Lvds Switch (Lvds_Switch1)

    ATX/AT Mode Jumper Open : ATX Mode Close : AT Mode (2-pin SIO_AT1) (see p.8, No. 19) LVDS Switch Open : LVDS Close : eDP (2-pin LVDS_SWITCH1) (see p.8, No. 17)

  • Page 17: Onboard Headers And Connectors

    2.6 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage of the motherboard! CPU Fan Connector Please connect the CPU fan cable to the connector and (4-pin CPU_FAN1)
  • Page 18 RESET (Reset Switch): Connect to the reset switch on the chassis front panel. Press the reset switch to restart the computer if the computer freezes and fails to perform a normal restart. PLED (System Power LED): Connect to the power status indicator on the chassis front panel. The LED is on when the system is operating.

  • Page 19: 4-Pin Ups Module Power Input Connector (Input +12V & +19V~+28V)

    SATA3 Connectors These two Serial ATA3 (SATA3) connectors support SATA data (SATA3_1~2: see p.8, No. 33) SATA3_2 cables for internal storage devices. The current SATA3 SATA3_1 interface allows up to 6.0 Gb/s data transfer rate. Front Panel Audio Header This is an interface for front OUT_RET OUT2_L panel audio cable that allows...
  • Page 20 LVDS Connector Signal Name Signal Name LCD_BLT_VCC LCD_BLT_VCC (40-pin LVDS1) CON_LBKLT_CTL LCD_BLT_VCC (see p.8 No. 16) CON_LBKLT_EN LVDS_B_CLK# LVDS_B_CLK LVDS_B_DATA3 DPLVDD_EN LVDS_B_DATA3# LVDS_B_DATA2# LVDS_B_DATA2 LVDS_B_DATA1 LVDS_B_DATA1# LVDS_B_DATA0# LVDS_B_DATA0 LVDS_A_CLK LVDS_A_CLK# LVDS_A_DATA3# LVDS_A_DATA3 LVDS_A_DATA2 *eDP Connector (on the Backside of PCB) LVDS_A_DATA2# LVDS_A_DATA1# LVDS_A_DATA1...
  • Page 21 LPC Header This connector supports a Trusted Platform Module (TPM) (19-pin LPC1) system, which can see p.8, No. 34) securely store keys, digital certificates, passwords, and data. A TPM system also helps enhance network security, protects digital identities, and ensures platform integrity. Backlight Power Connector Signal Name (6-pin BLT_PWR1)
  • Page 22 UPS Module Power Input Connector Pin1 : GND Pin2 : DC Input (2-pin TO_UPS1) (see p.8 No. 28) Digital Input / Output Pin Header (10-pin JGPIO1) (see p.8 No. 8) Signal Signal Signal Signal Signal Name Name Name Name Name SIO_ SIO_ SIO_...

  • Page 23: Uefi Setup Utility

    Chapter 3: UEFI SETUP UTILITY 3.1 Introduction This section explains how to use the UEFI SETUP UTILITY to configure your system. The UEFI chip on the motherboard stores the UEFI SETUP UTILITY. You may run the UEFI SETUP UTILITY when you start up the computer. Please press <F2>...

  • Page 24: Navigation Keys

    3.1.2 Navigation Keys Please check the following table for the function description of each navigation key. Navigation Key(s) Function Description Moves cursor left or right to select Screens Moves cursor up or down to select items + / - To change option for the selected items <Enter>...

  • Page 25: Advanced Screen

    3.3 Advanced Screen In this section, you may set the configurations for the following items: CPU Configu- ration, Chipset Configuration, Storage Configuration, Super IO Configuration, AMT Configuration, ACPI Configuration, USB Configuration and Trusted Computing. Setting wrong values in this section may cause the system to malfunction.

  • Page 26: Cpu Configuration

    3.3.1 CPU Configuration Intel Hyper Threading Technology Intel Hyper Threading Technology allows multiple threads to run on each core, so that the overall performance on threaded software is improved. Active Processor Cores Select the number of cores to enable in each processor package. CPU C States Support Enable CPU C States Support for power saving.
  • Page 27 Intel Turbo Boost Technology Use this item to enable or disable Intel Turbo Boost Mode Technology. Turbo Boost Mode allows processor cores to run faster than marked fre- quency in specific conditions. The default value is [Enabled]. CPU Thermal Throttling You may select [Enabled] to enable CPU internal thermal control mechanism to keep the CPU from overheating.

  • Page 28: Chipset Configuration

    3.3.2 Chipset Configuration Primary Graphics Adapter This allows you to select [Onboard] or [PCI Express] as the boot graphic adapter priority. The default value is [PCI Express]. Above 4G Decoding Enable or disable 64bit capable Devices to be decoded in Above 4G Ad- dress Space (only if the system supports 64 bit PCI decoding).
  • Page 29 Panel Type Selection Use this to select panel type. This item appears when you enable Active LVDS. The default values of Active LVDS and Panel Type Selec- tion will be changed only when the users manually adjust them. They will keep at the default values no matter you clear CMOS, use Instant Flash or press <F9>.

  • Page 30: Storage Configuration

    3.3.3 Storage Configuration SATA Controller(s) Use this item to enable or disable the SATA Controller feature. SATA Mode Selection Use this to select SATA mode. The default value is [AHCI Mode]. AHCI (Advanced Host Controller Interface) supports NCQ and other new features that will improve SATA disk perfor- mance.

  • Page 31: Super Io Configuration

    3.3.4 Super IO Configuration COM1 Configuration Use this to set parameters of COM1. COM2 Configuration Use this to set parameters of COM2. COM3 Configuration Use this to set parameters of COM3. Type Select Use this to select COM3 port type: [RS232], [RS422] or [RS485]. COM4 Configuration Use this to set parameters of COM4.

  • Page 32: Amt Configuration

    3.3.5 AMT Configuration AMT BIOS Features Use this to enable or disable Intel(R) Active Management Technology BIOS Extension. The default is [Enabled]. ASF support Use this to enable or disable Alert Specification Format. The default is [En- abled]. USB Provisioning of AMT Use this to enable or disable AMT USB Provisioning.
  • Page 33 WatchDog Use this to enable or disable AMT WatchDog Timer. The default is [Dis- abled]. Activate Remote Assistance Process Trigger CIRA boot. The default is [Disabled]. PET Progress User can enable or disable PET Events progress to receive PET events or not.

  • Page 34: Acpi Configuration

    3.3.6 ACPI Configuration Suspend to RAM Use this item to select whether to auto-detect or disable the Suspend-to- RAM feature. Select [Auto] will enable this feature if the OS supports it. PCIE Devices Power On Use this item to enable or disable PCIE devices to turn on the system from the power-soft-off mode.

  • Page 35: Usb Configuration

    3.3.7 USB Configuration Legacy USB Support Use this option to select legacy support for USB devices. There are two configuration options: [Enabled], and [UEFI Setup Only]. The default value is [Enabled]. Please refer to below descriptions for the details of these four options: [Enabled] - Enables support for legacy USB.

  • Page 36: Trusted Computing

    3.3.8 Trusted Computing Security Device Support Enable or disable BIOS support for security device. Onboard TPM Use this to enable or disable onboard TPM. The default is [Enabled].

  • Page 37: Hardware Health Event Monitoring Screen

    3.4 Hardware Health Event Monitoring Screen In this section, it allows you to monitor the status of the hardware on your system, including the parameters of the CPU temperature, motherboard temperature, CPU fan speed, chassis fan speed, and the critical voltage. CPU_FAN1 Setting This allows you to set CPU fan 1’s speed.

  • Page 38: Security Screen

    3.5 Security Screen In this section, you may set, change or clear the supervisor/user password for the system. Supervisor Password Set or change the password for the administrator account. Only the ad- ministrator has authority to change the settings in the UEFI Setup Utility. Leave it blank and press enter to remove the password.

  • Page 39: Boot Screen

    3.6 Boot Screen In this section, it will display the available devices on your system for you to config- ure the boot settings and the boot priority. Boot From Onboard LAN Use this item to enable or disable the Boot From Onboard LAN feature. Setup Prompt Timeout This shows the number of seconds to wait for setup activation key.
  • Page 40 CSM (Compatibility Support Module) Use this to enable or disable Compatibility Support Module. The default value is [Disabled]. Launch PXE OpROM Policy Select UEFI only to run those that support UEFI option ROM only. Select Legacy only to run those that support legacy option ROM only. Select Do not launch to not execute both legacy and UEFI option ROM.

  • Page 41: Exit Screen

    3.7 Exit Screen Save Changes and Exit When you select this option, it will pop-out the following message, “Save configuration changes and exit setup?” Select [OK] to save the changes and exit the UEFI SETUP UTILITY. Discard Changes and Exit When you select this option, it will pop-out the following message, “Discard changes and exit setup?”...

  • Page 42: Software Support

    Click on a specific item then follow the installation wizard to install it. 4.2.4 Contact Information If you need to contact ASRock or want to know more about ASRock, you’re welcome to visit ASRock’s website at http://www.asrock.com; or you may con-...
