Summary of Contents for Koba Vision EasyViewer Silver Quartz HD Video magnifiers

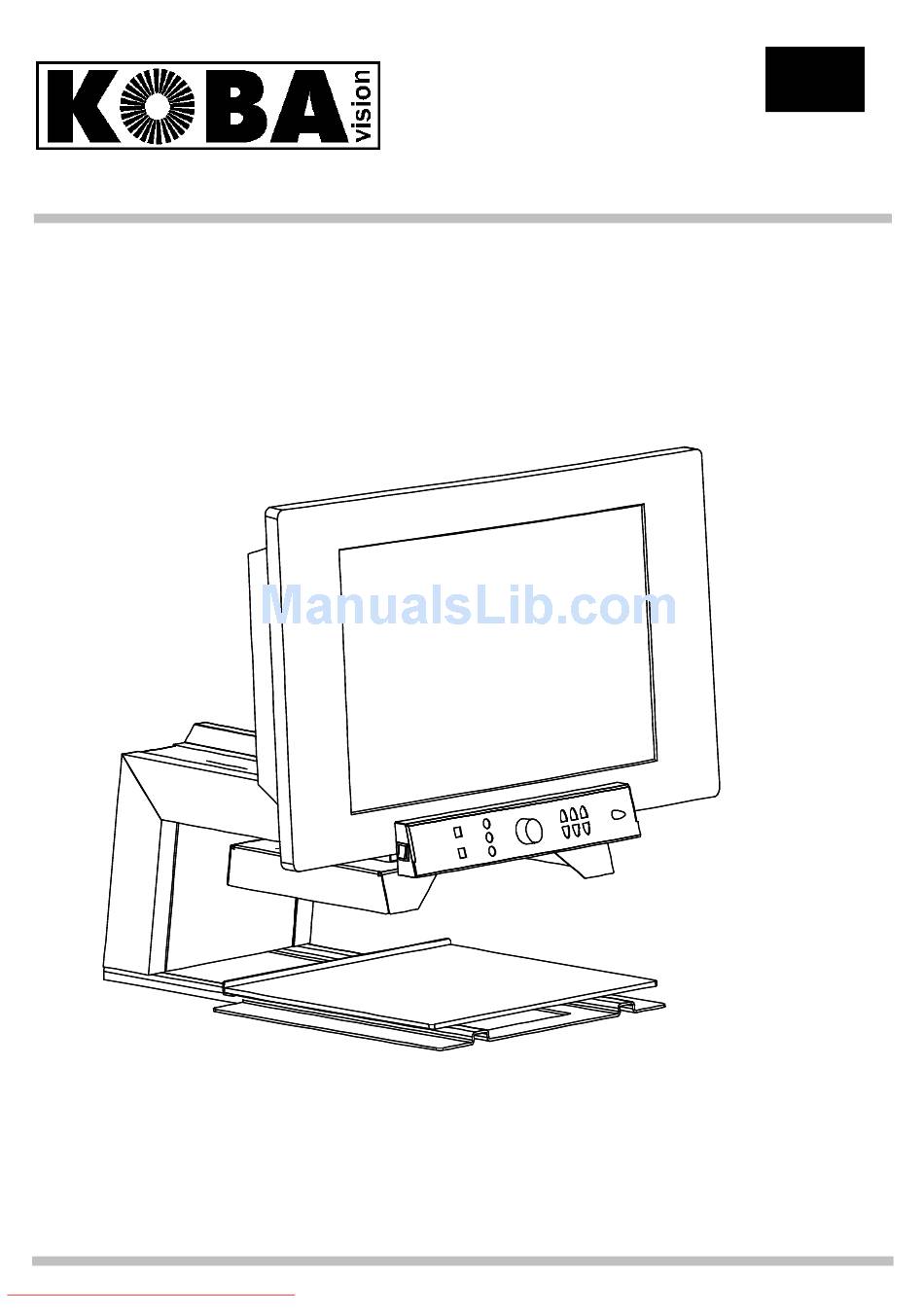

- Page 1 KOBA VISION Video magnifiers EasyViewer Silver Quartz HD Manual Downloaded From TV-Manual.com Manuals...
- Page 2 Quartz HD 2.8.0 (HD) In combination with screen: Philips 26PF5321/12. Slight differences are possible if other verions or screens are used. The latest versions of the manual can be downloaded from the KOBA Vision website: http://www.kobavision.be. Downloaded From TV-Manual.com Manuals...
- Page 3 V I D E O M A G N I F I E R S Manual KOBA Vision De Oude Hoeven 6 • 3971 Leopoldsburg • Belgium Tel +32 (0)11 34 45 13 • Fax +32 (0)11 34 85 25 info@kobavision.be...
-
Page 4: Table Of Contents
Index Index ......................... 2 Introduction ......................4 Video magnifier parts ........................4 Video magnifier EasyViewer, Silver, Quartz HD ................. 4 Screen ............................4 Power cord ..........................5 SCART connector (EasyViewer, Silver) ..................5 ... - Page 5 Crafting ............................14 Writing ............................14 Readhelp ........................... 14 Factory settings ......................... 14 Video magnifier - computer ......................15 Switching between video magnifier and computer ..............15 Troubleshooting ...................... 16 Warranty ........................17 ...
-
Page 6: Introduction
Mains switch and remote receiver at the side Quartz HD: HDMI input Suspension VESA 75/75, VESA 100/100, VESA 200/100 Mains switch and remote receiver at the side Always ask KOBA Vision or your dealer whether your screen specifications are sufficient. Downloaded From TV-Manual.com Manuals... -
Page 7: Power Cord
I N T R O D U C T I O N Warning The screen is to be assembled and disassembled by authorized persons exclusively. Non-compliance can cause severe damage. Power cord You need a power cord to feed the device. SCART connector (EasyViewer, Silver) You need a scart connector to connect the video magnifier to the screen. -
Page 8: Safety And Maintenance Instructions
Never attempt to repair the device by yourself. It is dangerous to remove protective covers which are there to prevent electric shock. You must contact KOBA Vision or your dealer in case of defects. ... -
Page 9: Maintenance Instructions
S A F E T Y A N D M A I N T E N A N C E I N S T R U C T I O N S Warning You must be extremely cautious when moving the video magnifier. The video magnifier must not be picked up by the screen, the type panel, the light shades or the slide table. -
Page 10: First-Time Use
F I R S T - T I M E U S E Chapter First-time use You need to go through the following steps to use the video magnifier for the first time: Connect cables Set screen Check wether the device works Connecting cables Audio:... -
Page 11: Controls
C O N T R O L S Chapter Controls After having successfully connected and tested the video magnifier, we will now go into the controls and the operation of the video magnifier. Switching on/off Switching on 1. Press the button to switch on the screen. (1) 2. -
Page 12: Brief Manual
C O N T R O L S Brief manual Downloaded From TV-Manual.com Manuals... - Page 13 C O N T R O L S Right: zoom in Left: zoom out Push: autofocus Negativ reading (black background - white letters) Font colours: push once more Photo mode Switch between negative reading and photo mode (only EasyViewer) Positive reading (white background - black letters) Font colours: push once more Factory settings...
-
Page 14: Slide Table
C O N T R O L S Slide table The slide table is made of high-grade materials and can display a whole A3 size sheet. 2 brakes stop the slide table from moving horizontally and vertically. The brakes can be enabled and disabled. -
Page 15: Positive Reading
C O N T R O L S Positive reading Press button 4 to activate positive mode. (Positive: White background and black letters) Quartz HD and Silver (option): By pressing button 4 once more, background colours will change. White – Red – Green – Blue –Cyan –Yellow – Magenta –Blue/Yellow –White -… Factory settings Press button five to go to factory settings. -
Page 16: Usage Tips
The background can be set by means of background suppression. This will allow you to filter out the structure of a sheet. This unique KOBA Vision function allows you at all times to set a contrasty background without annoying paper impurities. -
Page 17: Video Magnifier - Computer
C O N T R O L S Video magnifier - computer Switching between video magnifier and computer The video magnifier screen can be used as a computer screen. There are two options: Connect your computer to the screen. You can use the screen to switch to another input that will allow you to use your computer. -
Page 18: Troubleshooting
T R O U B L E S H O O T I N G Chapter Troubleshooting Below is a list of problems that may occur with your video magnifier. Consult the list first before contacting KOBA Vision or your dealer. Symptom Possible causes What to do The lights are out •... -
Page 19: Warranty
The warranty covers materials and workmanship. This warranty includes transportation costs for the first year. Warranty services are provided by KOBA Vision bvba or a dealer acting for KOBA Vision bvba. When the video magnifier cannot be repaired correctly, KOBA Vision can decide on its own inititiative to replace the reading device by another video magnifier featuring the same specifications. -
Page 20: Data Chart
D A T A C H A R T Chapter Data chart EasyViewer Type: KOBA Vision EasyViewer Inputs: SCART, HDMI, audio, mains supply Power supply: 230V-240V 1,2A 50-60Hz Total capacity: Measurements (without screen) 300 x 430 x 580 mm Height X Width X Depth Measurements (with 32”screen):... -
Page 21: Silver
D A T A C H A R T Silver Type: KOBA Vision Silver Inputs: SCART, HDMI, audio, mains supply Power supply: 230V-240V 1,2A 50-60Hz Total capacity: Measurements (without screen) 300 x 430 x 580 mm Height X Width X Depth Measurements (with 32”screen):... -
Page 22: Quartz Hd
D A T A C H A R T Quartz HD Type: KOBA Vision Quartz HD Inputs: SCART, HDMI, audio, mains supply Power supply: 230V-240V 1,2A 50-60Hz Total capacity: Measurements (without screen) 300 x 430 x 580 mm Height X Width X Depth Measurements (with 32”screen):... - Page 23 Downloaded From TV-Manual.com Manuals...
- Page 24 2008 KOBA Vision De Oude Hoeven 6 • 3971 Leopoldsburg • Belgium Tel +32 11 34 45 13 • Fax +32 11 34 85 25 info@kobavision.be http://www.kobavision.be Downloaded From TV-Manual.com Manuals...
