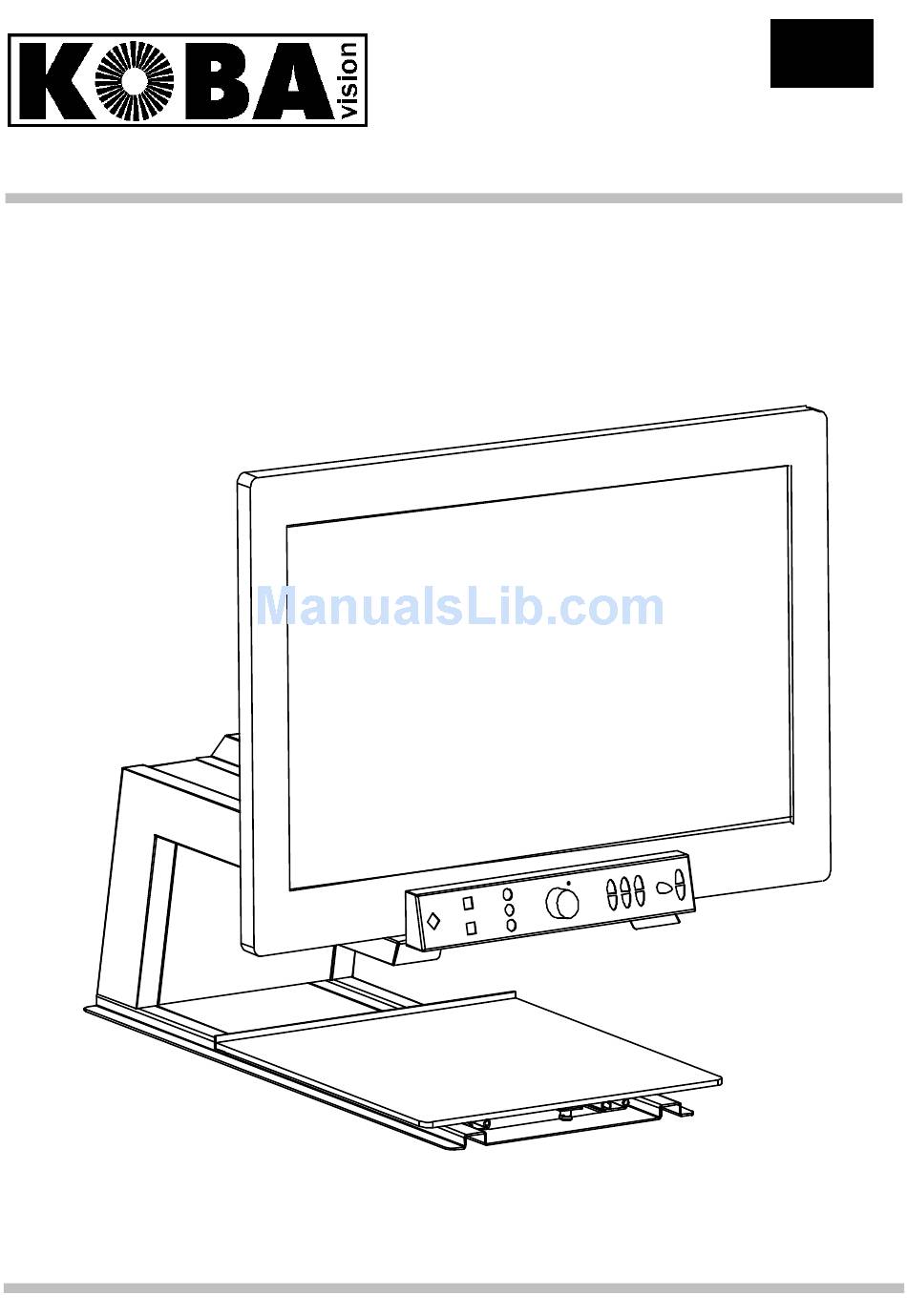

- Page 1 KOBA VISION Video magnifiers EasyViewer Silver Quartz HD User Manual...
- Page 2 Quartz HD 3.1. (HD) In combination with screen: Samsung LE32A558. Slight differences are possible if other verions or screens are used. The latest versions of the manual can be downloaded from the KOBA Vision website: http://www.kobavision.be. Release date: Monday, 16 March 2009...
- Page 3 V I D E O M A G N I F I E R S User Manual KOBA Vision De Oude Hoeven 6 • 3971 Leopoldsburg • Belgium Tel +32 11 51 70 80 • Fax +32 11 51 70 81 info@kobavision.be...
-
Page 4: Table Of Contents
Index Index ......................... 2 Introduction ......................4 Video magnifier parts ........................4 Video magnifier EasyViewer, Silver, Quartz HD ................. 4 Screen ............................4 Adapter ............................5 HDMI-HDMI or HDMI-DVI connector ..................5 ... - Page 5 Troubleshooting ...................... 16 Warranty ........................17 Express warranty ..........................17 Warranty provisions ........................17 Service fulfillment ........................... 17 Data chart ....................... 18 EasyViewer ............................. 18 Silver ............................... 19 Quartz HD ............................20...
-
Page 6: Introduction
Suspension VESA 75/75, VESA 100/100, VESA 200/100, VESA 200/200 Main switch and remote receiver at the side Always ask KOBA Vision or your dealer whether your screen specifications are sufficient. Warning The screen is to be a ssembled and disassembled by authorized persons... -
Page 7: Adapter
I N T R O D U C T I O N Adapter To feed the device, yo u need to conn ect th e adapt er. On ly use th e v ideo magnifier in combination with adapter: AC Adapter FranMar FRA024-S09. HDMI-HDMI or HDMI-DVI connector You n eed a HDMI-HDMI of HMD I –D VI connector t o connect the video magn ifier t o the screen. -
Page 8: Safety And Maintenance Instructions
Never attempt to repai r the de vice by yo urself. It is dan gerous to remove prot ective covers which are there to prevent electric shock. Yo u m ust conta ct KOBA Vision or your dealer in case of defects. -
Page 9: Maintenance Instructions
S A F E T Y A N D M A I N T E N A N C E I N S T R U C T I O N S Warning You must be extremely cautious when moving the video magnifier. The video magnifier must not be picked up by the screen, the type panel, the light shades or the slide table. -
Page 10: First-Time Use
F I R S T - T I M E U S E Chapter First-time use You need to go through the following steps to use the video magnifier for the first time: Connect cables Set screen Check wether the device works Connecting cables HDMI OUT:... -
Page 11: Controls
C O N T R O L S Chapter Controls After having successfully connected and tested the video magnifier, we will now go into the controls and the operation of the video magnifier. Switching on/off Switching on 1. Press the button to switch on the screen. (1) 2. -
Page 12: Brief Manual
C O N T R O L S Brief manual... - Page 13 Photo mode Positive reading (white background - black letters) Font colours: push once more 3/4/5 Switch between black-white, white-black, colour, black-green, black yellow (only EasyViewer) Factory settings Help More contrast Less contrast More brightness (photo mode) More background (negative and positive...
-
Page 14: Slide Table
Negative reading Press button 3 to activate negative mode. (Negative: black background and white letters) EasyViewer: Buttons 3/4/5 are used for switching between: Black-White, Color, White- Black, Black-Green, Black-Yellow. -
Page 15: Positive Reading
C O N T R O L S Positive reading Press button 5 to activate positive mode. (Positive: White background and black letters) EasyViewer: Buttons 3/4/5 are used for switching between: Black-White, Color, White- Black, Black-Green, Black-Yellow. Quartz HD and Silver: By pressing button 5 once more, background colours will change. -
Page 16: Lighting
C O N T R O L S Press turning knob 14 to activate the reading line. You can set the position (higher/lower) by turning. You can select the line colour by turning and pressing. Press turning knob 14 on ce more to acti vate the readi ng bar . Yo u can se t t he posi tion (higher/lower) by turning. -
Page 17: Usage Tips
This will allow you to filter out the structure of a sheet. This unique KOBA Vision function al lows yo u at al l ti mes t o set a contra sty bac kground wi thout an noying pape r impurities. -
Page 18: Troubleshooting
Chapter Troubleshooting Below is a l ist of problems t hat may occur w ith y our v ideo magn ifier. C onsult th e l ist f irst before contacting KOBA Vision or your dealer. Symptom Possible causes What to do No display on •... -
Page 19: Warranty
2. Consequential loss is under no circumstances covered by the warranty. KOBA Vision bv ba w ill n either assume an y liabi lity w hatsoever n or accept any possibil ity of liability ex cept f or the warranty prov isions ex pressedly st ated abov e. This limit ation t o th e liability does n ot imply a breach of th e customer’s legal consumer rights or his or her rights... -
Page 20: Data Chart
D A T A C H A R T Chapter Data chart EasyViewer Type: KOBA Vision EasyViewer Inputs: HDMI OUT, POWER IN Power supply: Input: 9V DC 2,22A (MAX) 50-60Hz Max. Power: 20W Standby Power: 0,06W Measurements (without screen) 270 x 415 x 580 mm... -
Page 21: Silver
D A T A C H A R T Silver Type: KOBA Vision Silver Inputs: HDMI OUT, POWER IN Power supply: Input: 9V DC 2,22A (MAX) 50-60Hz Max. Power: 20W Standby Power: 0,06W Measurements (without screen) 270 x 415 x 580 mm... -
Page 22: Quartz Hd
D A T A C H A R T Quartz HD Type: KOBA Vision Quartz HD Inputs: HDMI OUT, POWER IN Power supply: Input: 9V DC 2,22A (MAX) 50-60Hz Max. Power: 20W Standby Power: 0,06W Measurements (without screen) 270 x 415 x 580 mm... - Page 24 2009 KOBA Vision De Oude Hoeven 6 • 3971 Leopoldsburg • Belgium Tel +32 11 51 70 80 • Fax +32 11 51 70 81 info@kobavision.be http://www.kobavision.be...
