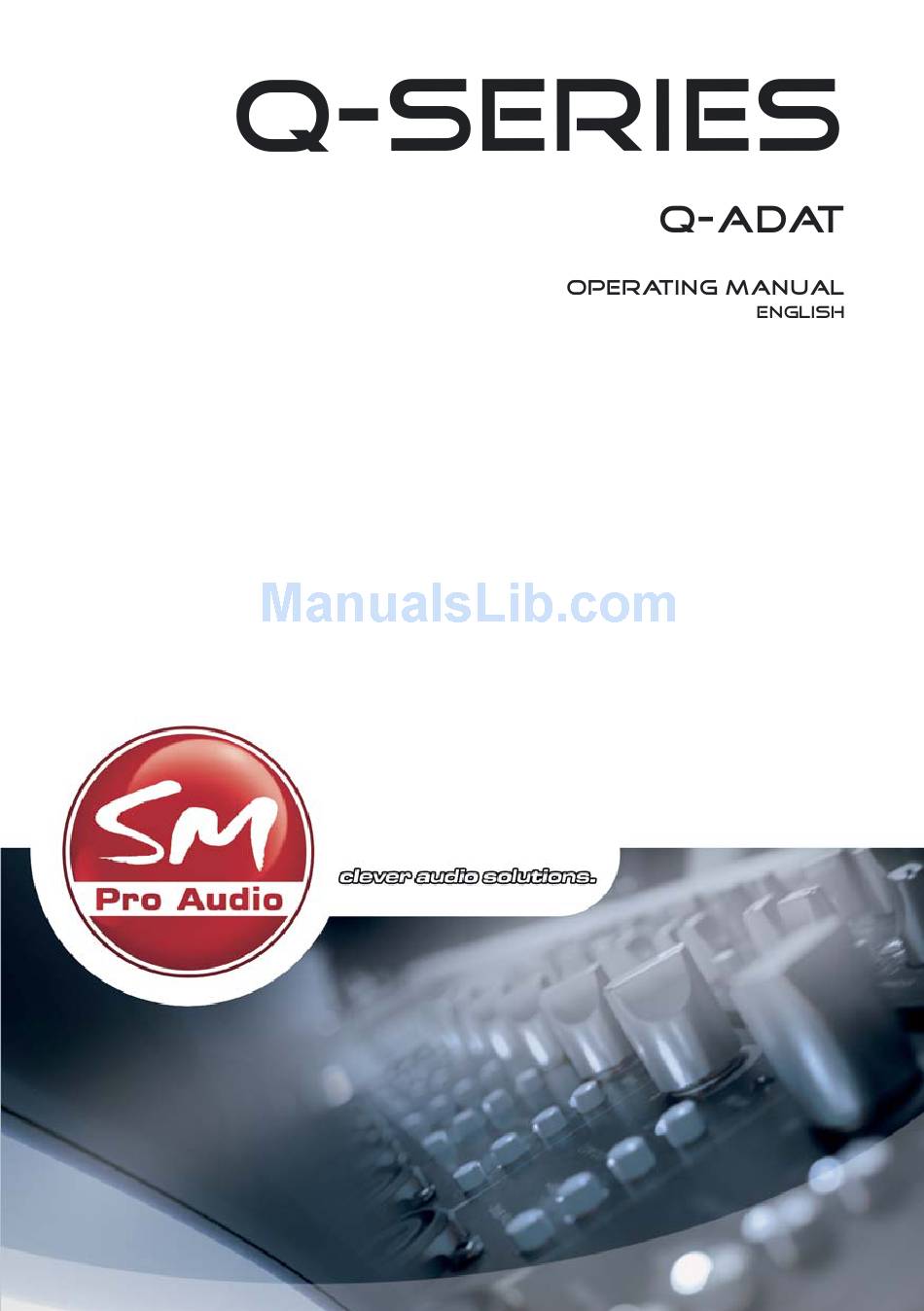

SM Pro Audio Q-ADAT Operating Manual

SM Pro Audio Q-ADAT Operating Manual

Q-series professional, multi-purpose headphone amplifier system for stage and studio applications

Advertisement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Q-ADAT and is the answer not in the manual?

Questions and answers

Summary of Contents for SM Pro Audio Q-ADAT

  • Page 2: Detailed Safety Instructions

    SAFETY INSTRUCTIONS CAUTION: To reduce the risk of electrical shock, do not remove the cover or rear panel of this unit. No user serviceable parts inside. Please refer servicing to qualified personnel only. WARNING: To reduce the risk of fire or electrical shock do not expose this appliance to rain or moisture.
  • Page 3: Installation

    FOREWORD Dear Customer, Thank you very much for expressing your confidence in SM Pro Audio products by pur- chasing this unit. The Q-Series have been designed to be used as standard tools for home/pro studios, P.A. rental companies, Schools and in many other situations where audio products would be used.
  • Page 4 4. Q-ADAT FRONT panel Analog inputs Eight (8) unbalanced inputs are provided on the front panel of the Q-ADAT. Use stan- dard 1/4” audio cables to connect your analog source signal to the Q-ADAT. The Q-ADAT is designed to function accepting -10dB line level signals.
  • Page 5 5. Q-ADAT Back panel ADAT optical output On the rear of the Q-ADAT there is 1 x ADAT® optical light-pipe output connector. It is co- vered with a small black plastic protector plug. Please remove the plastic connector plug before connecting your optical cable. Simply connect a standard optical cable from this output to your des- tination devices ADAT®...
  • Page 6 Q-ADAT. If you need to to daisy chain addi- tional connections simply connect the word clock output of the Q-ADAT to any further devices word clock inputs.
  • Page 7: Specifications

    7. SPECIFICATIONS Analog Stage Connectors: 1/4” TS Type: unbalanced Signal to Noise ratio: 107 dB RMS unweighted THD: < -110 dB, < 0.0012 % THD+N: < -104 dB, < 0.0021 % Cross talk: > 102 dB Frequency response AD, -0.1 dB: 20 Hz – 20 kHz Input impedance Line: 10 kOhm Input level: -10 dBV Digital Stage...
  • Page 8: Warranty

    If any defects occur within the specified warranty period that are not caused by normal wear or inappropriate use, SM Pro Audio shall, at its sole discretion, either repair or replace the product.
  • Page 9: Warranty Regulations

    The warranty does not cover any such modification/adaptation, irrespective of whether it was carried out properly or not. Under the terms of this warranty, SM Pro Audio shall not be held responsible for any cost resulting from such a modification/adaptation.
