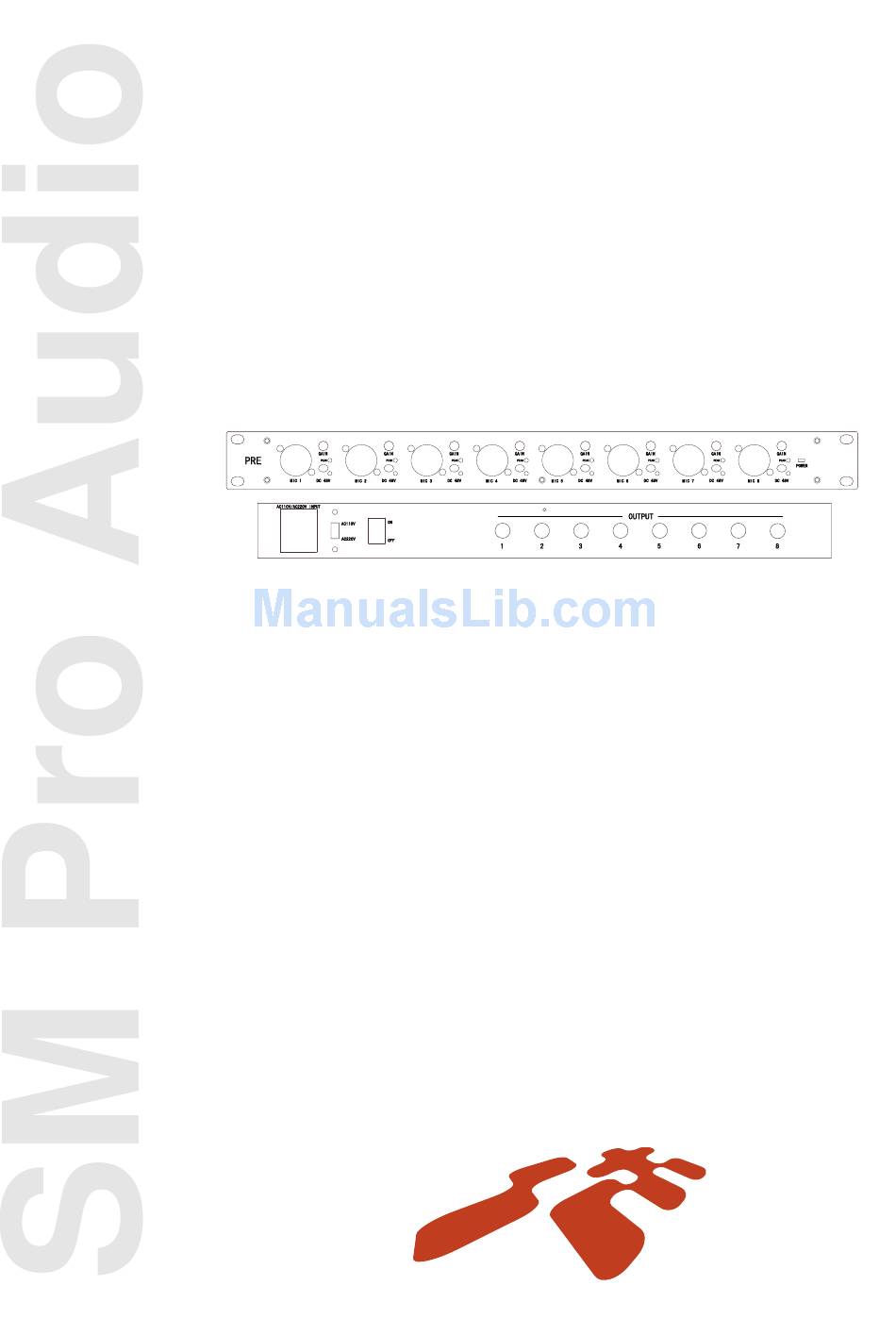

- Page 1 SM Pro Audio Operating Manual - SM PR8 Version 1.0 April 2001 www.SMProAudio.com...
- Page 2 SAFETY INSTRUCTIONS CAUTION: To reduce the risk of electrical shock, do not remove the cover or rear panel of this unit. No user serviceable parts inside. Please refer servicing to qualified personnel only. WARNING: To reduce the risk of fire or electrical shock do not expose this appliance to rain or moisture.
- Page 3 Thank you very much for expressing your confidence in SM ProAudio products by purchasing this unit. The SM PR8 has been designed to be used as a standard tool for home/pro studios. With much experience in the audio industry over a long period of time, and along with valuable suggestions from our customers, our engineers have developed a product we know you will be satisfied with.
-
Page 4: Table Of Contents
3.1 Rack mounting 3.2 Mains voltage 3.3 Audio connections 4. FRONT PANEL CONTROLS 4.1 Independent (8 x) rotary pre-amplifier gain controls 4.2 Independent (8 x) phantom power switches 5. APPLICATION 5.1 Using the SM PR8 6. SPECIFICATIONS 7. WARRANTY Table of Contents... -
Page 5: Introduction
1. INTRODUCTION In purchasing the new SM PR8, you have acquired a multi-channel pre-amplifier of high class that meets many of the demands of the home/pro studio. The market size for digital audio interfaces and computer based digital editing has increased in a massive way. -
Page 6: Installation
Shipping claims must be made by the consignee. 3.1 Rack Mounting The SM ProAudio SM PR8 fits into one standard 19" rack unit of space (1 3/4"). Be sure that there is enough air space around the unit for cooling. As to avoid overheating, please do not place the SM PR8 on high temperature devices such as power amplifiers. - Page 7 4. CONTROLS SM PR8 front panel The SM PR8 has eight independent pre-amplifiers channels. The unit provides variable rotary gain controls, phantom power and peak indicator lights per channel. 4.1 The front panel rotary gain controls Each channel features a rotary gain control for variable adjustment of the desired pre-amplifier level.
-
Page 8: Application
5. APPLICATION 5.1 Using the SM PR8 It could not be simpler to use and operate the SM PR8. Each of the eight pre-amplifier channels has its own input and output and variable gain control. Three steps: 1. Simply connect a signal for processing to one of the XLR balanced inputs on the front of the SM PR8. -
Page 9: Specifications
6. SPECIFICATIONS AUDIO INPUTS & PRE AMPS Connectors Type balanced Impedance 2k Ohms Min Sensitivity -40dB Peak input level +5dB Gain control range 50dB Peak amplification 74dB Phantom power +48V, switchable AUDIO OUTPUTS Connectors 1/4" jack Type TRS Balanced Impedance 600 Ohmns Peak output level +18.5dB... -
Page 10: Warranty
SM ProAudio will then issue a return authorization number. 2. The product must be returned in its original shipping carton, together with the return authorization number, to the following address: SM Pro Audio Service Department 720 Glenhuntly Rd... - Page 11 4 WARRANTY REGULATIONS 1. Warranty services will be furnished only if the product is accompanied by an original retail dealer's invoice. Any product deemed eligible for repair or replacement by SM ProAudio under the terms of this warranty will be repaired or replaced within 30 days of receipt of the product at SM ProAudio.
- Page 12 SM ProAudio. ALL RIGHTS RESERVED © 2001 SM ProAudio SM Pro Audio 720 Glenhuntly Rd Caulfield South Melbourne, Victoria...
- Page 13 8 CONFORMITY EG-Declaration of Conformity acc. to the Directives 89/336/EWG and 73/23/EWG SM Pro Audio International Pty Ltd 720 Glenhuntly Rd Caulfied, Melbourne, Victoria Australia 3162 Name and address of the manufacturer or the introducer of the product on the market who is established in the EC...
