- Page 2 SAFETY INSTRUCTIONS CAUTION: To reduce the risk of electrical shock, do not remove the cover or rear panel of this unit. No user serviceable parts inside. Please refer servicing to qualified personnel only. WARNING: To reduce the risk of fire or electrical shock do not expose this appliance to rain or moisture.
- Page 3 Thank you very much for expressing your confidence in SM Pro Audio products by purchasing this unit. The SM PR8E has been designed to be used as a standard tool for home/pro studios. With much experience in the audio industry over a long period of time, and along with valuable suggestions from our customers, our engineers have developed a product we know you will be satisfied with.
-
Page 4: Table Of Contents
4.2 Independent (8 x) phantom power switches 4.3 Independent (8 x) phantom power indicators 4.4 Independent (8 x) peak light indicators 5. REAR PANEL CONTROLS 5.1 Independent (8 x) phase reverse switches 6. APPLICATION 6.1 Using the SM PR8E 7. SPECIFICATIONS 8. WARRANTY Table of Contents... -
Page 5: Introduction

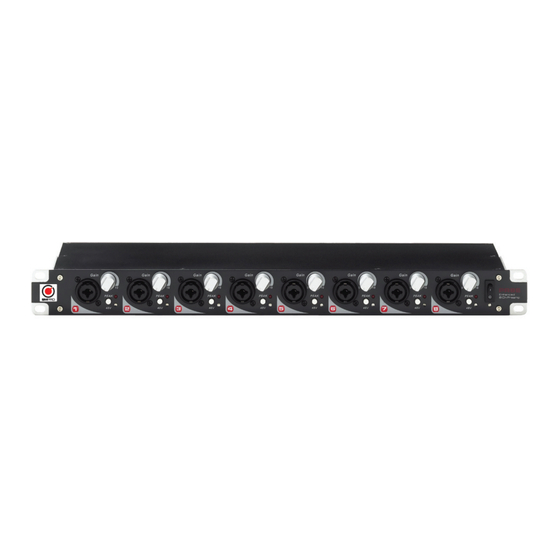

Phantom power. The PR8E comes to the rescue with 8 x channels of balanced input, with a full range of gain con- trol from -20dB to +40dB, Phantom power and phase reversal switches for every channel. This single rack unit can now solve many of the connectivity issues whether in the Studio, home, club installation or other live sound applications. -
Page 6: Installation
3.1 Rack Mounting The SM Pro Audio SM PR8E fits into one standard 19" rack unit of space (1 3/4"). Be sure that there is enough air space around the unit for cooling. As to avoid overheating, please do not place the SM PR8E on high temperature devices such as power amplifiers. -
Page 8: Application
6. APPLICATION 6.1 Using the SM PR8E It could not be simpler to use and operate the SM PR8E. Each of the eight pre-amplifier channels has its own input, output and variable gain control. Four simple steps: 1. Simply connect a signal for processing to one of the combo connector inputs on the front of the SM PR8E. -
Page 9: Specifications
7. SPECIFICATIONS AUDIO INPUTS & PRE AMPS Mic Input: Connector: XLR COMBO connector Type: Balanced Impedance: 4K7 Ohms Min sensitivity: -60 dB Peak input level: +9.5 dB Phantom Power: +48V, switchable Line Input: Type: Balanced ¼" on combo Impedance: Min sensitivity -35dB Peak input level: +32 dB... -
Page 10: Warranty
SM ProAudio will then issue a return authorization number. 2. The product must be returned in its original shipping carton, together with the return authorization number, to the following address: SM Pro Audio Service Department W25, 26-28 Roberna St... - Page 11 4 WARRANTY REGULATIONS 1. Warranty services will be furnished only if the product is accompanied by an original retail dealer's invoice. Any product deemed eligible for repair or replacement by SM ProAudio under the terms of this warranty will be repaired or replaced within 30 days of receipt of the product at SM ProAudio.
- Page 12 SM ProAudio. ALL RIGHTS RESERVED © 2005 SM ProAudio SM Pro Audio Service Department W25, 26-28 Roberna St Moorabbin...
