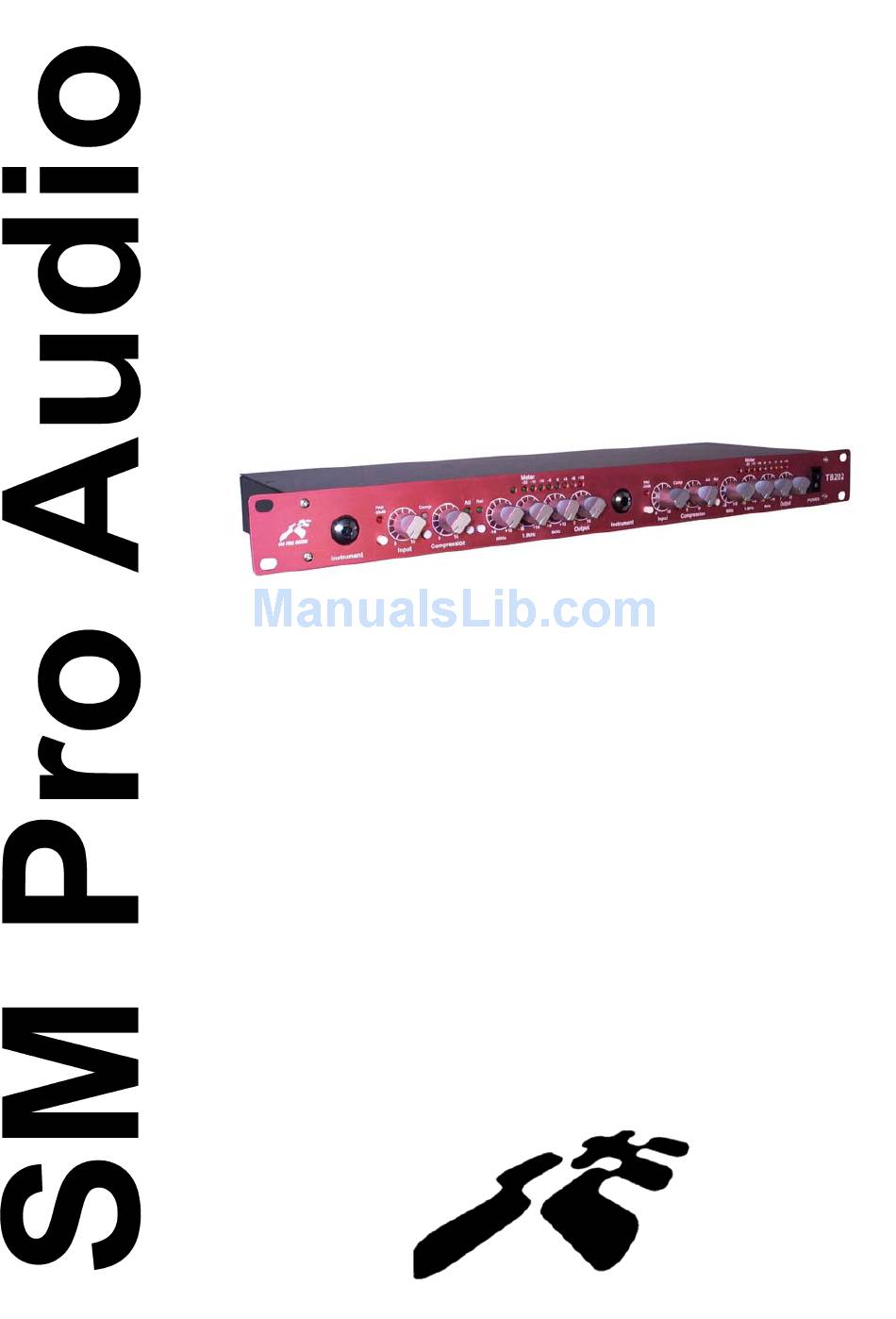

- Page 1 SM Pro Audio Operating Manual - TB101/202 Version 1.0 Feb 2004 www.SMProAudio.com...
- Page 2 SAFETY INSTRUCTIONS CAUTION: To reduce the risk of electrical shock, do not remove the cover or rear panel of this unit. No user serviceable parts inside. Please refer servicing to qualified personnel only. WARNING: To reduce the risk of fire or electrical shock do not expose this appliance to rain or moisture.
- Page 3 Thank you very much for expressing your confidence in SM ProAudio products by purchasing this unit. The SM TB101/TB202 units have been designed to be used as a standard tool for home/pro studios. With much experience in the audio industry over a long period of time, and along with valuable suggestions from our customers, our engineers have developed a product we know you will be satisfied with.
-
Page 4: Table Of Contents
3.2 Mains power 3.3 Audio connections 4. FRONT PANEL CONTROLS 4.1 Input stage 4.2 Compressor stage 4.3 EQ Stage 4.4 Output stage 5. REAR PANEL CONTROLS 6. APPLICATION 6.1 Using the SM TB101/202 7. SPECIFICATIONS 8. WARRANTY Table of Contents... -
Page 5: Introduction

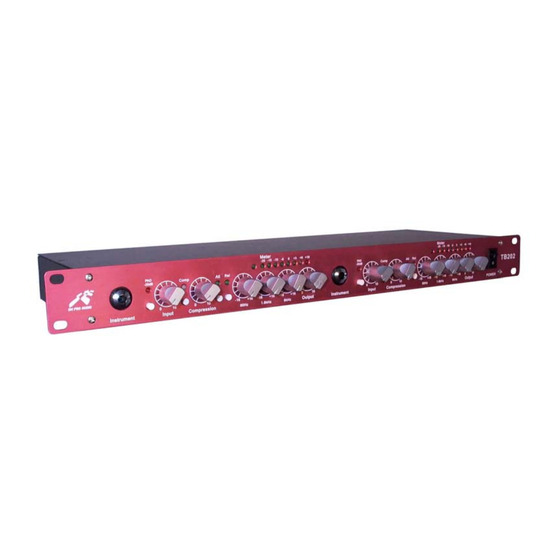

For your reference in this manual, the TB101 and TB202 units are either single or dual channel designs of the same circuitry. The TB101 is the single channel unit that is half rack size, whereas the TB202 is a dual channel unit, just like 2 x TB101’s side by side. -
Page 6: Installation
3.3 Audio connections Analog inputs Front Panel - On the front of the SM TB101/202 you will fine the 1/4” jack instrument input/s marked ‘instrument’. Rear Panel - On the rear of the SM TB101/202 you will find the XLR balanced microphone input/s marked ‘Input’. -
Page 7: Front Panel Controls
-20dB PAD switch The PAD switch enables or disable the PAD which reduces the input signal by 20dB. Useful if your incoming signal is too powerful and cannot be reduced prior to insertion into the TB101/202. LED clip indicator The clip indicator LED illuminates when there is too much incoming signal strength. -
Page 8: Eq Stage
4.3 EQ Stage 80Hz low shelving rotary control This rotary control allows for cutting or boosting an 80Hz low shelving EQ by approx 16dB. 1.8kHz low shelving EQ rotary control This rotary control allows for cutting or boosting a 1.8kHz mid-frequency by approx 16dB. 8kHz high shelving EQ rotary control This rotary control allows for cutting or boosting an 8kHz high shelving EQ by approx 16dB. -
Page 9: Application
6. APPLICATION 6.1 Using the SM TB101/202 It could not be simpler to use and operate the SM TB101/202. Step by step: Make your physical connections ... Simply make your signal connections by either connecting an instrument (guitar, bass, etc) to the instrument input on the front panel, or connecting a microphone to the XLR mic input on the rear of the unit. -
Page 10: Specifications
7. SPECIFICATIONS AUDIO INPUTS Mic input connector XLR balanced Impedance 3k Ohms Mic input gain 10dB to 60dB Phase reversal switchable Phantom power +48V, switchable Instrument input con. 1/4" jack unbalanced Instrument input gain 0dB to 45dB AUDIO OUTPUTS Connectors XLR &... -
Page 11: Warranty
SM ProAudio will then issue a return authorization number. 2. The product must be returned in its original shipping carton, together with the return authorization number, to the following address: SM Pro Audio Service Department Warehouse 25... - Page 12 4 WARRANTY REGULATIONS 1. Warranty services will be furnished only if the product is accompanied by an original retail dealer's invoice. Any product deemed eligible for repair or replacement by SM ProAudio under the terms of this warranty will be repaired or replaced within 30 days of receipt of the product at SM ProAudio.
- Page 13 SM ProAudio. ALL RIGHTS RESERVED © 2001 SM ProAudio SM Pro Audio Service Department Warehouse 25 Roberna Business Park...
