Eastman kodak company user's guide digital video camera dvc325

Advertisement

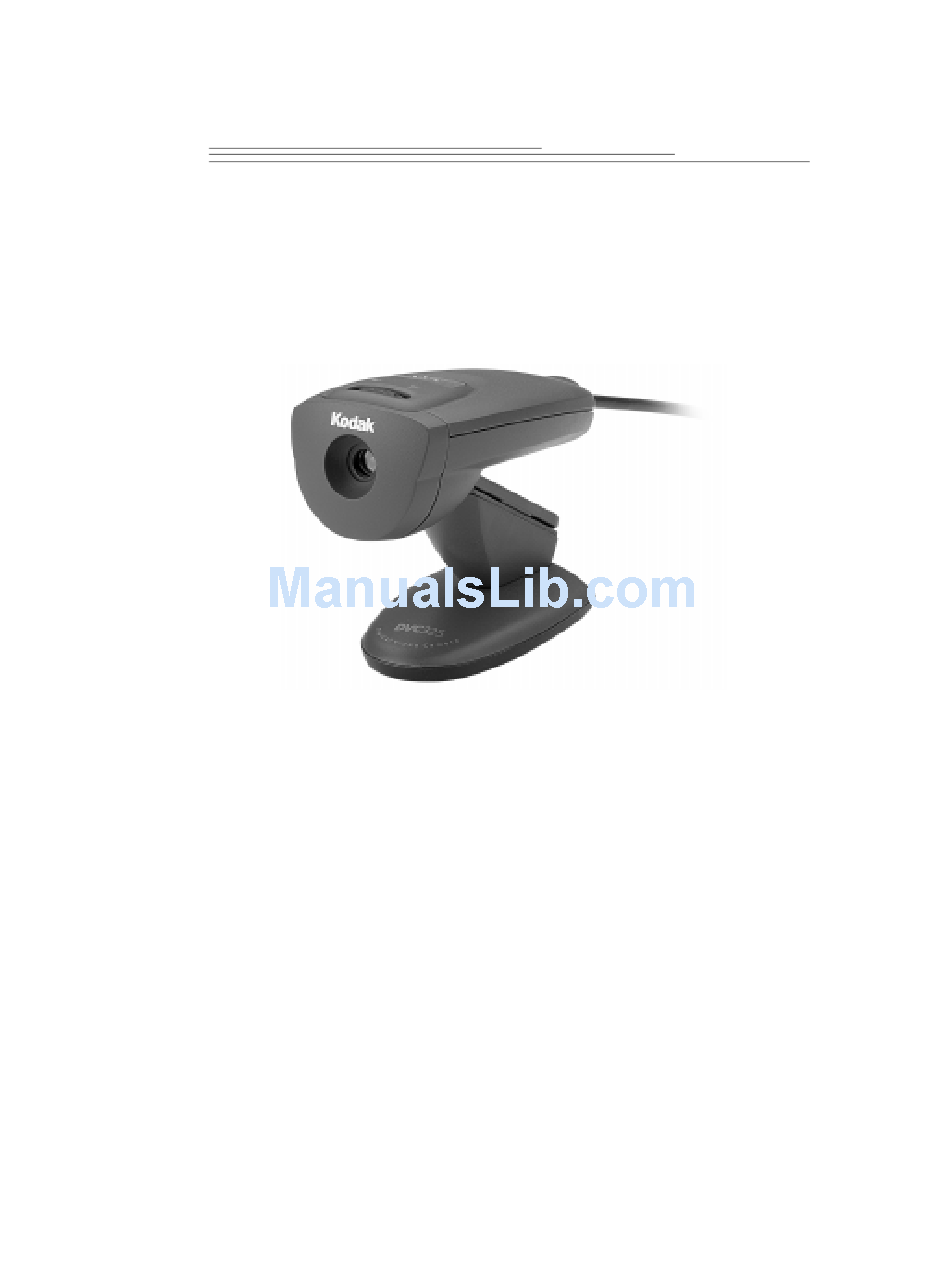

KODAK
DVC325
Digital Video Camera
WIll Be Replaced
User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVC325 and is the answer not in the manual?

Questions and answers

Summary of Contents for Kodak DVC325

  • Page 1 KODAK DVC325 Digital Video Camera WIll Be Replaced User’s Guide...
  • Page 2 The information contained in this manual is subject to change without notice. Eastman Kodak Company makes no warranty of any kind with regard to this written material. Eastman Kodak Company assumes no responsibility for any errors that may appear in this document.
  • Page 3: Table Of Contents

    The DVC325 ........
  • Page 4 Application Software Support Companies ....28 KODAK Customer Support ......29 Warranty and Regulatory Information .
  • Page 5: Introduction

    The KODAK DVC325 Digital Video Camera The KODAK DVC325 Digital Video Camera packs power, fun, and surprising image quality into one compact computer camera. The DVC325 is the easy, fun way to capture and share digital pictures and videos. The camera is small and light enough to be used as a hand-held unit.
  • Page 6: Package Contents

    Package Contents The DVC325 package contains the following items. DVC325 camera with an integrated Universal Serial Bus (USB) cable and a detachable base Laptop mount DVC325 Software CD User’s Guide Quick Set Up Guide Registration/Warranty card Note: Save all packing material in case you need to pack and ship the camera...
  • Page 7: The Dvc325

    The DVC325 Focus Wheel TOP VIEW DVC325 Detachable Base Camera Part Description Shutter Button Press the shutter button to take pictures. You can also take pictures using the software applications. Focus Wheel Use the focus wheel to adjust the lens and sharpen the image you are capturing from 4 in.
  • Page 8: Minimum System Requirements

    Minimum System Requirements To use the DVC325, the computer must have the following minimum hardware and software requirements. Additional requirements are necessary for recording audio and for video conferences. Hardware Requirements Processor a 166 MHz Pentium MMX processor or faster...
  • Page 9: Audio Recording Requirements

    Audio Recording Requirements If you are going to use the DVC325 for recording video clips with sound, the computer system must also contain the following components: a microphone a 16-bit sound system speakers or headphones Video Conference Requirements If you are going to use the DVC325 for video conferences, the computer system...
  • Page 10: Camera Specifications

    Camera Specifications Item Imaging Image sensor electronics Sensor resolution Picture resolution Video image resolution Video compression File formats Video stream format White balance Exposure Minimum illumination Signal-to-Noise ratio Optics Lens Electronic shutter Lens focal length Focus range Field of view ISO equivalent Interface Computer interface and...
  • Page 11: Installation

    Installation of the KODAK DVC325 Digital Video Camera involves three short steps: installing the software connecting the camera adjusting the monitor Installing the Software To use the DVC325, the following software applications must be installed: the TWAIN Acquire software the DVC325 device drivers...
  • Page 12 You can also register the camera by using: - www.kodak.com/go/register - the registration card enclosed with the camera When all installations have been completed, click Exit and remove the DVC325 Software CD from the CD-ROM drive. Store the CD in a safe place.
  • Page 13: Connecting The Camera

    CD on the hard drive. Adjusting the Monitor To view pictures from the DVC325, you may need to use the computer Control Panel settings to adjust the display properties for the monitor colors (24 or 16 bit True Color) and the screen area (600 x 800 or higher).
  • Page 14: Camera Mount Locations

    Remove the detachable base for hand-held or laptop mount operation. Attach the laptop mount to a laptop PC or monitor. Attach the camera to the mount for added flexibility. DVC325 Detachable Base LAPTOP MOUNT Tripod Mount...
  • Page 15: Capturing Pictures And Videos

    KODAK TWAIN Acquire software ADOBE ACROBAT READER Software Overviews The DVC325 is designed for use with the PRESTO! software applications or NETMEETING software. Together, the camera and these software applications make it easy to: capture still pictures or record, edit, and enhance video clips with...
  • Page 16: Presto! Videoworks Software

    To begin, all you have to do is capture a video sequence or a still image with the DVC325. You can combine video sequences, add transition effects, and add audio sequences. You can add headlines, scrolling credits, moving text along a defined path, and special video effects like swirls, ripples, and mosaics.
  • Page 17: Presto! Mr. Photo Software

    Note: If the DVC325 is the only camera on your system or it is the last one you used, it will become the default and the only option that is displayed. To capture a still image using the DVC325 with PRESTO! VIDEOWORKS, Select Capture.
  • Page 18 Select the camera icon instead of Steps 1, 2, and 3 (Input, Digital Camera Input Setting, and DVC325). Notes: • If the DVC325 is the only camera on your system or it is the last one you used, it will become the default and the only option that is displayed.
  • Page 19: Microsoft Netmeeting Software

    To launch NETMEETING software, Select Start Select NetMeeting. To use the DVC325 with NETMEETING software, Click Current Call to display two video windows. Click Play on the My Video window to view your own live video. If your video image does not appear, select Video on the Tools pull-down menu.
  • Page 20: Kodak Twain Acquire Software

    KODAK TWAIN Acquire Software KODAK TWAIN Acquire software acts as an interpreter between the camera and the software applications. It allows them to talk to each other. Without the TWAIN Acquire software the DVC325 cannot acquire images with software applications such as PRESTO! MR. PHOTO. TWAIN Acquire software allows you to capture a picture and transfer it to any TWAIN-compliant software application.
  • Page 21: Acquiring A Picture Using The Dvc325 And The Kodak Twain Acquire Software

    “Exit.” Use this button to exit from the TWAIN Acquire software. Acquiring a Picture Using the DVC325 and the KODAK TWAIN Acquire Software Set the Video Size to the desired size. Use the Image Process sliders to adjust the Brightness and Contrast; or use the automatic settings.
  • Page 22: Using Your Own Imaging Applications

    Using Your Own Imaging Applications The following three steps describe how to use the DVC325 with other TWAIN-compliant applications such as ADOBE PHOTOSHOP, Microsoft PICTURE IT!, and other applications. To open the TWAIN Acquire software from another TWAIN-compliant application: Select START, then Programs, then (your application) and open the application.
  • Page 23: Taking Better Pictures

    You can improve the quality of your pictures by following some simple hints about: Steadiness and Composition Lighting Color balance Steadiness and Composition Mount the camera on a steady surface such as the computer or a desk. You can also use a standard tripod to keep the camera stable. Position the subject in the center of the image area.
  • Page 24: Lighting

    Color Balance The DVC325 has automatic and manual color balance options. When Auto White Balance is selected from the “Image Process” menu of the TWAIN Aquire software, the software automatically adjusts the colors for the current lighting conditions.
  • Page 25: Troubleshooting And Maintenance

    Troubleshooting and Maintenance Troubleshooting If you are having problems with your KODAK DVC325 Digital Video Camera, or are having trouble viewing images from your DVC325, refer to the following table for possible solutions. Problem Cause The camera is not No power is coming to capturing any the USB port.
  • Page 26 Reboot the computer with the camera connected. Use the computer’s Add/Remove Program option to remove the DVC325 software and then re-install the DVC325 software. Rotate the focus wheel on the camera until the image is sharp. If you are in low light, place the camera in its base and on a stable surface.
  • Page 27 Pictures or videos There is not enough light are too dark. or the auto exposure is keying in on a bright area of the scene. Pictures or Videos There is too much light are too light. or the auto exposure is keying on a dark area of the scene.
  • Page 28 No image appears There is not enough or the image is band-width available for just a mix of the USB bus to transfer colors. video data without errors. The response to There is not enough the application band-width available for picture selection the USB bus to transfer during a capture is...
  • Page 29: Maintenance And Safety

    To maintain the performance of your DVC325, avoid exposing it to moisture and extreme temperatures. Clean the outside of the DVC325 by wiping it with a clean, dry cloth. Never use: Harsh or abrasive cleaners or organic solvents on the camera or any of its parts.
  • Page 31: Help And Service

    Help and Service Help with your KODAK DVC325 Digital Video Camera is available from several sources. In the Troubleshooting Problems chapter. The place where you purchased the camera Online services FAX information The application software companies KODAK customer support Online Services...
  • Page 32: Application Software Support Companies

    Application Software Support Companies For application-specific technical assistance, use the software support contacts listed below. PRESTO! MR. PHOTO software PRESTO! VIDEOWORKS software NETMEETING and ACROBAT READER software U.S.A. NewSoft America Inc. 4113 Clipper Court Fremont, CA 94538 Tel: 510-445-8606 FAX: 510-445-8601 Technical Support Hot Line: 1-510-445-8616 e-mail: tech@newsoftinc.com web (NewSoft Support page):...
  • Page 33: Kodak Customer Support

    KODAK Customer Support If you have questions concerning the operation of the DVC325, you may speak to a KODAK customer support representative. Have the DVC325 connected to the computer, its serial number ready, and be at the computer with the computer turned on when you call.
  • Page 34 Country or Region Help Number Italy 02-696-334-52 Japan 81-3-5488-2390 Korea 82-2-708-5400 Latin America 1-305-267-4700 Lebanon 961-1-883822 Malaysia 60-3-757-2722 Mexico 52-5-449-4300 Middle East 971-4-444-910 Netherlands 020-346-9372 New Zealand 0800-500-135 Norway 23-16-21-33 Panama 52-3-678-6200 Peru 51-1-224-8610 Philippines 63-2-810-0331 Portugal 351-1-4149-500 Russia 7-095-929-9166 Singapore 65-470-9875 South Africa...
  • Page 35: Warranty And Regulatory Information

    If the equipment does not function properly during the warranty period due to defects in either materials or workmanship, Kodak will, at its option, either repair or replace the equipment without charge, subject to the conditions and limitations stated herein.
  • Page 36: Limitations

    Depending on your geographical location, some limitations and exclusions may not apply. Unless a specific KODAK warranty is communicated to the purchaser in writing by a KODAK company, no other warranty or liability exists beyond the information contained above, even though defect, damage or loss may be caused...
  • Page 37: How To Obtain Service

    How to Obtain Service To obtain warranty repair service, contact KODAK service at the phone numbers listed in Chapter 6, Help and Service. Regulatory Information FCC Compliance and Advisory This device complies with Part 15 of the FCC Rules. Operation is subject to the...
  • Page 38: Canadian Doc Statement

    Canadian DOC Statement DOC Class B Compliance—This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the radio interference regulations of the Canadian Department of Communications. Obervation des normes-Class B—Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la Classe B prescrites dans les règlements sur le brouillage redioélectrique édictés par le Ministère des Communications du Canada.
