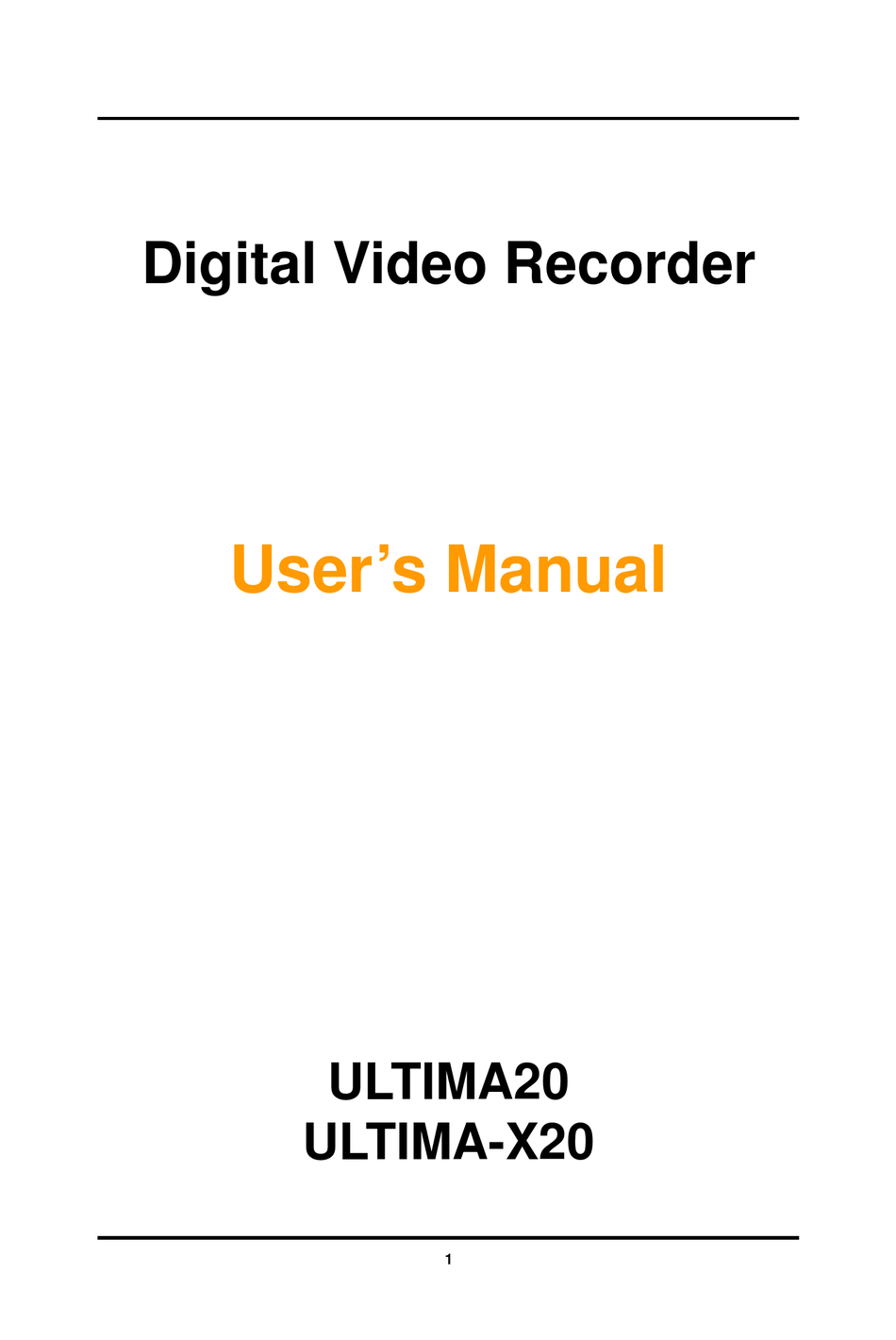

  • Page 1 Digital Video Recorder User’s Manual User s Manual ULTIMA20 ULTIMA X20 ULTIMA-X20...
  • Page 2 Thank you for using our product. 1. This is user's manual for H.264 20CH DVR (Digital Video Recorder). 2. This manual contains product specification and introduction, installation guide, operating guide and other necessary matters for easy understanding. Users should read this user's manual carefully for proper use. 3.

  • Page 3: Table Of Contents

    CONTENTS Contents CH 1. Product Introduction 1-1. Product Contents 1-2. Specifications 1-3. Product Characteristics 1-4. Name of Each Part CH 2. Installation Guide and Cautions 2-1. Cautions 2-2. Product Installation 2-2-1. Power Connection 2 2 2 Connecting External Device 2-2-2. Connecting External Device CH 3.
  • Page 4 CONTENTS Contents 3-5. Firmware Upgrade Trouble Shooting Warranty Appendix A How to Connect Receiver (ULTIMA-X Only) Appendix B How to Connect POS...

  • Page 5: Ch1. Product Introduction

    CH 1 Product Introduction CH1. Product Introduction 1-1. Product Contents After removing packing materials of this product, check whether all following contents are included. Main Body (DVR): This converts the analog video and audio signal to the digital signal and saves on HDD. Adapter: This 12V adapter supplies power to the product.

  • Page 6: Specifications

    CH 1 Product Introduction 1-2. Specifications Image Input/Output : NTSC / PAL Recording Speed : NTSC - 1~600fps(20ch/D1) PAL - 1~500fps(20ch/D1) Compression Method : H.264 Technology Power : DC12V, 6.7A (DC adapter) Power Consumption : 60W External Terminal : Video Input - BNC 20CH Loop out - BNC 20CH Video Output - SPOT 1CH, VGA 1CH, HD output 1CH Audio Input - RCA 16CH...

  • Page 7: Product Characteristics

    CH 1 Product Introduction 1-3. Product Characteristics 1) New Video Configuration optimized 16:9 widescreen This is the revolutionary 20CH D1 real time DVR for 16:9 widescreen even use the 4:3 video source. Also it displays real HD(1920X1080) resolution, and therefore it provides the most clear image quality and the best security level.
  • Page 8 CH 1 Product Introduction 11) Display information in easy-to-understand information method This enhanced convenience of user by displaying information (date, time, recording b di l i (d t ti method, recording frame number, HDD capacity and others) in monitoring, recording and playing mode in easy-to-understand way.

  • Page 9: Name Of Each Part

    CH 1 Product Introduction 1-4. Name of Each Part [Front Panel] 2. Enter & Arrow Keys 1. Playback Buttons 3. Number Buttons 6. Jog Shuttle 4. Backup Device 5. IR Window 7. Status Ramps 8. USB 9. Function Keys 1. Playback buttons : It will be used on playback. If you press these buttons in live mode, it will be automatically changed to the Instant Play mode.
  • Page 10 CH 1 Product Introduction 6) ZOOM : It will go to the digital zoom directly. 7) PTZ : It will change to the pan, tilt and zoom control mode from the live mode. 8) LOCK/EXIT : If you want move to the upper menu or exit without saving, press 8) LOCK/EXIT : If you want move to the upper menu or exit without saving, press this button.

  • Page 11: Cautions

    CH 2 Installation Method and Cautions CH2. Installation Method and Cautions 2-1. Cautions WARNING Risk of electric shock. Do not open the cover of the product. Servicing of this product by unauthorized personnel is prohibited and will result in a void of warranty. In order to ensure the most stable conditions for power, the use of a UPS (Uninterrupted Power Supply) is recommended.
  • Page 12 CH 2 Installation Method and Cautions - Keep the power cord untwisted. (May cause fire or electric shock.) - Use proper adapter. (Using too much electric power may cause fire or electric shock.) - Do not install it at where exposed to rain and wind and water drop. (May cause fire, electric shock and transformation.) - Keep away from fire.
  • Page 13 CH 2 Installation Method and Cautions Note : This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to part 15 of the FCC Rules These limits are designed to digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 14: Product Installation

    CH 2 Installation Method and Cautions 2-2 Product Installation This product may be composed of camera and monitor in default, and additionally i d f lt d dditi the sensor, microphone, speaker and PC for network can be connected if necessary. 2-2-1.

  • Page 15: Connecting External Device

    CH 2 Installation Method and Cautions 2) How to connect external sensor Sensor terminal is composed of 1 input channel and 1 output channel. Sensor out terminal is relay output with 1A 24V or 0 5A 125V terminal is relay output with 1A, 24V or 0.5A,125V. SIREN SENSOR POWER...
  • Page 16 CH 2 Installation Method and Cautions 4) Connection Using PTZ camera In case of using pan and tilt cameras, connect PAN/TILT DRIVE to product as shown at following figure. t f ll SPEED RS485 CABLE VIDEO CABLE DOME 5) Installing Hard disk drive In case of installing the hard disk drive open the upper case and install the hard disk In case of installing the hard disk drive, open the upper case and install the hard disk drive on the hard bracket.

  • Page 17: Ch3. How To Use

    CH 3 How to Use CH3. How to Use 3-1. General Usage Information The ULTIMA series DVR can be operated with a mouse or remote controller under the four main modes listed below: Live Mode – This is the “main or default” mode. From this mode you can view in real time all currently operating cameras, information regarding camera status, and have access to Pan/Tilt camera controls.

  • Page 18: Live Mode

    CH 3 How to Use 3-2. LIVE Mode I hi In this section you will know how to split the video mode into 1, 4, 6, 8, 9, 12, 16, as ill k li h 1 4 6 8 9 12 16 well as auto sequencing, PTZ Control, Mouse control, Setup configurations, Backup 3-2-1.
  • Page 19 CH 3 How to Use Date Time Screen Split mode change Sequence activation Hard drive usage Lock/ Unlock indicator Scheduler activation indicator Audio out channel indicator Mute indicator 3) Live Popup Menu By Right-Clicking anywhere on Live Screen, you may view the Live Popup Menu. By using the Live Popup Menu, you can quickly jump to the necessary configuration and settings.

  • Page 20: Live Mode Feature

    CH 3 How to Use 3-2-2. LIVE Mode Feature 1) Split Change video split mode for Live View. 20ch : 1/6/12/20 Split Mode 2) Audio Out You can choose the audio out from this menu. 3) Instant Replay This is very convenient function to catch the abrupt accident. During live viewing, you can go directly to the playback screen.
  • Page 21 CH 3 How to Use 4) Backup There are two ways to enter the backup. The first one is that right click on the live t th b k Th fi t i th t i ht li k th li screen, and the second one is that enter directly from ‘Search’...
  • Page 22 CH 3 How to Use 5) PTZ (Pan, Tilt and Zoom) It i It is possible to control the pan and tilt camera by itself. Press the ‘PTZ’ button to ibl t t l th d tilt b it lf P th ‘PTZ’...
  • Page 23 CH 3 How to Use •Preset : You can enter the preset number using the keypad appearing the preset button or ‘Enter’ button on the remote controller. 6) Zoom Digital zoom of live screen for selected channel. It can be 2x zoom and also control the position by mouse dragging.
  • Page 24 CH 3 How to Use 7) Sequence Sequence Mode On /Off: Switches screens as set on Dwell time under Screen Setup 8) OSD This feature shows current settings of product through GUI (Graphic User Interface) and INFO button at front side is used for this feature. When you turn on power, this will show current date and time, System Lock Setting, HDD usage, Video Loss Check, Sensor ON/OFF, Motion Detection Check, Recording Stat us and Schedule Feature Usage.

  • Page 25: Search Mode

    CH 3 How to Use 3-3. Search Mode Search mode consists of two different modes of searching. The video data can be selected by Time or Event. Search Month / Day / Time selection. Select from Event Log 3-3-1. Search Selection Type 1) Time Based search selection - Select the Date you wish to view by selecting a Date from Calendar - Select time you wish to view by selecting a time from Time Line...
  • Page 26 CH 3 How to Use 2) Event Based Search Selection - Select search date from calendar - Event log will be displayed according to the chosen date - Preview pane above the Event Log will show preview of currently selected video - You may click on Refresh, Option, Backup, Import, To Live, To Play for additional features and options 3) Miscellaneous Search Options...

  • Page 27: Play Mode

    CH 3 How to Use 3-3-2. Play Mode If you choose ‘to play’, the full screen appear. You can control the play speed in here. ▶ Play Screen GUI 1. Split Screen 2. Sequence 3. FB (Fast Backward): FB×2, 4, 8, 16, 32, 64 times faster 4.

  • Page 28: Setup Mode

    CH 3 How to Use 3-4. SETUP Mode Access Setup menu from Right Clicking mouse button to Popup Menu. Ri ht Cli ki b tt Configure Display, Record, Device, Network, System which is navigated by clicking on corresponding tab menu at the top of the screen 3-4-1.
  • Page 29 CH 3 How to Use 2) Display Configure and view Monitor, Sequence Dwell Time settings. Configure and view Monitor, Sequence Dwell Time settings. Monitor : You can choose the monitor between VGA and composite. The screen size will be optimized with the selected monitor. Full Screen 4:3 ratio: Set the full screen ratio from 16:9 to 4:3 for getting original picture.
  • Page 30 CH 3 How to Use 3) Color Control Adjust color control for Video. You can adjust images of camera by channels. - Contrast: Adjust contrast of camera. - Brightness: Adjust brightness of camera. - Saturation: Adjust saturation of camera. - Hue: Adjust color of camera.

  • Page 31: Record

    CH 3 How to Use 3-4-2. Record Configure and view Event In, Record, Group, Holiday settings 1) Record With this menu, you can set the recording variables of DVR and the Scheduler. 1) Rec type: to set conti, event, C/E(conti and event) and none(not recording). 2) Audio Rec: to select audio recording or not.
  • Page 32 CH 3 How to Use ③ Quality: Set picture quality. As quality gets higher, screen quality gets better but saving period gets shorter because file size gets bigger. There are 4 steps quality such as Super, High, Medium and Low Hi h M di To save the setting, choose ‘Apply’...
  • Page 33 CH 3 How to Use 2) Group With this menu, you can set the group using the scheduler. If you choose With this menu, you can set the group using the scheduler. If you choose ‘Group’ tab, you can see the similar screen with ‘Record’. The setting is similar. *In recording, Schedule recording setting is most preferred.
  • Page 34 CH 3 How to Use 3) Holiday With this menu, you can add the holidays. Use the ‘Add’ button for adding the holiday and use the ‘Delete’ or ‘Delete All’ buttons for removing the existing holidays.
  • Page 35 CH 3 How to Use 4) Event In With this menu, you can set sensor input, motion detection setup. You can also set each channel individually. Each channel may be configured to M (Motion) / S (Sensor) / V (Both) * Summary regarding as Event Recording Motion Event Input...

  • Page 36: Device

    CH 3 How to Use 3-4-3. Device Configure and view Camera, Private Zone, Audio, Motion Detection, Alarm Out, PTZ settings and Controller. 1) Camera You may configure and/or view camera video type and general camera configuration. •Channel Name: You can set the camera name. •Disable : Disable current camera.
  • Page 37 CH 3 How to Use 3) Audio •Audio Out: Select which channel will be heard during Live View. 4) Motion Detection Change settings for Motion Grid selection and Sensitivity Level. You can set multiple area. ① Sensitivity.: 3 steps ② All On/Off : This will activate or deactivate the motion detection of the all area.
  • Page 38 CH 3 How to Use 5) Alarm Out There are 3 types trigger such as sensor input, motion detection and video loss. This There are 3 types trigger such as sensor input, motion detection and video loss. This setting is related that which trigger will be activate the action such as Relay, Popup, and Buzzer Alarm Out.
  • Page 39 CH 3 How to Use 6) PTZ Configure Pan/Tilt/Zoom camera for control via DVR System and Remote client Driver: Choose Driver to be suitable for PAN/TILT Camera manufacturer. You have to set Comport value according to the connected camera. There are more kinds of camera which can be supported.

  • Page 40: Network

    CH 3 How to Use 3-4-4. NETWORK C fi Configure and view Address, Port, DDNS, E-mail, Control and Status settings DDNS E il C 1) Address Configure Network information for Remote client connection • DVR Name : Type the URL of DVR using virtual keyboard. •...
  • Page 41 CH 3 How to Use 3) DDNS This is the function to automatically change the IP of DVR to URL. This product supports the automatic DDNS service using manufacture’s internal server. Also you can choose Dyndns. 4) E-mail You can send the event with snapshot by email. Fill all the information correctly and push the ‘Email Test’.
  • Page 42 5) Control You can individually adjust the resolution and frame rates of video transmission You can individually adjust the resolution and frame rates of video transmission within 600 frames based on CIF. ① Resolution : You can choose CIF or D1 ②...

  • Page 43: System

    CH 3 How to Use 3-4-5. SYSTEM Configure and view system Date/Time, User Authority, Storage, System Log and Configure and view system Date/Time, User Authority, Storage, System Log and Configuration settings 1) Date/Time •Time Zone: Choose the time zone of your site. If you using the NTP function, it must be set correctly to your zone.
  • Page 44 CH 3 How to Use 3) Storage •Display the information and usage of the hard disk drives. If you press the ‘Format’ button on each HDD, only that HDD will be formatted. •Total : Display all the HDD usage being used for the product. If you press the ‘Enter’ button on here, all the hard disk drives will be formatted.
  • Page 45 CH 3 How to Use 5) System Log You may view all System administration log from Setup System System Log. Also you can export the system log and easily send it to technical support for trouble shooting. 6) Configuration Shown at the following screen, from Setup System Firmware, you may view the current firmware version as well as Upgrade the firmware and additionally,...

  • Page 46: Firmware Upgrade

    CH 5 Client Program 3-5. Firmware Upgrade Aft i t lli After installing the client software, you can find the ‘NetDownloader Program’ in the li t fi d th ‘N tD l d P ’ i th window programs (Start -> programs -> DVR Client -> NetDownLoader) . Please execute this ‘Net Downloader Program’...
  • Page 47 CH 5 Client Program When you connect the DVR, click the ‘open’ button on the ‘NetDownloader Program ’and select the update file and then press the ‘start’ button. You can see the below download window on the DVR screen. l d i d th DVR ☞...

  • Page 48: Trouble Shooting

    Trouble Shooting Trouble Shooting Symptom Checkpoint Countermeasure ● Can't turn on power ● Is DVR connected to power ● Connect power cable supply cable? ● Are DVR and monitor turned ● Turn on power. ● There is no image on monitor ●...

  • Page 49: Warranty

    Warranty Warranty This product guarantees free repair based on guarantee regulations only if the malfunction is caused while customers were using it properly. Warranty Period Warranty period begins from the day this product is delivered to customer. Model Name Warranty From .
  • Page 50 Appendix A Appendix A How to Connect Receiver (ULTIMA X O l ) (ULTIMA-X Only) 1. Connect EXTEND FTP cable to Receiver (upto 350ft/100m). Refer to http://en.wikipedia.org/wiki/Twisted_pair about the FTP cable. Connect Monitor and Wired/Wireless Mouse to the Receiver FTP(Foiled Twisted Cable) Receiver 2.
  • Page 51 Appendix A 3.This is the whole diagram.

  • Page 52: Appendix B How To Connect Pos

    Appendix A Appendix B How to Connect POS 1. Connect the RS232(COM port) between POS and DVR. 2. Set the preference of the POS on the DVR. If your POS is in the device list in the text in setup of DVR you just simply choose that device If not you should choose text in setup of DVR, you just simply choose that device.
  • Page 53 Appendix A 3. To set manually, at first you should know the setting values of the POS. You can get the information from the POS setting screen. get the information from the POS setting screen. 4. If your setting is correct, you can see the below DVR screen on transaction. (This is the popup screen.
