Covert CA 3.0 series

3.1 Power Supply

To supply power for the camera, four size AA batteries are needed.
Open the bottom cover. Confirm that the power switch is in the OFF position.

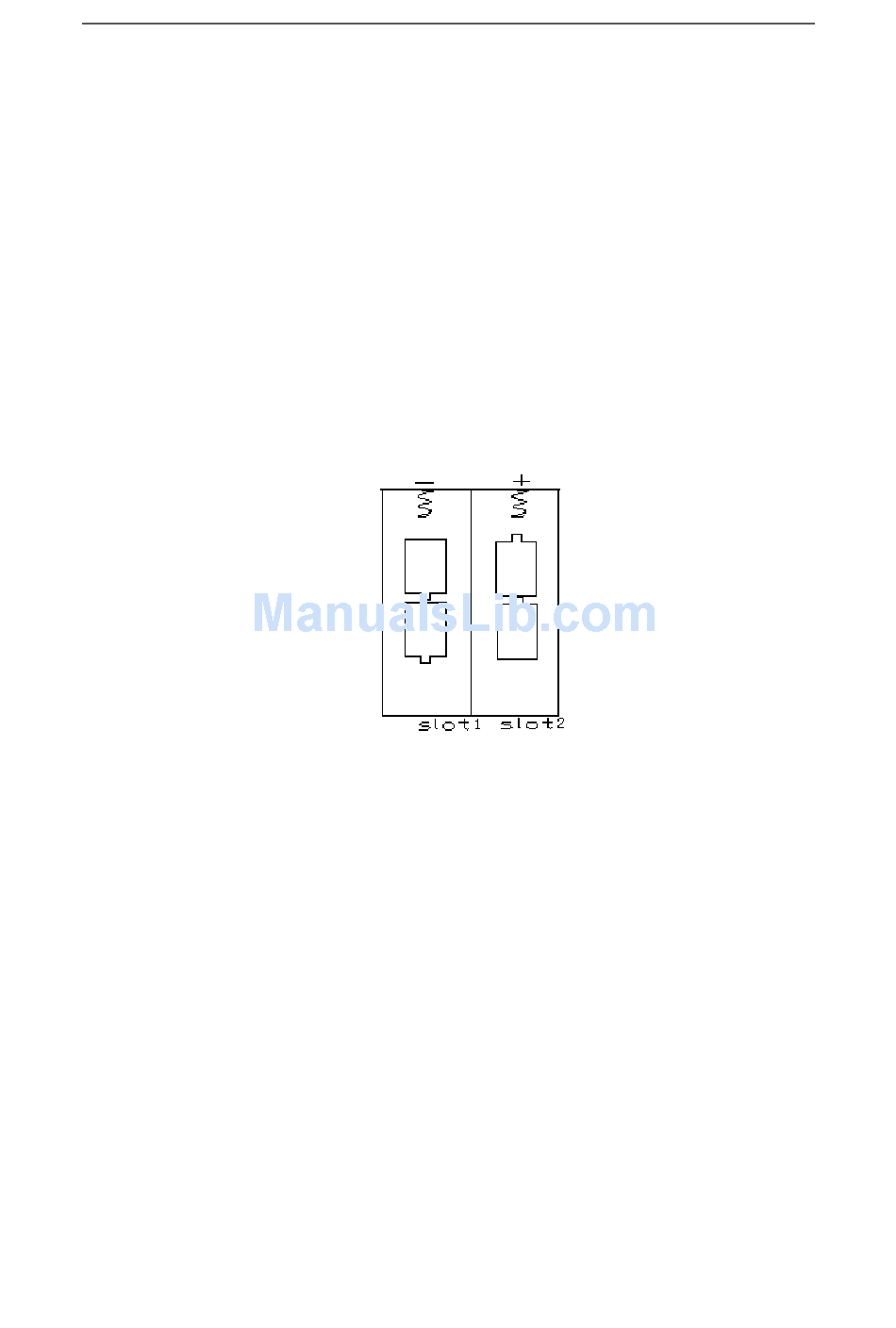

Install the fully charged batteries into the slot according the polarities sign shown
below. The following batteries with 1.5V output can be used:
1. High-density and high-performance alkaline batteries (Recommended)
2. Rechargeable alkaline batteries
3. Rechargeable NiMH batteries
There are two battery slots.
When in low-battery state, camera will be automatically shut down after two
indication sounds. Please change the batteries at this time.

3.2 Insert the SD-card

Open the bottom cover. Insert a SD-card into the card slot with unmarked side
facing up. Please note that the SD-card can only be inserted in one direction. Make
sure that the write-protect switch of the SD-card is on the "write" position (not the
locked position), otherwise the camera will not function properly.

3.3 Powering On

Before switching on, please pay attention to the following:
1. Avoid temperature and motion disturbances in front of the camera such as a
large leaf, curtain, air-conditioner, air outlet of the chimney and other heat
sources to prevent the camera from false triggers.
2. The height from the ground for placing the camera should vary with the
object size and range you are wishing to monitor. In general, three to six feet
is preferred.
Slide the power switch to the ON position to power on the camera and enter into
the ON mode.
3 Quick Introductions

3 Quick Start Guide

Page 4
