Summary of Contents for Covert Scouting Cameras AW1-V

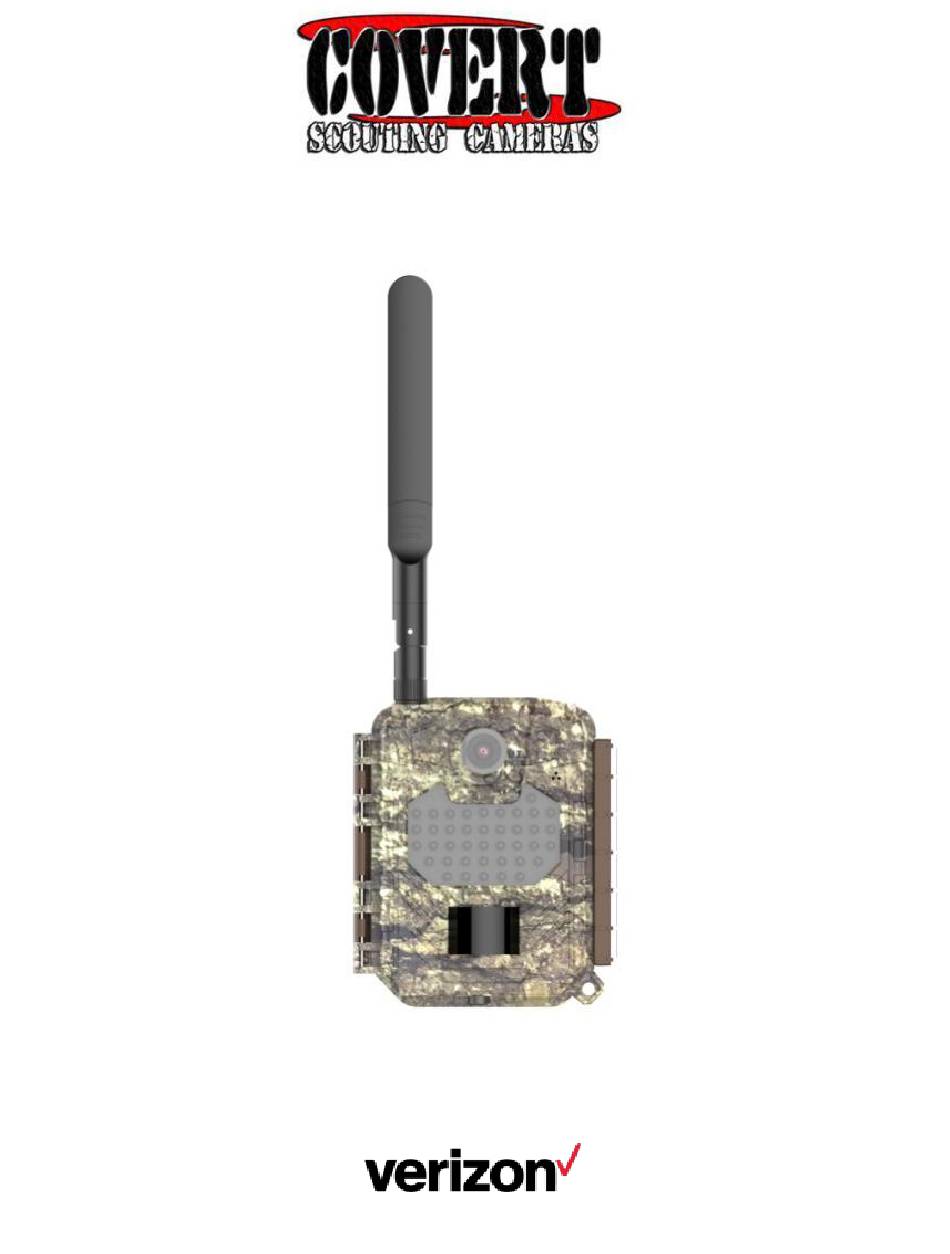

- Page 1 AW1-V Covert Scouting Camera Instruction Manual Watch the set-up video on our website at www.covertscoutingcameras.com...
-
Page 2: Table Of Contents
Content Introduction ..............3 Camera Overview ............5 Button Instructions ............6 Purchasing your Plan ............ 7 Activating Multiple Cameras ........8 Other Plan Information..........9 Quick Start ..............10 Purchasing Your Plan .......... 11 Connecting your Camera to Cloud Server ..11 Settings and Start .......... -
Page 3: Introduction
Int roductio n The camera has these characteristics: small size, only two buttons, and no screen. So the camera’s settings are all controlled by a cloud platform, but it can also shoot pictures manually. Micro SD... - Page 4 What you will need to set this camera up: -Internet Access to Choose Your Plan. https://secure.covert-wireless.com -8 AA Batteries -Micro SD Card (Up to 32G) -Nano SIM Card (Included)
-
Page 5: Camera Overview
Camera Overview... -
Page 6: Button Instructions
1. Switch 7. “PIR & Power” Light 2. Reset 8. “Status” Light 3. Micro SD slot 9.MIC 4. Nano SIM slot 10.PIR 5. USB 11. Lens 6. Antenna 12. IR Flash LED 13. 6V Jack 14. Tripod stand 15. Eject button Button Instructions Button Function description... -
Page 7: Purchasing Your Plan
①：Press the button and the camera will take a manual photo and automatically send to the app. ②：Hold it and push the switch to ON，if there is a FW installed on the Micro SD Card，the camera will update. Sounds information: Beeps once: upgrade is completed. -
Page 8: Activating Multiple Cameras
5. Enter the ICCID number located on the SIM card included with your camera. Then enter the IMEI for your camera found on the inside white label of the camera or on the outer packaging. 6. Click the green activate button and refresh your page. 7. -
Page 9: Other Plan Information
Different Rate Plan To activate cameras on a different rate plan, scroll to Purchase Additional Subscription Plans. Select the provider and the rate plan of your choice. This will add the rate plan option under My Services and Equipment. Other Plan Information Auto Renew: Covert Wireless plans automatically renew, however there is no long-term contract. -
Page 10: Quick Start
Quick Start Before you start, you need to prepare a Micro SD Card (up to 32G), a Nano SIM card and 8 AA batteries. Please insert them correctly. -
Page 11: Purchasing Your Plan
Connecting your Camera to the Cloud Server Login to your cloud account at: www.covert-wireless.com. This is the same login that you used to set up your account at: www.secure.covert-wireless.com. - Page 12 a. Open: https://www.covert-wireless.com/ b. If you already have an account, just login. If not, register with your email address www.secure.covert-wireless.com...
-
Page 13: Settings And Start
Settings and Start You can change the camera settings via APP. Click ‘Save’ to save and send the settings. Slide the power switch to ‘ON’, the camera will receive settings and start to work. -
Page 14: The Light Information
The Light Information “PIR&Power” Light (Light1) “Status” Light (Light2) Color Slow flash Steady Fast flash Light1 Red PIR is working Low power Green Good signal Sending Searching for Yellow- pictures Light2 Weak signal signal green No signal... -
Page 15: Manual Photo
* The camera begins to monitor when the two lights off. Manual Photo You can manually take a picture and check if your APP has successfully received the photo. Press the “RST” button when the light 2 is green or yellow-green. -
Page 16: Customizing The Camera Settings
Customizing the Camera Settings Instant: Enables instant transmission. Max Number of “Instant” means the number of photos that is allowed to send out per day. If you want to control your data flow, set the maximum number. The number 00 means unlimited. - Page 17 Sensitivity: There may be situations where you might feel the camera is not catching animals too easily. You can adjust the sensitivity of your camera to help with this. Under most conditions, the Normal option will work the best. In high temperatures, the High setting might help differentiate between the outside temps and the body temps of the animal.
- Page 18 Overwrite：The overwrite function will save new photos over the old photos on your Micro SD Card if it becomes full. Each time a new photo is taken the oldest photo on the card will be overwritten. AUXILIARY POWER: Your camera comes with a standard 4mm Auxiliary power jack.
-
Page 19: Warranty
Covert Scouting Cameras Warranty: Covert Scouting Cameras warranties this product for a period of two (2) years from the date of purchase. This warranty only covers manufacturer’s defects and does not cover damage caused by misuse or abuse of the product. - Page 20 If you have problems with this product, please do not contact the store you purchased it from. Contact Covert Scouting Cameras Customer Service toll free at 877-462-1799 or e-mail support@dlccovert.com. ** Proof of purchase required for replacement**...
- Page 21 responsible for the cost of shipping to Covert Scouting Cameras. In return, Covert will provide fast and exceptional service as well as incur the cost of shipping back to you. (Only within the Continental United States.) 3. Please include the following information when sending in your camera.
- Page 22 Covert International Warranty Policy and Procedure: 1. Outside the US, service is the available through the distributor/reseller of purchase. 2. All returns must have an RA# provided by Covert. Copy of Proof of Purchase is required for all returns. 3. Covert is not responsible for lost or damaged products incurred during the shipping process.
- Page 23 These warranties shall not apply to any defect, failure or damage caused by improper use or inadequate maintenance and care. Covert shall not be obligated under these warranties to repair: a. Damage resulting from attempts by personnel other than Covert representatives to install, repair or service the product unless directed by a Covert representative.
- Page 24 effect of such modification or integration increases the time or difficulty of servicing the product or degrades performance or reliability. e. To perform user maintenance or cleaning or to repair damage, malfunction. Damage, malfunction or degradation of performance resulting from use of the product in an environment not meeting the operating specifications set forth in the user manual.
- Page 25 To replace items that have been refilled, are used up, abused, misused, or tampered with in any way. To install replacement items that are not considered customer replaceable. k. To support software not supplied by Covert To provide software or firmware updates or upgrades.
- Page 26 DEFECTIVE PRODUCTS AND RELATED ITEMS IS SOLE AND EXCLUSIVE REMEDY PROVIDED TO THE CUSTOMER FOR BREACH OF THESE WARRANTIES. Some states, provinces, and countries do not allow the exclusion or limitation of incidental or consequential damages or exclusions or limitation on the duration of implied warranties or conditions, so the above limitations or exclusions may not apply to you.
- Page 27 HAS ADVANCE NOTICE OF THE POSSIBILITY OF SUCH DAMAGES.
-
Page 28: Technical Specifications
Technical Specifications Image Quality 3/5/8/12/16/20MP F/NO=1.85 FOV (Field of View)=64° Lens PIR Detection 80 feet Range (meter) 54° PIR angle WVGA/720P/1080P with Audio Video Quality Trigger Time 0.4s 5s-60min Trigger Interval 3min-24hours Time Lapse Work Time Up to Four operation settings Photo Burst 1–10 Supported... - Page 29 Waterproof Grade IP66 Mounting Belt/Cable Lock/Threaded/Adjustable angle bracket 5”x 4.25“ x 2.5” Dimensions Weight .63 lbs without batteries)
