Summary of Contents for Covert Scouting Cameras CA 3.0

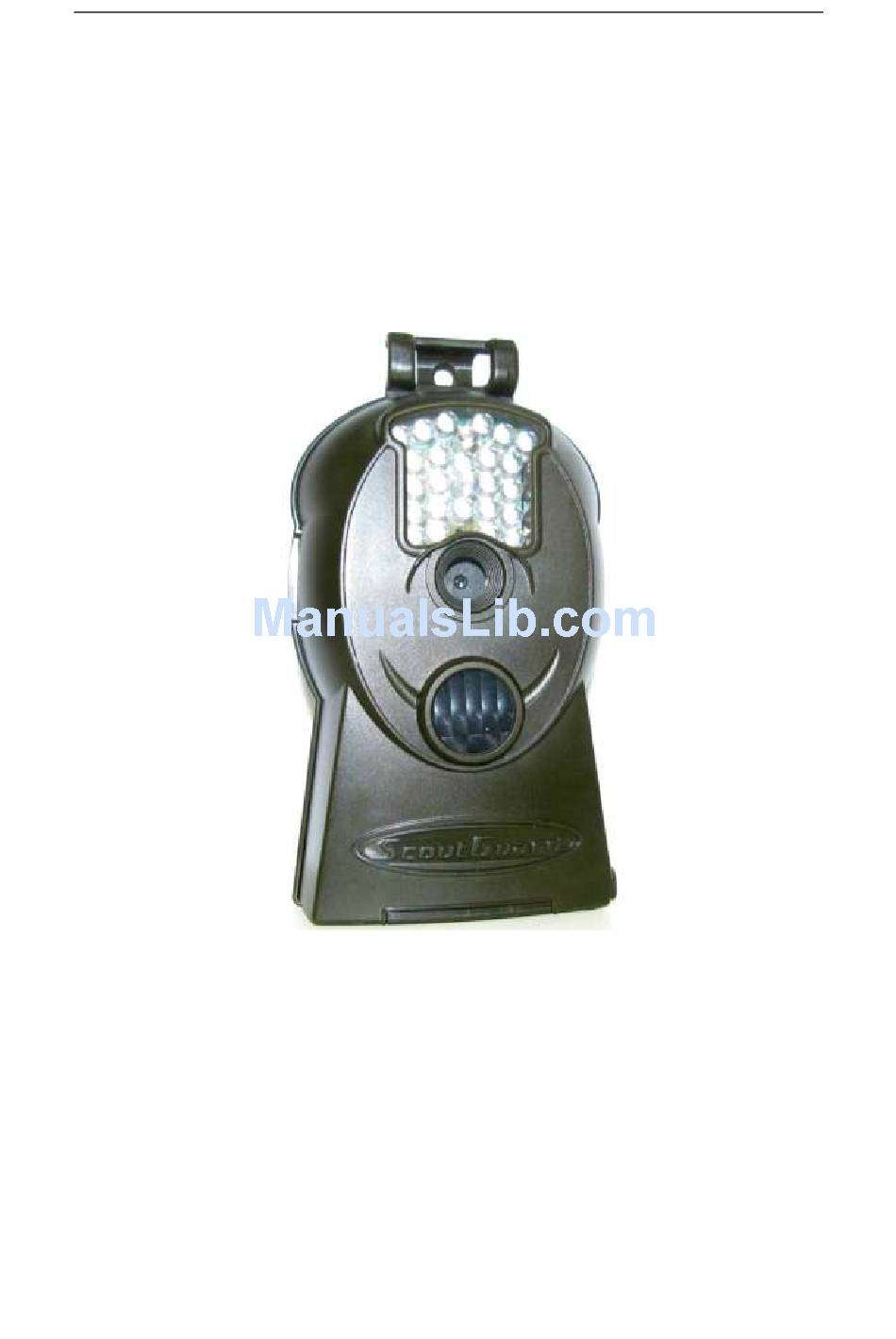

- Page 1 Infrared Digital Scouting Camera User’s Manual Covert CA 3.0 For Model：Covert CA 3.0...
-
Page 2: Table Of Contents
Content 1 Instruction General Description ......................1 Camera Body Interfaces ....................1 Program Remote Display ....................1 Supported Format ......................2 Cautions ........................... 3 Quick Start Guide ..............Error! Bookmark not defined. Power Supply ........................4 Insert the SD-card ......................4 Powering On ........................ -
Page 3: Instruction
1 Instruction 1.1 General Description The Covert CA 3.0 camera is a digital infrared surveillance camera, triggered by any movement of humans or animals monitored by a high sensitive Passive Infrared (PIR) motion sensor, and then automatically captures high quality pictures (up to 3M pixels) or records video clips (VGA) according to default settings or preset customer settings. -
Page 4: Supported Format
Covert CA 3.0 series 1 Instruction When the camera is turned on (the power switch is slid to the ON position), the setup information will be displayed in the monitor. 3. Image size 4. SD card 5. Battery level 2. Image mode 6. -
Page 5: Cautions
Covert CA 3.0 series 2 Cautions 2 Cautions ★ The working voltage of the camera is 6V. The camera is supplied by four AA batteries. ★ Please install batteries according to shown polarity. ★ Please unlock the write-protect before inserting the SD-card. -
Page 6: Quick Start Guide
Covert CA 3.0 series 3 Quick Introductions 3 Quick Start Guide 3.1 Power Supply To supply power for the camera, four size AA batteries are needed. Open the bottom cover. Confirm that the power switch is in the OFF position. -
Page 7: Enter Into The Test Mode
Covert CA 3.0 series 3 Quick Introductions After switching the camera on, the motion indication LED (red) light will blink for about 10s. The 10s is a buffering time before automatically capturing photos or videos. This gives the operator time for closing and locking the bottom cover, adjusting the camera on a tree, and walking away. -
Page 8: Advanced Operations
Covert CA 3.0 series 4 Advanced Operations 4 Advanced Operations From the basic operations previewed in the previous chapter, we know that the camera has three basic operation modes: de: Power switch is at the OFF position. 1. OFF 2. ON mode: Power switch is at the ON position. -
Page 9: Default Settings
Covert CA 3.0 series 4 Advanced Operations 4.1.1 Default Settings Default settings are listed below: Setting Items Default Options Submenu Camera Mode Image Video Format Enter Yes, No Video Size × × Set Clock Enter Adjust Clock Capture Number 1 Photo... -
Page 10: Set Video Size
Covert CA 3.0 series 4 Advanced Operations e) Press OK to start formatting the SD-card. During formatting, the display screen will show a message “Formatting…” as below. Press MENU to cancel setting and return to info display. 4.1.4 Set Video Size The following shows how to set video size as 320×240 provided that the previous... -
Page 11: Set Triggering Interval Time
Covert CA 3.0 series 4 Advanced Operations Press MENU to cancel setting and exit. 4.1.8 Set Triggering Interval Time Press RIGHT to decreases or increases the value by 1 second or 1 minute. The following shows how to set triggering interval time to 5 Minutes provided that the previous value is 1 Minute. -
Page 12: View Image Or Video
Covert CA 3.0 series 4 Advanced Operations b) Press UP or DOWN to select Reset. c) Press OK to reset to default settings and return to info display. Press MENU to cancel setting and return to info display. 4.1.13 View Image or Video a) Switch to TEST mode and enter into info display. -
Page 13: Appendixⅰ: Technical Specifications
Covert CA 3.0 series AppendixⅠ: Technical Specifications AppendixⅠ: Technical Specifications 3MP Color CMOS Image Sensor F/NO=3.1mm Lens FOV(Field of View)=40° IR-Flash 10-12m 1.7” LCD Display Screen Memory Card From 8 MB to 8 GB 3MP = 2048 1536 Picture Resolution ×... -
Page 14: Appendixⅱ: Parts List
Covert CA 3.0 series Appendix Ⅱ: Parts List AppendixⅡ: Parts List Part Name Quantity Digital Camera Wired control USB Cable Belt User Manual Page 12...
