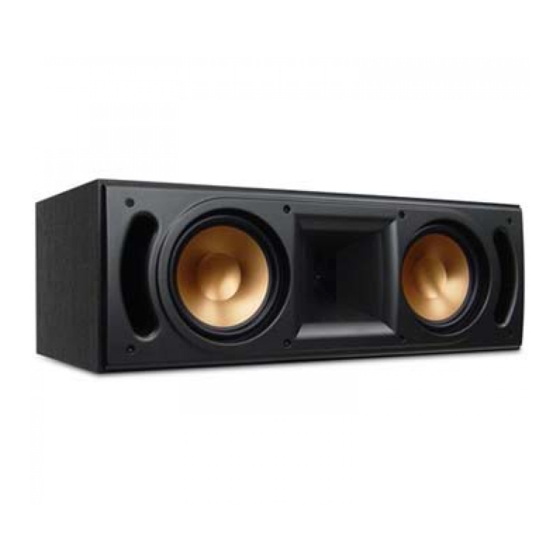

Klipsch Reference Series RC-62 Specifications

Dual 6.5" Center Channel Loudspeaker
With its superior technology and elegant design,
the Reference Series RC-62 center channel
delivers all of the detail, subtleties and dynamics
required for the ultimate home theater
experience.
Exclusive Tractrix Horns have always been the
®
key component of this critically acclaimed series.
In the RC-62, this technology has been refined to
include improved throat geometry for a more
genuine, lifelike sound. Behind the horn lies a
1-inch titanium tweeter with a large ceramic
motor structure to provide a unique combination
of precision, clarity and effortless power.
The RC-62 employs dual 6.5-inch woofers for a
solid bass foundation. These Cerametallic™
woofers with inverted copper dust caps exhibit a
very high stiffness-to-mass ratio and superb
damping characteristics.
Klipsch Tapered Array™ technology operates both
woofers at the lowest frequencies – maintaining
the high output capability necessary for good
center channel performance – but only one
operates all the way through the midrange to
where the tweeter takes over. This eliminates
acoustic interference between the woofer
outputs, a flaw in conventional speaker designs
that can severely impair sound quality at the sides
of the listening area.
The RC-62's rigid cabinet offers improved internal
cross-bracing to minimize panel vibrations that can
color sound. Twin front-firing ports eliminate
turbulence noise, while increased baffle ribbing
around the horn mouth dramatically improves
acoustics across the sonic range. For signal purity
and perfect driver integration, the crossover on
the RC-62 features the finest components and
Klipsch custom internal wiring.
Available in either a cherry or black woodgrain
vinyl finish, the fully video-shielded RC-62 comes
with a low-diffraction, magnetically attached grille
to further accentuate the elegance of this speaker.
RC-62
• High-performance center channel
• Tapered Array design for maximum dialogue clarity
™
• Magnetically shielded drivers to prevent video interference
S P E C I F I C A T I O N S
FREQUENCY RESPONSE
POWER HANDLING
SENSITIVITY
NOMINAL IMPEDANCE
HIGH FREQUENCY DRIVERS
HIGH FREQUENCY CROSSOVER
LOW FREQUENCY DRIVERS
ENCLOSURE TYPE
HEIGHT
WIDTH
DEPTH
MOUNTING
WEIGHT
FINISH
57Hz-23kHz ± 3dB
150W RMS / 600W Peak
98dB @ 2.83V / 1m
8 ohms compatible
1" (2.54cm) Titanium diaphragm compression
driver mated to 90˚x 60˚ square
Tractrix ® Horn
1150Hz, 1650Hz
Dual 6.5" (16.5cm) Cerametallic™
cone woofers
Bass-reflex via dual front-firing ports
8" (20.3cm)
23.5" (59.7cm)
12.5" (31.8cm)
Uptilt and Downtilt feet
32 lbs (14.5kg)
Cherry or Black Ash woodgrain vinyl
www.klipsch.com
1-800-KLIPSCH
All specifications are subject to change without notice. ©2006
