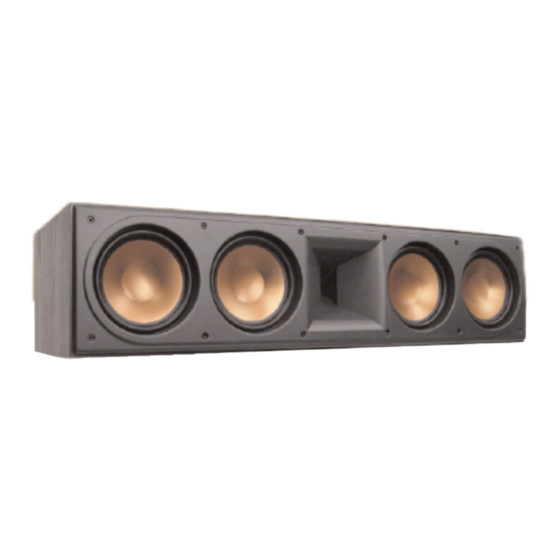

Klipsch RC-64 Specifications

Quad 6.5" Center Channel Loudspeaker
Designed to be one of the most unique and
powerful center channels on the market, the
RC-64 is certainly a force to be reckoned with.
Exclusive Tractrix Horns have always been the
®
key component of this critically acclaimed series.
In the RC-64, this technology has been refined to
include improved throat geometry for a more
genuine, lifelike sound. Behind the horn lies a
professional-grade 1.25-inch titanium diaphragm
compression driver to provide a unique
combination of precision, clarity and effortless
power.
The RC-64 employs four 6.5-inch high-output
woofers for a solid bass foundation. These
Cerametallic woofers with inverted copper dust
™
caps exhibit a very high stiffness-to-mass ratio
and superb damping characteristics.
Klipsch Tapered Array technology operates all
™
of the woofers at the lowest frequencies –
maintaining the high output capability necessary
for good center channel performance – but only
two operate all the way through the midrange to
where the tweeter takes over. This eliminates
acoustic interference between the woofer
outputs, a flaw in conventional speaker designs
that can severely impair sound quality at the sides
of the listening area.
The RC-64's sealed cabinet offers improved
internal cross-bracing to minimize panel vibrations
that can color sound. Increased baffle ribbing
around the horn mouth dramatically improves
acoustics across the sonic range. For signal purity
and perfect driver integration, the crossover on
the RC-64 features the finest components and
Klipsch custom internal wiring. Bi-wire inputs with
premium binding posts ensure superior
connectivity.
Available in either a cherry or black real wood
veneer finish, the fully video-shielded RC-64
comes with a knife-edge back and low-diffraction,
magnetically attached grille to further accentuate
the elegance of this speaker.
RC-64
• Ultra-high-performance center channel speaker
• Tapered Array design for maximum dialogue clarity
™
• Magnetically shielded drivers to prevent video interference
• Furniture-grade wood veneer finish
S P E C I F I C A T I O N S
FREQUENCY RESPONSE
POWER HANDLING
SENSITIVITY
NOMINAL IMPEDANCE
HIGH FREQUENCY DRIVERS
HIGH FREQUENCY CROSSOVER
LOW FREQUENCY DRIVERS
ENCLOSURE TYPE
HEIGHT
WIDTH
DEPTH
MOUNTING
WEIGHT
FINISH
62Hz-21kHz ± 3dB
200W RMS / 800W Peak
99dB @ 2.83V / 1m
8 ohms compatible
1.25" (3.2cm) Titanium diaphragm
compression driver mated to 90˚x 60˚
square Tractrix Horn
®
1150Hz, 1800Hz
Quad 6.5" (16.5cm) High-output
Cerametallic ™ cone woofers
Sealed
8" (20.3cm)
33" (83.8cm)
13.5" (34.3cm)
Uptilt and Downtilt feet
61 lbs (27.7kg)
Cherry or Black Ash wood veneer
www.klipsch.com
1-800-KLIPSCH
All specifications are subject to change without notice. ©2006
