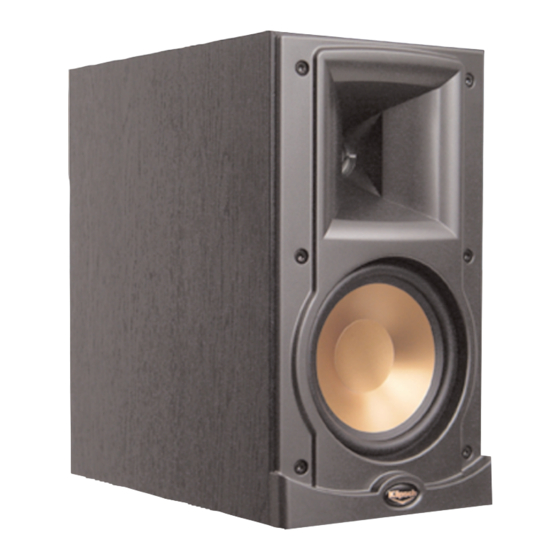

Klipsch Reference Series RB-51 Specifications

5.25" Bookshelf Loudspeaker
Built to the same exacting standards as the
Reference Series floorstanding models, the
RB -51 represents an ideal combination of
technology, performance and design. In fact, this
well-thought-out speaker design will forever
change the way you think about audio.
Exclusive Tractrix Horns have always been the
®
key component of this critically acclaimed series.
In the RB-51, this technology has been refined to
include improved throat geometry for a more
genuine, lifelike sound. Behind the horn lies a 1-
inch titanium tweeter with a powerful
neodymium motor structure to provide a unique
combination of precision, clarity and effortless
dynamics.
The RB-51 employs a 5.25-inch woofer for a
solid bass foundation. This Cerametallic™
woofer with inverted copper dust cap exhibits a
very high stiffness-to-mass ratio and superb
damping characteristics.
Increased baffle ribbing around the horn mouth
dramatically improves acoustics across the sonic
range. For signal purity and perfect driver
integration, the crossover on the RB-51 features
the finest components and Klipsch custom
internal wiring.
Available in a black woodgrain vinyl finish, the
RB-51 comes with a low-diffraction, magnetically
attached grille to further accentuate the elegance
of this speaker.
RB-51
• High-performance bookshelf speaker
• Rear-firing port for easy integration into cabinetry
• Tractrix Horn eliminates acoustic interference from shelf installations
®
S P E C I F I C A T I O N S
FREQUENCY RESPONSE
POWER HANDLING
SENSITIVITY
NOMINAL IMPEDANCE
HIGH FREQUENCY DRIVERS
HIGH FREQUENCY CROSSOVER
LOW FREQUENCY DRIVERS
ENCLOSURE TYPE
HEIGHT
WIDTH
DEPTH
MOUNTING
WEIGHT
FINISH
50Hz-23kHz ± 3dB
75W RMS / 300W Peak
92dB @ 2.83V / 1m
8 ohms compatible
1" (2.54cm) Titanium diaphragm compression
driver mated to 90˚x 60˚ square
Tractrix ® Horn
2000Hz
5.25" (13.3cm) Cerametallic ™
Bass-reflex via rear-firing port
11.4" (29cm)
6.5" (16.5cm)
10.75" (27.3cm)
Keyhole bracket and Dual 1/4"-20
threaded inserts
12 lbs (5.5kg)
Black Ash woodgrain vinyl
www.klipsch.com
1-800-KLIPSCH
All specifications are subject to change without notice. ©2006
cone woofer
