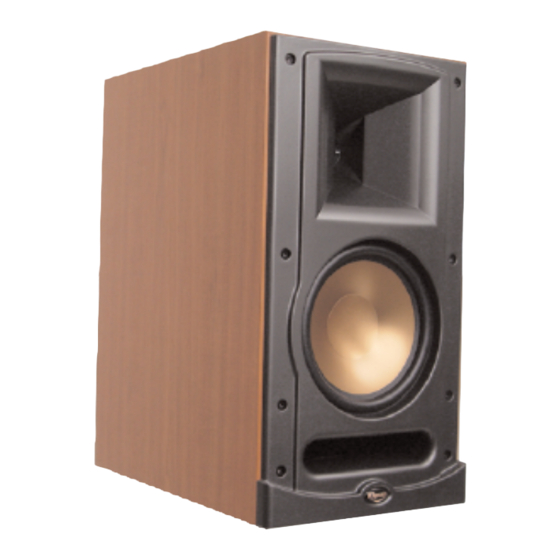

Klipsch RB-61 Specifications

6.5" Bookshelf Loudspeaker
Because compromise isn't an option, the
Reference Series RB-61 lets listeners experience
all the power, detail and emotion of cinematic
spectacles and riveting concert performances.
With its superior technology and elegant design,
this speaker definitely stands out in a crowd.
Exclusive Tractrix Horns have always been the
®
key component of this critically acclaimed series.
In the RB-61, this technology has been refined to
include improved throat geometry for a more
genuine, lifelike sound. Behind the horn lies a
1-inch titanium tweeter with a large ceramic
motor structure to provide a unique combination
of precision, clarity and effortless power.
The RB-61 employs a 6.5-inch woofer for a
solid bass foundation. This Cerametallic™
woofer with inverted copper dust cap exhibits a
very high stiffness-to-mass ratio and superb
damping characteristics.
The RB -61's front-firing port eliminates
turbulence noise and makes installation into
custom cabinetry a breeze. Increased baffle
ribbing around the horn mouth dramatically
improves acoustics across the sonic range. For
signal purity and perfect driver integration, the
crossover on the RB-61 features the finest
components and Klipsch custom internal wiring.
Available in either a cherry or black woodgrain
vinyl finish, the RB -61 comes with a low-
diffraction, magnetically attached grille to further
accentuate the elegance of this speaker.
RB-61
• High-performance bookshelf speaker
• Front-firing port for easy integration into cabinetry
• Tractrix Horn eliminates acoustic interference from shelf installations
®
S P E C I F I C A T I O N S
FREQUENCY RESPONSE
POWER HANDLING
SENSITIVITY
NOMINAL IMPEDANCE
HIGH FREQUENCY DRIVERS
HIGH FREQUENCY CROSSOVER
LOW FREQUENCY DRIVERS
ENCLOSURE TYPE
HEIGHT
WIDTH
DEPTH
WEIGHT
FINISH
43Hz-23kHz ± 3dB
100W RMS / 400W Peak
95dB @ 2.83V / 1m
8 ohms compatible
1" (2.54cm) Titanium diaphragm compression
driver mated to 90˚x 60˚ square
Tractrix ® Horn
2000Hz
™
6.5" (16.5cm) Cerametallic cone woofer
Bass-reflex via front-firing port
15.4" (39.1cm)
8.5" (21.6cm)
12.25" (31.1cm)
22 lbs (10kg)
Cherry or Black Ash woodgrain vinyl
www.klipsch.com
1-800-KLIPSCH
All specifications are subject to change without notice. ©2006
