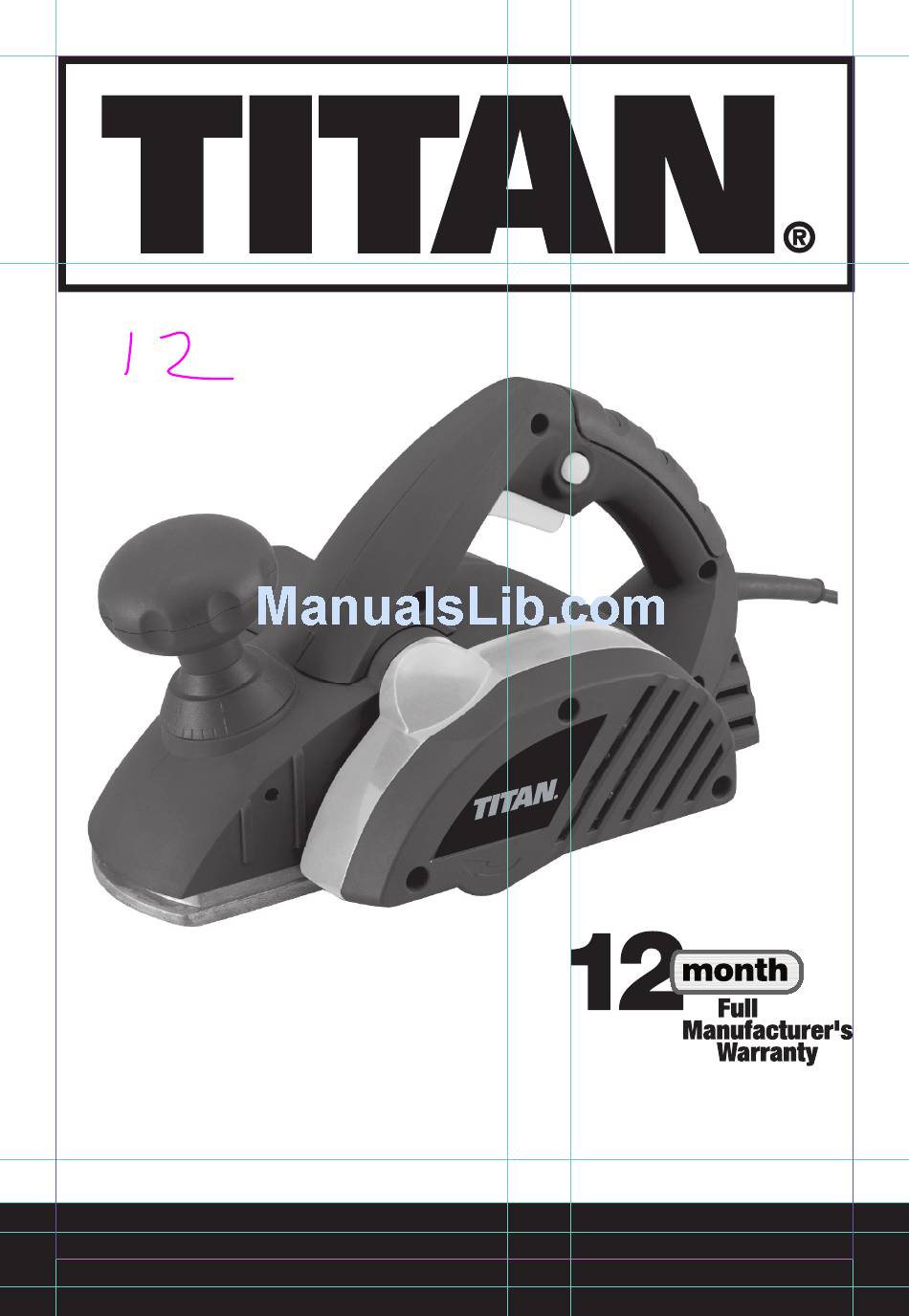

- Page 1 SAFETY AND OPERATING MANUAL 3mm PLANER SF823N...
- Page 3 This guarantee does not affect your statutory rights.This guarantee is only valid in the UK. For further technical advice, spare parts or repair service (outside of guarantee) please contact the customer helpline number on 0845 607 6380. 3mm PLANER SF823N...
-
Page 4: Safety Instructions
SAFETY INSTRUCTIONS WARNING! Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.The term “power tool” in all of the warnings listed below refers to your mains operated (corded) power tool. SAVETHESE INSTRUCTIONS Work area a. -
Page 5: Health Advice
You are advised to consider the risks associated with the materials you are working with and to reduce the risk of exposure.You should: -- Work in a well-ventilated area. -Work with approved safety equipment, such as those dust masks that are specially designed to filter microscopic particles. 3mm PLANER SF823N... -
Page 6: Double Insulation
ADDITIONAL SAFETY RULES FOR YOUR PLANER Always wait for the cutter to stop before setting the tool down. An exposed cutting blade may engage the surface leading to possible loss of control and serious injury. 2. Always wear a dust mask and hearing protectors when using this planer. 3. - Page 7 1. CUT DEPTH ADJUSTMENT KNOB 2. DUST EXHAUST OUTLET 3. LOCK OFF BUTTON 4. ON/OFF TRIGGER SWITCH 5. HOUSING 6. DRIVE BELT COVER 7. PARALLEL GUIDE 8. REBATE DEPTH 3mm PLANER SF823N...
-
Page 8: Technical Data
TECHNICAL DATA Voltage: 230V~50Hz Input power: 900W No load speed: 16000min Planing width: 82mm Cutting depth: 0-3mm Rebate depth: 0-18mm Double insulation: Weight: 4.1Kg NOISE AND VIBRATION DATA Sound pressure level: 90.0dB (A) Sound power level: 103.0dB (A) Vibration level: 4.8m/s ACCESSORIES Dust bag... - Page 9 Be careful to avoid hitting nails during planing operation, this could nick, crack, or damage blades. We suggest that you always keep an extra set of blades on hand. As soon as the blades in Fig 4 3mm PLANER SF823N...
- Page 10 your planer show signs of becoming dull, replace them. Caution: Always use two hands on the tool for any operation, this assures you maintain control and avoid the risk of serious personal injury. Workpiece must always be properly supported and clamped so both hands will be free to control V-groove the planer.
-
Page 11: Blade Replacement
Always put on a glove. Secure your planer in an upside down position. Using the blade spanner provided, loosen the three installation screws on the drum by turn clockwise. Note: Do not over loosen the screws. If screws Fig 12 3mm PLANER SF823N... - Page 12 are too loose, alignment of the new blade will not be accurate. Before removing old blades, take notice of the direction of cut as well as how the tapered edge of the old blades are oriented. The tapered edge of the new blades must be in the same orientation Blade as the original blades.
-
Page 13: Maintenance
6. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent. 3mm PLANER SF823N... -
Page 14: Environmental Protection
ENVIRONMENTAL PROTECTION Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. PLUG REPLACEMENT The fuse in the main plug of your power tool should always be replaced with one of identical rating. -
Page 15: Declaration Of Conformity
Houndstone Business Park Yeovil BA 22 8RT Declare that the product 3mm PLANER SF823N Complies with the essential health and safety requirements of the following directives: 89/336/EEC, 93/68/EEC – EMC Directive. 73/23/EEC, 93/68/EEC – Low Voltage Directive. 98/37/EC – Machinery Directive.
