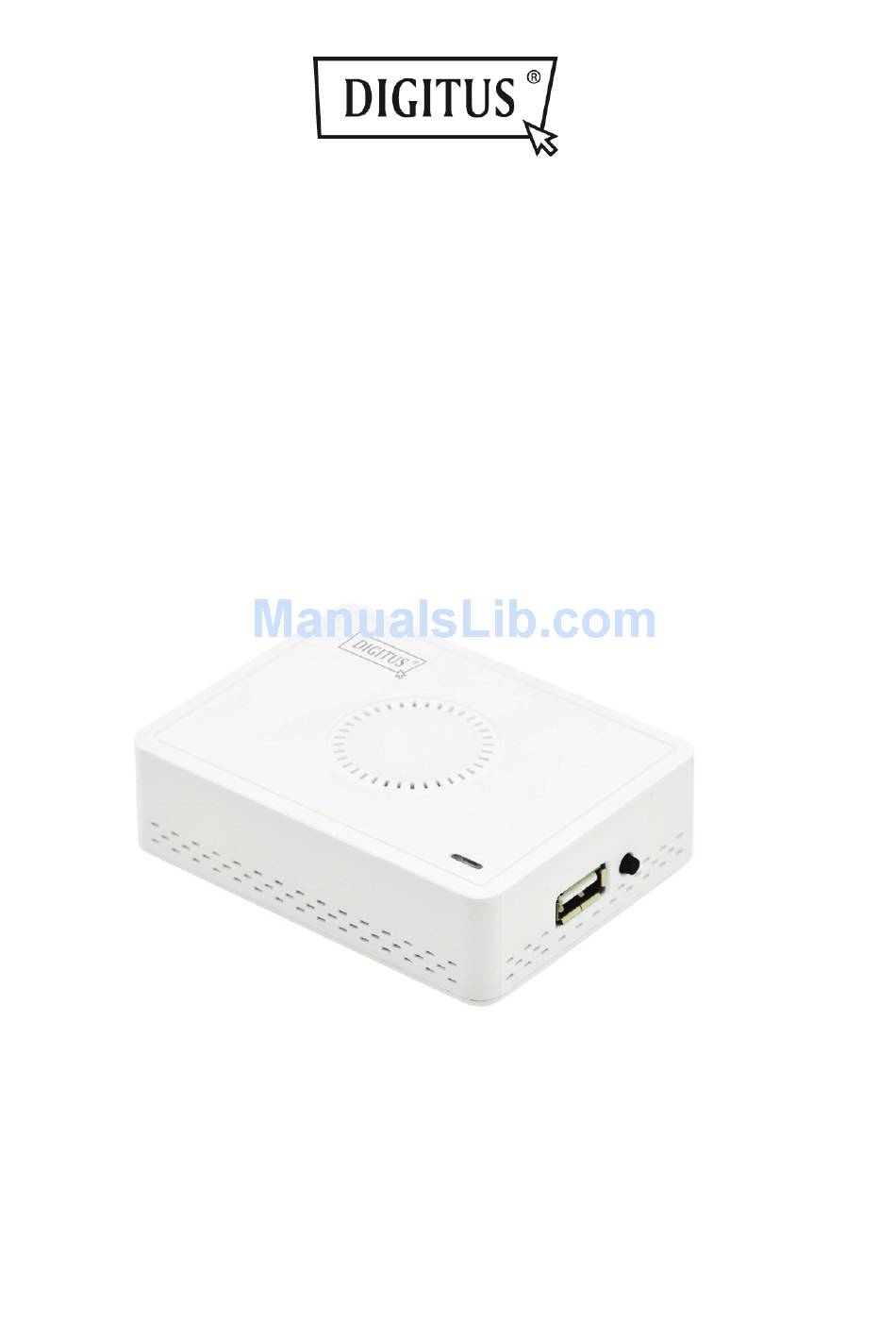

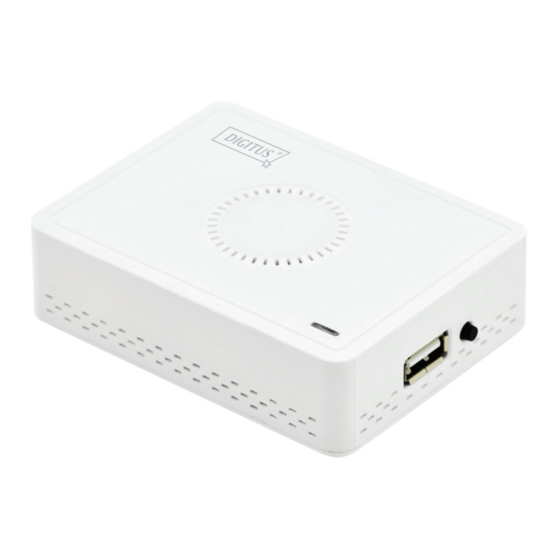

  • Page 1 WIRELESS TV STREAMING BOX Manual DN-70310...

  • Page 2: Table Of Contents

    1-4 Hardware Setup/Installation .................... 6 (1) Connect your device ....................6 (2) Connect power and push power button to turn on DN-70310........6 CHAPTER 2: DESCRIPTION OF FUNCTIONS ................8 2-1 Using DN-70310 on ScreenShare for PC to TV .............. 8 2-1-1 Basic Usage of application software for Windows and Mac OS ........

  • Page 3: Chapter 1: Product Introduction

    CHAPTER 1: PRODUCT INTRODUCTION Thank you for choosing DIGITUS Wireless HDMI Receiver Box DN-70310. Please follow the manual for its use. 1-1 Package Contents (1) DN-70310 (2) AC Adapter USB (3) Micro USB Cable (B to A) (4) CD-ROM (5) Quick Installation Guide...

  • Page 4: Pc2Tv

    1-2 Hardware Recommendation (1) PC2TV DN-70310 is designed to able to stream screen capture from PC (Windows 7 /Window 8/ Win 8.1) & Mac (over 10.6) to your HDTV. PC or Notebook  CPU: Core 2 Duo 2.0 GHz or better ...

  • Page 5: Screen Mirroring For Android

    Stream video/photo contents from iPhone or iPad to your TV by Airplay feature. 1-3 Highlights DN-70310 enables you to mirror whatever is displayed on Windows PC/laptop, Mac, smart phone & tablet on your HDTV, wirelessly, up to 1080p video resolution without the hassle of using HDMI cable.

  • Page 6: Hardware Setup/Installation

    1-4 Hardware Setup/Installation (1) Connect your device (2) Connect power and push power button to turn on DN-70310. After few seconds, when you see the below screen: the device is assigned an IP address, the system is in standby mode and ready to do file streaming or screen mirroring from your device.
  • Page 7 (3) If your device is already connected to the router, press the switch button to disconnect with router, press again to connect. ** Please find Chaper 3 about router application...

  • Page 8: Chapter 2: Description Of Functions

    CHAPTER 2: DESCRIPTION OF FUNCTIONS DN-70310 is a highly integrated all-in-one receiver, featuring instant and direct peer-to-peer connection with no need to press switch button between different functions. Mirroring Mirroring: Screen mirroring from Android smart phones, or tablet PCs through Wireless Mirroring technology.
  • Page 11 2-1-1-1 Launching ScreenShare Please follow the steps below to run ScreenShare for Windows OS after DN-70310 is booted up with the following screen displayed on HDMI TV or monitor. (1) Search and find the device’s SSID (DN-70310) in Wireless list on your notebook via WiFi.
  • Page 12 (2) Connect to this device SSID. DN-70310 123 DN-70310 123 (3) Double click the ScreenShare icon from your desktop. (4) ScreenShare will auto detect ‘Server IP’, please input login code as shown on instruction page. DN-70310 123 (5) If login code is correct, application software will appear.

  • Page 13: Main Functions

    2-1-1-2 User Interface of ScreenShare Main functions No Name Function Description Play Start / pause presentation. When pausing a progressing presentation, the displaying image will freeze. Stop Stop a progressing presentation and go back to instruction page. Menu Access menu list. Login code Show the application login code.
  • Page 14 Menu You can also click ‘Menu’ button to access menu list. (1) Display Mode No Name Function Description Main Display Mirror NB/PC display to the Rx monitor. Extend Display Mirror your extend display to the Rx monitor. (2) Zoom In (This function only can be used when “Main Display”...
  • Page 15 You can decide the region you want to zoom in and display to the monitor. Step 1. Choose Zoom In→Specific Area Step 2. Now you can decide the region you want to display to the monitor.(You can slide the frame and also adjust it size.)After finish, just double click the right button of mouse and then you can enjoy this function! Step 3.
  • Page 16 (3) Streaming Mode (This function only can be used when mirroring) No Name Function Description Presentation Mode Default is presentation mode. Video Mode If play video the performance is not good, select this will be better. (4) HDMI Resolution You can change HDMI output resolution.
  • Page 17 (5) Aspect Ratio You can change the Rx monitor ratio. “Auto” means the ratio will follow the display source.   “Pan Scan 4:3” means adjust widescreen images so that they can be shown within the proportions of a 4:3. ...
  • Page 18 No Name Function Description Auto Adjust Let your pc/notebook resolution changed by Rx monitor resolution. Resolution Auto Save After reboot this application, all of the settings will be saved. (7) Exit Exit from ScreenShare application, and go back to instruction page. 2-1-2 Basic Usage of application software for Mac (Option) You can install ScreenShare application from the CD onto the Mac devices.
  • Page 20 You have finished installing the software。 2-1-2-1 Launching ScreenShare Please follow the steps below to run ScreenShare for Mac OS after DN-70310 is booted up with the following screen displayed on HDMI TV or monitor.
  • Page 21 (1) Search and connect to the device’s SSID (DN-70310) on the WiFi list on your notebook. DN-70310 123 Digitus PMM Digitus test AP (2) Go -> Applications...
  • Page 22 (3) Applications -> Hivision -> ViVA ScreenShare Press ViVA ScreenShare to start. (4) ScreenShare will auto detect ‘Server IP’, please input login code as shown on instruction page.
  • Page 23 DN-70310 123 9671 (5) If login code is correct, application software will appear. 2-1-2-2 User Interface of ScreenShare Main fuctions No Name Function Description Play Start / pause presentation. Stop Stop a progressing presentation and go back to instruction page.
  • Page 24 Memu Access menu list. Minimize/Close Minimize and close the Application Software window. Menu You can also click ‘Menu’ button to access menu list. (1) Display Mode No Name Function Description Main Display Mirror NB/PC display to the Rx monitor. Extend Display Mirror your extend display to the Rx monitor.
  • Page 25 (3) Streaming Mode (This function only can be used when mirroring) No Name Function Description Presentation Mode Default is presentation mode. Video Mode If play video the performance is not good, select this will be better. (4) Aspect Ratio You can change the Rx monitor ratio. Default is “Auto”, means the ratio will follow the display source.
  • Page 26 (5) HDMI Resolution You can change HDMI output resolution.
  • Page 27 (6) Auto Adjust Resolution Let your pc/notebook resolution changed by Rx monitor resolution. (7) Auto Save After reboot this application, all of the settings will be saved.
  • Page 28 (8) Information Displays application information, like Adapter name or IP Address and Version number. (9) Exit Exit from ScreenShare application, and go back to instruction page.

  • Page 29: Using Dn-70310 On Android Devices Via Mirroring

    2-2 Using DN-70310 on Android devices via Mirroring 2-2-1 Launching Android mirroring To enable Android mirroring, your smart phone must support this feature. Please refer to Appendix for the compatible list of smart phones. Basic Usage The setup location of Mirroring connection may be different between different brands of smartphone and tablet PC.
  • Page 30 Please go to “Settings” -> “Xperia” =>“Screen mirroring” => “Turn on Screen mirroring”. Your phone will scan the streaming box, and it will show the SSID of the box. Choose the SSID, mirroring will begin while your phone connect to streaming box successfully. DN-70310 123 Type3: Please choose “Settings” -> “Media Output”.

  • Page 31: Using Dn-70310 On I-Play

    2-3 Using DN-70310 on i-Play (1) Search and connect the device’s SSID (DN-70310) on the WiFi list on your iPhone/iPad first. DN-70310 (2) Run “Photos” (3) Choose the photos or videos witch you want to share. (4) Press the “Airplay” to show the device list.

  • Page 32: Airfun Media Streaming

    (5) Select DN-70310 as your Airplay receiver box, and the photo will be shown on the bigger screen of the HDMI TV or monitor. DN-70310 2.4 How to Setup Airfun for media sharing Airfun Airfun Media Streaming 1. Please scan the QR code on the screen or go to the Google play/APP store to download AirFun APP.
  • Page 33 DN-70310 123 5. Select this icon to choose the file type which you want to share and present on the HDMI screen. 2.4.1 Basic Usage of AIRFUN Utility for Windows software 1. You can install Airfun application in the CD ROM.
  • Page 34 2. Double click the AIRFUN icon from your desktop. 3. The Airfun will start to search device. 4. Then you should be able to see your PC screen on the TV now. 5. You can drag the video/photo/music file to Airfun main menu directly. For video files, please drag files to the right folder.

  • Page 35: Advanced Setup

    6. For photo/music files, please drag files to the left folder. 2-4-2 Advanced Setup Please connect WiFi to DN-70310 first, and run the Airfun APP, you should be able to see the UI bellow. Devise SSID DN-70310 Now you can do basic settings, such as change the SSID, connect to router, or choose the...
  • Page 36 If you need advanced settings, please go to the remote control page below, and choose next page, as marked in red. Press the gear icon (marked in red), to enter setup.
  • Page 37 In the setup page, you can use the virtual remote controller to change the setting. - Select “left/right=> OK” to enter the setting page for Network / Audio / Video / System. - Select “Return” to go to the previous page or standby screen.

  • Page 38: Network Setting

    Wired Connection Item Description DHCP IP (AUTO) DN-70310 will obtain an IP address from DHCP server automatically. Fixed IP (Manual) Set DN-70310 IP address manually. Fill the fields below to setup IP address. Device Name Item Description Device Name (SSID) Change the Device Name(SSID).
  • Page 39 Then there will show the Wireless AP list on the screen. Please choose the AP you want to connect. The function is to bridge to Internet via another Wireless AP. Digitus PMM Digitus test AP DN-70590 When it’s successfully connected, standby screen will show router name at the right bottom corner.

  • Page 40: Chapter 3: Router Configuration

    Password If Wireless Security is enables, you can set a wireless password. Radio Band Set the Radio band to 2.4GHz or 5GHz. Please confirm your PC/NB support 5GHz before you set the radio band to 5GHz 5G Preferred Channel If the Radio band is 5GHz now, you can change the 5G frequency.

  • Page 41: System Setting

    2-4-3-3 Video Setting You can adjust Aspect Ratio, TV out video format, and other video setting in the video setup page. 2-4-3-4 System Setting You can set the OSD language, reset to Factory default, check the firmware version, and do the firmware upgrade in the system setup page.
  • Page 42 By using a router, it provides a solution for users who are unable to access online contents while their exist Wi-Fi is occupied to connect to DN-70310. DN-70310 allows two methods ,Wi-Fi, or Ethernet LAN cable to connect to your router, giving the flexibility to Internet connection whichever method is most convenient.

  • Page 43: Appendex A: Supported Resolution

    (2) Ethernet LAN connection: DN-70310 Step1: Connect an Ethernet cable from the LAN port on DN-70310 to an AP router’s LAN port. Step2: DN-70310 will auto detect LAN connection. Once it’s successfully connected, the UI will change as below: ** Please note! DN-70310 must connect to AP router and can’t connect to WAN directly.

  • Page 44: Appendex B: Compatible List For Android Mirroring
