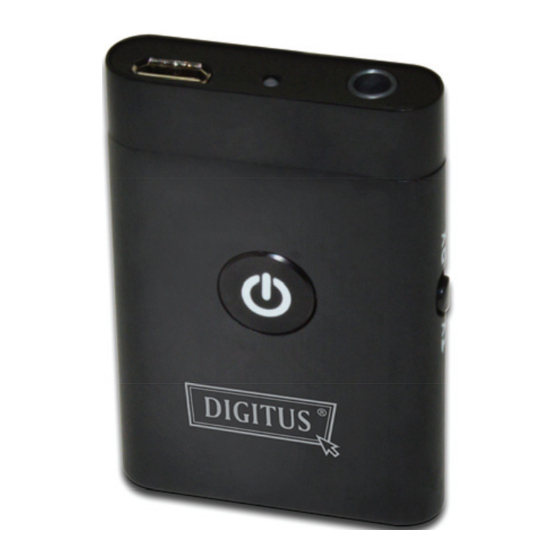

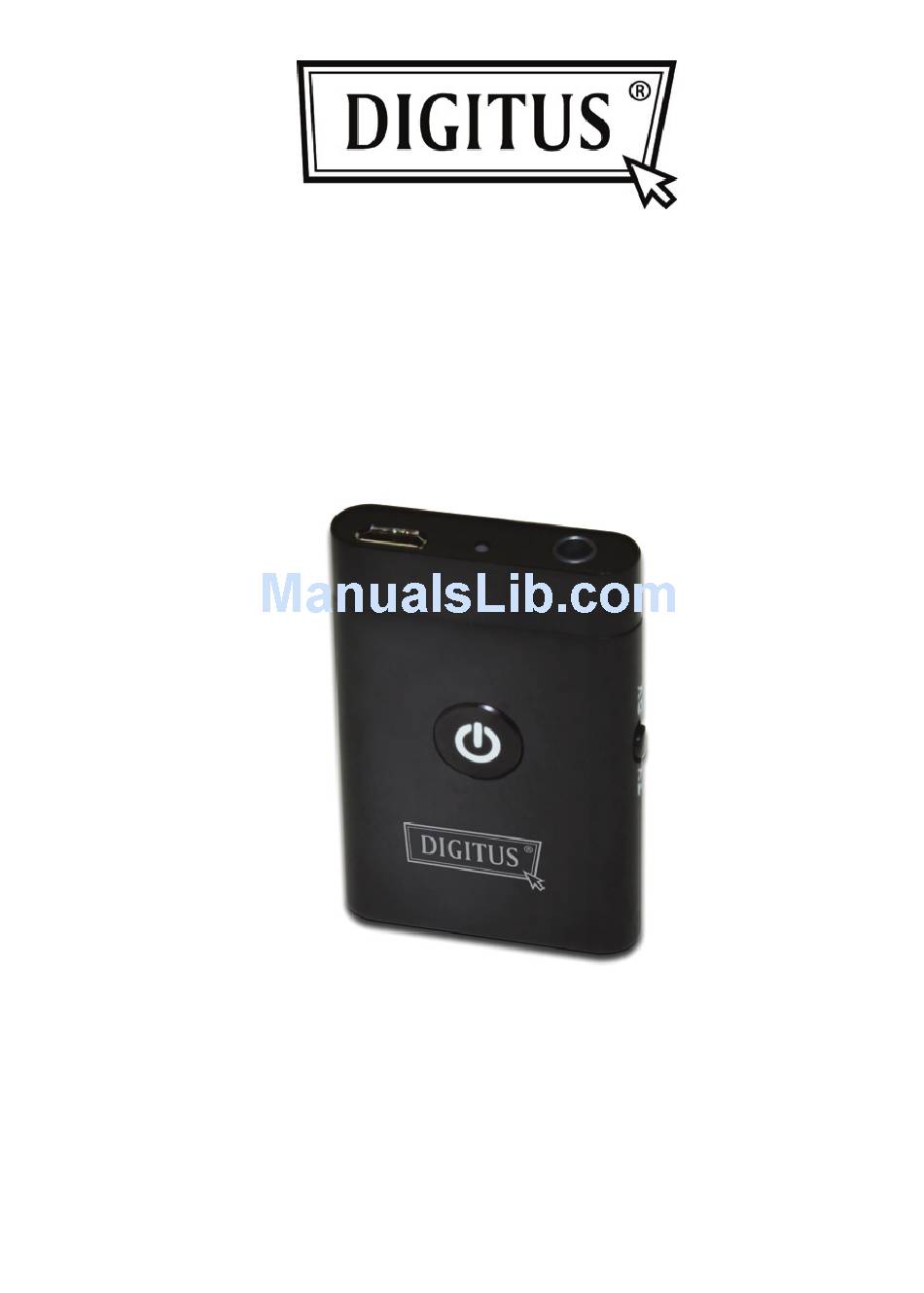

- Page 1 BLUETOOTH AUDIO RECEIVER/TRANSMITTER Quick Installation Guide DA-30501...
-
Page 2: Table Of Contents
About DA-30501 ................1 System requirements ................. 1 Overview .................... 1 Getting started ................2 Charging the battery of DA-30501 ............. 2 TX Mode ..................2 Switching on/off the transmitter ............2 Pairing with a Bluetooth device ............3 Reconnecting to a Bluetooth device ........... -
Page 3: Before Use
3.5mm audio-out jack and a Bluetooth A2DP receiver, such as Bluetooth stereo headset, Bluetooth stereo speaker and so on. b) When DA-30501 is used as a Bluetooth receiver, you need to prepare a stereo receiver with 3.5mm audio-in jack and a Bluetooth A2DP transmitter, such as Bluetooth cell phone, Bluetooth MP3 and so on. -
Page 4: Getting Started
Connect the charger to a standard power outlet and the charger plug to the charging jack of DA-30501. Red LED is on while charging. It takes about 3 hours to charge the battery fully. When charging is completed, red LED will be off. -
Page 5: Reconnecting To A Bluetooth Device
3) Switch on your Bluetooth stereo receiver and make it enter pairing mode; 4) Press and hold MFB button of the transmitter for 5～7 seconds and do not release it until red and blue LEDs flash alternately, at this time, the transmitter entered pairing mode;... -
Page 6: Auto-Off
Low power RX Mode Selecting mode: Please turn the TX/RX switch to RX mode before switching on DA-30501. Note: TX or RX mode cannot be changed after switching on DA-30501. 1. Switching on/off the receiver Function Operation LED indicator... -
Page 7: Pairing With A Bluetooth Device
3) Active your cell phone’s Bluetooth function and set your cell phone to search for Bluetooth devices within range. After the search is completed, select “DA-30501” from the list of devices shown; 4) According to the indication, enter password or PIN No:“0000”;... -
Page 8: Listening To Music
3. Listening to music When DA-30501 is used as a receiver, you can connect it to a 3.5mm stereo headset or stereo speaker with a 3.5mm to 3.5mm audio cable. Now you can listen to music and control pause/play of music. -
Page 9: Care And Maintenance
1. What to do when DA-30501 can’t be switched on? Please charge it. 2. What to do when DA-30501 can’t pair and connect to a Bluetooth device? 1) Make sure Bluetooth stereo receiver supports A2DP; 2) Make sure Bluetooth stereo receiver is placed within 5 meters;... - Page 10 Notes: 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2.
