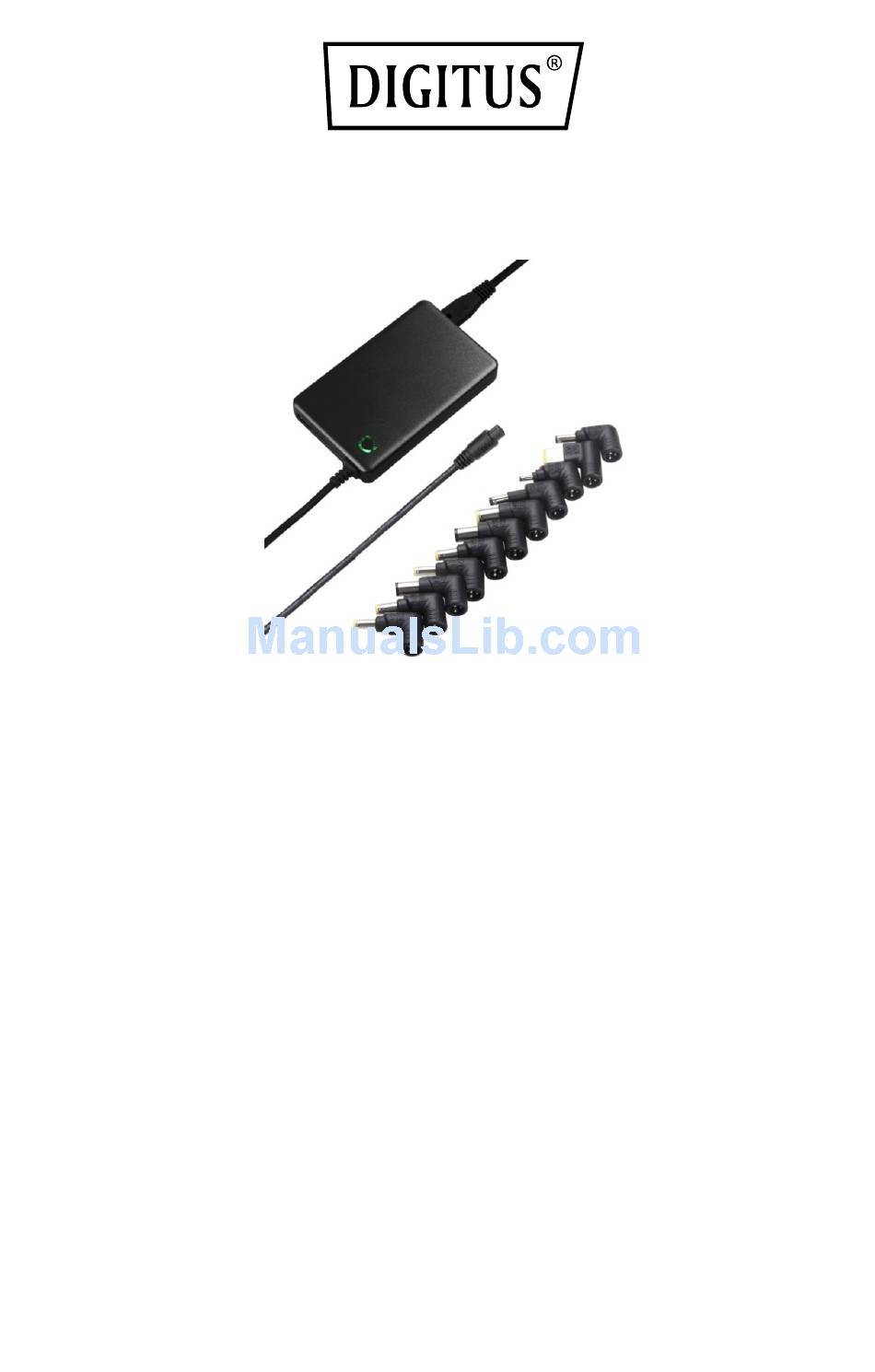

Power Adaptor AC/DC 90W, for Notebook
Manual
DA-10190
Firstly thank you for purchasing our new 90W ultra slim product, which is
especially designed for charging and supplying power for notebooks and
®
®
netbooks. The integrated USB port can charge for iPhone
, iPod
, mobile
phones, MP3, MP4 and other devices. This product has acquired many
patents and certificates already and the max power can reach 90W. Also it
adopts the widest output voltage technology and switch voltage automatically.
With ultra slim appearance and fashion style, it will be one of the best choice
for you and your family.
Product Feature:
1. Ultra slim housing with only 17mm and very competitive size with full
power 90W, smart appearance and portable.
Advertisement
Table of Contents
Related Manuals for Digitus DA-10190
Summary of Contents for Digitus DA-10190
- Page 1 Power Adaptor AC/DC 90W, for Notebook Manual DA-10190 Firstly thank you for purchasing our new 90W ultra slim product, which is especially designed for charging and supplying power for notebooks and ® ® netbooks. The integrated USB port can charge for iPhone...
- Page 2 2. Charge or supply power to notebooks with 11pcs DC connectors which cover the most popular brands in the markets. 3. 100% Automatic switch when different tips used, just plug & go, no fiddly switch. 4. Adopt SCM computer controlling technique to make sure working precision.
- Page 3 Product Specification AC Input: 100~240V, 1.8A 50-60Hz DC Output: 12~24V 6A 90W (MAX) USB output: DC 5V 2A (MAX) Size: 114*70*17mm Net Weight: 239g Package Content: 1. Adaptor Body 2. AC power cord 3. 11pcs Notebook tips 4. User manual Operation Steps 1.
- Page 4 Notes: Please check that the product’s feature, connector, and voltage will be compatible with your laptop, tablet pc, camera and/or other devices; in accordance to your device's manual instruction. Please read this manual and its instructions carefully before use. We are not responsible for any damage caused by incorrect or reckless operation.
- Page 5 Notebook DC Connectors Specification: Output Range Connectors Spec. Replacement Voltage Voltage HP/COMPAQ: 18.5V/2.7A, 18.5V/3.5A, 18.5V/3.8A, 18.1-19.9V 4.8*1.7*10.7mm 18.5V/4.9A; DELTA: 19V/2.64A; ASUS: 19V/2.64A; NEC: 19V/2.64A IBM: 19V/4.2A; COMPAQ/HP: 18.5V/4.9A, 19V/4.9A; DELTA: 19V/2.64A.; TOSHIBA: 19V/3.16A, 19V/3.42A, 19V/4.74A; 18.1-19.9V 5.5*2.5*10.7mm ASUS: 19V/4.74A. LENOVO: 20V/2A; LITEON: 19V/3.16A, 19V/3.42A, 19V/3.95A, 19V/4.74A;...
- Page 6 Warranty Specifications: 1. Two years of guarantee for our products. 2. The guarantee will be treated as void in case of breakage or manipulation of the seals of guarantee, if the material is damaged, without suitable packing and/or damages of transport and in the case of evident samples of an incorrect manipulation, illegal use, mistreat, blows, falls, dirt...
