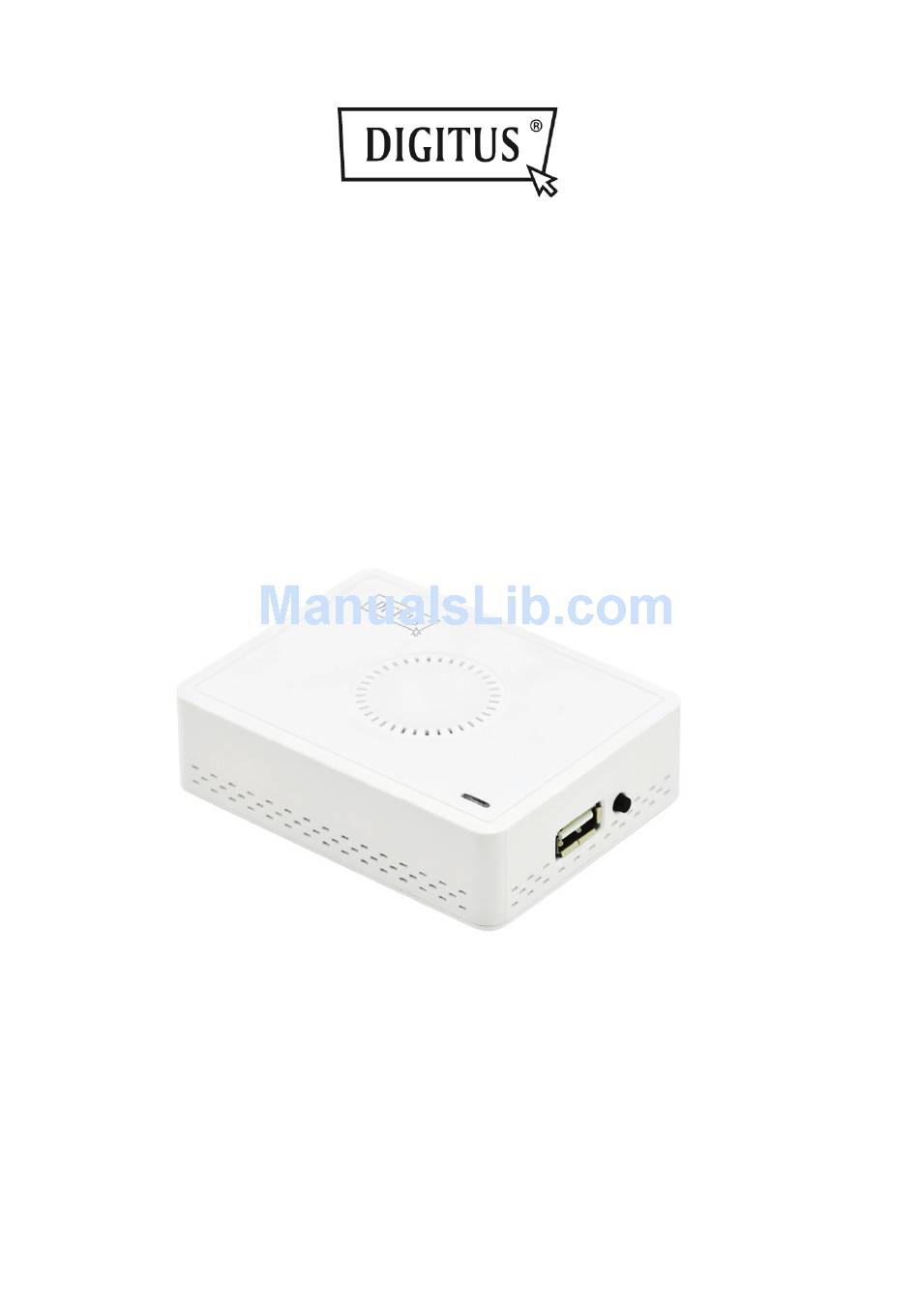

- Page 1 WIRELESS TV STREAMING BOX Quick Installation Guide DN-70310...
-
Page 2: Product Introduction
1. Product Introduction Thank you for choosing DIGITUS Wireless TV streaming box. Please follow the manual for its use. 1-1 Package Contents (1) DN-70310 (2) AC Adapter USB (3) Micro USB Cable (B to A) (4) CD-ROM (5) Quick Installation Guide... -
Page 3: Hardware Setup/Installation
1-2 Hardware Setup/Installation (1) Connect your device (2) Connect power and push power button to turn on DN-70310 After few seconds, when you see the below screen: the device is assigned an IP address, the system is in standby mode and ready to do file streaming or screen mirroring from your device. -
Page 5: Description Of Functions
2. Description of Functions DN-70310 is a highly integrated all-in-one receiver, featuring instant and direct peer-to-peer connection with no need to press switch button between different functions. Mirroring Mirroring: Screen mirroring from Android smart phones, or tablet PCs through Wireless Mirroring technology. - Page 6 Turn “on” AllShare Cast . Your phone will scan the streaming box, and it will show the SSID of the box. Choose the SSID which you find on the TV, and your phone will connect to the box automatically and begin screen mirroring. DN-70310 123...
- Page 7 Please go to “Settings” -> “Xperia” =>“Screen mirroring” => “Turn on Screen mirroring”. Your phone will scan the streaming box, and it will show the SSID of the box. Choose the SSID, mirroring will begin while your phone connect to streaming box successfully. DN-70310 123 Type3: Please choose “Settings” -> “Media Output”.
- Page 8 Please install ScreenShare software from the CD onto the PCs or Notebooks. The ScreenShare software will support both Windows and Mac OS. After installation the software, search and find the device’s SSID (DN-70310) in the wireless list on your PC/notebook.
- Page 9 DN-70310 123 DN-70310 123 DN-70310 123 Connect to this device SSID and double click the ScreenShare icon from your desktop. ScreenShare will auto detect ‘Server IP’, please input login code as shown on instruction page. DN-70310 123 DN-70310 123 9671...
-
Page 10: Main Functions
Main functions No Name Function Description Play Press “Play” to start the mirroring. Start / pause presentation. When pausing a progressing presentation, the displaying image will freeze. Stop Stop a progressing presentation and go back to instruction page. Menu Access menu list. Login code Show the application login code. - Page 11 1. Please scan the QR code on the screen or go to the Google play/APP store to download AirFun APP. 2. Then connect to DN-70310 on your Wi-Fi list from your smart devices. DN-70310 123 3. Press the Airfun icon on your screen.
- Page 12 5. Select this icon to choose the file type which you want to share and present on the HDMI screen. 2.3.1 Basic Usage of AIRFUN Utility for Windows software 1. You can install Airfun application in the CD ROM. 2. Double click the AIRFUN icon from your desktop. 3.
- Page 13 5. You can drag the video/photo/music file to Airfun main menu directly. For video files, please drag files to the right folder. 6. For photo/music files, please drag files to the left folder.
- Page 14 HDMI TV or monitor. DN-70310 Press the “Airplay” to show the device list. Select DN-70310 as your receiver box, and the photo/video will be shown directly on the HDMI screen. b b b i i i t t t s s s & & & b b y by y t t t e e e s s s st.
