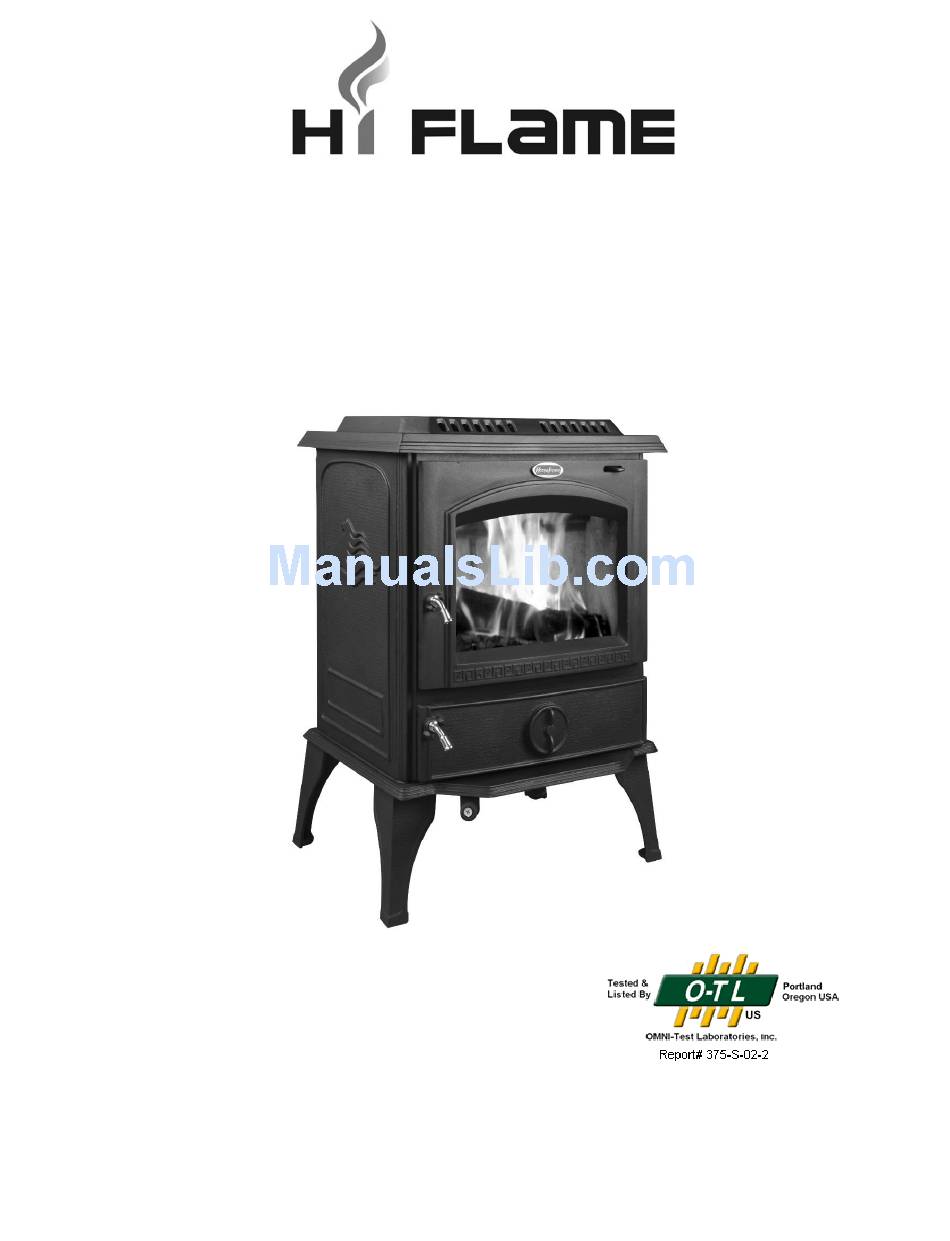

- Page 1 Installation and Operation Instructions for USA only Model: HF-717U Cast Iron Freestanding Stove （EPA Approved） KINDLY SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE...
-
Page 2: Safety Notice
HOT WHILE IN OPERATION. KEEP CHILDREN, CLOTHING AND FURNITURE AWAY. CONTACT MAY CAUSE SKIN BURNS. Please contact the Hi Flame® dealer in your area if you have any questions about your stove that are not covered in this manual. Proposition 65 Warning: Fuels used in gas, wood-burning or oil fired appliances, and the products of combustion of such fuels, contain chemicals known to the State of California to cause cancer, birth defects and other reproductive harm. -
Page 3: Table Of Contents
........................20 Glass Blackens ........................20 Smoke in Room ........................20 Fire Burning Too Quickly ......................20 Chimney Fire .......................... 21 Specifications ........................21 Hi Flame America Warranty – Policy & Procedures ............... 22 Warranty Exclusions and Limitations ..................23... -
Page 4: Sample Of Label
Sample of Label... -
Page 5: Stove Safety
However, there are important safety aspects of these products that you need to be aware of when operating a wood stove. 1. Hi Flame recommends that you have your new stove installed by a professional installer of solid fuel burning appliances. -
Page 6: Check Building Codes
Check Building Codes • When installing, operating and maintaining your stove, follow the guidelines presented in these instructions, and make them available to anyone using or servicing the stove. • Your city, town, county or province may require a building permit to install a solid fuel burning appliance. -
Page 7: Floor Protection
3. Gently lay the stove on its back. Remove screws from four corners of base and fit one of the legs to each corner of the stove. Tighten bolt to ensure leg is secure to base of stove. When complete, gently stand the stove upright. 4. -
Page 8: Installation Clearances
Installation Clearances It is extremely important that you respect required installation distances and that you respect local installation regulations. This is for your safety. The manufacturer is not responsible for the product if it is not installed following these recommendations. These clearances may only be reduced by means approved by the regulatory authority. -
Page 9: Well Sealed Flue System
Well sealed flue system Only materials and items approved for solid fuel stoves should be used for your stove. Under no circumstances should you use aluminum or galvanized steel pipes for your stove flue. Always fit pipes with the narrow side down. This will allow any creosote to run down the inside of the pipe and not to come out and cause an unsightly mess and possible fire hazard. -
Page 10: Chimney
This prevents any amount of condensed or liquid creosote from running down the outside of the pipe or the stovetop. All joints, including the flue collar connection, must be secured with three sheet metal screws to ensure that the sections do not separate. For the best performance, the chimney connector should be as short and direct as possible, with no more than two 90°... -
Page 11: Factory Built Chimney
Factory-Built Chimney When a metal prefabricated chimney is used, the manufacturer's installation instructions must be followed. You must also purchase (from the same manufacturer) and install the ceiling support package or wall pass-through and "T" section package, firestops (where needed), insulation shield, roof flashing, chimney cap, etc. -
Page 12: Masonry Chimney
Masonry Chimney Ensure that a masonry chimney meets the minimum standards of the National Fire Protection Association (NFPA) by having it inspected by a professional. Make sure there are no cracks, loose mortar or other signs of deterioration and blockage. Have the chimney cleaned before the stove is installed and operated. -
Page 13: Masonry Fireplace
Masonry Fireplace There are listed kits available to connect a stove to a masonry fireplace. The kit is an adapter that is installed at the location of the fireplace damper. The existing damper may have to be removed to allow installation. -
Page 14: Combustible Wall Chimney Connector Pass-Throughs
Combustible Wall Chimney Connector Pass-Throughs... -
Page 15: Operating Your Stove
Operating Your Stove • Do not use a grate, andiron or other fuel support method. Build fire directly on the hearth. • Only open door to fuel/refuel the stove. Excess air can cause the stove to over fire. Do not over fire. -
Page 16: Refueling
Refueling Before refueling your stove, turn the air supply on high for a few moments until there is a good fire within the stove. This will ensure there is no build-up of harmful gases in the stove when the door is opened and will also get the new fuel burning quickly and not allow it to kill the fire. To reload the stove, open the door and feed the fuel in slowly, using tongs. -
Page 17: Stove Maintenance
When you return to your stove, fully open the air control (move lever all the way to the left) until you have a good fire and then set to normal operating level. Do not add fuel until the fire bed is hot and red. -
Page 18: Care Of Glass And Replacement Of Glass
Care of glass At times, especially when the air control is turned to a low setting or when damp wood is used, the stove glass will blacken. This is caused by fuel that is not completely burned, but the build- up on the inside of the glass will normally burn off when a good hot fire is established in the stove. -
Page 19: Hf-717U Parts Diagram
HF-717U Parts Diagram... -
Page 20: Hf-717U Parts List
717U Parts List Leg (4) Front Base Fire fence Grate frame Front fire brick Grate Air wash control lever Bottom fire brick - Front Right side panel Bottom fire bricks - Left & Right Door hinge (4) Bottom fire brick - Back Air pan Left side panel Ornamental spin valve... -
Page 21: Trouble Shooting
Trouble Shooting Fire not burning A stove not burning is generally caused by either a shortage of air and/or incorrect or damp fuel. If fuel is not the problem check: • That the air controls are opened. • That there is no blockage in the flue system. •... -
Page 22: Chimney Fire
Do not relight the stove after a chimney fire until the stove and flue have been checked and any necessary repairs have been carried out. Specifications Model No: HF-717U Maximum Output EPA test wood: 28,857 BTU/h Maximum Output Seasoned Cord Wood: 63,000 BTU/h Overall Efficiency: 72% EPA Emission: 6.5 Grams/h... -
Page 23: Hi Flame America Warranty - Policy & Procedures
Hi Flame America will ship, at no cost to the retailer, and the retailer will help you replace the parts or repair at their option, any stove or fireplace insert or part thereof found to be defective. -
Page 24: Warranty Exclusions And Limitations
4. Travel time or any other related expenses are not covered under warranty. 5. At no time will Hi Flame America be liable for any consequential damage which exceeds the purchase price of the unit. All warranties, implied warranties of merchantability or other, are limited in duration to the length of this written warranty.
