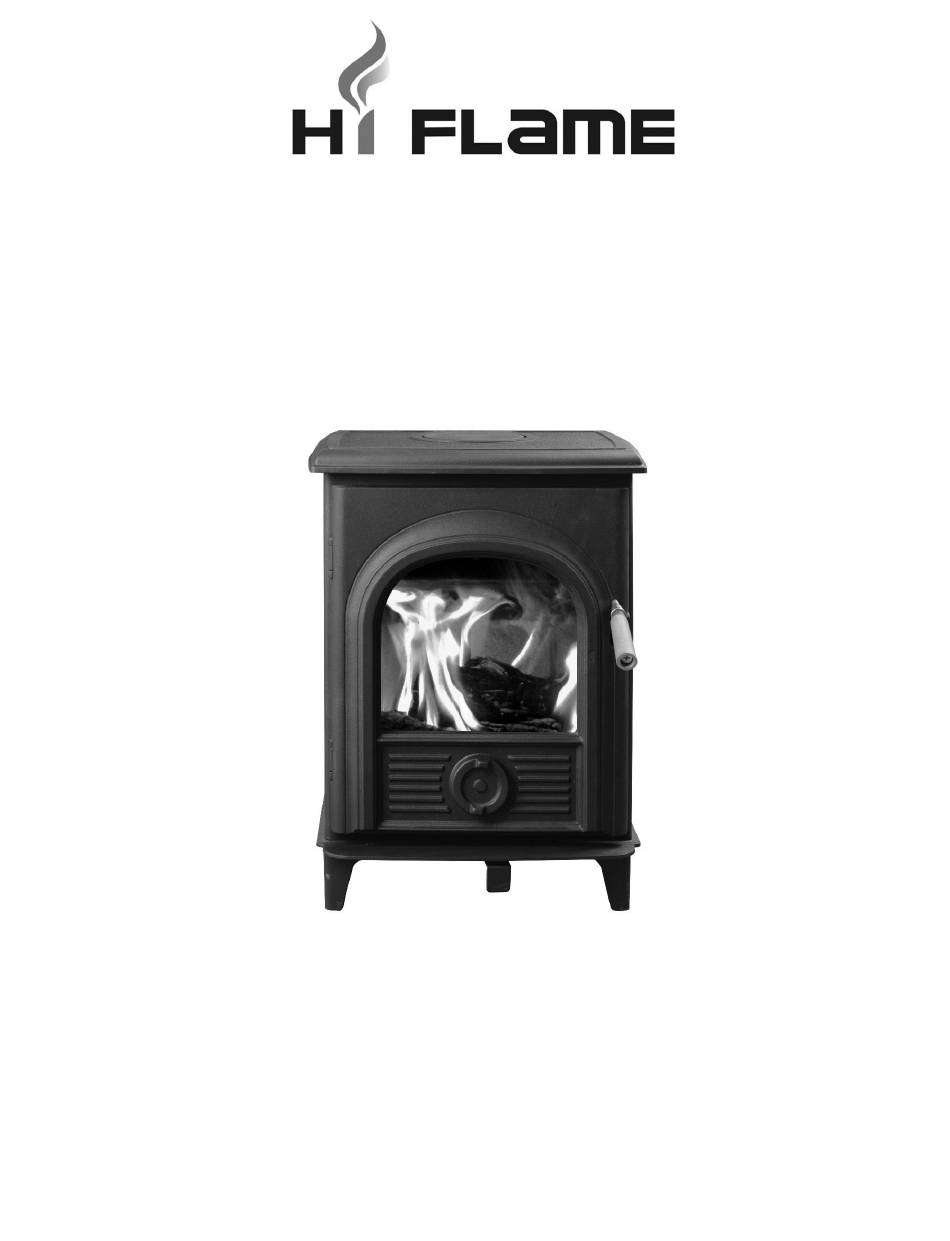

Wood burning freestanding stove

Advertisement

Installation and Operation Instructions
for USA only
Wood Burning Freestanding Stove
KINDLY SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
Model: HF-905U
(EPA Approved for Washington State)
Conforms to UL 1482 - 2010
Tested by Intertek

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HF-905U and is the answer not in the manual?

Questions and answers

Summary of Contents for Hi-Flame HF-905U

  • Page 1 Installation and Operation Instructions for USA only Model: HF-905U Wood Burning Freestanding Stove (EPA Approved for Washington State) Conforms to UL 1482 - 2010 Tested by Intertek KINDLY SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE...
  • Page 2: Very Important

    Safety Notice If this solid fuel room heater is not properly installed, a house fire may result. For your safety and to reduce the risk of fire, follow the installation instructions. Contact local building officials, fire officials or the authority having jurisdiction about restrictions and installation inspection requirements in your area, including the need to obtain a permit.
  • Page 3: Table Of Contents

    Stove Maintenance ........................ Care of Fire Bricks ........................Care of Glass .......................... Replacement of Glass ......................Replacement Parts ......................... Surface Finish ......................... 17 HF-905U Parts List Diagram ....................18 HF-905U Parts List ........................19 Trouble Shooting ........................20 Fire Not Burning ........................
  • Page 4: Sample Of Label

    Sample of Label...
  • Page 5: Stove Safety

    Stove Safety When properly maintained and operated your stove should give you many years of service. However, there are important safety aspects of these products that you need to be aware of when operating a wood stove. 1. Hi Flame recommends that you have your new stove installed by a professional installer of solid fuel burning appliances.
  • Page 6: Check Building Codes

    Installation Unpacking and preparing your stove for installation: Assembling the HF-905U 1. Open the door and unfasten the wire on the fire fence. It is used to ensure that the glass does not break during transportation.
  • Page 7: Floor Protection

    3. Fix the flue collar on the outlet which you selected by using the M6 x 20mm flat crosshead screw. Ensure all seals are secure to prevent air leakage. If you choose the rear flue outlet, remove the flue cover before fixing the flue collar. 4.
  • Page 8: Installation Clearances

    Installation Clearances It is extremely important that you respect required installation distances and that you respect local installation regulations. This is for your safety. The manufacturer is not responsible for the product if it is not installed following these recommendations. These clearances may only be reduced by means approved by the regulatory authority.
  • Page 9: Well Sealed Flue System

    Well sealed flue system Only materials and items approved for solid fuel stoves should be used for your stove. Under no circumstances should you use aluminum or galvanized steel pipes for your stove flue. Always fit pipes with the narrow side down. This will allow any creosote to run down the inside of the pipe and not to come out and cause an unsightly mess and possible fire hazard.
  • Page 10: Chimney

    This prevents any amount of condensed or liquid creosote from running down the outside of the pipe or the stovetop. All joints, including the flue collar connection, must be secured with three sheet metal screws to ensure that the sections do not separate. For the best performance, the chimney connector should be as short and direct as possible, with no more than two 90°...
  • Page 11: Factory Built Chimney

    Factory-Built Chimney When a metal prefabricated chimney is used, the manufacturer's installation instructions must be followed. You must also purchase (from the same manufacturer) and install the ceiling support package or wall pass-through and "T" section package, firestops (where needed), insulation shield, roof flashing, chimney cap, etc.
  • Page 12: Masonry Chimney

    Masonry Chimney (Installation untested by Intertek) Ensure that a masonry chimney meets the minimum standards of the National Fire Protection Association (NFPA) by having it inspected by a professional. (Must meet installation specifications provided in NFPA 211.) Make sure there are no cracks, loose mortar or other signs of deterioration and blockage.
  • Page 13: Masonry Fireplace

    Masonry Fireplace (Installation untested by Intertek) Ensure that a masonry fireplace meets the minimum standards of the National Fire Protection Association (NFPA) by having it inspected by a professional. (Must meet installation specifications provided in NFPA 211.) There are listed kits available to connect a stove to a masonry fireplace.
  • Page 14: Combustible Wall Chimney Connector Pass-Throughs

    Combustible Wall Chimney Connector Pass-Throughs...
  • Page 15: Operating Your Stove

    Operating Your Stove • Do not use a grate, andiron or other fuel support method. Build fire directly on the hearth. • Only open door to fuel/refuel the stove. Excess air can cause the stove to over fire. Do not over fire.
  • Page 16: Refueling

    Refueling Before refueling your stove, turn the air supply on high for a few moments until there is a good fire within the stove. This will ensure there is no build-up of harmful gases in the stove when the door is opened and will also get the new fuel burning quickly and not allow it to kill the fire. To reload the stove, open the door and feed the fuel in slowly, using tongs.
  • Page 17: Stove Maintenance

    Stove Maintenance Check stove regularly Creosote: Formation and Need for Removal When wood is burned slowly, it produces tar and other organic vapors, which combine with expelled moisture to form creosote. The creosote vapors condense in the relatively cool chimney flue of a slow-burning fire. If a significant layer of creosote has accumulated (3 mm or more), it should be removed to reduce the risk of a chimney fire.
  • Page 18: Replacement Of Glass

    There may be times, however, when you need to clean the glass. To do this, use a soft cloth and a non-abrasive glass cleaner. Only ever clean the glass when the stove is cold. When loading fuel into the stove, always make sure it is not protruding out through the door opening, as this may break the glass when you close the door.
  • Page 19: Hf-905U Parts List Diagram

    HF-905U...
  • Page 20: Hf-905U Parts List

    HF-905U Parts List 1. Flue collar 2. Hob blanking plate with lugs 3. Hob 4. Stove body 5. Cast steel hinge 6. Right side brick 7. Sealing rope (12mm diameter) 8. Flat fire rope (10mm width) 9. Glass clip 10. Refractory glass 11.
  • Page 21: Trouble Shooting

    Trouble Shooting Fire not burning A stove not burning is generally caused by either a shortage of air and/or incorrect or damp fuel. If fuel is not the problem check: • That the air controls are opened. • That there is no blockage in the flue system. •...
  • Page 22: Chimney Fire

    Do not relight the stove after a chimney fire until the stove and flue have been checked and any necessary repairs have been carried out. Specifications Model No: HF-905U Maximum Output EPA test wood: 16,800 BTU/h Maximum Output Seasoned Cord Wood: 21,000 BTU/h Overall Efficiency: 85% EPA Emission: 4.05 Grams/h...
  • Page 23: Hi Flame America Warranty - Policy & Procedures

    Hi Flame America, Inc. Warranty Warranty Policy & Procedures If you believe your Hi Flame® stove is defective, you should contact your nearest authorized Hi Flame America stove dealer, who will process a warranty claim. In order to qualify for warranty coverage, Hi Flame America must receive notice of a possible defect within thirty (30) days of being discovered, or reasonably could have been discovered.
  • Page 24: Warranty Exclusions And Limitations

    Exclusions and Limitations NOTICE This warranty is void if installation or service is performed by someone other than an authorized installer or service agency, or if installation is not in conformance with the installation and operating instructions contained in this owner's manual or local and/or national fire and building regulations.
