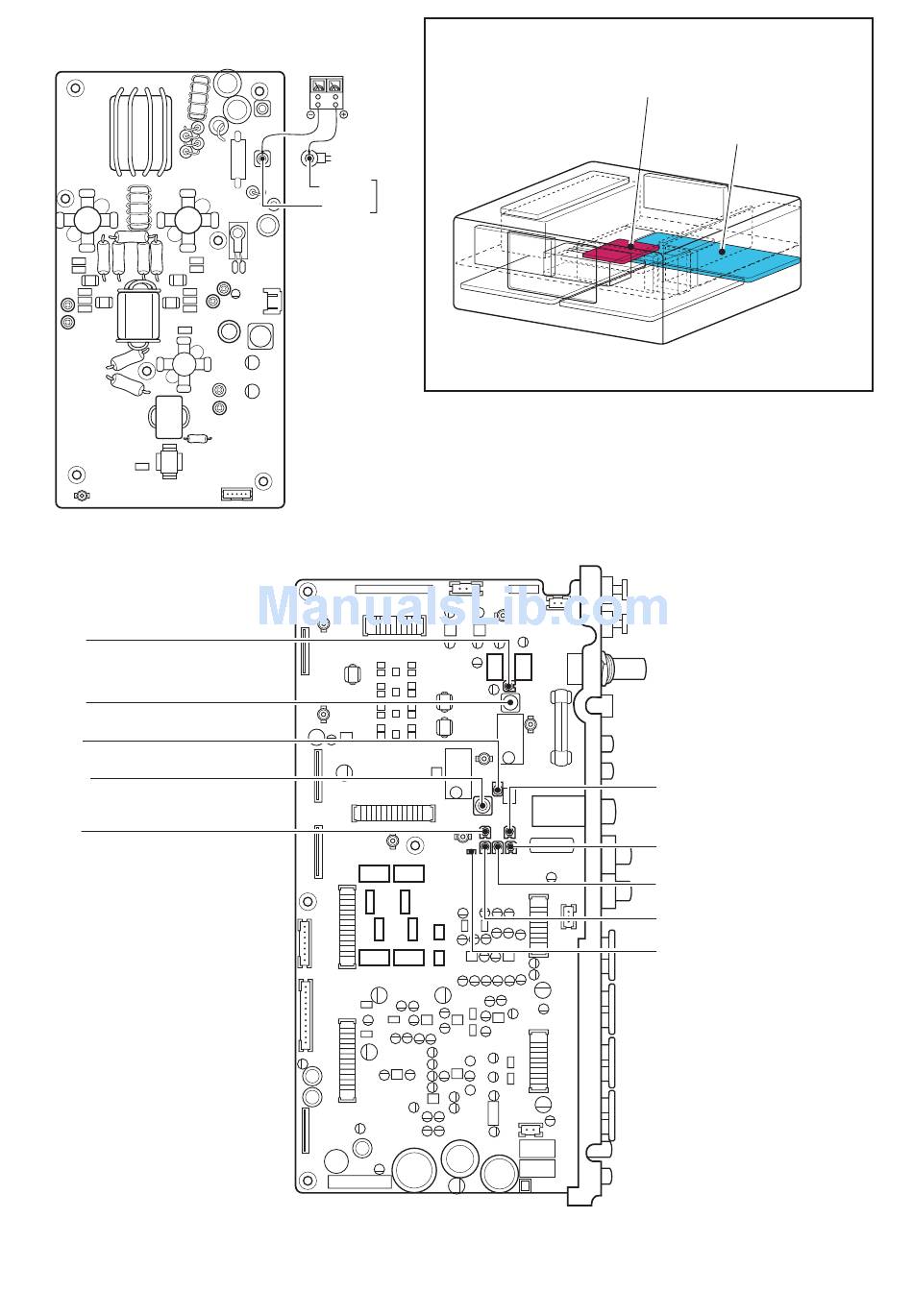

• PA200W BOARD TOP VIEW
• MAIN UNIT TOP VIEW
L505
Maximum output
power adjustment
R538
Tx total gain adjustment
L512
Maximum output power adjustment
C576
Maximum output power adjustment
Residual AM adjustment
R93
Id-APC adjustment
• LOCATION
DC ammeter
W1
EP501
Id-APC
check point
4 - 21
PA200W board (upper side)
Front panel
R69
Default adjustment
R79
High power adjustment (50M)
R81
High power adjustment (HF)
R82
AM carrier power adjustment
CP82
Default adjustment check point
MAIN unit (lower side)
