System Menu; Addr; Chnd; Slnd - ADJ SWEEPER BEAM QUAD LED User Instructions

Sweeper Beam Quad LED

System Menu

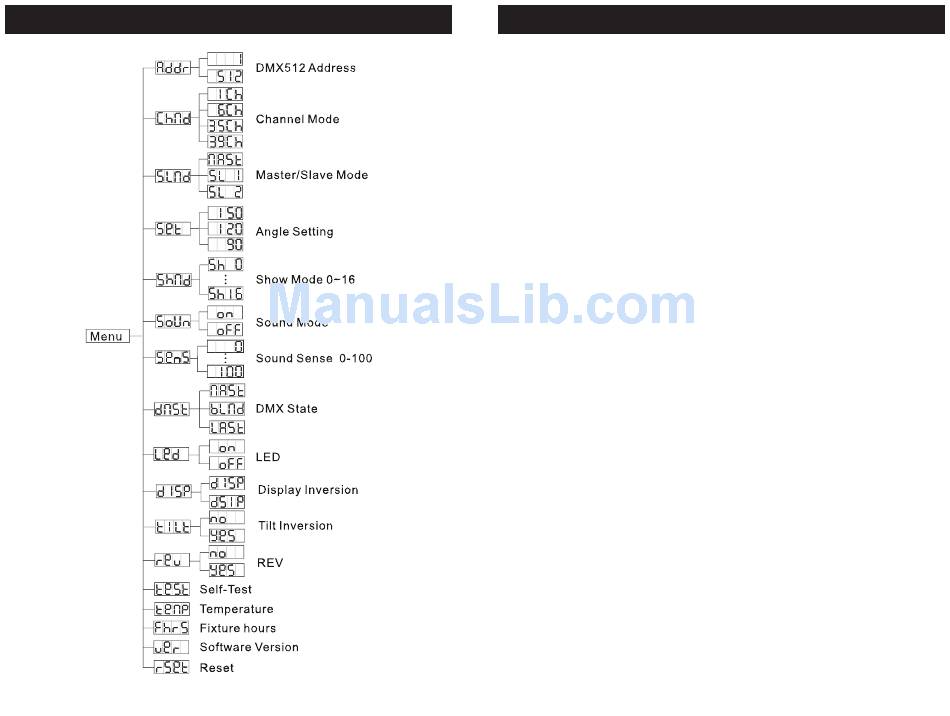

Sweeper Beam Quad LED System Menu
System Menu: When making adjustments press ENTER
to confirm your setup and then press and hold the MENU
button for at least 3 seconds. To exit without making any
adjustments press the MENU button.

ADDR -

DMX Address Setting.
1. Press the either the MENU, UP, or DOWN buttons until
"ADDR" is displayed, press ENTER.
2. The current address will now be displayed and flashing.
Press the UP or DOWN buttons to find your desired address.
Press ENTER and then press and hold the MENU button to set
your desired DMX address.

CHND -

This will let select your desired DMX channel
mode.
1. Press the either the MENU button until "CHND" is displayed,
press ENTER. Either "1CH", "6CH", "35CH", or "39CH" will be
displayed
2. Press the UP or DOWN buttons to choose your desired DMX
mode and press ENTER to confim and exit.

SLND -

This will let you set unit as a master or slave in a
master/slave configuration.
1. Press the MENU button until "SLND" is displayed, press
ENTER. Either "MAST", "SL 1" or "SL 2" will be displayed.
2. Press the UP or DOWN buttons until your desired setting is
displayed, press ENTER and then press and hold the MENU
button to confim.
NOTE: In a Master/Slave configuration you can set one fixture
to Master and then set the next fixture to "SL 2", the fixtures
will now have contrast movement to each other.
ADJ Products, LLC - www.adj.com - Sweeper Beam Quad LED User Manual Page 9 ADJ Products, LLC - www.adj.com - Sweeper Beam Quad LED User Manual Page 10
