Summary of Contents for ADJ SABER SPOT RGBL

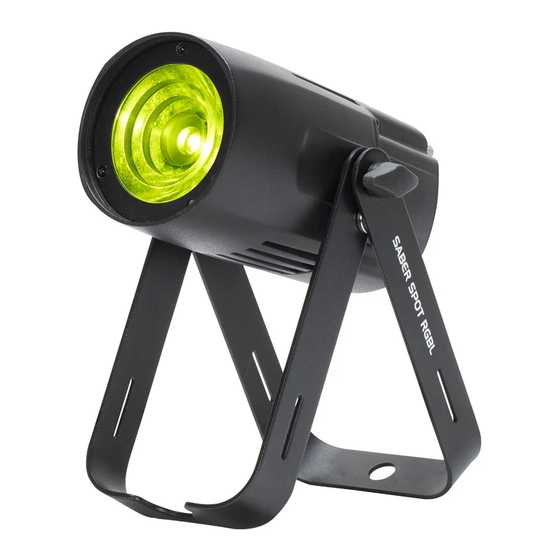

- Page 1 SABER SPOT RGBL User Manual...
- Page 2 ©2024 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying prod- uct names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
-
Page 3: Table Of Contents
C O N T E N T S Introduction Limited Warranty (USA Only) Warranty Registration | Features Safety Precautions Overview Installation Guidelines Accessory Installation Remote Device Management (RDM) Control Panel System Menu DMX Set Up DMX Traits Color Macros Chart Dim Modes Primary-Secondary Set Up | Multi Unit Power Linking Maintenance Guidelines... -
Page 4: Introduction
I N T R O D U C T I O N Unpacking: Thank you for purchasing the Saber Spot RGBL by ADJ Products, LLC. Every device has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the ship- ping carton for damage that may have occurred during shipping. -
Page 5: Limited Warranty (Usa Only)
The sole responsibility of ADJ Products, LLC under this warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of ADJ Products, LLC. All products covered by this warranty were manufactured after August 15, 2012, and bear identifying marks to that effect. -
Page 6: Warranty Registration | Features
W A R R A N T Y R E G I S T R A T I O N Please fill out the enclosed warranty card to validate your purchase. All returned service items, whether under warranty or not, must be freight pre-paid and accompanied by a return authorization (R.A.) number. -
Page 7: Safety Precautions
S A F E T Y P R E C A U T I O N S PROTECTION CLASS 1 - FIXTURE MUST BE PROPERLY GROUNDED. THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT. DO NOT ATTEMPT ANY REPAIRS YOURSELF, AS DOING SO WILL VOID YOUR MANUFACTURER’S WARRANTY. -
Page 8: Overview
O V E R V I E W Power Power Mounting Bracket Display Screen Mode Button Mounting Bracket Knob Safety Cable Loop Down Enter Button Button Button... -
Page 9: Installation Guidelines
I N S T A L L A T I O N G U I D E L I N E S DO NOT INSTALL THE FIXTURE IF YOU ARE NOT QUALIFIED TO DO SO! Fixture MUST be installed following all local, national, and country commercial electrical and construc- tion codes and regulations. - Page 10 I N S T A L L A T I O N G U I D E L I N E S CLAMP MOUNTING When mounting the fixture to a truss or any other suspended structure, be sure to secure an appro- priately rated clamp to the hole on the top of the mounting bracket.
- Page 11 I N S T A L L A T I O N G U I D E L I N E S STAND MOUNTING This unit can also be installed atop a tripod stand. Simply secure the Omega bracket to the bottom face of the device, then insert the threaded bolt on the top of the tripod stand through the hole in the Omega bracket.
- Page 12 LEDs. This issue is not specific only to ADJ lighting fixtures, it is a common issue with lighting fixtures from all manufacturers. Although there is no true way to fully prevent this issue from happening, the guidelines below can prevent any potential damage from occurring if followed.
- Page 13 I N S T A L L A T I O N G U I D E L I N E S The unit is fully operational in three different mounting positions: hanging upside-down from the ceil- ing or trussing, sideways on trussing, or set on a flat level surface. Be sure this fixture is kept at least 12m (40ft) away from any flammable materials (decorations, etc).
-
Page 14: Accessory Installation
A C C E S S O R Y I N S T A L L A T I O N FROST FILTER A removeable frost filter is included with the fixture. To install, begin by inserting the frost filter, making sure that the frost filter sits behind the retainer groove. -
Page 15: Remote Device Management (Rdm)
R E M O T E D E V I C E M A N A G E M E N T ( R D M ) R E M O T E D E V I C E M A N A G E M E N T ( R D M ) NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems. -
Page 16: Control Panel
C O N T R O L P A N E L This unit features a display screen with a 4-button control pad, which can be used to easily adjust any device settings. Pressing the MODE button will cycle through the various Main Menu options. When the desired Main Menu option is displayed on the screen, press the ENTER button to enter the sub-menu, then use the UP and DOWN buttons to scroll through sub-menu options. -
Page 17: System Menu
S Y S T E M M E N U DMX MODE ADDR: 001 - 510 Set DMX starting address 3Ch HSI 4Ch RGBL 4Ch HSI+ 5Ch RGBL 6Ch sRGBLI 6Ch RGBL CHANNEL Select DMX channel mode 7Ch RGBL 8Ch RGBL 8Ch 16Bit 10Ch HSI 12Ch sRGBLI... - Page 18 S Y S T E M M E N U TEMP UNIT C / F Select temperature units TEMP VAL Display current temperature Off / On AUTOLOCK Control lock after certain period of inactivity IR ACTIVE Off / On Enable or disable IR control FLIP DISPLAY Off / On Invert display orientation...
-
Page 19: Dmx Set Up
D M X S E T U P DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used as a form of commu- nication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions from the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA “IN”... - Page 20 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will reduce the risk of erratic behavior. DMX ADDRESSING.
-
Page 21: Dmx Traits
D M X T R A I T S CHANNEL FUNCTION VALUES 10CH 12CH 13CH RGBL HSI+ RGBL RGBL 16bit 000 - 255 Red, 0 - 100% Red Fine, 0 - 000 - 255 100% 000 - 255 Green, 0 - 100% Green Fine, 0 - 000 - 255 100%... - Page 22 D M X T R A I T S CHANNEL FUNCTION VALUES 10CH 12CH 13CH RGBL HSI+ RGBL RGBL 16bit Auto Programs 001 - 020 Auto Program 1 021 - 040 Auto Program 2 041 - 060 Auto Program 3 061 - 080 Auto Program 4 081 - 100 Auto Program 5 101 - 120 Auto Program 6...
-
Page 23: Color Macros Chart
C O L O R M A C R O S C H A R T DMX VALUES GREEN BLUE LIME 001 - 004 005 - 008 009 - 012 013 - 016 017 - 020 021 - 024 025 - 028 029 - 032 033 - 036 037 - 040... - Page 24 C O L O R M A C R O S C H A R T DMX VALUE GREEN BLUE LIME 153 - 156 157 - 160 161 - 164 165 - 168 169 - 172 173 - 176 177 - 180 181 - 184 185 - 188 189 - 192...
-
Page 25: Dim Modes
D I M M O D E S DIMMER 100% Time (ms) Rise Time Down Time 0 Sec 0 sec Fade Time 1 sec Fade Time Dimming Curve Ramp Effect Rise Time (ms) Down Time (ms) Rise Time (ms) Down Time (ms) Standard (default) Stage 1100... -
Page 26: Primary-Secondary Set Up | Multi Unit Power Linking
P R I M A R Y - S E C O N D A R Y S E T U P This function allows you to link units together to run in a Primary-Secondary set-up, in which one unit will act as the controlling unit and the others will react to the controlling unit’s built-in programs. -
Page 27: Maintenance Guidelines
Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside this fixture. Please refer all other service issues to an authorized ADJ service technician. Should you need any spare parts, please order genuine parts from your local ADJ dealer. -
Page 28: Dimensional Drawings
D I M E N S I O N A L D R A W I N G S 6.69in (170mm) 10.24in (260mm) 5.31in (135mm) -
Page 29: Specifications
S P E C I F I C A T I O N S Optical: Control: • Light Source: 20 Watt, RGBL LED • 12 DMX Channel Modes: 3 HSI/4 RGBL/4 • LED Life Expectancy: 30,000 Hrs HSI+/5 RGBL/6 sRGBLI/6 RGBL/7 RGBL/8 •...
