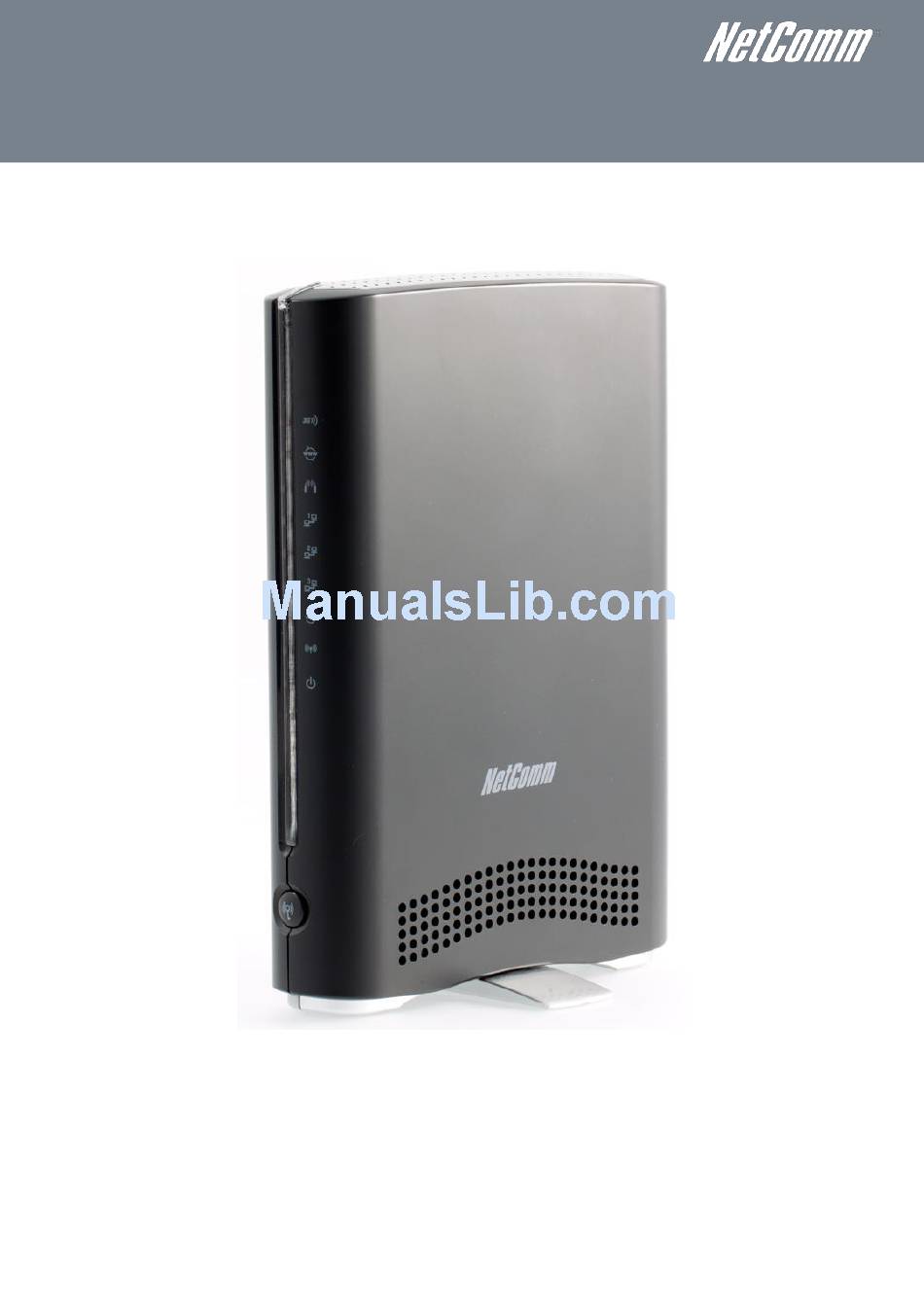

Page 1: User Guide
NETCOMM FIBRE SERIES NF2 – D IGABIT USER GUIDE... - Page 2 Copyright©2012 NetComm Wireless Limited. All rights reserved. The information contained herein is proprietary to NetComm Wireless Limited. No part of this document may be translated, transcribed, reproduced, in any form, or by any means without prior written consent of NetComm Wireless Limited.
-
Page 3: Table Of Contents
NF2 Default Settings ...................................... 9 Safety and Product Care ................................10 Transport and Handling ................................10 Installation and Configuration of the NetComm NF2 ......................... 11 Placement of your NF2 and Mobile Broadband ............................. 11 Avoid obstacles and interference .................................. 11 Cordless Phones ...................................... - Page 4 Establishing a wireless connection................................63 Technical Data ..................................... 64 Electrical Specifications ....................................64 Environmental Specifications / Tolerances ..............................64 FAQ ......................................65 Appendix A: Tables..................................66 Legal & Regulatory Information..............................67 Intellectual Property Rights ................................... 67 Contact......................................69 NetComm NF2 User Guide YML27 www.netcommlimited.com...
-
Page 5: Overview
Overview Introduction This manual provides information related to the installation, operation, and utilisation of the NetComm NF2. Target Users The individual reading this manual is presumed to have a basic understanding of telecommunications terminology and concepts. Prerequisites Before continuing with the installation of your NF2 Hub, please confirm that you comply with the minimum system requirements below. -
Page 6: Product Introduction
Product Features The NetComm NF2 creates a secure WiFi network, providing Internet access for up to 15 users. Simply plug the NF2 into a power outlet then insert a Mobile Broadband (MBB) dongle into the USB port on the side panel to access a high speed Internet connection within minutes. -
Page 7: Physical Dimensions And Indicators
LED Indicators The NetComm NF2 has been designed to be placed on a desktop. All of the cables exit from the rear for better organization. The display is visible on the front of the NF2 to provide you with information about network activity and the device status. See below for an explanation of each of the indicator lights. -
Page 8: Integrated Interfaces
Integrated Interfaces The following integrated interfaces are available on the rear of the NetComm NF2: INTERFACE FUNCTION WiFi Antenna Attach the wireless antenna turning it in a clockwise direction. The WAN Ethernet port for a Fixed Line (ADSL/Cable/Satellite) connection to the internet. -
Page 9: Nf2 Default Settings
(Refer to the included wireless security card) Table 5: WiFi Default Settings For security purposes, each NF2 comes with a unique SSID that varies by a 4 digit number at the end. e.g. SSID: “NetComm Wireless XXXX” NF2™ HUB WEB INTERFACE ACCESS... -
Page 10: Safety And Product Care
Disconnect the power line from the device before servicing. Transport and Handling When transporting the NetComm NF2, it is recommended to return the product in the original packaging. This ensures the product will not be damaged. In the event the product needs to be returned, ensure it is securely packaged with appropriate padding to prevent damage during courier transport. -
Page 11: Installation And Configuration Of The Netcomm Nf2
Installation and Configuration of the NetComm NF2 Placement of your NF2 and Mobile Broadband Just like your mobile phone, the NF2’s location will affect its signal strength to the MBB (Mobile Broadband) Provider’s Mobile Base Station (Cell Tower). The data speed achievable from the NF2 is relative to this signal strength, which is affected by many environmental factors. -
Page 12: Hardware Installation
Figure 1: Included Security Card Please note: For security purposes, each NF2 has a unique SSID (such as NetComm-WirelessXXXX) and Wireless Security Key. The included Wireless Security Card lists these fields instead of the xxxxx’s as shown in the screenshot above. -
Page 13: First Time Simple Configuration Wizard
First Time Simple Configuration Wizard When you log in to your NF2 for the first time, you will be presented with the NF2 “Set-up Wizard” as shown in the screenshot below. This wizard can be skipped by clicking on the link shown on the screenshot below. You can re-run the Setup Wizard again anytime after first use by selecting the “Setup Wizard”... - Page 14 The SSID (Service Set Identifier) is the name of your wireless network. Use a unique name to identify your wireless network so that you can easily connect from your wireless clients. This field is case sensitive and can be up to 32 characters. You should change the default SSID for added security. Click “Next” to continue. NetComm NF2 User Guide YML27 www.netcommlimited.com...
- Page 15 Figure 4 - Setup Wizard Step 3 – 2.4 GHz WiFi Security Settings This page allows you to configure the 2.4 GHz WiFi security settings for the NF2. Setting a strong wireless security level (such as WPA-PSK - AES) can prevent unauthorized access to your wireless network. Please enter the Security Key that you wish to use, or leave this field unchanged to use the default Security Key.
- Page 16 WPA-PSK - AES) can prevent unauthorized access to your wireless network. Please enter the Security Key that you wish to use, or leave this field unchanged to use the default Security Key. Click “Next” to continue. Figure 6: Setup Wizard Step 6 - Router Security Settings NetComm NF2 User Guide YML27 www.netcommlimited.com...
- Page 17 In Step 6 of the NF2 Setup Wizard the administration password for the router can be set to prevent unauthorised access to the router management page. Enter the Desired Username and Desired Password, retyping the desired Password in the Retype Password field to confirm the new password.
-
Page 18: Management Console Login Procedure
Please note: In the event that your Internet connection becomes unavailable and no fail over service has been configured, the NetComm NF2 Management console page will display when attempting to browse to an Internet site. Figure 8: Management Console Login... -
Page 19: Management Console
Management Console Basic Status Overview The basic status page provides basic system related information. It can be accessed by clicking on the “Switch to Basic view” button from the top of the status page. Figure 9: Basic View – Status The status page shows the current primary Internet connection, WAN/LAN status, MBB connection status, current Signal Strength (dBm) and the SIM Status. - Page 20 Product ID on the bottom of the NF2. Please note that whilst the key can be customized on this page, the key will revert to the default if the NF2 is reset to factory default settings. Table 8: Basic View - 2.4 GHz Wireless Settings NetComm NF2 User Guide YML27 www.netcommlimited.com...
- Page 21 5.0 GHz Wireless Figure 10: Basic - 5.0 GHz Wireless This page allows you to configure basic 5.0 GHz WiFi settings for this device such as enabling/disabling the 5.0 GHz WiFi functionality, changing the 5.0 GHz Wireless Network Name (SSID) or the 5.0 GHz Wireless Security key. If you make any changes to the settings, click the “Save and apply changes”...
- Page 22 If the SIM card requires a PIN to operate enter the PIN into this field. Confirm PIN If the SIM card requires a PIN to operate enter the PIN into this field also. Table 10: Basic View - Mobile Broadband Settings NetComm NF2 User Guide YML27 www.netcommlimited.com...
- Page 23 Figure 12: Basic View – WAN This page gives the user the option of selecting the WAN interface type. Options include Dynamic IP address (the default option), Static IP Address, PPPoE, PPTP, or L2TP. There is also an option to enter a Host Name with which to access the router instead of having to enter an IP address into a browser, which may be difficult to remember.
-
Page 24: Advanced Features
Status The status page provides system related information and is displayed when you login to the NetComm NF2 management console and switch to the Advanced View. By default, the status page will show IPv4 System Status, IPv6 System Status, Wireless 2.4 GHz Status, Wireless 5.0 GHz Status and Statistics... -
Page 25: Network Setup
Network Setup Network Setup Ethernet WAN This page allows you to setup the Ethernet WAN (Wide Area Network) interface of the NF2 router. This is for an internet connection through the WAN port of the router instead of using a Mobile Broadband (MBB) WWAN connection. Figure 14: Advanced View –... - Page 26 By listening to these conversations the router maintains a map of which links need which IP multicast streams. Multicasts may be filtered from the links which do not need them. Table 12: Advanced - Network Setup - Wireless WAN NetComm NF2 User Guide YML27 www.netcommlimited.com...
-
Page 27: Dhcp
DHCP DHCP is the means used so that all computers connected to the router can be assigned an IP address. This is essential before communications can start over the internet. Generally it is recommended to leave DHCP as default (enabled) unless instructed otherwise by your Internet Service Provider. -
Page 28: Wireless 2.4 Ghz
Wireless 2.4 GHz This page allows the user to configure the 2.4 GHz wireless settings on the NetComm NF2 including the wireless security types, wireless encryption, WDS (Wireless Distributed System) settings and WPS (Wireless Protected Setup) setup. Figure 17: Advanced - Wireless 2.4 GHz... -
Page 29: Wds Settings
WDS Settings WDS (Wireless Distribution System) is a system that enables the wireless interconnection of access points, and allows a wireless network to be expanded using multiple access points without using a wired backbone to link them. To successfully link each WDS Access Point needs to be set with the same channel, SSID, encryption type and encryption key. -
Page 30: Wireless 5.0 Ghz
Wireless 5.0 GHz This page allows the user to configure the 5.0 GHz wireless settings on the NetComm NF2 including the wireless security types, wireless encryption, WDS (Wireless Distributed System) settings and WPS (Wireless Protected Setup) setup. Figure 20: Advanced - 5.0 GHz Wireless... -
Page 31: Vpn - Ipsec
VPN – IPSec This page allows the NetComm NF2 to act as a VPN IPSec endpoint. Internet Protocol Security (IPsec) is used to secure IP (Internet Protocol) communications by authenticating and encrypting each IP packet of a communication session. IPsec also includes protocols for establishing mutual authentication between agents at the beginning of the session and negotiation of cryptographic keys to be used during the session. - Page 32 Select to enable Dead Peer Detection, a means of detecting a dead IKE (Internet Key Exchange) peer. Set the Dead Peer Detection (DPD) timeout and delay in seconds. Set IKE Proposal Select to Enable IKE (Internet Key Exchange) Proposals. Table 18: Advanced - Network Setup - VPN IPSec - Dynamic IPSec NetComm NF2 User Guide YML27 www.netcommlimited.com...
-
Page 33: Vpn-L2Tp
VPN-L2TP This page allows you to configure a Layer 2 Tunnelling protocol. It does not provide any encryption or confidentiality by itself; it relies on an encryption protocol that it passes within the tunnel to provide privacy. Figure 23: Advanced - Network Setup - L2TP VPN-PPTP Client The Point-to-Point Tunnelling Protocol (PPTP) is a method for implementing virtual private networks. -
Page 34: Vpn - Pptp Server
VPN – PPTP Server This page allows the NetComm NF2 to become a PPTP VPN endpoint. Figure 25: Advanced - Network Setup - VPN - PPTP Server OPTION DEFINITION VPN-PPTP Server Select this option to enable the VPN-PPTP Server function. -
Page 35: Change Password
Change Password This page allows you to change the administrator username and password to secure the NetComm NF2 management console against unauthorised access. Figure 26: Advanced - Network Setup - Change Password NF2 – Dual Band Wi-Fi Gigabit Hub User Guide YML38 www.netcommlimited.com... -
Page 36: Forwarding Rules
Select this option to enable the port forwarding rule. Use Rule Select when the port forwarding rule should be used. The default option is Always. Table 20: Advanced - Forwarding Rules - Virtual Server Settings NetComm NF2 User Guide YML27 www.netcommlimited.com... -
Page 37: Special Ap
Special AP The Special AP page allows the router to be configured for port triggering. Port triggering allows a client device connected to the router to dynamically and automatically forward a specific port back to itself. Port triggering opens an incoming port when your computer is using a specified outgoing port for specific traffic. -
Page 38: Security Settings
Security Settings The security settings menu has such configuration options for the NetComm NF2 as Packet Filtering, MAC Filtering, Domain Filtering, URL Blocking, MAC Control and Remote Administration settings. Status The Security Settings Status page provides an overview of the current IP filter, MAC filter and domain filter rules in place on the NF2. -
Page 39: Mac Control
OPTION DEFINITION Enter the local source IP address where the packet originates from for an outgoing packet filter rule or is being Source IP sent to for an incoming packet filter rule. Destination IP: Ports Enter the WAN IP address and port number or range where the packet is directed to or from.. Enable Select this option to make the packet filter rule active. -
Page 40: Domain Filter
Select Log if you wish to log any attempts to access the specified domain name. Enable Select this option to enable the domain filter rule. Table 23: Advanced - Security Settings - Domain Filtering Settings: NetComm NF2 User Guide YML27 www.netcommlimited.com... -
Page 41: Url Blocking
URL Blocking The URL blocking function can deny access to specified URL addresses. Figure 34: Advanced - Security Settings - URL Blocking Miscellaneous The Security Settings Miscellaneous section provides access to remote administration settings, administrator time out and DoS (Denial of Service) Attack Detection amongst other things. Figure 35: Advanced - Security Settings - Miscellaneous NF2 –... -
Page 42: Advanced Settings
As well as viewing the system log entries locally the System Log page allows a network administrator to configure the router’s system log to be sent to a remote system log server or to be emailed to nominated email addresses of the administrator’s choice. Figure 37: Advanced - Advanced Settings - System Log NetComm NF2 User Guide YML27 www.netcommlimited.com... -
Page 43: Dynamic Dns
OPTION DEFINITION IP Address for Syslog Server For sending the system log information to a remote server, enter the IP address of your System Log server. Email Address to Send Syslog to If you would like to send the system log details via email select this option and enter the appropriate details. SMTP Server: port Enter the name of the outgoing mail server to use in sending out the system log server. -
Page 44: Qos (Quality Of Service)
SNMP consists of a set of standards for network management, including an application layer protocol, a database schema, and a set of data objects. Figure 40: Advanced - Advanced Settings - SNMP NetComm NF2 User Guide YML27 www.netcommlimited.com... -
Page 45: Routing
OPTION DEFINITION Enable SNMP The option to disable or enable the SNMP function. An SNMP community is the group that devices and management stations running SNMP belong to. It helps define where information is sent. The Get Community field gets the current community name is used to identify Get Community the group. -
Page 46: System Time
The NF2 has built in scheduling, allowing the router to be switched on or off. This offers a means of parental control. To create a schedule, ensure the enable Schedule option is selected and press the Add New button. Figure 43: Advanced - Advanced Settings – Schedule NetComm NF2 User Guide YML27 www.netcommlimited.com... - Page 47 Adding a Schedule Figure 44: Advanced - Advanced Settings - Adding a Schedule OPTION DEFINITION Name of Rule Enter a name for the Schedule. Use the Policy option to set each rule defined to Activate or Deactivate the router except the selected days and Policy hours below.
-
Page 48: Ipv6
The Router advertisement lifetime is the amount of time that the router advertisement is broadcast as a multicast after receiving the request. Table 30: Advanced - Advanced Settings – IPv6 Settings NetComm NF2 User Guide YML27 www.netcommlimited.com... - Page 49 TR-069 The TR-069 (technical report 069) protocol uses a SOAP/HTTP protocol to provide communications between Customer-Premises Equipment (CPE) and an Auto-Configuration Server (ACS) for the purpose of automated configuration of the CPE devices. Figure 46: Advanced - Advanced Settings - TR-069 OPTION DEFINITION TR-069...
-
Page 50: Vlan
Figure 48: Advanced - Advanced Settings - VLAN - WAN VLAN Select the appropriate VID (Virtual ID) and select the Routing Type, either NAT or Bridging. Press the Save button to save any changes to the settings. NetComm NF2 User Guide YML27 www.netcommlimited.com... -
Page 51: Nas Settings
NAS Settings The NAS (Network Attached Storage) settings allow the NF2 to act as a file server. Options available include Disk Utility, File Sharing, Access Control, iTunes Server, Download Assistant, Download Status and Web HDD. Disk Utility Using the disk utility function a connected USB drive will be detected and displayed as the example in Figure 47 shows. The option to format the drive can also be found on this by pressing the Format button. -
Page 52: Ftp Service Configuration
As the name implies UTF-8 uses one byte (8 bits) for any ASCII character and up to 4 bytes for other characters. Table 32: Advanced - NAS Settings - File Sharing - FTP Service Configuration NetComm NF2 User Guide YML27 www.netcommlimited.com... -
Page 53: Access Control
Access Control The Access Control section of the NF2 NAS Settings, allow a network administrator to set either a guest level security with no authentication required or to use authentication mode where a username and password is required to access the NAS server files. Figure 52: Advanced - NAS Settings -Access Control To setup authentication for the NAS storage select Authorization Mode and press the User Configuration button. -
Page 54: Itunes Server
Enter the password required to access your iTunes server content. (required) Service Port Enter the port number that the iTunes Shared Library uses to connect with the internet. The default port number is 3369. Table 33: Advanced - NAS Settings - iTunes Server NetComm NF2 User Guide YML27 www.netcommlimited.com... -
Page 55: Download Assistant
Download Assistant The download assistant gives the user a means of automating the downloading of files from the internet at scheduled dates and times to a location of the user’s choice. There are two methods available to complete the downloading, FTP and HTTP. Figure 55: Advanced - NAS Settings - Download Assistant –... -
Page 56: Download Status
Table 35: Advanced - NAS Settings - Download Assistant - Email Alert Settings Download Status The download status page lists all downloads that are running, waiting to run or are scheduled to run. Figure 58: Advanced - NAS Settings - Download Status NetComm NF2 User Guide YML27 www.netcommlimited.com... -
Page 57: Web Hdd
Web HDD The Web HDD function provides a web page based Windows Explorer type view of the content of any attached USB storage. Using this interface you are able to upload, download or delete files and folders as well as create directories. Click through the displayed folders to show any stored files. -
Page 58: Toolbox
The System Info section provides access to the system log entries of the NF2. The system log entries can be saved to a file by pressing the Download button at the bottom of the page. Figure 61: Advanced - Toolbox - System Info NetComm NF2 User Guide YML27 www.netcommlimited.com... -
Page 59: Restore Settings
Restore Settings The restore settings page can be used to load a previously saved router configuration. It is recommended using an Ethernet cable connection to upload any configuration settings. Do not power off the router until the configuration settings are successfully updated and the router has automatically restarted. -
Page 60: Reset To Default
This option can be used to reset all settings on the NF2 to factory default settings. It is recommended to reset the router to factory default settings after a firmware upgrade. Figure 65: Advanced - Toolbox - Reset to Default Reboot Use this option to reboot the router after making any changes to the configuration settings. NetComm NF2 User Guide YML27 www.netcommlimited.com... -
Page 61: Startup Wizard
Startup Wizard The Startup Wizard option will return the user to the NF2 Startup wizard so that the router can be reconfigured. Figure 66: Advanced - Toolbox - Startup Wizard Miscellaneous The Miscellaneous page provides settings for Wake on LAN, has provision for ping tests, and has the option to DIM the LEDs on the front of the unit. -
Page 62: Logout
Logout The logout option gives the user the option to logout of the NF2 Graphical User Interface. Figure 68: Advanced - Toolbox - Logout NetComm NF2 User Guide YML27 www.netcommlimited.com... -
Page 63: Windows Vista
Additional Product Information Establishing a wireless connection Windows XP (Service Pack 2) 1. Open the Network Connections control panel (Start -> Control Panel -> Network Connections): 2. Right-click on your Wireless Network Connection and select View Available Wireless Networks: 3. Select the wireless network listed on your included wireless security card and click Connect. 4. -
Page 64: Technical Data
Table 38 - Technical Specifications for the NetComm NF2 Electrical Specifications A suitable power supply is available on request or via direct purchase from the NetComm Online shop. It is recommended that the NF2™ Hub be powered using the 12VDC/1.5A power supply which is included with the device. -
Page 65: Faq
Does the Dual Band WiFi Gigabit Hub require any configuration out of the box? No, the NF2™ Hub is a plug and play device. Plug the device into an electrical outlet and once the status indicator lights are on, plug in your LAN cable for data connectivity. For WiFi connectivity the default SSID (Service Set Identifier) and network key (password) are located on the bottom of the device. -
Page 66: Appendix A: Tables
Table 35: Advanced - NAS Settings - Download Assistant Settings ................55 Table 36: Advanced - NAS Settings - Download Assistant - Email Alert Settings ............56 Table 37: Advanced - Toolbox - Miscellaneous ......................61 NetComm NF2 User Guide YML27 www.netcommlimited.com... -
Page 67: Legal & Regulatory Information
The power supply that is provided with this unit is only intended for use with this product. Do not use this power supply with any other product or do not use any other power supply that is not approved for use with this product by NetComm. Failure to do so may cause damage to this product, fire or result in personal injury. -
Page 68: Product Warranty
Consumer Protection Laws which cannot be excluded, NetComm’s liability for any breach of that guarantee, condition or warranty is limited to: (i) in the case of a supply of goods, NetComm doing any one or more of the following: replacing the goods or supplying equivalent goods;... -
Page 69: Contact
Contact Address: NETCOMM WIRELESS LIMITED Head Office PO Box 1200, Lane Cove NSW 2066 Australia P: +61(0)2 9424 2070 F: +61(0)2 9424 2010 sales@NetComm.com.au www.NetCommlimited.com NF2 – Dual Band Wi-Fi Gigabit Hub User Guide YML38 www.netcommlimited.com...
