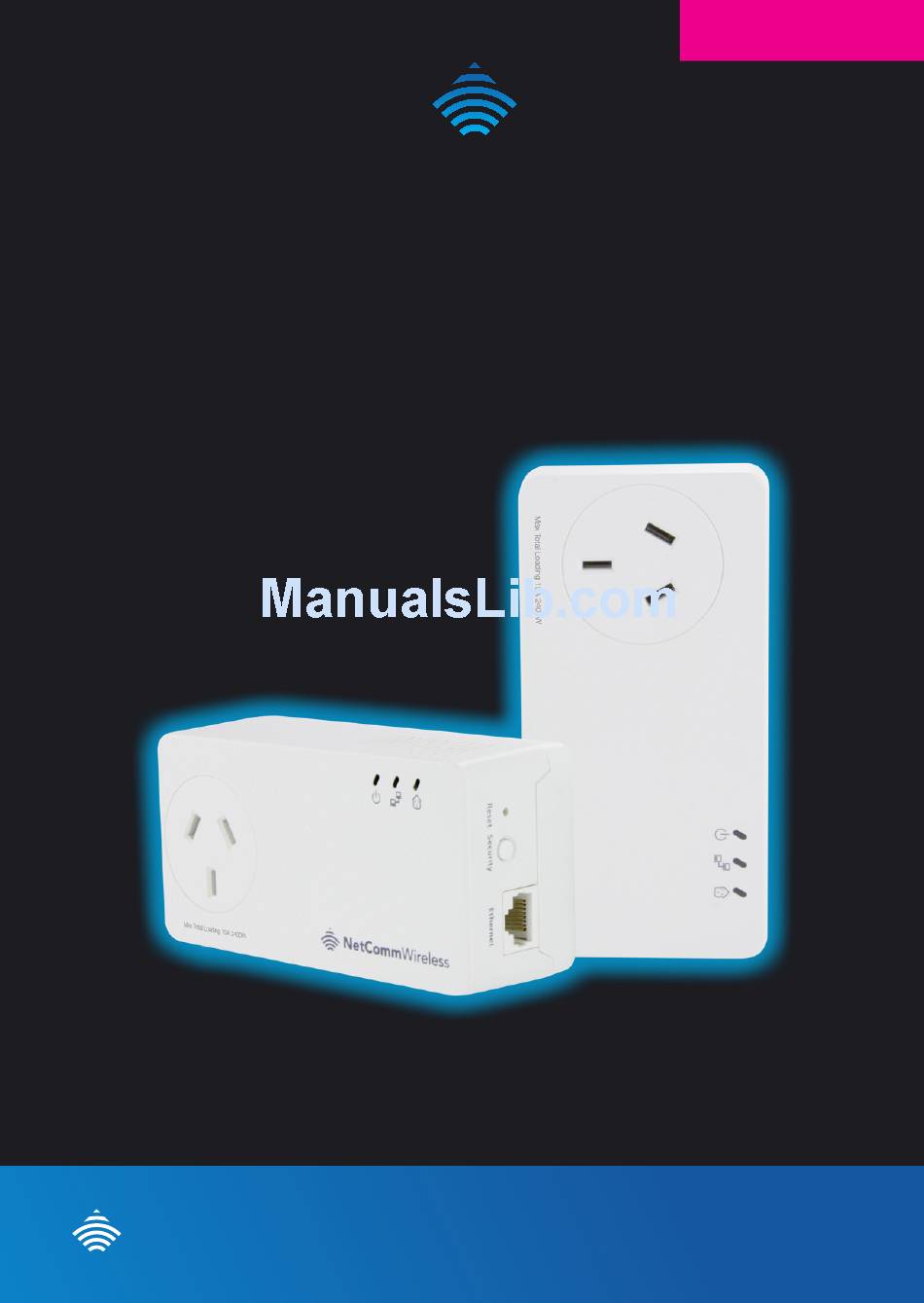

- Page 1 QUICK START GUIDE NetCommWirele 500Mbps Powerline Kit with AC Pass-through 500Mbps Powerline Kit with AC Pass-through - NP511 NetCommWireless NP511...
- Page 2 This quick start guide is designed to get you up and running quickly with your new device. More advanced set up instructions can be found in the user manual which can be downloaded from www.netcommwireless.com SETTING UP YOUR POWERLINE ADAPTERS Router Using one of the supplied Ethernet cables connect one end into the LAN Ethernet port of your modem/router.
- Page 3 For best performance connect other electrical devices to the AC Pass- through socket of the Powerline adapter. If possible, also avoid plugging other electrical devices into the socket next to the Powerline adapter to ensure your network performs to its full potential. 500Mbps Powerline Kit with AC Pass-through - NP511...
-
Page 4: Ethernet Cable
LEDS What can the LEDs tell me? The Powerline LED changes colour depending on the speed of your data transfer. - Fastest - Faster - Fast LED Off- The adapter is not paired or wall socket not turned on. NOTE: The devices work on the same electrical circuit with the same circuit breaker. -
Page 5: Trouble Shooting
When pairing is complete, the LED on both adapters will be lit. Both adapters now share the same password and will be able to communicate with each other. 500Mbps Powerline Kit with AC Pass-through - NP511... - Page 6 To connect additional adapters Connect adapter 1 and adapter 2 to powerpoints near each other in the same room (or temporarily to a powerboard) Additional Already Paired adapter adapter (unpaired) NetCommWireless...
- Page 7 (press for 10 seconds) Press and hold the security button on adapter 2 for 2 seconds to put the adapter into pairing mode. The LED will flash Already paired adapter (press for 2 seconds) 500Mbps Powerline Kit with AC Pass-through - NP511...
- Page 8 Hold the security button on adapter 1 for 2 seconds to complete the pairing process. When pairing is complete, the LED on both Adapters will be lit and all adapters will share the same password. Repeat for any further additions Additional adapter (unpaired)
