NetComm NF2 Manual

Hide thumbs Also See for NF2:

Advertisement

Quick Links

Download this manual

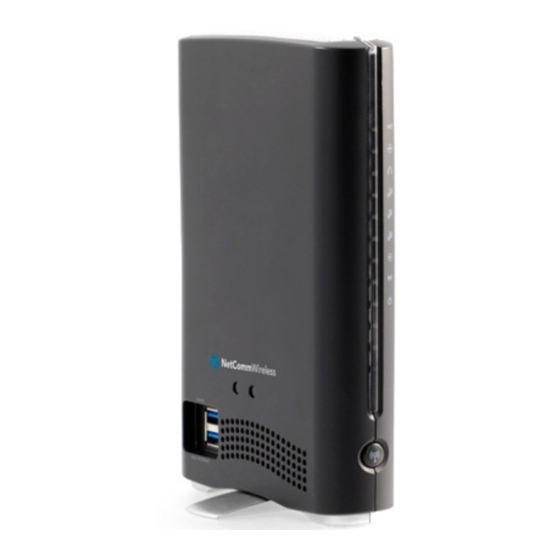

N900 Dual Band Wi-Fi Gigabit Router - NF2

Advertisement

loading
Need help?

Need help?

Do you have a question about the NF2 and is the answer not in the manual?

Questions and answers

Related Manuals for NetComm NF2

Summary of Contents for NetComm NF2

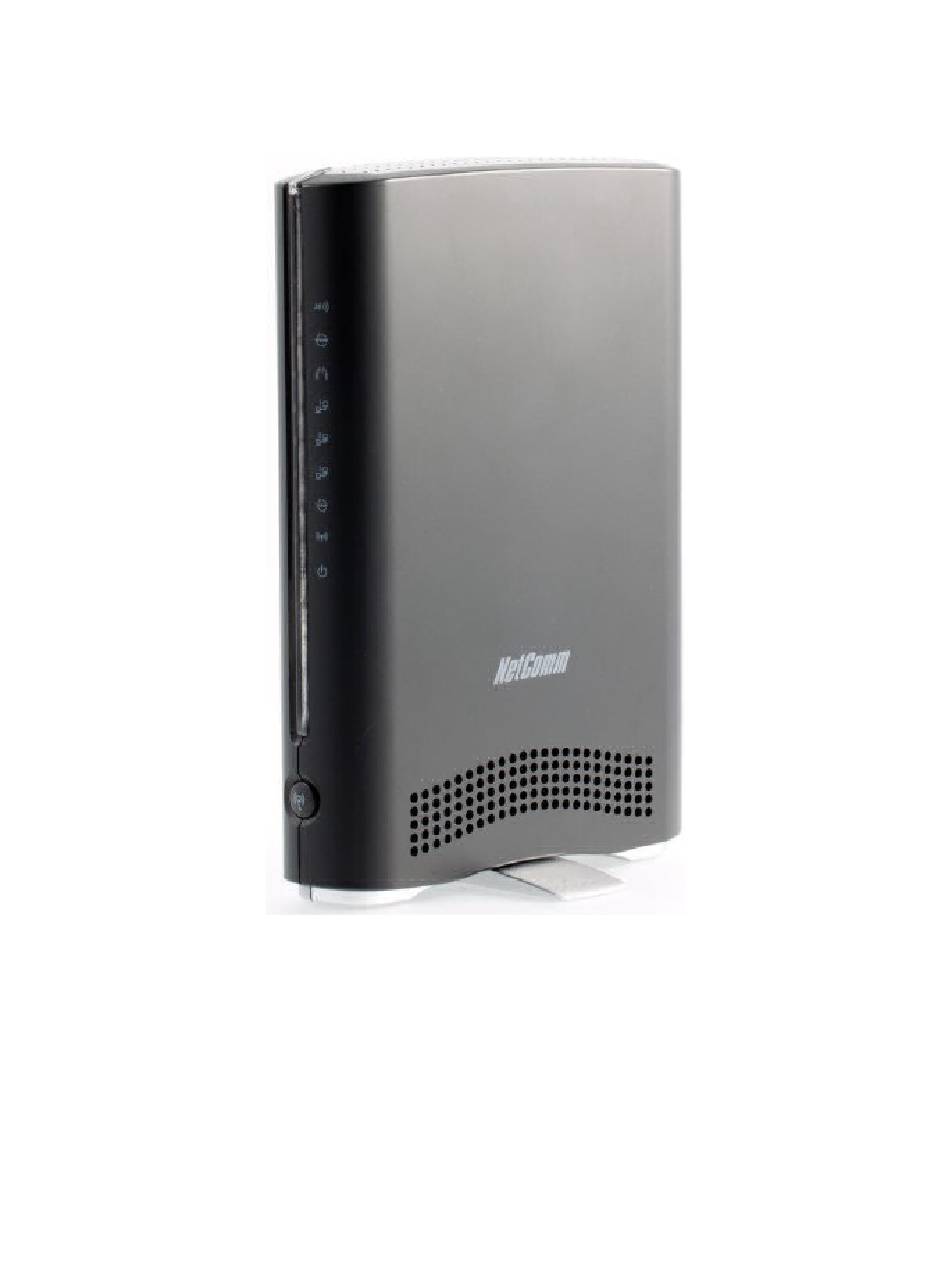

  • Page 1 N900 Dual Band Wi-Fi Gigabit Router - NF2...
  • Page 2 Contents 1 Main Features 2 The Front Panel of the modem 3 Back Panel 4 How to setup/connect your hardware 5 Quick Installation Guide...
  • Page 3 Main Features  Gigabit WAN port for ADSL and Fibre connectivity  Alternate Internet connection via a 3G/4G USB modem  Concurrent dual band WiFi up to 900Mbps  Enhance WiFi performance and reduce interference with simultaneous data transmission over 2.4GHz and 5GHz radio bands ...
  • Page 4 • SSID broadcast or in stealth mode • Auto/Manual Channel selection • WEP/WPA/WPA-PSK/WPA2/WPA2-PSK • WPS button (WiFi Protected Setup)  SECURITY • IP/Service Filter • URL blocking • MAC control • DoS (Denial of Service) Protected  ROUTING • Static Route •...
  • Page 5 The Front Panel of the modem Following indicates the status of the LED lights which provides you the modem’s working status. The Back Panel of the modem...
  • Page 6 A – Antenna: To receive and transmit the wireless data B – Power Switch (ON/ OFF): The switch for the power C – LAN Ports (LAN 1, LAN 2, and LAN 3): These ports (1, 2, 3, and 4) connect the Router to the local PC(s).
  • Page 7 Quick Installation Guide Connecting to the router via an Ethernet cable...
  • Page 8  Connect an RJ-45 Ethernet cable from one of the yellow Ethernet LAN Ports on the back of the NF2 to the LAN port of your computer.  Wait approximately 30 seconds for the connection to be established Login to the web interface ...
  • Page 9  Select “PPPoE” as the WAN type and press the “Next” button. And provide Radius login credentials.  To enable a backup connection via 3G/4G, tick the checkbox and enter the appropriate 3G/4G connection information as supplied by your 3G/4G provider (see the instructions on Step 5 of this quick start guide).
  • Page 10 NF2 via 2.4 GHz WiFi.  Select ‘Disable’ to hide the SSID of the NF2. If disabled, other people will not be able scan and detect your NF2’s SSID. ...
  • Page 11  This page allows you to configure the 2.4 GHz WiFi security settings for the NF2. Setting a strong wireless security level (such as WPA-PSK - AES) can prevent unauthorized access to your wireless network. Please enter the Security Key that you wish to use, or leave this...
  • Page 12 NF2 via 5.0 GHz WiFi.  Select ‘Disable’ to hide the SSID of the NF2. If disabled, other people will not be able scan and detect your NF2’s SSID. ...
  • Page 13  In Step 6 of the NF2 Setup Wizard the administration password for the router can be set to prevent unauthorised access to the router management page. Enter the Desired Username and Desired Password, retyping the desired Password in the Retype Password field to confirm the new password.
  • Page 14 Enter the username and password you would like to use when logging into the web based user interface. Confirm the new password by entering it a second time in the “Retype Password” field and click “Next”. (If you do not want to change from the default settings of admin/admin, simply click “Next”) Review your selected settings and click “Finish”.
