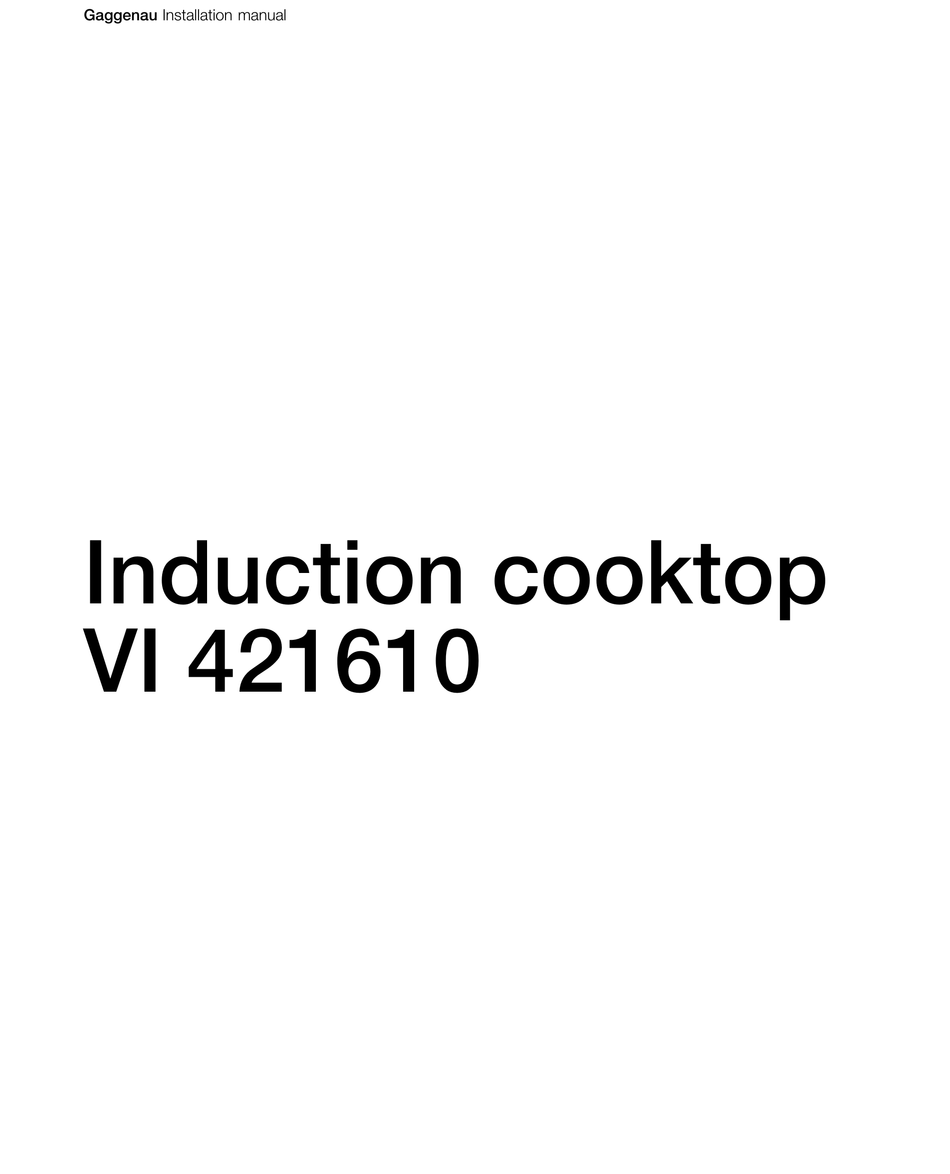

Important safety instructions READ AND SAVE THESE INSTRUCTIONS IMPORTANT: THE APPLIANCE HAS TO BE INSTALLED BY A QUALI FIED INSTALLER. INSTALLER: LEAVE THESE INSTRUCTIONS WITH THE APPLIANCE AFTER INSTALLATION IS COMPLETE. IMPORTANT: SAVE FOR THE LOCAL INSPECTOR'S USE. Important safety instructions Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage.
Before you begin Tools and parts needed Philips head screwdriver Pencil Drill with 1/4 bit Jigsaw Tape measure Note: Additional materials may be necessary for installation in solid surface countertops. Contact the countertop manufactor. Parts included Hold down brackets Clamping screws, #10 32 x 2 1/2"...
Page 6
If the cabinet front is thicker than 1 " (26 mm), the front must be routed from the back to max. 1 " (26 mm) on an area of 3 x 12 (80 x 310 mm). Cabinet requirements The distance from the top of the cooktop to the bottom of cabinets above must be A = 30"...
Installation procedure Installing the control panel Note: This appliance can only be installed together with the same model control panel. Before connecting the appliance to the Warning: power supply, switch off the mains supply to the house. Before assembly, remove any packaging and the protection sheet behind the light disc.
IFirmly insert the appliance connection and control panel cable (the connectors must fit flush). Insert the appliance into the hole with the Gaggenau logo at the front. Then line it up. Where the connection cable enters the control panel and the appliance is not inserted, the light disc on the control knob will flash.
Test the installation Remove everything from the cooktop surface. Clean cooktop surface with cooktop cleaning creme. Turn on power supply. Verify that elements function properly. Service Contact our Service department if your appliance needs repair. Our central Customer Service Center (see below) will also be happy to supply you with details on a center close to you.
Page 10
Table de matières Instructions de sécurité importantes ... Instructions de sécurité importantes ....Avant de commencer ......Outils et pièces nécessaires .
Instructions de sécurité importantes LIRE ET CONSERVER CES INSTRUCTIONS IMPORTANT: CET APPAREIL DOIT ÊTRE INSTALLÉ PAR UN TECHNICIEN QUALIFIÉ. INSTALLATEUR : LAISSER CES INSTRUCTIONS AVEC L'APPAREIL APRÈS AVOIR TERMINÉ L'INSTALLATION. IMPORTANT: À CONSERVER POUR L'USAGE DE L'INSPECTEUR LOCAL. Instructions de sécurité importante s Une installation, un réglage, une modification, un entretien ou une maintenance inappropriés peuvent...
Avant de commencer Outils et pièces nécessaires Tournevis à lame Philips Crayon Perceuse avec mèche 1/4 po (6,35 mm) Scie sauteuse 10 Ruban à mesurer Remarque: Des matériaux supplémentaires peuvent être nécessaires pour installer les plans de travail à surface solide. Contacter le fabricant du plan de travail. Pièces comprises Supports de fixation Vis de blocage, nº...
Si le bandeau avant a une épaisseur supérieure à 1 " (26 mm), il faut l'agrandir par l'arrière aux dimensions de 3 x 12 (80 x 310 mm) de façon à atteindre une épaisseur non supérieure à 1 "...
Procédure d'installation Installation du bandeau de commande Remarque: Cet appareil ne peut être installé qu'avec un bandeau de commande ayant la même dénomination de type. Avertissement: Avant de connecter l'appareil à l'alimentation électrique, baissez l'automatique de protection du logement. Avant de réaliser le montage, retirez les éléments d'emballage et la plaque de protection située sur la partie arrière du disque lumineux.
(les connecteurs doivent s'encastrer). Introduisez l'appareil dans la découpe, le logotype de Gaggenau situé sur la partie avant. Alignez-le. Si le câble de raccordement entre le tableau de commande et l'appareil n'est pas inséré, le disque lumineux situé...
Vérifier l'installation Enlever tout matériel de la table de cuisson. Nettoyer la surface de la table de cuisson au moyen d'une crème de nettoyage pour table de cuisson. Mettre la table de cuisson sous tension. Vérifier que les éléments fonctionnent correctement. Entretien Si vous avez besoin de faire réparer votre appareil, veuil lez contacter notre Service d'entretien.
Page 17
Contenido Instrucciones de seguridad ....Instrucciones de seguridad importantes ..Antes de empezar .
Instrucciones de seguridad LEA Y CONSERVE ESTAS INSTRUCCIONES IMPORTANTE: ESTE ELECTRODOMÉSTICO DEBE SER INSTALADO POR UN TÉCNICO CALIFICADO. INSTALADOR: DEJE ESTAS INSTRUCCIONES CON EL ELECTRODOMÉSTICO CUANDO HAYA FINALIZADO LA INSTALACIÓN. IMPORTANTE: GUÁRDELAS PARA USO DEL INSPECTOR LOCAL. Instrucciones de seguridad importante s La instalación, ajuste, alteración, servicio técnico o mantenimiento incorrectos pueden causar lesiones o...
Antes de empezar Herramientas y piezas necesarias 11 Destornillador con cabeza Philips 12 Lápiz 13 Taladro con broca de 1/4" 14 Sierra caladora 15 Cinta métrica Advertencia: Es posible que se necesiten otros materiales para la instalación en superficies de trabajo sólidas.
Si el espesor de la moldura frontal es superior a 1 " (26 mm), se ha de fresar la moldura desde la parte posterior a una medida de 3 x 12 (80 x 310 mm), de modo que el espesor del marco frontal no sea superior a 1 "...
Procedimiento de instalación Instalación del cuadro de mando Advertencia: Este aparato sólo se puede instalar conjuntamente con un cuadro de mando de la misma denominación de tipo. Aviso: Antes de conectar el aparato al suministro eléctrico, bajar el automático de protección de la vivienda.
Introducir el aparato en el recorte, con el logotipo de Gaggenau en la parte anterior. A continuación, alinearlo. Si el cable de conexión entre el cuadro de mando y el aparato no está insertado, el disco luminoso situado en la maneta de mando paradea.
Pruebe la instalación Retire todos los objetos de la superficie de la placa. Limpie la superficie de la placa con crema de limpieza para placas. Active la alimentación eléctrica. Verifique que los elementos funcionen correctamente. Servicio Técnico Si necesita reparar el electrodoméstico, llame a nuestro departamento de Servicio Técnico.
Page 25
BSH Home Appliances 5551 McFadden Avenue, Huntington Beach CA 92649 800 828 9165...
