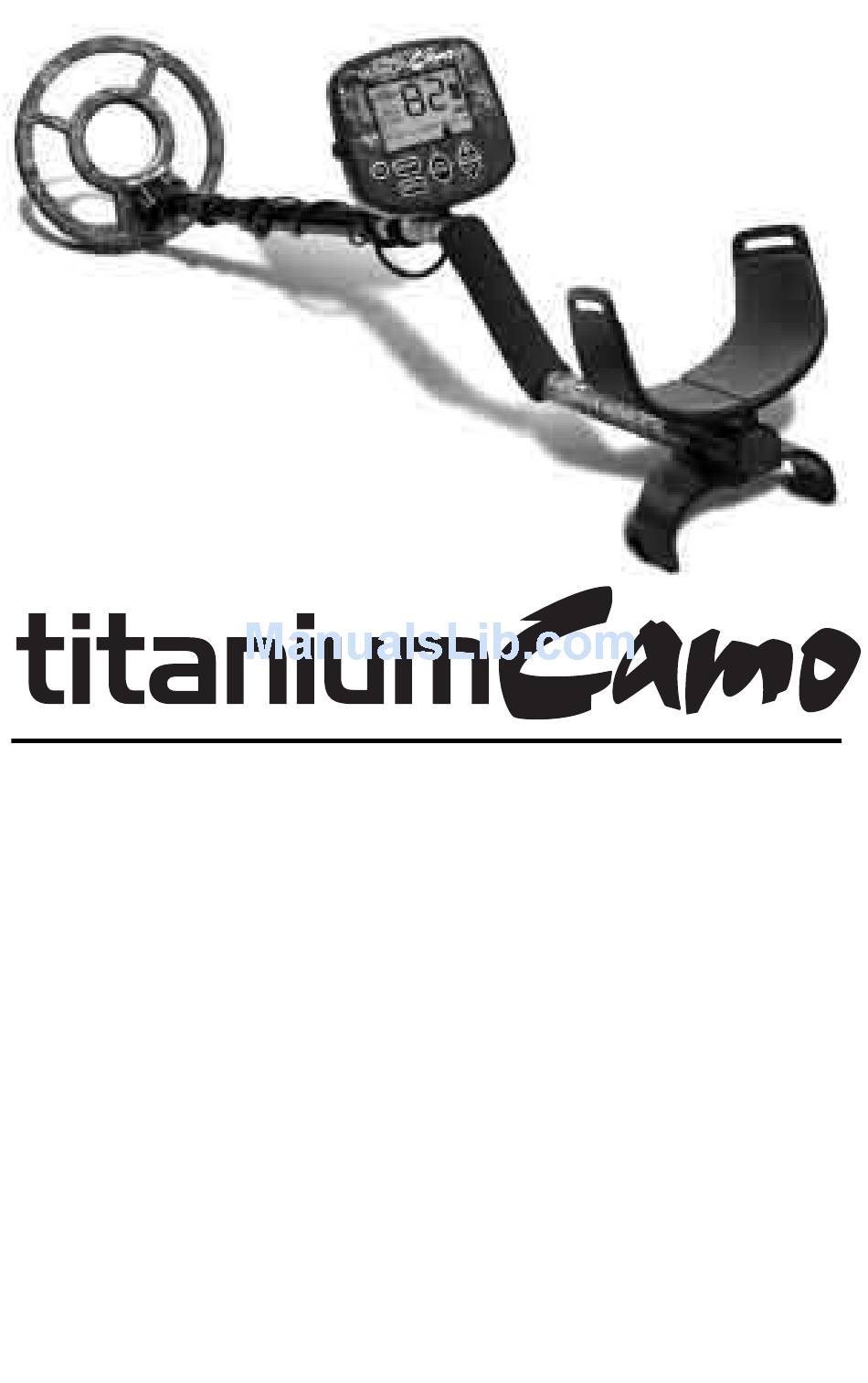

OWNER'S MANUAL
If you do not have prior experience
with a metal detector, we strongly
recommend that you:
1) Adjust the Sensitivity to a low
setting in the event of false
signals. Always begin use at a
reduced sensitivity level; this
device is designed to work
"into-the-noise",
chatter at high sensitivity.
2) Do not use indoors.
detector is for outdoor use only.
Many household appliances
emit electromagnetic energy,
which can interfere with the
detector.
so
expect
This
If conducting an
indoor demonstration, turn the
sensitivity down and keep the
searchcoil
appliances such as computers,
televisions
ovens. If your detector beeps
erratically, turn off appliances
and lights.
Also keep the searchcoil away
from objects containing metal,
such as floors and walls.
3) Use a 9-volt ALKALINE battery
only.
Do not use Heavy Duty
Batteries.
away
from
and
microwave

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the titanium Camo and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bounty Hunter titanium Camo

Summary of Contents for Bounty Hunter titanium Camo

  • Page 1 OWNER’S MANUAL If you do not have prior experience indoor demonstration, turn the with a metal detector, we strongly sensitivity down and keep the recommend that you: searchcoil away from appliances such as computers, 1) Adjust the Sensitivity to a low televisions microwave setting in the event of false...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Terminology ..........3 Assembly .

  • Page 3: Terminology

    TERMINOLOGY The following terms are used throughout the manual, and are standard terminology among detectorists. ELIMINATION Reference to a metal being "eliminated" means that the detector will not emit a tone, nor light up an indicator, when a specified object passes through the coil’s detection field.

  • Page 4: Assembly

    ASSEMBLY Adjusting the Armrest The armrest may be moved forward or backwards by removing the single screw and nut, and then repositioning the 2-piece armrest. Users with shorter arms may find the armrest more comfortable in the forward position. In order to move the armrest backwards, the plastic plug must be removed from the aluminum tube.
  • Page 5 Caution: Forcing in MIDDLE STEM with CAM LOCK raised may form a burr on ASSEMBLY camlock. If this happens, remove burr with knife to allow insertion. Position S-Rod upright. Rotate the LOCKING COLLAR fully in the counterclockwise direction. Insert your finger inside the tube and make sure the INTERNAL CAM LOCK is flush with the inside of the tube.

  • Page 6: Batteries

    BATTERIES The detector requires a single 9-volt ALKALINE battery (battery not included). Do not use ordinary zinc carbon batteries. Do not use “Heavy Duty” batteries. Rechargeable batteries can also be used. If you wish to use rechargeable batteries, we recommend using a Nickel Metal Hydride rechargeable battery.

  • Page 7: Quick-Start Demonstration

    QUICK-START DEMONSTRATION I. Supplies Needed • a Nail • a Zinc Penny (dated after 1982) • a Nickel • a Quarter II. Position the Detector a. Place the detector on a table, with the searchcoil hanging over the edge. Or better, have a friend hold the detector, with the searchcoil off the ground. b.

  • Page 8: The Basics Of Metal Detecting

    4. Estimating the size and depth of objects, to facilitate digging them up. 5. Eliminating the effects of electromagnetic interference from other electronic devices. Your Titanium Camo metal detector is designed with these things in mind. 1. Ground Minerals All soils contain minerals. Signals from ground minerals can interfere with the signals from metal objects you want to find.

  • Page 9: Size And Depth Of Buried Objects

    THE BASICS ( continued) 4. Size and Depth of Buried Objects When using the detector in the motion DISCRIMINATION Mode, the relative depth of an object is displayed on the right of the display in a 5-segment format. A more accurate depth reading is available in a no-motion mode, using PINPOINT Mode.

  • Page 10: Operation And Controls

    OPERATION and CONTROLS POWERING UP Press • The detector always starts in the DISCRIMINATION Mode. Motion is required. • Default sensitivity is at about 70% of maximum, (08). • All target categories except iron are illuminated, meaning that all metal objects will be detected except iron.

  • Page 11: Menu Selections

    HOW DEEP WILL IT GO? The Titanium Camo Metal Detector will detect a coin-sized object, like a quarter, to a distance of about 11” from the searchcoil at maximum sensitivity. Large metal objects can be detected to a depth of several feet. Detectability is directly related to the size of the metal object -- the larger the object, the deeper it can be detected.

  • Page 12: Disc Level

    OPERATION and CONTROLS ( cont.) MENU SELECTIONS (continued) 2. DISC. LEVEL to increase or decrease DISCRIMINATION level. Each time you press , a target category is eliminated from detection. Elimination occurs from left to right. When a category description (for example “IRON”) disappears from the display, then targets classified in that category will not be detected.

  • Page 13: Notch

    OPERATION and CONTROLS ( cont.) MENU SELECTIONS (continued) NOTCH (continued) At any time, the display screen indicates the current category notches or discrim- ination settings. Any category whose description is not visible will not be detected. For example, the following settings tell us that: •...

  • Page 14: Mode Selections

    OPERATION and CONTROLS (c ont.) MODE SELECTIONS There are three selections under the MODE section of the display. • Press to toggle between DISCRIMINATION and ALL METAL. • Press at any time to activate PINPOINT Mode. 1. DISCRIMINATION Mode This mode is the default mode, and requires the searchcoil to be in motion in order to detect and identify targets.

  • Page 15: Pinpoint

    OPERATION and CONTROLS ( cont.) MODE SELECTIONS (continued) 3. PINPOINT Narrow It Down To further narrow the field of detection, Enter PINPOINT from either Disc or All position the searchcoil near the center Metal Mode. Press and hold of the response pattern (but not at the activate pinpoint.

  • Page 16: Target Identification

    TARGET IDENTIFICATION In DISCRIMINATION Mode, targets are identified both audibly and visually as follows: 1. Different pitch tones for different types of metals 2. A 2-digit Target ID 3. An illuminated icon within the target category best describing it AUDIO TARGET IDENTIFICATION: Tones identify targets as follows: LOW TONE (ID: 1-39) Ferrous objects, such as iron and steel, like nails and tin cans.

  • Page 17: 2-Digit Target Identification Values

    TARGET IDENTIFICATION ( cont.) 2-Digit Target Identification The 2-digit value in the middle of the screen provides a specific target value to help identify buried targets more accurately. With practice in the field, you will learn to associate target values with specific objects. Coins are more likely to yield the same value with each pass of the coil due to their concentric shape.

  • Page 18: Depth And Target Display

    DEPTH AND TARGET DISPLAY Please refer to the display on your detector also register here. and reference the TARGET ID categories S-CAP: Older screw caps from glass bottles below applicable to your model (not all will register here. Large gold rings, like a class detectors include all of these categories).

  • Page 19: Troubleshooting

    TROUBLESHOOTING TROUBLESHOOTING GUIDE SYMPTOM CAUSE SOLUTION Detector chatters • Using detector • Use detector or beeps erratically indoors outdoors only • Using detector near • Move away power lines from power lines • Using 2 detectors in • Keep 2 detectors close proximity at least 20’...

  • Page 20: Code Of Ethics

    Register your warranty on-line for a chance to win a For details, visit www.tekneticst2.com FREE DETECTOR. The Titanium Camo metal detector is warranted against defects in materials and workmanship under normal use for five years from the date of purchase to the original owner.
