Page 1: Operating Instructions
GAS TUMBLE DRYER OPERATING INSTRUCTIONS MODEL RDT-600 RDT-400... -
Page 2: Caution On Use
Attention on safety Caution on Use Warning Fire Prevention • Don’t put or use volatile and flammable goods like spray, benzene and gasoline close to the dryer during operation. • Don’t dr y clothes which are stuck with oil, petrol, dry-cleaning liquid and perm liquid with the dryer. - Page 3 Attention on safety Caution Usage • Don’t spray water on and wash the dryer body and drum. Fire may occur due to electrical shock, electric leakage and short circuit. • Don’t cover the dr yer with blankets and clothes. Fires and unexpected accidents may occur.
-
Page 4: Caution On Installation
Attention on safety Caution on Installation Warning • Don't install in bathroom, highly humid place or place exposed to a rainstorm. It might cause an electric shock, electric leakage or a fire. Caution Installation Position • Don’t put dangerous things, flower and pets nearby gas dryer. Flowers and pets may die due to the exhaust gas and steam come out from the humidity duct. - Page 5 Attention on safety Caution Humidity Duct Installation • For optimal function of the machine, the length of dia. 80mm humidity duct is recommended not to exceed 6m and 1 bend. Reduce 2m when adding one bend. • Maximum allowable length is 11m and 1 bend (equivalent to 5m and 4 bends) for dia. 80mm humidity duct.
- Page 6 Attention on safety Usual Care General Home Appliances • Dryer is for domestic use only. Do not use for commercial application. It may shorten the life time. Cautions for Drying • Neither add extra clothes nor open the door during drying. Clothes may become unevenly dry.
-
Page 7: Functions And Features
Choose the operation cycle according to type of Easy installation at narrow clothes. space. 6 kg Loading Large Capacity (RDT-600) Powerful drying for 6kg of clothes (dry clothes weight). Indication of the remaining time Indicate the remaining time in accordance with the clothes volume at 2 minutes after the operation starts. -

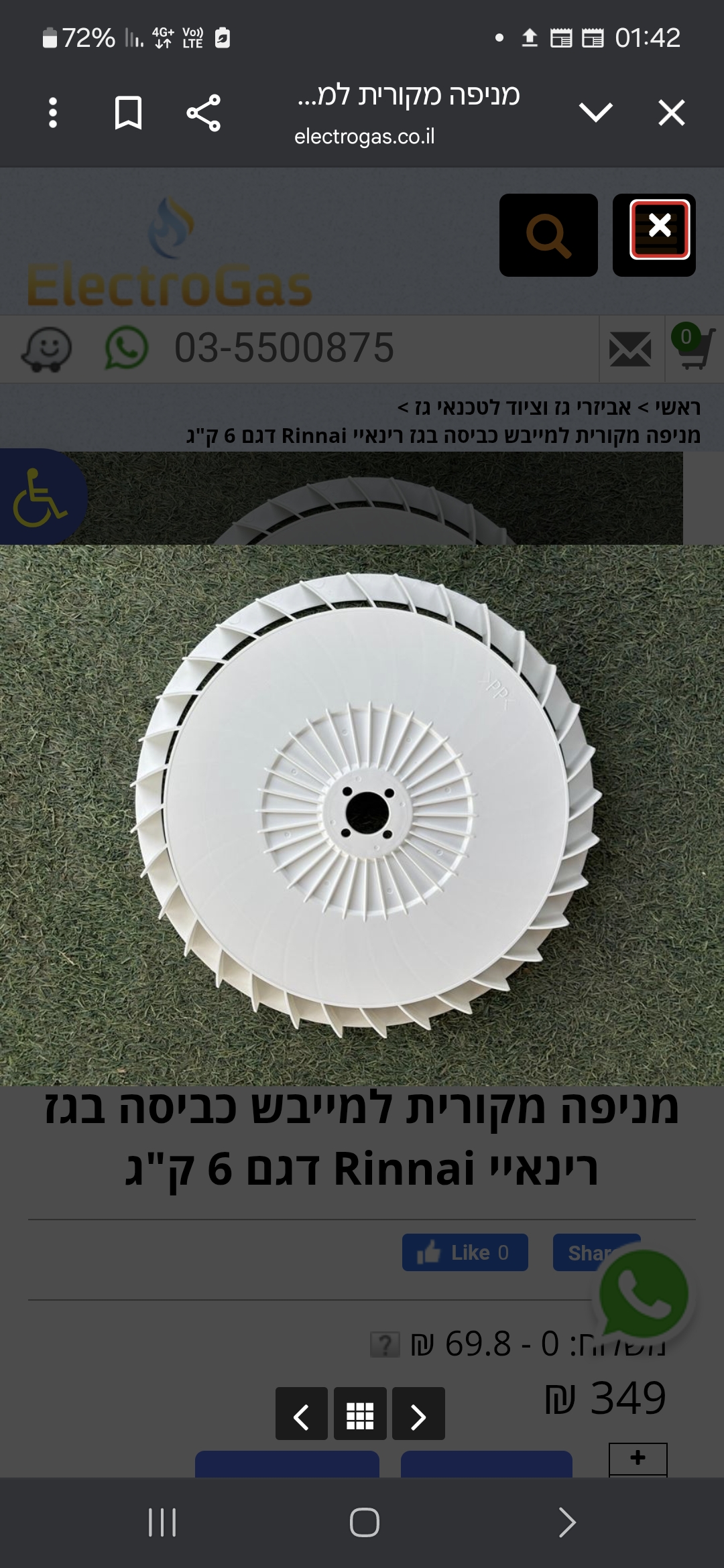

Page 8: Part Names
PART NAMES BODY Drum Lint Filter stops the lint from being blown from the dryer Front Door compatible to open from left or right Operation Indicator Air Inlet Filter protects the burner from lint Data Plate Discharge Duct Back Cover Gas Inlet Connection Handle Power Cord... - Page 9 This can be set from 5 minutes resumed by pressing this switch. 60 minutes. The dryer then operates for only the set time. (for details, please refer to page 12) RDT-600 can set up to 80 minutes. − 8 −...
-
Page 10: How To Use
HOW TO USE Separate Clothes for Drying Separate clothes according to operation cycle or drying style. (for details, please refer to page Confirm whether the clothes can be dried or not by the dryer. (for details, please refer to page Open the front door and put clothes into the dryer Close the front door after placing spin-dried clothes one by one. - Page 11 HOW TO USE Press the “Start/Pause” Switch The selected cycle lamp is on, together with the “operation/combustion” lamp. The operation/combustion lamp changes from green to red after ignition, which takes 5 to 10 seconds. (The “operation/combustion” lamp may change to the green colour during operation from time to time and this is normal.) Drying is fi...
- Page 12 Choice of the Operation Cycle This dryer is operated automatically after sensing the clothes volume and drying conditions by the microcomputer. (except the timer cycle) Choose the best operation from the thick to the delicate cycle to match the clothes. Select the Operation Cycle Press the power switch, the “GENERAL”...
- Page 13 The timer can be set from 5 min. to 60 min. ( note : set 5 – 30 min. at an interval of 5 minutes and 30 – 60 min. at an interval of 10 minutes.) RDT-600 can be set up to 80 min. − 12 −...
- Page 14 Choice of the Operation Cycle The “GENERAL” timer cycle is operated with the normal heating value. The “DELICATE” timer cycle is operated with half the normal heating value. Press the program switch if you want to cancel the timer cycle. To warm underwear &...
- Page 15 Choice of the Operation Cycle Set “General” TYPES OF CLOTHES WEIGHT/PC DRYING VOLUME DRYING TIME Shirt (Mix Spinning) About 200g About 25 pcs About 55 min. Working Wear(Mix Spinning) About 800g About 7 sets About 60 min. Napkin (Cotton) About 60g About 65 pcs About 60 min.
- Page 16 How to use properly Use the “Delicate” cycle Reduce uneven drying and rumple • Put the frayed clothes, nylon stockings and etc into • Smooth down clothes and put into the dryer one by the delicate bag as optional. one . •...
- Page 17 How to use properly Clothes which are unsuitable for drying (Don’t put such materials into the dryer) Damage of clothes itself Silk articles Clothes with Indication of avoiding “Tumble drying” May result in colour change and deformation. “Tumble Drying” means that clothes are dried in the rotating drum of tumble dryer.
- Page 18 How to use properly The following things may cause damage to the dryer: Mattresses and glued clothes Clothes which are thin and not well breathable May cause trouble of filter blockage. (Raincoat & Windbreaker etc. ) May cause trouble of filter blockage. Necessities other than clothes Cushions with cotton stuffi...
- Page 19 MEASURES WHEN THE SAFETY DEVICE IS OPERATED This appliance displays information when the safety device is operated. If the dryer stops during operation, check whether the safety device is operated or not. When the “CLEAN FILTER” lamp lights together with the failure display, it means the fi...
- Page 20 Any troubles ? Check the following items again before calling to repair No operation Whether the gas cock is fully opened or not ? Whether fuse or breaker is cut or not ? Whether power failure happens or not ? Whether the “Power”...
- Page 21 Any troubles ? The followings are not trouble cases The dryer is still operating even after the fi nishing “EXTRA SOFT” cycle is operating. It operates for 120 minutes. Open the buzzer sounds. front door and it will automatically stop. It takes some time to turn on the combustion This may happen if the dryer has not been used for a long time.
-
Page 22: Regular Maintenance
Regular Maintenance Regular inspection is necessary for safe usage Don’t disassemble, convert and repair the dryer (other than the Warning : filter) by unauthorized person. Inappropriate assembling & disassembling may cause accidents. Usual care after using the dryer CLEANING OF LINT FILTER The fi... -
Page 23: Monthly Maintenance
Regular Maintenance Monthly Maintenance CLEANING OF BACK FILTER You can see the back fi lter after the lint fi lter is taken away. Normally, you can clean the back fi lter without removing it. Remove the lint by a soft brush and avoid scratching Back Filter In case you cannot clear the lint easily, remove the back filter to clean. - Page 24 Regular Maintenance CLEANING OF AIR INLET FILTER Pull out the air inlet filter which is located at the bottom of the dryer. Remove the lint dust by using a soft brush. After cleaning the lint, put the air inlet filter into the rail at the bottom of the dryer properly and push it back to its original location.
-
Page 25: Specifications
Specifi cations Model RDT-600 Dimensions (mm) H 661 x W 650 x D 530 Gas Consumption 4.65 – 1.86kw (3,950 – 1,580 kcal/h) Weight (Body only) 32.4 Kg S t a n d a r d D r y i n g... - Page 26 Specifi cations RDT-600 RDT-400 − 25 −...
- Page 28 Printed in Japan RD60-132X01 ( 01 ) 2009.10...
