OPERATOR'S MANUAL
WARNING
Users of this equipment risk injury to themselves and others if the unit is
used improperly and/or safety precautions are not followed. ECHO provides
an operator's manual and a safety manual. Both must be read and understood
for proper and safe operation. Failure to do so could result in serious injury.
-1564

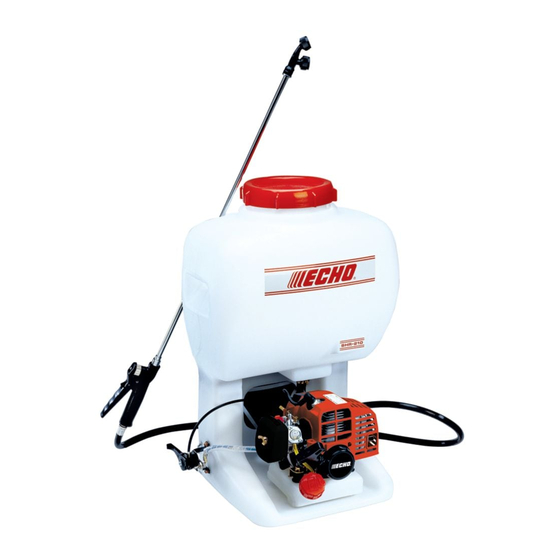

POWER SPRAYER
SHR-210
X750-004 14 5
X750604-530 5
Printed in Japan 1204Arh 1763 ES
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Echo SHR-210
Summary of Contents for Echo SHR-210
- Page 1 WARNING Users of this equipment risk injury to themselves and others if the unit is used improperly and/or safety precautions are not followed. ECHO provides an operator’s manual and a safety manual. Both must be read and understood for proper and safe operation. Failure to do so could result in serious injury.
- Page 2 WARNING The engine exhaust from this product contains chemicals known to the State of California to cause can- cer, birth defects or other reproductive harm. Copyright © 2002 All Rights Reserved. - 2 -...
- Page 3 The use of this power sprayer at home, on the farm or in a commercial en- vironment are limitless. Most importantly, what used to take hours takes only minutes with the SHR-210, making it an unequaled value for the homeowner and professional alike.
-
Page 4: Table Of Contents
IMPORTANT RULES FOR SAFE OPERATION 1. Handle gasoline with care. It is highly infl amma- 2. Do not operate in unventilated area. ble. 3. Do not allow bystanders in work area. - Refuel before starting work. 4. Do not point the nozzle in the direction of people. - Do not smoke while handling fuel. -
Page 5: Nomenclature
Make sure the decal is legible and that you understand and follow the instructions on them. If a decal cannot be read, a new one can be ordered from your ECHO dealer. Safety decal: Part number 890160-13210... -
Page 6: Assembling
GAL. FL.OZ. 2-Stroke Oil may be mixed at 50 : 1 ratio for application in all ECHO engines sold in the past regardless of ratio specifi ed in those manuals. 12.8 • Use of unmixed, improperly mixed, or fuel older... - Page 7 HANDLING FUEL MIXING INSTRUCTIONS - DANGER 1. Fill an approved fuel container with half of the Fuel is VERY fl ammable. Use extreme care required amount of gasoline. when mixing, storing or handling or serious 2. Add the proper amount of two-stroke oil to gas- personal injury may result.
- Page 8 STARTING ENGINE Never start and operate engine before fi lling chemical tank to avoid damage to pump. Shoulder level WARNING DANGER Fuel tank • WHEN ENGINE IS STARTED, CONFIRM IF THERE IS NOT ANY ABNORMAL VIBRATION OR SOUND. IF THERE IS ABNORMAL VI- Choke lever BRATION OR SOUND, ASK YOUR DEALER TO REPAIR.
- Page 9 SPRAYING • Ensure that chemical liquid valve is closed before starting engine. • After engine is warmed up, turn throttle lever to the high speed position (Upper position) and open liquid valve. (NOTE) Since this unit is equipped with a centrifugal clutch, sprinkling is not possible when the engine is running at low speeds (idling).
-
Page 10: Maintenance And Care
MAINTENANCE AND CARE - ALWAYS KEEP THE MACHINE CLEAN - AIR FILTER Carburetor • Check before every use. • Remove fi lter cover. - Remove wing nut. • Brush off dust lightly or wash in a non-infl am- mable solvent if necessary. Dry well before reinstalling. - Page 11 CHEMICAL TANK BREATHER Breather valve • Clean breather valve and breather hole periodi- cally. • Bad sealing of the breather valve may cause a leakage of the chemical. Clogging of the breather hole may cause a “dent” or a breakage of the chemical tank. Breather hole CHEMICAL STRAINER •...
-
Page 12: Emisson Data
(96.0 kPa). To maintain proper engine operation and emission compliance above 1100 feet ASL the carburetor may need to be adjusted by an authorized ECHO service dealer. IMPORTANT If the engine is adjusted for operation above 1100 feet ASL, the carburetor must be... -
Page 13: Trouble Shooting
TROUBLE SHOOTING Poor performance of the engine and/or spraying mechanism can normally be prevented by carefully following the above instructions. Poor performances can easily be corrected even by a beginner. When the engine does not function properly check the following three (3) points fi rst. •... - Page 14 Table 2 Improper fuel is used Use fuel with correct mixing ratio. Never use gasoline of poor quality. Spark plug defective (burnt) Replace. Engine overheated As cooling fi ns clogged, air Clean fi ns. does not pass well Excessive deposits in Disassemble and remove combustion chamber carbon.
-
Page 15: Storage After Use
Spark plug NGK BPM8Y Starter Recoil starter Fuel Mixing ratio Mixture of gasoline (unleaded, 89 octane minimum) and specially blended 50 : 1 ECHO cycle engine oil. Tank capacity L (fl .oz.US) 0.5 (16.9) Pump Type Regenerative pump... -
Page 16: Warranty Statements
ECHO'S RESPONSIBILITY ECHO Incorporated’s Limited Warranty, provides to the original purchaser hat his ECHO product is free from defects in material and workmanship. Under normal use and maintenance from date of purchase, ECHO agrees to repair or replace at ECHO’s discretion, any defective product free of charge at any authorized ECHO servicing dealer within listed below application time periods, limitations and exclusions. - Page 17 . Gasohol which contains a is also approved. The prescribed mixing ratio of gasoline to oil is listed on the ECHO oil label and covered in your operator’s manual. engine speeds as listed in your operator’s manual. of unauthorized attachments.
- Page 18 The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days. If a warrantable condition exists and there is no Authorized Dealer within 100 miles, ECHO Inc. will pay to ship the unit to the nearest authorized dealer. If you have questions regarding your warranty coverage, you should contact ECHO Inc.
