Echo SHR-4100 Operator's Manual

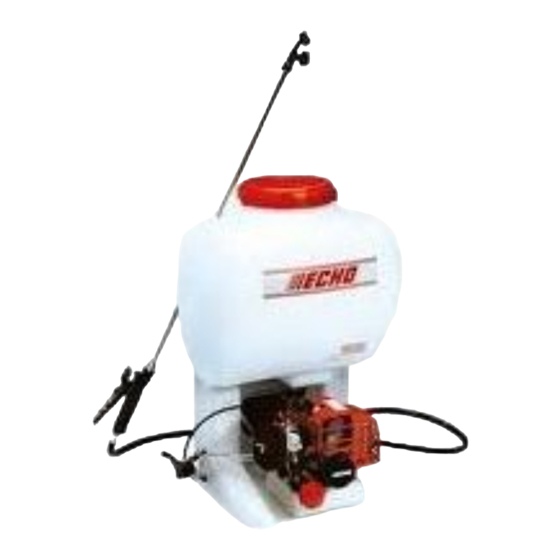

Portable power sprayer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SHR-4100 and is the answer not in the manual?

Questions and answers

Related Manuals for Echo SHR-4100

Summary of Contents for Echo SHR-4100

  • Page 2: Table Of Contents

    You knapsack units desigend for spraying liquid must read this Manual to understand the safe and chemical. effective operation of your ECHO product. CONTENTS INTRODUCTION ............................ RULES FOR SAFE OPERATION ......................DESCRIPTION ............................

  • Page 3: Rules For Safe Operation

    RULES FOR SAFE OPERATION OPERATOR SAFETY WARNING DANGER USERS RISK INJURY TO THEMSELVES AND OTHERS IF THE UNIT IS USED IMPROPERLY, AND/OR SAFETY PRECAUTIONS ARE NOT FOLLOWED. PROPER CLOTHING AND SAFETY GEAR MUST BE WORN WHEN OPERATING UNIT. • Read this Manual carefully. Be sure you understand how to operate this unit properly before you use it.
  • Page 4 • Keep hands and body away from hot surfaces such as silencer and cylinder area when handling the unit to prevent from heat injury. • Never attempt to use incomplete machine or one fitted with unauthorized modification. • A fully loaded unit will change your equilibrium.
  • Page 5 PHYSICAL CONDITION Your judgement and/or dexterity may be impaired if you are ill, are taking medication, and/or have taken alchol or other substances known to affect the way you would normally function. Operate this unit if you are in good physical and mental health. WARNING DANGER AVOID DIRECT CONTACTOR INJESTION...
  • Page 6 VIBRATION AND COLD Painful or numb It is believed that a condition called Raynaud’s fingers? Phenomenon which affects the fingers of certain See your doctor individuals may be brought about by exposure to vibration and cold. Exposure to vibration and cold may cause tingling and burning, followed by loss of color and numbness in the fingers.

  • Page 7: Description

    DESCRIPTION...
  • Page 8 DESCRIPTION 1. OPERATOR’S MANUAL - Included the unit. 6. FUEL TANK - Contains fuel. Read before operation and keep for future 7. FUEL TANK CAP - For closing the fuel tank. reference to learn proper, safe operating techniques. 8. PUMP - Pump a chemical liquid. 2.

  • Page 9: Assembling

    ASSEMBLING SPRAY HOSE AND NOZZLE • Install hose, grip, liquid valve, nozzle pipe and Grip Spray hose nozzle to the machine. Nozzle pipe Liquid valve Nozzle Nipple Spray hose SHOULDER STRAPS • Shoulder straps are adjustable to fit any operator. •...

  • Page 10: Operation

    OPERATION FUEL • Fuel used for this model is a mixture of Regular grade petrol and an air cooled two stroke engine oil of a reputable brandname. • Mixture ratio is petrol 25 parts : Oil 1 part Petrol (4%). Fuel mixture at the ratio other than 25 : 1 may cause malfunction of the engine.
  • Page 11 CHEMICALS WARNING DANGER Strainer AVOID DIRECT CONTACT AND INGESTION OF CHEMICALS. SOME CHEMICALS MAY BE STRONGLY HARMFUL TO HUMAN AND ANIMALS. MISUSE OF THE CHEMICALS CAN RESULT IN SERIOUS POISONING OR DEATH. • Stop engine and put the unit down when filling chemicals.
  • Page 12 IF ENGINE DOES NOT STOP, MOVE CHOKE LEVER UP TO CLOSE POSITION TO STALL ENGINE. HAVE YOUR ECHO DEALER INSPECT AND REPAIR. NOTE Carburettor has been correctly adjusted in factory. Do not readjust yourself unless it is necessary. It should be readjusted be ECHO dealer.
  • Page 13 OPERATING MIST BLOWER FILLING CHEMICAL TANK • Close liquid valve. Chemical liquid • tank cap Fill liquid chemical through filter into tank. Stir Chemical liquid tank up after filling to avoid chemical deposits at bottom of tank. Liquid valve NOTE Be sure that valve is closed before starting engine.
  • Page 14 VARIETY OF NOZZLE FOR ECHO POWER SPRAYER SHR-4100 Convenient to use and reliable, the go anywhere SHR-4100 power sprayer is highly versatile with a Adjustable nozzle large variety of optional nozzles which adapts it to (Standard type) a wide range of applications. The use of this power sprayer at home, on the farm or in a commercial environment are limitless.

  • Page 15: Maintenance And Care

    MAINTENANCE AND CARE CLEANING AIR FILTER NOTE Clean air filter after each use. • Close choke and loosen screws. • Remove air cleaner cover, grid and air filter. • Then check and/or clean air filters by washing Air cleaner cover in a suitable solvent when heavily soiled.
  • Page 16 SILENCER AND CYLINDER FINS • Clean silencer by removing carbon deposits at outlet port. This should be done periodically to maintain constant performance of engine. • Always keep cylinder fins clean. Clogged cylinder fins will cause engine to overheat. Clean out grass, mud, leaves, and Cylinder fins other debris with a wooden stick periodically.
  • Page 17 CHEMICAL TANK BREATHER Breather valve • Clean breather valve and breather hole periodically. • Bad sealing of breather valve may cause a leakage of the chemical. Clogging of the breather hole may cause a “dent” or a breakage of the chemical tank. Breather hole CHEMICAL STRAINER •...
  • Page 18 SERVICE GUIDE AREA MAINTENANCE PAGE BEFORE USE MONTHLY YEARLY • Air filter Clean/Replace • Fuel filter Inspect/Replace • Fuel line Inspect Spark plug Inspect/Clean • Adjust/Replace • Carburettor Inspect • Cooling system Inspect/Clean • Silencer Inspect/Clean • Starter Rope Inspect/Replace •...

  • Page 19: Trouble Shooting

    → → → → → at carburettor • Fuel line clogged • Clean cranks carburettor • Carburettor • Ask your ECHO dealer • Carburettor • Ask your ECHO dealer → → → → → Fuel at No fuel at cylinder cylinder •...

  • Page 20: Storage

    STORAGE LONG TERM STORAGE (Over 60 Days) 5. Inspect and adjust every part of the sprayer. Do not store your unit for a prolonged period of time (60 days or longer) without performing protective A. Completely clean every part, and repair, if storage maintenance which includes the following : necessary.

  • Page 21: Specifications

    SPECIFICATIONS SHR-4100 Masses without spraying hose and nozzle Volume fuel tank External dimensions length × width × height 330 × 405 × 590 Engine type Air cooled 2-stroke single cylinder engine displacement mL(cm ) 21.2 maximum shaft brake power, measured in...

  • Page 22: Decals And Symbols

    DECALS AND SYMBOLS Symbol Symbol Symbol form/shape description/application Symbol form/shape description/application Carefully read the Fuel and oil mixture operator’s manual Wear head protection Safety alert Emergency stop Circle and slash symbol means whatever is shown is prohibited Hot surface objects...

  • Page 23: Declaration Of Conformity

    JAPAN declares that the hereunder specified new unit: PORTABLE POWER SPRAYER Brand : ECHO Type : SHR-4100 complies with: * the requirements of Directive 98/37/EC (1998) * the requirements of Directive 89/336/EEC (use of harmonized standards EN 50081-1, EN 50082-1, EN 55014 & EN 55022).
  • Page 25 7-2 SUEHIROCHO 1-CHOME, OHME, TOKYO 198-8711, JAPAN PHONE: 81-428-32-6118. FAX: 81-428-32-6145. 898615-12712 X750604-1102 Printed in Japan...
