Summary of Contents for Echo SHP-800

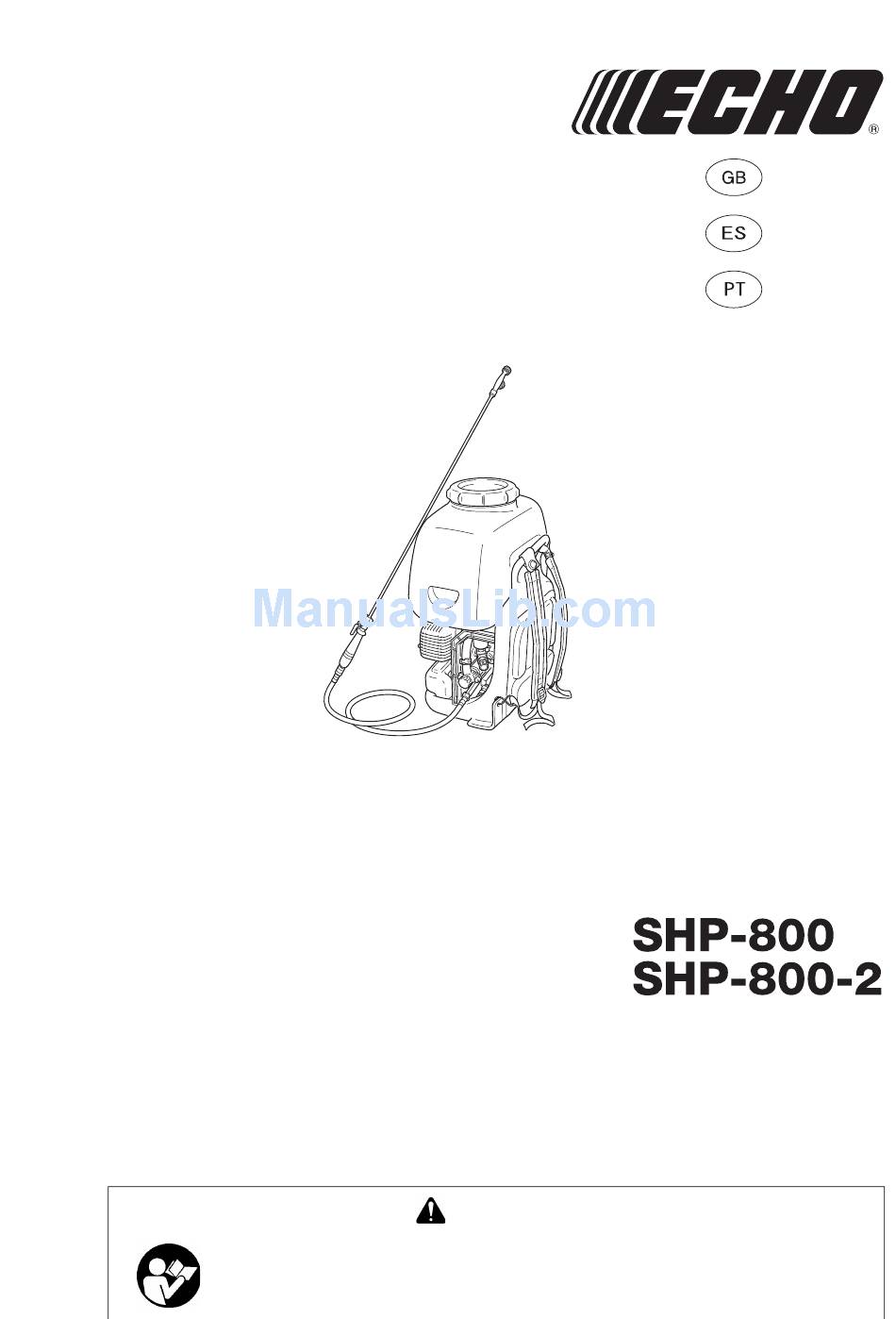

- Page 1 1Top cover ENGLISH ESPAÑOL PORTUGUÊS OPERATOR'S MANUAL HIGH PRESSURE POWER SPRAYER WARNING Read the instructions carefully and follow the rules for safe operation. Failure to do so could result in serious injury.
- Page 2 For future reference, you should keep this Operator's Manual. If this Operator's Manual has become illegible through impairment or is lost, please purchase a new one from your ECHO dealer. When renting or lending this machine to a person who will operate it, always include this Operator's Manual, which provides explanation and instructions.
-
Page 3: Table Of Contents
Contents Decals and symbols ....................4 Rules for safe operation ..................5 Operator safety....................5 Reduce noise ....................6 Reduce chances of damage................6 Physical condition....................6 Hot humid weather .................... 6 Operation......................6 Eye, breathing and hearing protection .............. 7 Wear proper clothing .................. -
Page 4: Decals And Symbols
Decals and symbols DANGER WARNING CAUTION This symbol accompanied by the This symbol accompanied by the "CAUTION" indicates a potentially word "DANGER" calls attentions to word "WARNING" calls attentions hazardous situation which, if not an act or a condition which will to an act or a condition which can avoided, may result in minor or lead to serious personal injury or... -
Page 5: Rules For Safe Operation
Rules for safe operation Operator safety WARNING Users risk injury to themselves and others if the unit is used improperly, and/or safety precautions are not followed. Proper clothing and safety gear must be worn when operating unit. Read this Manual carefully. Be sure you understand how to operate this unit properly before you use it. -
Page 6: Reduce Noise
Reduce noise NOTE Before operating the unit, check and follow local regulations concerning sound level and hours of operation. Avoid using units when people are likely to be disturbed, such as late at night or early in the morning. Operate the unit at the lowest possible throttle setting that gets the job done. Make sure the silencer works well. -
Page 7: Eye, Breathing And Hearing Protection
Eye, breathing and hearing protection Wear eye protection goggles. Wear breathing protection such as officially approved toxic dust and mist respirator. Wear hearing protection. If this guideline is not followed, hearing loss can occur. Wear proper clothing Snug fitting, durable clothing should be worn. Trousers should have long legs. -
Page 8: Description
If a decal cannot be read, a new one can be ordered from 15. Fuel tank - Contains fuel and fuel filter. your ECHO dealer. 16. Air cleaner cover - Covers air filter. 6. Liquid valve (Grip valve) - Perform the operating and 17. -
Page 9: Assembling
Assembling Spray hose and nozzle ∗ Rubber cap The rubber cap fitted on the top of pump crank case is for prevention of oil leakage during transportation. Remove the cap before operating pump. ∗ Nipple 1. Spray hose 1. Spray hose 2. -
Page 10: Operation
Recommended mixture ratio; 50 : 1 (2 %) for ISO-L-EGD Standard (ISO/CD 13738), JASO FC, FD grade and ECHO Premium 50 : 1 oil or 25 : 1 (4 %) for JASO FB grade oil. - Do not mix directly in engine fuel tank. -
Page 11: Chemical Liquid Tank
Chemical liquid tank NOTE Each mark on the face of the tank indicates the 5, 10, 15, 20 and 25 L levels. Do not dilute chemicals directly in the chemical tank. Never start and operate engine before filling chemical tank to avoid damage to pump. ∗... -
Page 12: Stopping The Engine
Stopping the engine WARNING If engine does not stop, close choke to stall engine. Have your ECHO dealer inspect and repair. NOTE When misting liquid is over, stop the engine. Do not keep engine running, chemical tank has been emptied. -
Page 13: Service Maintenance Guide
Service maintenance guide Area Maintenance Page Before use Weekly Monthly Yearly Air filter Clean / Replace • Fuel system Inspect • Fuel line Inspect • Fuel filter Inspect / Clean / Replace • Spark plug Inspect / Clean / Adjust / Replace •... -
Page 14: Troubleshooting
Not fuel at carburettor Fuel filter clogged Clean or replace cranks Fuel line clogged Clean Carburettor Ask your ECHO dealer Fuel at cylinder No fuel at cylinder Carburettor Ask your ECHO dealer Silencer wet with fuel Fuel mixture is too rich... - Page 15 WARNING Servicing of this machine, other than items listed in the Operator's Manual, should be performed by competent service personnel. Fuel vapors are extremely flammable and may cause fire and / or explosion. Never test for ignition spark by grounding spark plug near cylinder plug hole, otherwise serious personal injury may result.
-
Page 16: Maintenance And Care
Maintenance and care If you have any questions or problems, please contact your ECHO dealer. Cleaning air filter NOTE Clean air filter after each use. If filter is excessive dirty or no longer fits properly, replace it. 1. Air cleaner cover 2. -
Page 17: Cylinder Fins (Cooling System)
Cylinder fins (Cooling system) ∗ Cylinder fins Always keep cylinder fins clean. Clogged cylinder fins will cause engine to overheat. Clean out grass, mud, leaves, and other debris with a wooden stick periodically. Carburettor adjustment 1. Carburettor 2. Idle adjustment screw Do not adjust the carburettor unless necessary. -
Page 18: When Spraying Is Finished
When spraying is finished ∗ Drain cap Fill chemical tank with water and spray through nozzle for 2 to 3 minutes for cleaning. Drain water from the machine by removing drain cap. Wipe off the liquid chemical on the machine after use. ∗... -
Page 19: Storage
Storage WARNING Do not store in an enclosure where fuel fumes may accumulate or reach an open flame or spark. NOTE For future reference, you should keep this Operator's Manual. Do not store your unit for a prolonged period of time (30 days of longer) without performing protective storage maintenance which includes the following: 1. -
Page 20: Disposal Procedure
The codes refer to the following materials; dispose of those plastic parts in accordance with local regulations. Mark Material >PA6-GF< Nylon 6 - Glass fiber >PP-GF< Polypropylene - Glass fiber >PE-HD< Polyethylene Please contact your ECHO dealer in case you do not know how you should dispose of waste oil / plastic parts. -
Page 21: Specifications
Two stroke, air-cooled engine oil. Mixture ratio 50 : 1 (2 %) for ISO-L-EGD Standard (ISO/CD13738), JASO FC, FD grade and ECHO Premium 50 : 1 oil or 25 : 1 (4 %) for JASO FB grade oil. Pump: Type... - Page 22 1Memorandum and Back cover 7-2 SUEHIROCHO 1-CHOME, OHME, TOKYO 198-8760, JAPAN PHONE: 81-428-32-6118. FAX: 81-428-32-6145. Printed in Taiwan 706 170-3409 7 2012/06 7061-7034-09 7 © 2011...
