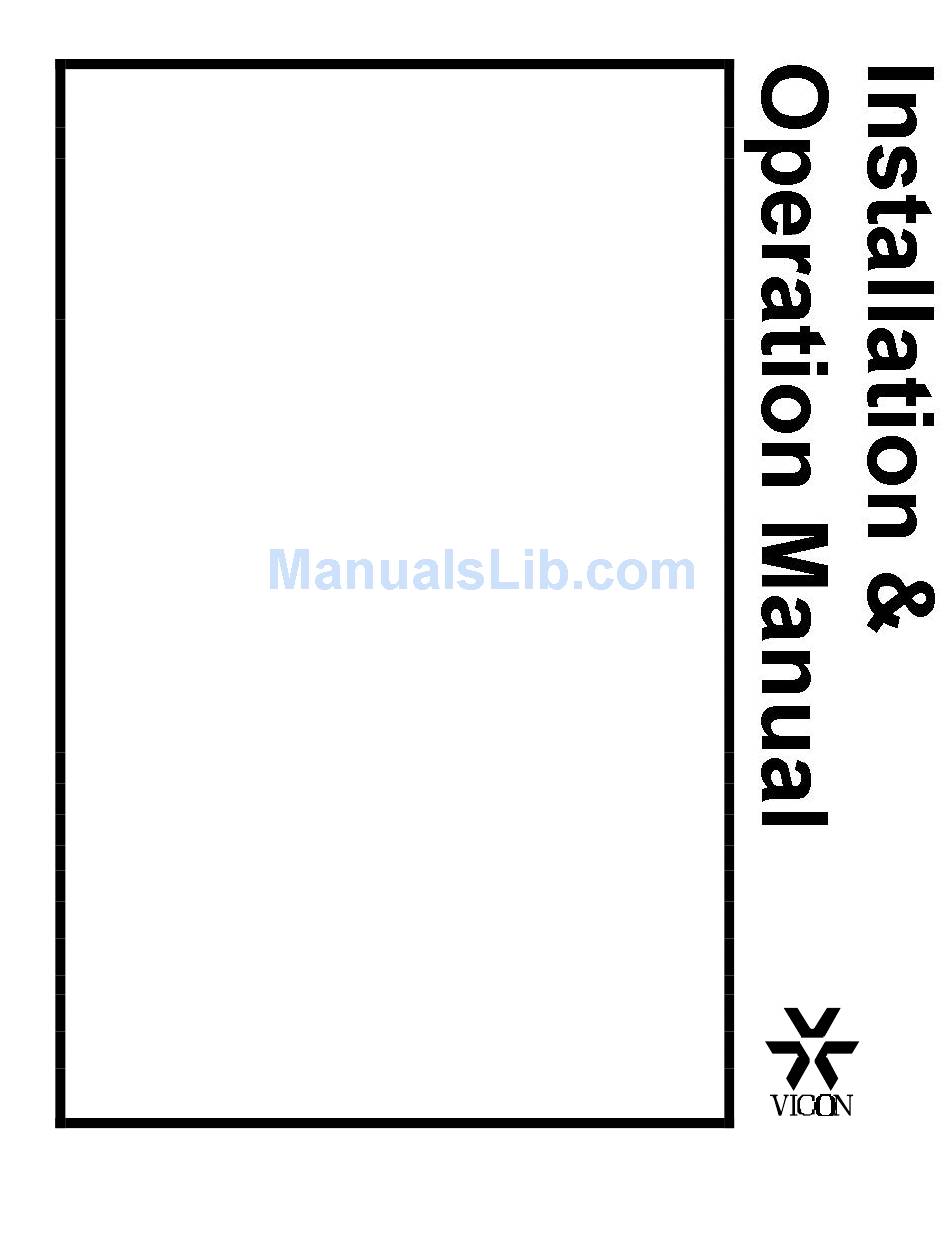

Vicon V200VA-B Installation & Operation Manual

Vicon video amplifier installation & operation manual

Advertisement

Quick Links

MODEL V200VA-B VIDEO AMPLIFIER
Copyright © 2000 Vicon Industries Inc. All rights reserved.
Product specifications subject to change without notice.
Vicon and its logo are registered trademarks of Vicon Industries Inc.
VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788
TEL: 631-952-CCTV (2288) FAX: 631-951-CCTV (2288) TOLL FREE: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266)
UK: 44/(0) 1489-566300 INFOFAX: 800-287-1207 WEB: www.vicon-cctv.com
Vicon part number 8006-8672-01-01
X672
Section 12 Rev 700

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V200VA-B and is the answer not in the manual?

Questions and answers

Summary of Contents for Vicon V200VA-B

  • Page 1 Copyright © 2000 Vicon Industries Inc. All rights reserved. Product specifications subject to change without notice. Vicon and its logo are registered trademarks of Vicon Industries Inc. VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788 TEL: 631-952-CCTV (2288) FAX: 631-951-CCTV (2288) TOLL FREE: 800-645-9116 24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300 INFOFAX: 800-287-1207 WEB: www.vicon-cctv.com...
  • Page 5: Important Safeguards

    Use only with a mounting accessory recommended by Vicon, or sold with the video product. Any mounting of the video product should follow Vicon’s instructions, and a mounting accessory recommended by Vicon should be used.
  • Page 6 Vicon or that have the contact with them might be fatal. same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other 16.
  • Page 7: Installation

    Stable, continuous operation is guaranteed by both a fully regulated power supply and by an adjustable voltage gain of 13 dB. Housed in a heavy -gauge steel chassis and cover, Model V200VA-B Video Amplifier is designed for the small, basic closed-circuit video system user.
  • Page 8 CAMERA on the rear panel of the V200VA-B. See Figure 1. 2. Connect a video cable from the connector marked MONITOR on the rear panel of the V200VA-B to the input of a monitor, switcher, or other video device with 75-ohm termination. If several devices are wired in a looping arrangement, the last one in the chain must be terminated by 75 ohm impedance.
  • Page 9 Adjustment Procedure Remove the cover of the V200VA-B by removing the four screws (two on top, one on each side) securing it. Connect the V200VA-B to an appropriate power source. Vicon strongly recommends the use of line conditioners, voltage regulators, and uninterruptible power supply (UPS) systems. Adjust the unit following the procedure below.
  • Page 10: Maintenance

    Repairs should only be attempted by qualified personnel in an adequately equipped facility. If it is necessary to change the fuse, be sure to replace it with one of the same value, 1/4 A, 3 AG (120 VAC) or 1/8 A 3 AG slo blo (230 VAC). 4 • • Maintenance X672 Rev 700 V200VA-B...
  • Page 11: Shipping Instructions

    Shipping Instructions Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A.
  • Page 12: Technical Information

    120 VAC: 1/4 A 3 AG slo-blo. 230 VAC: 1/8 A 3 AG slo-blo. CONTROLS AND INDICATORS Power: On/off switch. Gain: Potentiometer. High Frequency Gain: Potentiometer. Low Frequency Gain: Potentiometer. Pilot Light: Long-life neon. 6 • • Technical Information X672 Rev 700 V200VA-B...
  • Page 13 Finish: Chassis: black baked enamel. Cover: black textured baked enamel. Front panel: black. ENVIRONMENTAL Operating Temperature Range: 32 to 104° F (0 to 40° C). Humidity: Up to 90% relative, noncondensing. Technical Information • • 7 X672 Rev 700 V200VA-B...
