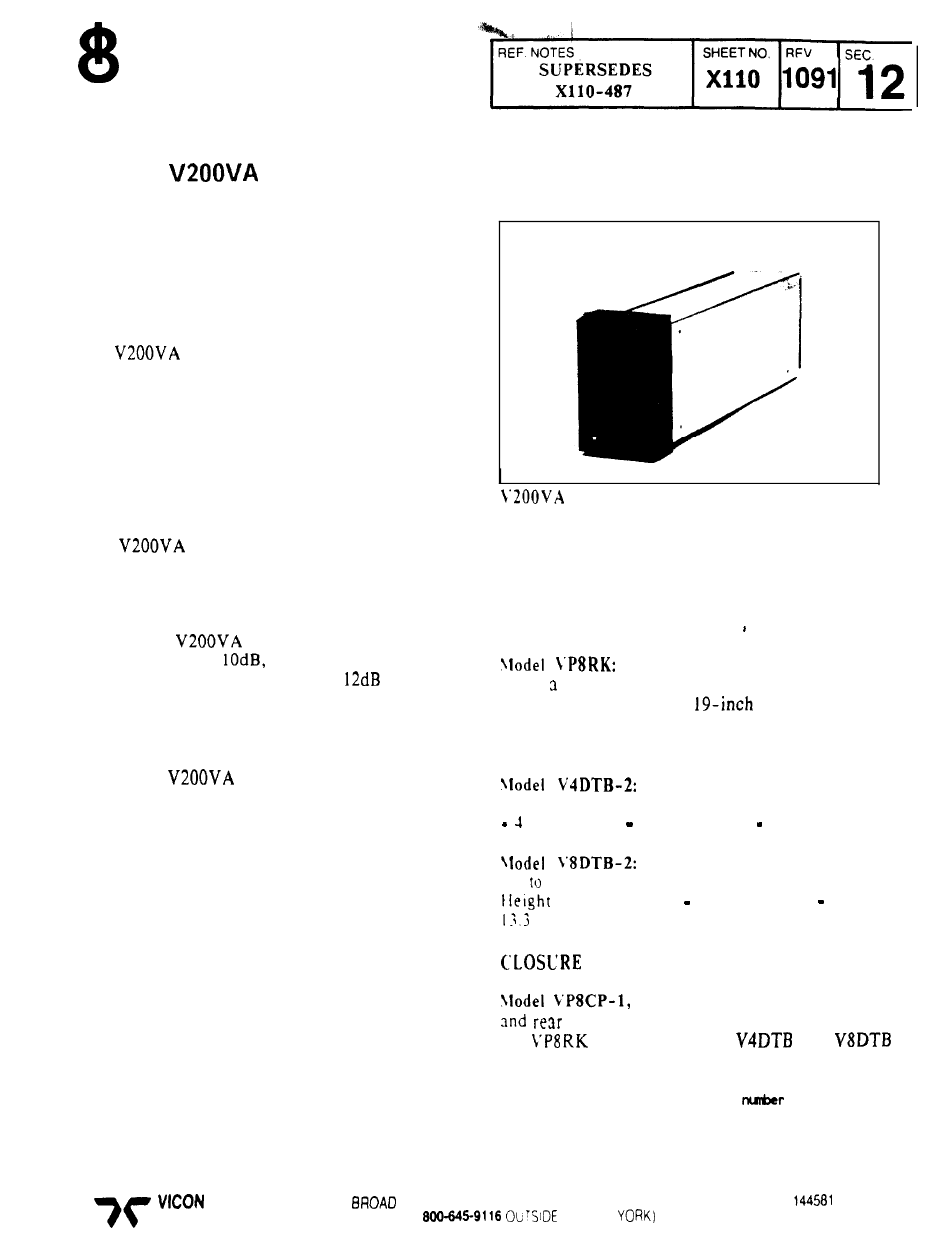

PHASE EIGHT*
INSTRUCTIONS FOR
Installation AND OPERATION
MODEL V200VA VIDEO AMPLIFIER

GENERAL

SCOPE

The information in this manual covers the
installation, operation, and maintenance of
the V200VA Video Amplifier.
This unit should be installed by a qualified
service technician using approved materials
and wiring practices in accordance with the
National Electrical Code and applicable local
wiring ordinances.

INTRODUCTION

The V200VA Video Amplifier is designed for
use in applications requiring long cable runs.
As the high-frequency portion of the video
signal is subject to high attenuation under
such conditions, loss of clarity and focus may
result. The V200VA provides an adjustable
voltage gain up to IOdB, with up to 20dB of
high frequency compensation and 12dB of low
frequency compensation.
gain and frequency compensation controls, the
signal may be adjusted to provide the proper
levels over the entire frequency range. The
use of the V200VA insures crisp clear images
over relatively long cable runs.
The amplifier circuitry is housed in the PHASE
EIGHT module and is intended for installation
in the PHASE EIGHT Racking System. Refer
to the ASSOCIATED EQUIPMENT AND
ACCESSORIES section.
Product specifications
subject
WARNING: TO PREVENT RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
V
INDUSTRIES, INC.
By providing separate
change without notice
to
525 BROAD HOLLOW ROAD MELVILLE. N Y 11747 TEL (516) 293-2200 TELEX: 144561
TOLLFREE: 800-645-9116
VIDEO AMPLIFIER MODULE
ASSOCIATED EQUIPMENT
AND ACCESSORIES

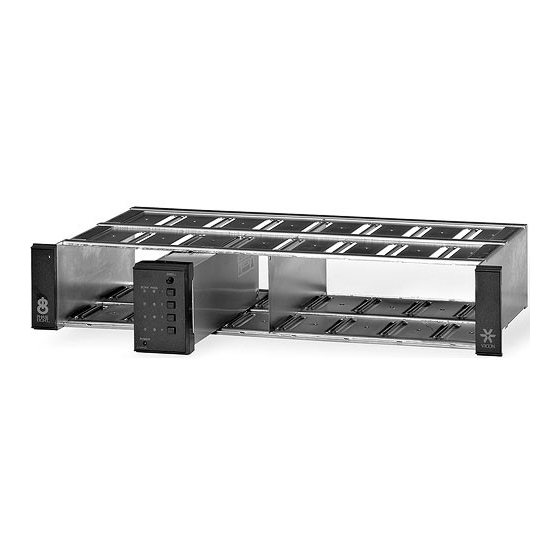

CAGE ASSEMBLY
CARD
Accepts PHASE EIGHT modules
up to
installation in a standard 19-inch rack.
TOP ENCLOSURES
DESK
Standalone model. Accepts
up four single PHASE EIGHT modules. Height
IO
up eight single PHASE EIGHT modules.
-2, or -3: Used for front
closure of unused rack positions of
the VP8RK Card Cage or the V4DTB and VSDTB
Enclosures. Suffix indicates single, double,
or triple width.
Vicon part nuher 8006-9110-02-00
*Trademarks of Vicon Industries Inc.
Patent pending on PHASE EIGHT.
