VESA Mount for Your Monitor

This monitor conforms to the VESA Flat Panel Mounting Physical Mounting Interface
Standard which defi nes a physical mounting interface for fl at panel monitors, and
corresponding with the standards of fl at panel monitor mounting devices, such as wall and
table arms. The VESA mounting interface is located on the back of your monitor.
To mount the monitor on a UL certifi ed swing arm or other mounting fi xture, follow the
instructions included with the mounting fi xture to be used.

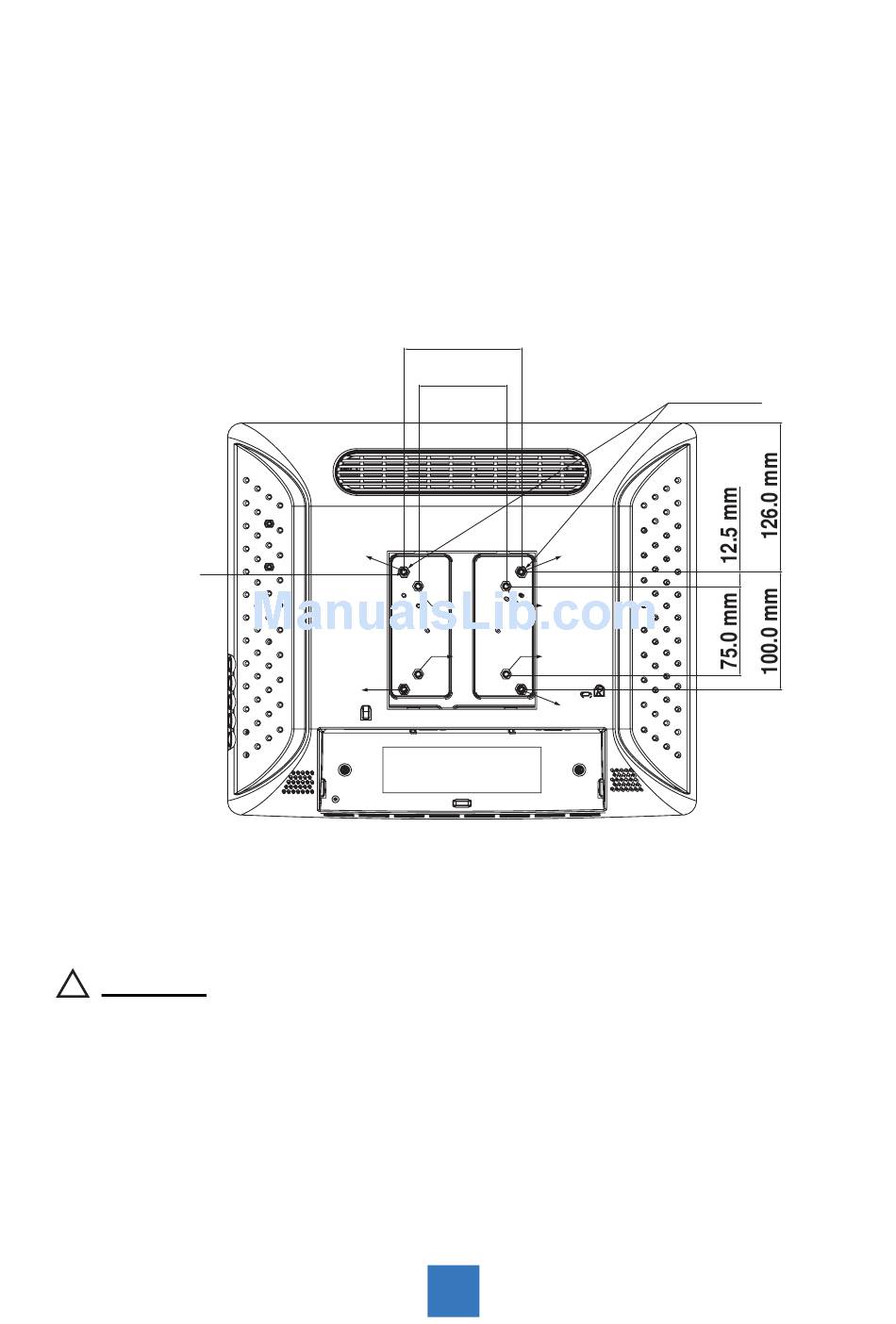

VESA
Mounting
Interface
* A/B: The distance
screw hole is 8 mm.
Warning!
!
Please select the proper screws!
Please use four M4 screws diameter with proper length to mount your monitor.
Please note: the mounting stand must be able to support at least 13.2 lbs(6Kg).
The dimension of the mounting device must be equal or less than the VESA
Mounting interface recess area. There is no any gap allowed between two
mounting plates.
100.0 mm
B
B
between the back cover surface and the bottom of the
75.0 mm
B
A A
A A
B
10
Slots (x4)
