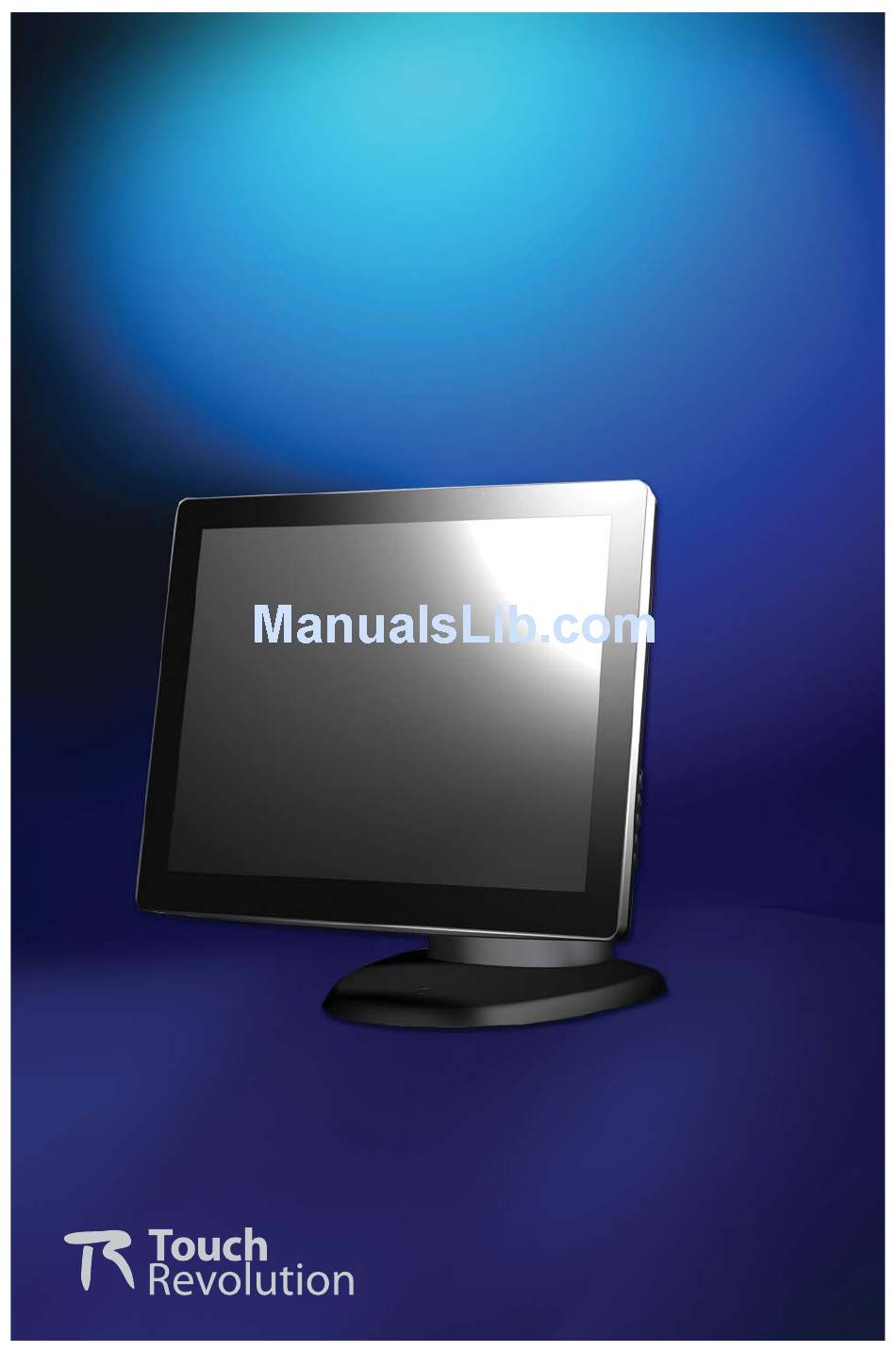

- Page 1 USER’s GUIDE M17A Series Touch Screen LCD Monitors Rev.A...
- Page 2 The information contained in this document is subject to change without notice. This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be reproduced,translated to another language or stored in a retrieval system, or transmitted by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission.
-
Page 3: Table Of Contents
Table of Contents Usage Notice Precautions..........................1 Introduction About M17A Series ......................... 2 Touch Screen for M17A Series ....................2 Package Overview ......................... 3 Installation Product Overview ......................4 Front View ....................... 4 Bottom View (Without Stand) ................... 4 Start Your Installation ....................5 Connecting the Display(Figure 8.1) ................ -
Page 4: Usage Notice
Usage Notice ! Warning - To prevent the risk of fi re or shock hazards, do not expose this product to rain or moisture. ! Warning - Please do not open or disassemble the product as this may cause electric shock. Precautions Follow all warnings, precautions and maintenance as recommended in this user’s manual to maximize the life of your unit. -
Page 5: Introduction
Introduction About M17A Series The M17A Series is a 17" fl at panel screen with an active matrix, thin-fi lm transistor (TFT) liquid crystal display (LCD). Features include: • Direct Analog signal input • Active matrix TFT LCD technology • 1280 x 1024 SXGA resolution •... -
Page 6: Package Overview
Package Overview Power Cord LCD Display VGA Signal Cable Audio-in Cable USB Cable (A to B) USB Cable (A to A) (Option for MSR) DC Power Supply Cable Cover Quick Start Guide (sold separately) Screw... -
Page 7: Installation
Installation Product Overview • Front View • Bottom View (Without Stand) AUDIO AC IN VGA IN DC IN... -
Page 8: Start Your Installation
Start Your Installation 1. Lay the LCD fl at on an even surface. 2. Remove the stand back cover by pulling in the direction of the arrow as seen in step 2 diagram. 3. Move the stand into position as seen in step 3 diagram. 4. - Page 9 5. Take the optional cable cover and screw from the accessory box. Position all cables under the cover lip as seen in the step 5 diagram. 6. Using a Philips Head screwdriver, insert the screw (CBM M3x6) into the cable cover and monitor as seen in the step 6 diagram.
-
Page 10: Connecting The Display(Figure 8.1)
Connecting the Display (Figure 8.1) To setup this display, please refer to the following fi gure and procedures. 1. Be sure all equipments are turned off. 2. Connect the AC power cord to the power connector on the monitor and the other end into an electrical outlet (8.1). -
Page 11: (Figure 8.1)
(Figure 8.1) -
Page 12: Kensington Security Slot
Kensington Security Slot The monitor can be secured to your desk or any other fi xed object with Kensington lock security products. The Kensington lock is not included. -
Page 13: Vesa Mount For Your Monitor
VESA Mount for Your Monitor This monitor conforms to the VESA Flat Panel Mounting Physical Mounting Interface Standard which defi nes a physical mounting interface for fl at panel monitors, and corresponding with the standards of fl at panel monitor mounting devices, such as wall and table arms. -
Page 14: User Controls
User Controls Side Panel Controls Icon Key Name Menu Down Enter Power Menu off status Menu on status Menu appear Menu disappear / return to main item Brightness Main item select up / Adjust up Mute Main item select down / Adjust down Enter / Select sub-item function Power On / Off... -
Page 15: How To Use The Osd Menus
How to Use the OSD Menus Icon Key Name Menu Down Enter Power 1. Press the “MENU” button to pop up the “on-screen menu” and press “Up” or “Down” button to select among the six functions in the main menus. 2. -
Page 16: Main Osd Menu
On-Screen Display Menus Main OSD Menu: ITEM CONTENT The monitor luminance level control. Contrast The monitor backlight level control. Brightness Fine-tune the image to full screen automatically. Auto Adjust Moving screen image horizontal position to left or right. Left/Right Moving screen image vertical position to up or down. Up/Down The screen image horizontal dot clock adjustment. -
Page 17: Appendix
Appendix Troubleshooting If you are experiencing trouble with the LCD display, refer to the following. If the problem persists, please contact your sales representative or our service center. Problem: No image appears on screen. ► Check that all the I/O and power connectors are correctly and well connected described in the "Installation"... -
Page 18: Warning Signal
Warning Signal If you see warning messages on your LCD screen, this means that the LCD display cannot receive a clean signal from the computer graphics card. Below are the three kinds of Warning Signal. Please check the cable connections or contact your sales representative or our service center for more information. -
Page 19: Product Dimensions
Product Dimensions 400.0 mm ► Front View ► Side View 73.9 mm 259.7 mm ► Top View... -
Page 20: Compatibility Modes
Compatibility Modes Mode Resolution H-Frequency(khz) V-Frequency(hz) IBM VGA 720X400 31.47 IBM VGA 640X480 31.47 Apple MacII 640X480 35.00 VESA VGA 640X480 37.86 VESA VGA 640X480 37.50 VESA SVGA 800X600 35.16 VESA SVGA 800X600 37.88 VESA SVGA 800X600 48.08 VESA SVGA 800X600 46.88 Apple Mac... -
Page 21: Touch Screen Driver Installation
USB touch screen interface. No additional software driver is required for general operation of the touch screen. 2. For M17A Series, the system requires 15 seconds for Windows 7 to install/uninstall the touch drivers while turning power on/off or plugging/unplugging USB cable.
