CABINET PARTS
42" BUILT IN
REFRIGERATOR
For Model: KSSS42MDX05
Part No. 4394682
1
4−97 Litho In U.S.A. (mek)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSSS42MDX05 and is the answer not in the manual?

Questions and answers

Related Manuals for KitchenAid KSSS42MDX05

Summary of Contents for KitchenAid KSSS42MDX05

  • Page 1 CABINET PARTS 42" BUILT IN REFRIGERATOR For Model: KSSS42MDX05 Part No. 4394682 4−97 Litho In U.S.A. (mek)

  • Page 2: Cabinet Parts

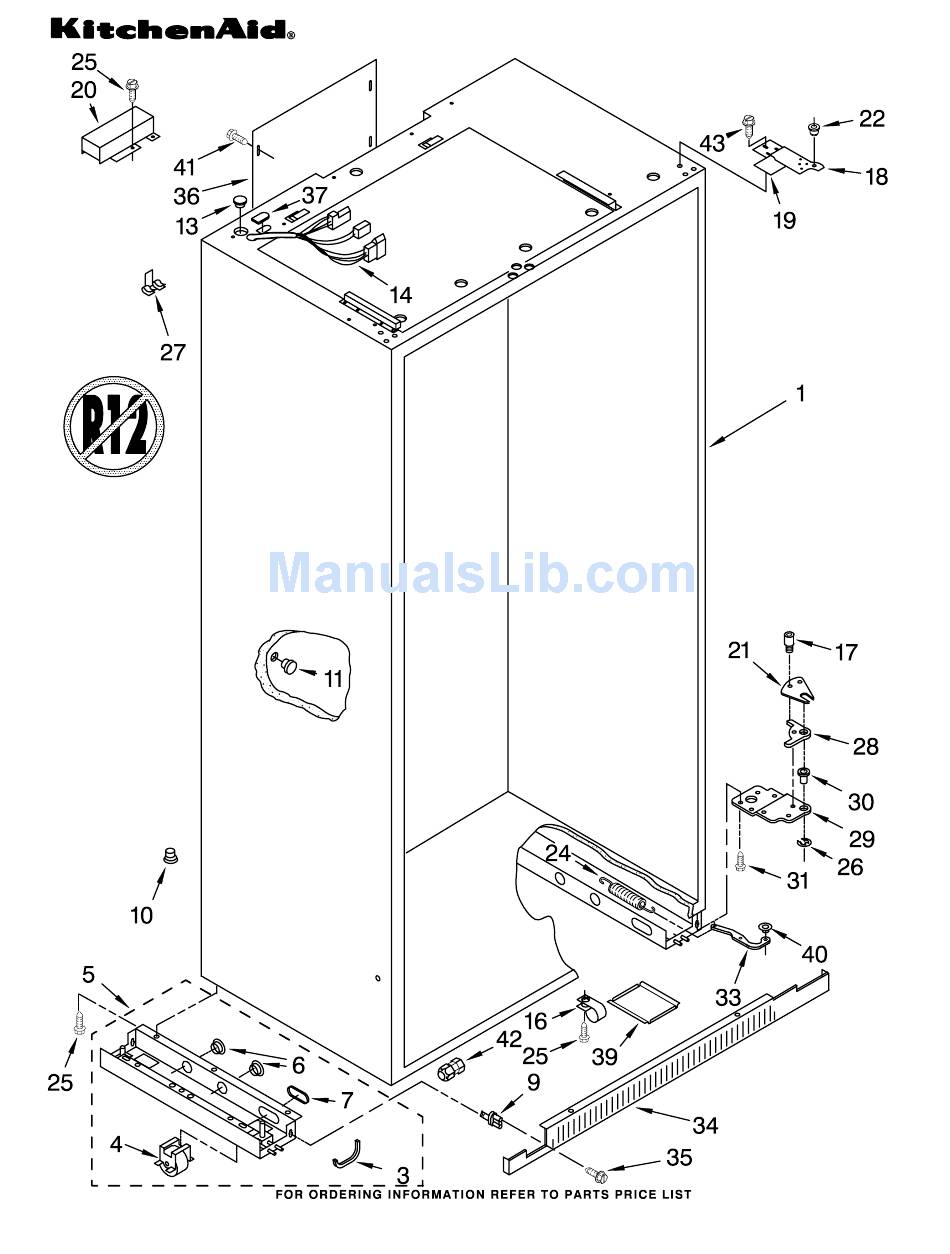

    2004852 Mounting Stud, Grill 1112939 Hole Plug, Leveler 1112849 Cap, Grommet 1113122 Grommet, Wiring 2004912 Wiring Harness, Cabinet CABINET PARTS For Model: KSSS42MDX05 Illus. Part DESCRIPTION 488946 Tube, Clamp 2004993 Screw, Door Stop Hinge (Top) 2001976 Left Side 2001975 Right Side...
  • Page 3 4394682 CABINET TRIM PARTS For Model: KSSS42MDX05 Illus. Part DESCRIPTION 2004553 Cabinet, Trim (2) 2003857 Screw 1161561 Screw 2004537 Cabinet, Trim (Bottom) 486194 Screw 2003646 Cabinet, Trim Top...

  • Page 4: Freezer Liner Parts

    FREEZER LINER PARTS For Model: KSSS42MDX05 Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 1113649 Bracket, Light 1113650 Lens 1112613 Light, Socket 548049 Light, Bulb 538533 Support Clip, Icemaker (2) 2000193 Grommet, Screw (2) 488552 Screw 486194 Screw 1112591 Spacer, Control...

  • Page 5: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Model: KSSS42MDX05 4394682...
  • Page 6 REFRIGERATOR LINER PARTS For Model: KSSS42MDX05 Illus. Part DESCRIPTION LINER (Not A Serviceable Part) 1112591 Spacer, Control Panel (3) 2001117 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 488357 Screw 486194 Screw 1112257 Hole Plug 2003579 Meat Pan, Air Duct Cover...
  • Page 7 REFRIGERATOR CONTROL PANEL PARTS 4394682 For Model: KSSS42MDX05 Illus. Part DESCRIPTION 1112641 Control Panel 2003302 Inlay, Control Panel 2004005 Circuit Board 2003842 Control Knob 2003841 Retainer, Knob 1118894 Switch, Rocker Arm 1113135 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3)
  • Page 8 FREEZER CONTROL PANEL PARTS For Model: KSSS42MDX05 Illus. Part DESCRIPTION 1113626 Control Panel 2003308 Inlay, Control 1113466 Thermostat & 488974 Screw (2) 1115373 Switch, Rocker Arm 1113134 Seal, Control 489260 Screw (3) 2000153 Hole Plug (3) 1113768 Shield, Control 1112613 Socket, Light...

  • Page 9: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Model: KSSS42MDX05 4394682...
  • Page 10 REFRIGERATOR SHELF PARTS For Model: KSSS42MDX05 Illus. Part DESCRIPTION 2174403 Frame, Shelf 2003376 Glass, Shelf 1113547 Reflector, Shelf 1113791 Gasket, Glass (2) 2179375 Rack, Wine 2169933 Egg Bin 2003326 Frame, Assembly Meat Pan 2164373 Egg Carrier 1113894 Cover, Crisper 2003379 Glass, Crisper...

  • Page 11: Freezer Shelf Parts

    4394682 FREEZER SHELF PARTS For Model: KSSS42MDX05 Illus. Part DESCRIPTION 2003143 Solid Shelf 2003134 Front, Ice Compartment 1113637 Shelf, Fixed (2) 1113565 Shelf, Fixed−Deep 2001625 Basket (2) 2002726 Ice Container 2003044 Front Cover Slide, Container 2002720 Right Side 2002721 Left Side...
  • Page 12 TOP GRILLE AND UNIT COVER PARTS For Model: KSSS42MDX05 Illus. Part 2003714 Top Grille 2004946 Cover, Unit 486194 Screw 2002484 Grille, Bracket 2001415 Screw 2003723 Decortive Panel 2003480 Guard, Compressor 2003482 Guard, Water DESCRIPTION Assembly Assembly Wiring Valve Wiring 4394682...

  • Page 13: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Model: KSSS42MDX05 4394682...
  • Page 14 REFRIGERATOR DOOR PARTS For Model: KSSS42MDX05 Illus. Part DESCRIPTION 2003871 Refrigerator Door Panel (Includes Insulation) 939101 Screw Anchor (8) 2004521 Hinge Assembly, 2004520 Spacer−Door, 489282 Screw 2004523 Hinge Assembly, Bottom 1112533 Gasket Retainer, Side (2) 1112541 Gasket Retainer, Top & Bottom...

  • Page 15: Freezer Door Parts

    FREEZER DOOR PARTS For Model: KSSS42MDX05 4394682...
  • Page 16 FREEZER DOOR PARTS For Model: KSSS42MDX05 Illus. Part DESCRIPTION 2003877 Freezer Door Panel (Includes Insulation) 2004520 Spacer−Door, 2004524 Hinge, Bottom 489282 Screw 2004521 Hinge, Top 2004881 Retaining Ring Door−Closure 1112533 Gasket Retainer, Side (2) 1112540 Gasket Retainer, Top & Bottom...
  • Page 17 UPPER UNIT PARTS For Model: KSSS42MDX05 4394682...
  • Page 18 2162358 Terminal Cover Relay (See Overload) 2169137 Capacitor 486899 Screw 487869 Screw 2003392 Condenser 943447 Grommet (4) UPPER UNIT PARTS For Model: KSSS42MDX05 Illus. Part DESCRIPTION 1113019 Clamp (4) 487522 Screw 851095 Wire Tie (2) 2164492 Drier 2169135 Motor, Fan...
  • Page 19 LOWER UNIT AND TUBE PARTS For Model: KSSS42MDX05 4394682...
  • Page 20 LOWER UNIT AND TUBE PARTS For Model: KSSS42MDX05 Illus. Part DESCRIPTION 2000528 Defrost Bi−Metal 1113043 Clamp, Bi−Metal 486194 Screw 2003271 Sleeve 2002171 Sleeve 2002999 Condenser Inlet Tube 2003484 Sleeve 2003015 Tube, Connect (Drier) 2004545 Heater, Drain Pan 1113062 Hanger, Heater...
  • Page 21 AIR FLOW AND RESERVOIR PARTS For Model: KSSS42MDX05 4394682...
  • Page 22 AIR FLOW AND RESERVOIR PARTS For Model: KSSS42MDX05 Illus. Part DESCRIPTION 2003200 Fan Motor 2002732 Cup, Clearance 2169142 Fan Blade 548263 Bracket (Double) 938224 Bracket (Single) 548268 Grommet 486194 Screw 2003925 Deflector, Air Duct 488500 Screw, Ground 488366 Clamp, Tube...

  • Page 23: Icemaker Parts

    ICEMAKER PARTS For Model: KSSS42MDX05 4394682...
  • Page 24 227991 Connector, Wire 2004547 Water Valve, Harness 2005038 Plug, Water Valve 489348 Clamp, Nylon Valve 488946 Clamp Tube PARTS NOT ILLUSTRATED ICEMAKER PARTS For Model: KSSS42MDX05 Illus. Part DESCRIPTION 2174155 Cover 628228 Mold & Heater (Also Order 542638 Silicone Grease) 628398 Motor 628356 Cup−Water Fill...
