Summary of Contents for KitchenAid KSSS42MAX01

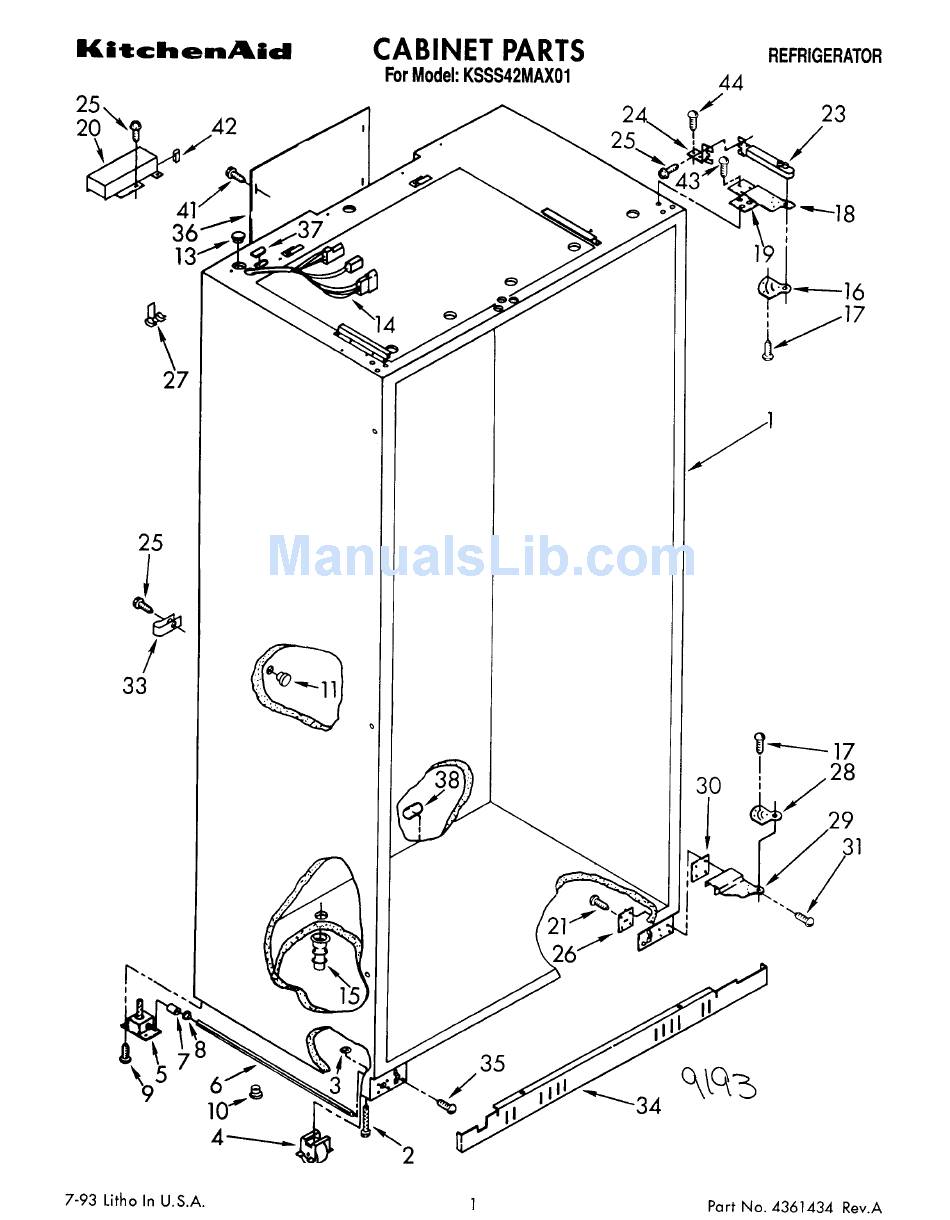

- Page 2 Cabinet (Not A Serviceable Part) 1112019 Leveler, Front (2) 1113249 Retainer (2) 1112023 Roller, Front & Rear (4) 1112695 Leveler, Adjustable (2) 2000670 Adjusting Rod (2) 1113250 Sleeve, Retainer (2) 1112937 Bushing, Rod (2) 489359 Screw 1112939 Hole Plug, Leveler 1112849 Cap, Grommet 1113122...
- Page 4 2000651 Breaker Trim & Retainer Assembly 1112682 Magnet, Side (4) 1112684 Magnet, Freezer (2) 1112680 Magnet, Refrigerator (2) 2000321 Cabinet, Trim R.S 2000322 Cabinet, Trim L.S 2001297 Screw 1112801 Cabinet, Trim (Bottom) 488649 Screw, 8-32 x 1/2 (8) 2001310 Cabinet, Trim Top 2000007 Retainer, Unit Base (2) 487944...
- Page 6 2001578 Top Grille Assembly 2001316 Decorative Panel Assembly 1113355 Back Up Panel 2001088 Cover, Unit 486194 Screw, 8 x 1/2 1113300 Cover, Component Assembly 1113317 Brace...
- Page 8 LINER (Not A Serviceable Part) 1112591 Spacer, Control Panel (3) 2001117 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 488357 Screw, 8 x 1-1/4 (8) 486194 Screw, 8 x 1/2 1112257 Hole Plug 2000740 Meat Pan, Air Duct Cover (Also Order 12) 2000337 Meat Pan, Air Duct 2001302...
- Page 10 Liner (Not A Serviceable Part) 1113649 Bracket, Light 1113650 Light, Lens 1112613 Light, Socket 547225 Light Bulb 538533 Support Clip, Icemaker (2) 2000193 Grommet, Screw (2) 488552 Screw, 10-12 x 3/8 (2) 486194 Screw, 8 x 1/2 1112591 Spacer, Control Panel (3) 842534 Clip, Air Duct (4) 1112260...
- Page 12 1112641 Control Panel 2000975 Inlay, Control Panel 2000789 Circuit Board 1116853 Control Knob 837444 Retainer, Knob 1108112 Switch, Rocker Arm 1113135 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3) 1113774 Shield, Control Panel 1112613 Socket, Light (2) 547225 Light Bulb (2) 486194 Screw, 8 x 1/2...
- Page 14 1113543 Frame, Shelf 1112318 Glass, Shelf 1113547 Reflector, Shelf 1113791 Gasket, Glass (2) 1125913 Rack, Wine 1113551 Frame Assembly 1113894 Cover, Crisper 2000155 Glass, Crisper 2000888 Crisper Pan 1113870 Roller 1113871 Eyelet, Roller 489211 Screw, 10-16 x 3/4 488307 Washer 2000892 Utility Pan 2000816...
- Page 16 1113629 Solid Shelf 1113634 Shelf, (Top) 2001625 Basket 1113643 Trim, Basket 1122529 Ice Cube Pan (Includes 7) 1122530 Trim, Ice Pan 1113565 Shelf, (Middle) 1113637 Shelf, Bottom (2) 1113870 Roller 1113871 Eyelet, Roller 489211 Screw, 10-16 x 3/4 488307 Washer 2000061 Slide, Basket R.S.
- Page 18 2000694 Door Panel, Refrigerator (Also Order Item 29) 939101 Screw Anchor (8) 2000696 Hinge Assembly, Top 2000303 Spacer, Top 489282 Screw 2000698 Hinge Assembly, Bottom 1112533 Gasket Retainer, Side (2) 1112541 Gasket Retainer, Top & Bottom 2000880 Door Gasket, Magnetic 489101 Screw, 7 x 1/2 (36) 2000323...
- Page 20 2000715 Exterior Door Panel, Freezer (Also Order Item 11) 2000349 Tap Plate 2000720 Hinge, Bottom 489282 Screw 2000721 Hinge, Top 2000303 Spacer Plate 2000697 Spacer, Bottom 876029 Foam Insulation (Required When Replacing Exterior Door) 1112533 Gasket Retainer, Side (2) 1112540 Gasket Retainer, Top &...
- Page 22 2001127 Assembly, Unit Base 1113386 Assembly, Sound Barrier 2154922 Compressor (Includes Items 8, 9, 10, 11, 13) (Also Order) 876765 Tube Kit 1105220 Bracket, Mounting 1105219 Grommet, Bracket 1105200 Grommet, Mounting 489334 Screw 2154947 Overload 2154452 Terminal Cover 1105222 Strap, Cover 1118797 Relay 2149684...
- Page 24 2000528 Defrost Bi-Metal 1113043 Clamp, Bi-Metal 486194 Screw, 8 x 1/2 1113293 Tube, Connect (Suction) 1113209 Tube, Connect (Discharge) 1113296 Tube, Flow Divider (2) 1113292 Valve, Fluid Control 2001727 Tube, Connect (Drier) 2000755 Heater, Drain Pan 1113062 Hanger, Heater 1113105 Bracket, Heater 487534 Screw, 8 x 1...
- Page 26 2001086 Fan Motor 2154800 Fan Blade 548263 Bracket (Double) 938224 Bracket (Single) 548268 Grommet 486194 Screw, 8 x 1/2 2000618 Motor, Wiring 488500 Screw, Ground 488366 Clamp, Tube 489348 Clamp, Nylon 2001257 Channel, Wiring 2000783 Scroll, Fan 488772 Screw, 8 x 1/2 2000748 Assembly, Air Duct 2000048...
- Page 28 489084 Screw, 8 x 1/2 2000829 Fitting, Water Tube 2001087 Clamp, Tube 841707 Insert, Tube 628379 Clip, Fuse 2000392 Wire Clip 2001336 Tube, Water (To Ice Maker) 1106508 Seal Gasket 487627 Sleeve, Nut 2001318 Valve, Solenoid 627018 Nut, Compression 227991 Connector, Wire 2000837 Water Valve, Harness...
- Page 30 1113626 Control Panel 1113964 Inlay, Control Panel 1113466 Thermostat & Barrier Assembly 488974 Screw (2) 1113134 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3) 1113768 Shield, Control Panel 1112613 Socket, Light 486194 Screw, 8 x 1/2 547225 Light Bulb 1112707 Channel, Wiring 1108112...
