KitchenAid KSSS42MDX00 Parts List
42" built in refrigerator
Hide thumbs
Also See for KSSS42MDX00:
- Use & care manual (76 pages) ,
- Installation instructions manual (30 pages)
Related Manuals for KitchenAid KSSS42MDX00
Summary of Contents for KitchenAid KSSS42MDX00

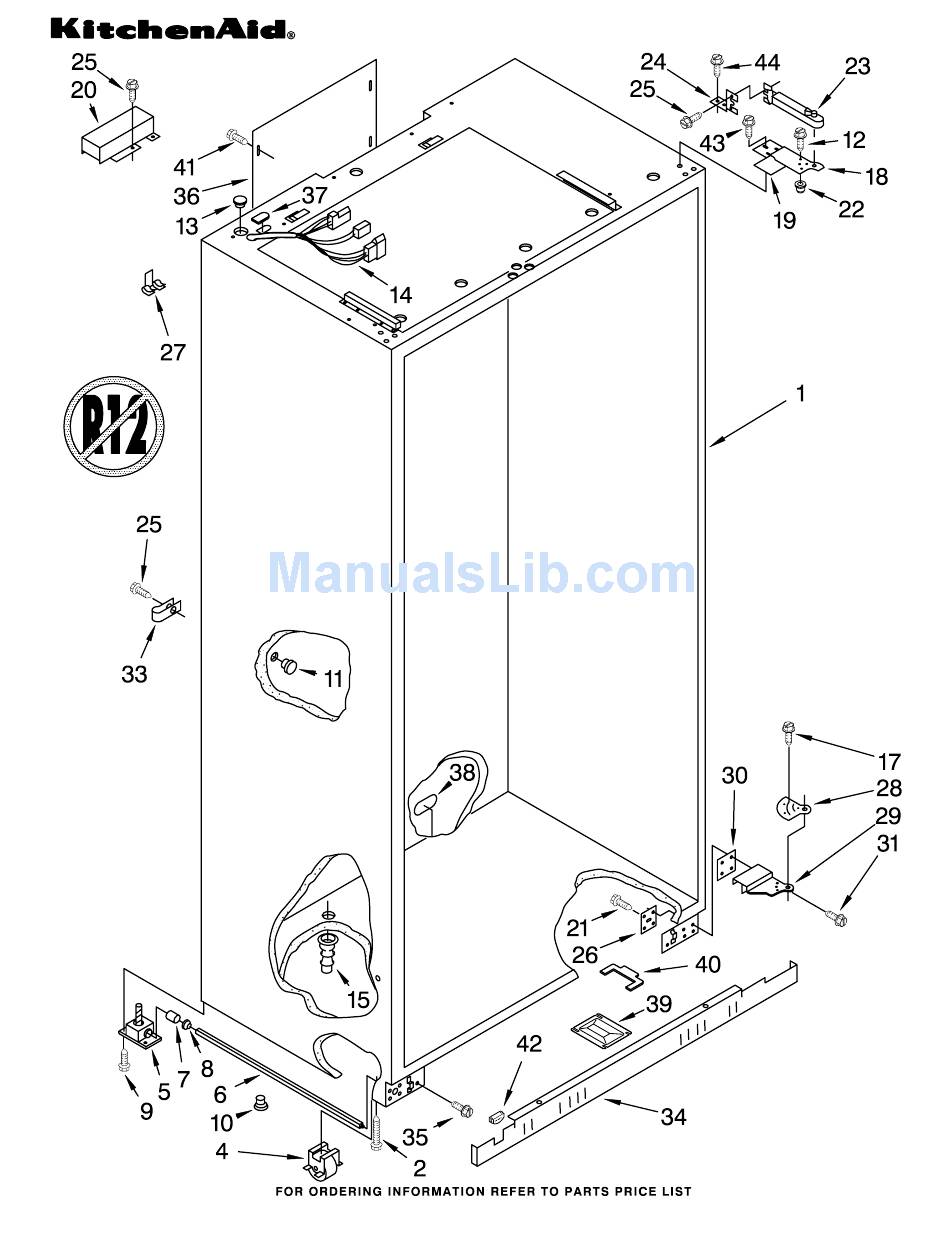

- Page 1 CABINET PARTS 42" BUILT IN REFRIGERATOR For Model: KSSS42MDX00 Part No. 4379844 5−95 Litho In U.S.A. (RCG)
-
Page 2: Cabinet Parts
CABINET PARTS For Model: KSSS42MDX00 Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 1112848 Drain Fitting Hinge (Bottom) Cabinet (Not A 2001978 Left Side 2001295 Shoulder Screw Serviceable Part) 2001977 Right Side Hinge (Top) 1112019 Leveler, Front (2) 1112942 Shim, Hinge (1) 2001976 Left Side 1112023 Roller, Front &... - Page 3 CABINET TRIM PARTS For Model: KSSS42MDX00 Illus. Part DESCRIPTION 2002194 Cabinet, Trim (2) 486194 Screw 2001297 Screw 2001189 Cabinet, Trim (Bottom) 488649 Screw 2002229 Cabinet, Trim Top 2000007 Retainer, Unit Base (2) 487944 Washer (2) 2002474 Retainer Clip 4379844...
-
Page 4: Freezer Liner Parts
FREEZER LINER PARTS For Model: KSSS42MDX00 Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 1113649 Bracket, Light 1113650 Lens 1112613 Light, Socket 548049 Light, Bulb 538533 Support Clip, Icemaker (2) 2000193 Grommet, Screw (2) 488552 Screw 486194 Screw 1112591 Spacer, Control Panel (3) 842534 Clip, Air Duct (4) 1112260 Support,... -
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Model: KSSS42MDX00 4379844... - Page 6 REFRIGERATOR LINER PARTS For Model: KSSS42MDX00 Illus. Part DESCRIPTION LINER (Not A Serviceable Part) 1112591 Spacer, Control Panel (3) 2001117 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 488357 Screw 486194 Screw 1112257 Hole Plug 2000740 Meat Pan, Air Duct Cover 2000337 Meat Pan, Air Duct 2003299 Inlay, Control Meat Pan...
- Page 7 REFRIGERATOR CONTROL PANEL PARTS For Model: KSSS42MDX00 Illus. Part DESCRIPTION 1112641 Control Panel 2003302 Inlay, Control Panel 2000789 Circuit Board 2001738 Control Knob 837444 Retainer, Knob 1118894 Switch, Rocker Arm 1113135 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3) 1113774 Shield, Control Panel 1112613 Socket, Light (2)
- Page 8 FREEZER CONTROL PANEL PARTS For Model: KSSS42MDX00 Illus. Part DESCRIPTION 1113626 Control Panel 2003308 Inlay, Control Panel 1113466 Thermostat & Barrier Assembly 488974 Screw (2) 1115373 Switch, Rocker Arm 1113134 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3) 1113768 Shield, Control Panel 1112613 Socket, Light...
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Model: KSSS42MDX00 4379844... - Page 10 REFRIGERATOR SHELF PARTS For Model: KSSS42MDX00 Illus. Part DESCRIPTION 2174403 Frame, Shelf 2003376 Glass, Shelf 1113547 Reflector, Shelf 1113791 Gasket, Glass (2) 2179375 Rack, Wine 2164372 Egg Bin 2003326 Frame, Assembly Meat Pan 2164373 Egg Carrier 1113894 Cover, Crisper 2003379 Glass, Crisper (Includes #9) 2000742 Meat Pan, Connector...
-
Page 11: Freezer Shelf Parts
FREEZER SHELF PARTS For Model: KSSS42MDX00 Illus. Part DESCRIPTION 2003143 Solid Shelf 2003134 Front, Ice Compartment 1113637 Shelf, Fixed (2) 1113565 Shelf, Fixed−Deep 2001625 Basket (2) 2002726 Ice Container 2003044 Front Cover Slide, Container 2002720 Right Side 2002721 Left Side 2003046 Hole Plug, Front 2003047 Hole Plug, Rear 2003113 Trim, Basket... - Page 12 TOP GRILLE AND UNIT COVER PARTS For Model: KSSS42MDX00 Illus. Part DESCRIPTION 2002583 Top Grille Assembly 2003267 Cover, Unit 486194 Screw 2002484 Grille, Bracket 2001415 Screw 2002955 Decortive Panel Assembly 2003480 Guard, Compressor Wiring 2003482 Guard, Water Valve Wiring 4379844...
-
Page 13: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: KSSS42MDX00 4379844... - Page 14 REFRIGERATOR DOOR PARTS For Model: KSSS42MDX00 Illus. Part DESCRIPTION 2002833 Refrigerator Door Panel (Includes Insulation) 939101 Screw Anchor (8) 2001983 Hinge Assembly, 489282 Screw 2002073 Hinge Assembly, Bottom 1112533 Gasket Retainer, Side (2) 1112541 Gasket Retainer, Top & Bottom 2000880 Door Gasket, Magnetic 489089 Screw (38) 2002224 Handle, Door...
-
Page 15: Freezer Door Parts
FREEZER DOOR PARTS For Model: KSSS42MDX00 4379844... - Page 16 FREEZER DOOR PARTS For Model: KSSS42MDX00 Illus. Part DESCRIPTION 2002866 Freezer Door Panel (Includes Insulation) 2002074 Hinge, Bottom 489282 Screw 2001984 Hinge, Top 1112533 Gasket Retainer, Side (2) 1112540 Gasket Retainer, Top & Bottom 2000879 Door Gasket, Magnetic 489089 Screw (36) 2002226 Handle, Door 2001230 Washer 2002007 Door, Spacer...
- Page 17 UPPER UNIT PARTS For Model: KSSS42MDX00 4379844...
- Page 18 UPPER UNIT PARTS For Model: KSSS42MDX00 Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 851095 Wire Tie (2) 2003398 Assembly, Unit Base 2164492 Drier Following Parts Not Illustrated 2163787 Clip, Compressor 2169135 Motor, Fan and Optional Parts Not Included Mounting (4) 1108179 Blade, Fan 2169443 Compressor...
- Page 19 LOWER UNIT AND TUBE PARTS For Model: KSSS42MDX00 4379844...
- Page 20 LOWER UNIT AND TUBE PARTS For Model: KSSS42MDX00 Illus. Part DESCRIPTION 2000528 Defrost Bi−Metal 1113043 Clamp, Bi−Metal 486194 Screw 2003271 Sleeve 2002171 Sleeve 2002999 Condenser Inlet Tube 2003015 Tube, Connect (Drier) 2002993 Heater, Drain Pan 1113062 Hanger, Heater 1113105 Bracket, Heater 487534 Screw 2002995 Tube, Discharge 2003272 Sleeve...
- Page 21 AIR FLOW AND RESERVOIR PARTS For Model: KSSS42MDX00 4379844...
- Page 22 AIR FLOW AND RESERVOIR PARTS For Model: KSSS42MDX00 Illus. Part DESCRIPTION 2003200 Fan Motor 2002732 Cup, Clearance 2169142 Fan Blade 548263 Bracket (Double) 938224 Bracket (Single) 548268 Grommet 486194 Screw 2000618 Motor, Wiring 488500 Screw, Ground 488366 Clamp, Tube 489348 Clamp, Nylon 2001145 Channel, Wiring 1112871 Fastner 2000783 Scroll, Fan...
-
Page 23: Icemaker Parts
ICEMAKER PARTS For Model: KSSS42MDX00 4379844... - Page 24 ICEMAKER PARTS For Model: KSSS42MDX00 Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 489084 Screw 489348 Clamp, Nylon 489322 Screw 2154472 Connector Valve 628399 Module Assembly 841707 Insert, Tube 2001087 Clamp Tube 489276 Screw 628379 Clip, Fuse 487857 Nut 2171593 Shut Off Arm 2000392 Wire Clip 628355 Cover...
