Related Manuals for KitchenAid KSSS42MWX00
Summary of Contents for KitchenAid KSSS42MWX00

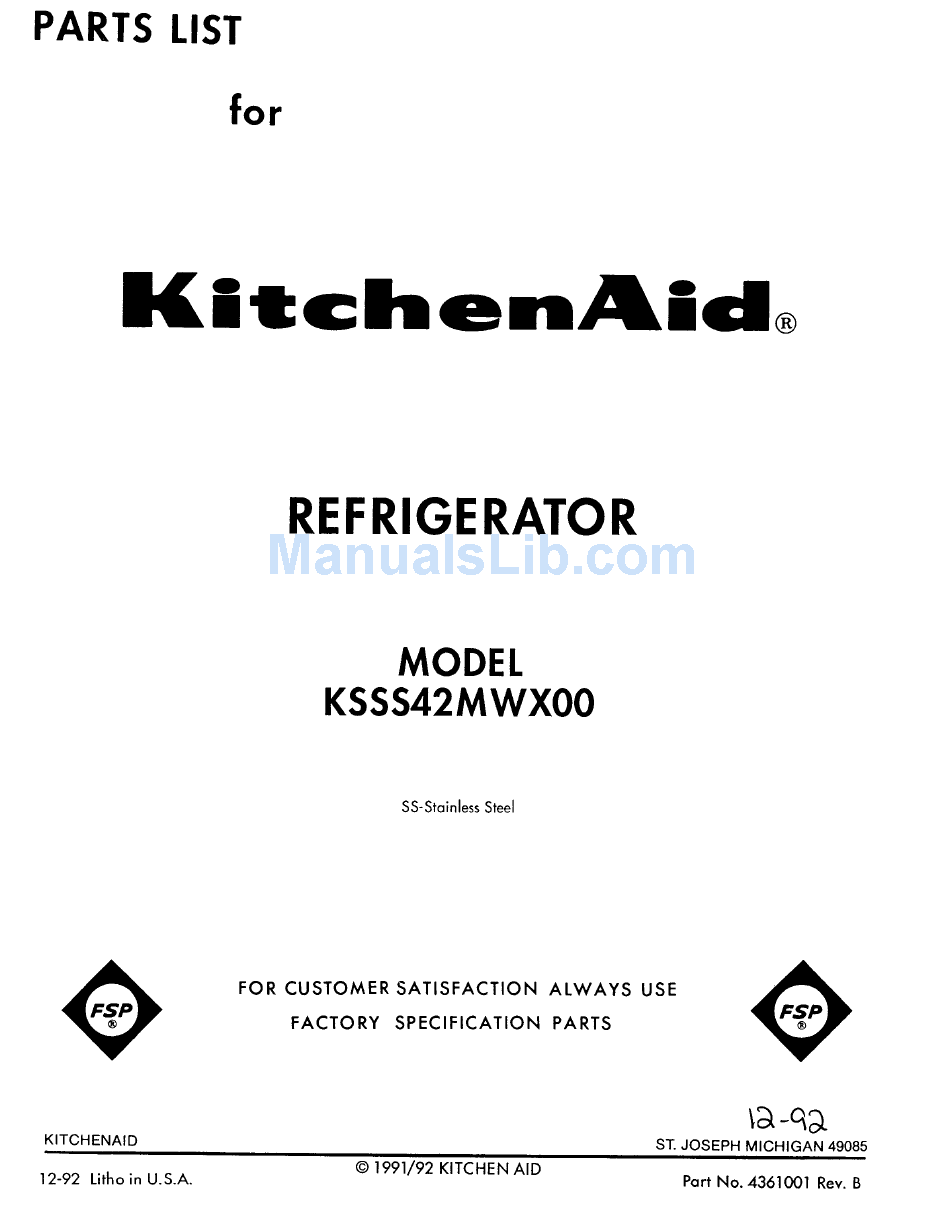

- Page 3 Cabinet (Not A Serviceable Part) 1112019 Leveler, Front (2) 1113249 Retainer (2) 1112023 Roller, Front & Rear (4) 1112695 Leveler, Adjustable (2) 1112936 Adjusting Rod (2) 1113250 Sleeve, Retainer (2) 1112937 Bushing, Rod (2) 2000489 Screw, 10-32 x 5/8 1112939 Hole Plug, Leveler 1112849 Cap, Grommet...
- Page 5 1112676 Breaker Trim, (One Piece) 1113277 Retainer Side (4) 1112690 Retainer Trim Freezer (2) 1112686 Retainer Trim Refrigerator (2) 1112682 Magnet, Side (4) 1112684 Magnet, Freezer (2) 1112680 Magnet, Refrigerator (2) 1112711 Heater, Mullion 1113836 Trim (R.S.) 1113835 Trim (L.S.)
- Page 7 Liner (Not A Serviceable Part) 1113649 Bracket, Light 1113650 Lens-Light Lower 1112613 Socket, Light 547225 Bulb, Light 538533 Support Clip, Icemaker (2) 538532 Grommet, Screw (2) 488552 Screw, 10-12 x 3/8 (2) Rail, Evaporator Cover 1112841 Left Side 1112842 Right Side 486194 Screw, 8 x 1/2 1112591...
- Page 9 1113543 Frame, Shelf 1112318 Glass, Shelf 1113547 Reflector, Shelf 1113791 Gasket, Glass (2) 1125913 Rack, Wine 1113551 Frame Assembly 1113894 Cover, Crisper 2000155 Glass, Crisper 1113883 Crisper Pan 1113870 Roller 1113871 Eyelet, Roller 489211 Screw, 10-16 x 3/4 488307 Washer 1113885 Utility Pan 1113555...
- Page 11 1113629 Solid Shelf 1113565 Shelf, Fixed (2) 1113634 Shelf-Fixed 1113640 Basket, Freezer 1113643 Trim, Basket 1113637 Shelf-Fixed 1113870 Roller 1113871 Eyelet, Roller 489211 Screw, 10-16 x 3/4 488307 Washer 1122529 Pan, Ice Cube 1122530 Pan, Trim Ice 2000061 Slide, Basket R.S. 2000062 Slide, Basket L.S.
- Page 13 1113937 Door Panel, Refrigerator (Also Order Item 29) 939101 Screw Anchor (8) 1112945 Hinge Assembly, Top 1112940 Spacer 489282 Screw 1112921 Hinge Assembly, Bottom 1112533 Gasket Retainer, Side (2) 1112541 Gasket Retainer, Top & Bottom 2000446 Door Gasket, Magnetic 489101...
- Page 15 1112641 Control Panel 1113962 Inlay, Control Panel 1113390 Circuit Board 1116853 Control Knob 837444 Retainer, Knob 1108112 Switch, Rocker Arm 1113135 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3) 1113774 Shield, Control Panel 1112613 Socket, Light (2) 547225 Light Bulb (2) 486194 Screw, 8 x 1/2...
- Page 17 1113617 Exterior Door Panel, Freezer (Also Order Item 4) 876029 Kit, Foam Slab (Required When Replacing Exterior Door Panel) 1112916 Hinge, Bottom 489282 Screw 1112944 Hinge, Top 1112940 Spacer Plate Expansion (2) 1112533 Gasket Retainer, Side (2) 1112540 Gasket Retainer, Top & Bottom 2000445 Door Gasket, Magnetic 489101...
- Page 19 1113626 Control Panel 1113964 Inlay, Control Panel 1113466 Thermostat & Barrier Assembly 488974 Screw (2) 1108112 Switch, Rocker Arm (Dispenser Motor) 1113134 Seal, Control Panel 489260 Screw (3) 534927 Hole Plug (3) 1113768 Shield, Control Panel 1112613 Socket, Light 486194 Screw, 8 x 1/2 547225 Light Bulb...
- Page 21 1113005 Assembly, Unit Base 1113386 Assembly, Sound Barrier 4210577 Compressor (Includes Items 8, 9, 10 & 11) 876765 Tube Kit 1105220 Bracket, Mounting 1105219 Grommet, Bracket 1105200 Grommet, Mounting 489334 Screw 1113273 Overload 1105221 Terminal Cover 1105222 Strap, Cover 1108066 Relay 1118576 Running Capacitor...
- Page 22 Following Parts Not Illustrated (Optional Parts Only) 4318419 Top Grille Trim Kit (8") 4318418 Top Grille Trim Kit (7-1/2") 4318636 Front Panel Kit (White) 4318633 Front Panel Kit (Black) 4318639 Front Panel Kit (Almond) 4318642 FRONT PANEL KIT (Stainless Steel) 978849 tatic Cleaner Part No.
- Page 24 1113044 Defrost Bi-Metal 1113043 Clamp, Bi-Metal 486194 Screw, 8 x 1/2 1113293 Tube, Connect (Suction) 1113209 Tube, Connect (Discharge) 1113296 Tube, Flow Divider (2) 1113292 Valve, Fluid Control 1113294 Tube, Connect (Drier) 1113061 Heater, Drain Pan 1113062 Hanger, Heater 1113105 Bracket, Heater 487534 Screw, 8 x 1...
- Page 26 1113867 Grille, Frame Assembly 1113864 Decorative Panel Assembly 1113355 Back Up Panel 1113324 Bracket, Keyhole Mounting 1113326 Shoulder Screw(4) 489232 Spring Washer(4) 486255 Nut (4) 489172 Nut (8) 2000124 Top Grille Assembly 1113490 Cover, Unit 486194 Screw, 8 x 1/2 1113300 Cover, Component Assembly...
- Page 28 945523 Fan Motor 992953 Compression Ring 992920 Fan Blade 548263 Bracket (Double) 938224 Bracket (Single) 548268 Grommet 486194 Screw, 8 x 1/2 538449 Grommet, Screw 488500 Screw, Ground 942842 Terminal Block 1112529 Baffle, Evaporator 1112734 Channel, Wiring 1112703 Wiring Harness, Fan Motor 1111212 Scroll, Fan (Also Order Item 15) 1112976...
- Page 30 489084 Screw, 8 x 1/2 1112845 Fitting, Water Tube 488878 Clamp, Tube 841707 Insert, Tube 628379 Clip, Fuse 836074 Dampener 1112556 Tube, Water 1106508 Seal Gasket 488645 Screw, 8 x 1/2 (2) 1113103 Valve, Solenoid 627018 Nut, Compression 227991 Connector, Wire 488292 Washer 1113106...
- Page 32 LINER (Not A Serviceable Part) 1112591 Spacer, Control Panel (3) 842339 Grommet 1112115 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 488357 Screw, 8 x 1-1/4 (8) 486194 Screw, 8 x 1/2 1112257 Hole Plug 1112127 Cover, Liner Back 1112219 Control Panel Assembly (Meat) 1112134 Insulation, Liner Back Cover...
