CABINET PARTS
42" BUILT IN
REFRIGERATOR
For Model: KSSS42MDX04
1
8−96 Litho In U.S.A. (RCG)
Part No. 4394494

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSSS42MDX04 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KitchenAid KSSS42MDX04

Summary of Contents for KitchenAid KSSS42MDX04

  • Page 1 CABINET PARTS 42" BUILT IN REFRIGERATOR For Model: KSSS42MDX04 8−96 Litho In U.S.A. (RCG) Part No. 4394494...

  • Page 2: Cabinet Parts

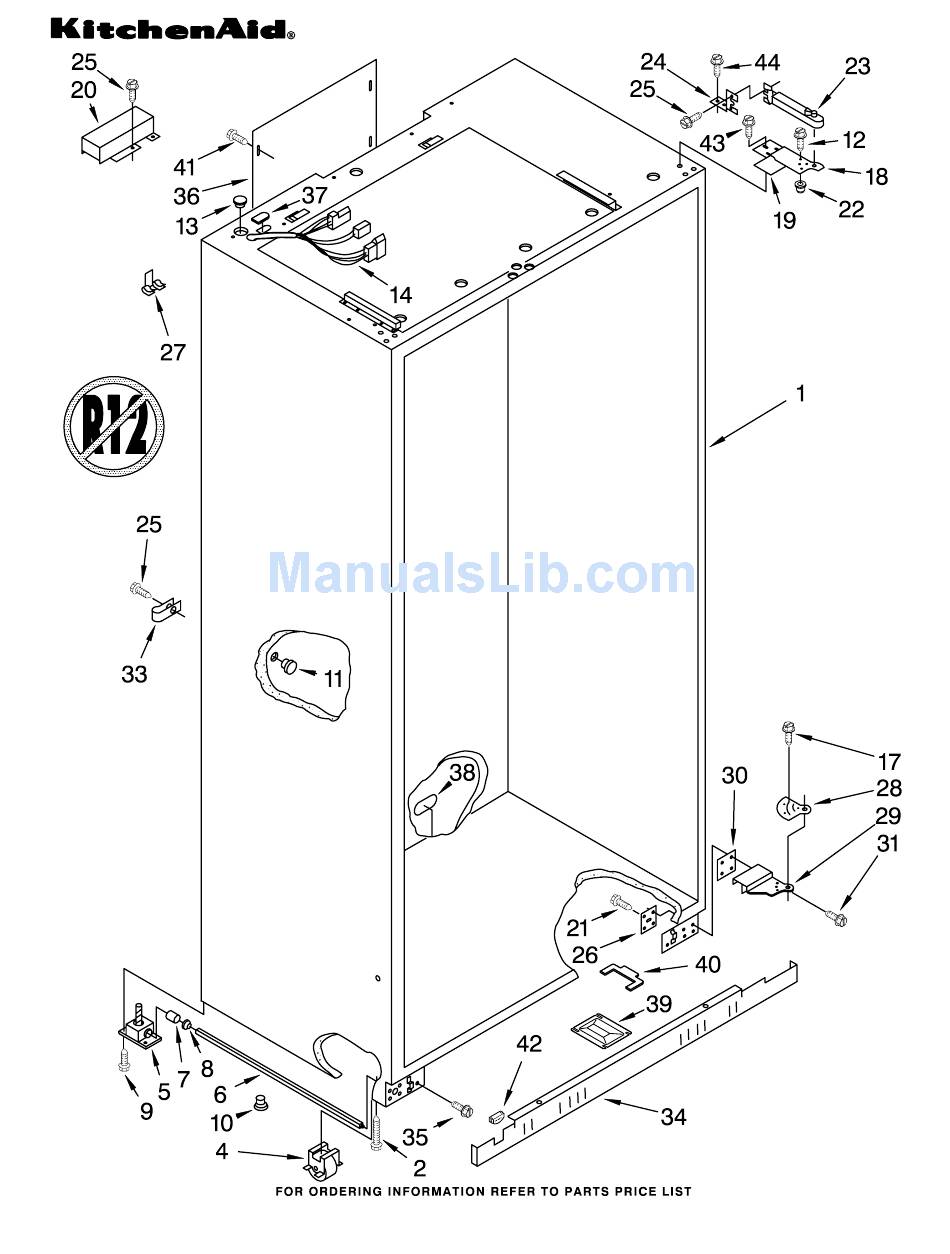

    CABINET PARTS For Model: KSSS42MDX04 Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Hinge (Bottom) Hinge (Top) Cabinet (Not A 2001976 Left Side 2001978 Left Side Serviceable Part) 2001975 Right Side 2001977 Right Side 1112019 Leveler, Front (2) 1112942 Shim, Hinge (1) 2000770 Shim, Hinge 1112023 Roller, Front &...
