Summary of Contents for CDA SC620

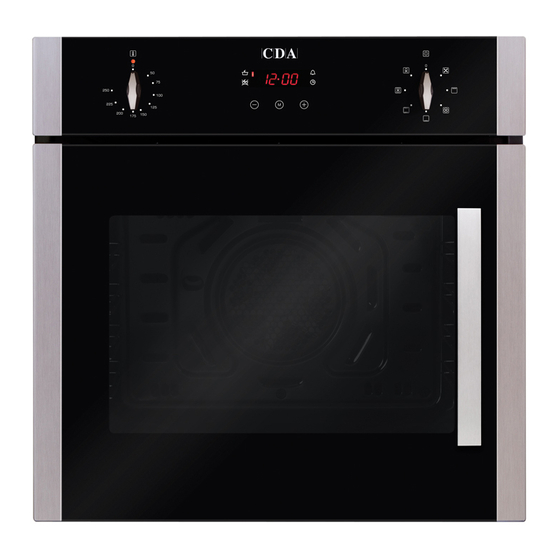

- Page 1 SC620 Single Oven Manual for Installation, Use and Maintenance Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY T : 01949 862 012 F : 01949 862 003 E : service@cda.eu W : www.cda.eu...
- Page 2 Keep the oven door closed whilst grilling. Appliance information: Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a fault with your appliance and to register your appliance for guarantee purposes.
- Page 3 Appliance Model Serial Number CE Declarations of Conformity: This oven has been designed, constructed and marketed in compliance with safety requirements of EEC Directive 2006/95/EEC (Low voltage) and requirements of EMC Directive 2004/108/EEC. This appliance has been manufactured to the strictest standards and complies with all applicable legislation, including Electrical safety (LVD) and Electromagnetic interference compatibility (EMC).
- Page 4 Important • Read the user instructions carefully before using the oven for the first time. • Follow the instructions for first use of the oven. • Clean the oven regularly. • Remove spills as soon as they occur. • Always use oven gloves when removing shelves and trays from the ovens.
-
Page 5: First Use Of The Oven
First Use of the Oven First use • The metal casing of this appliance has been coated with a preservative to protect it during transport and storage. This should be removed during installation by using a non-abrasive stainless steel cleaner. Always follow the instructions given with the cleaner being used. -
Page 6: Oven Controls And Use
depending on the duration, temperature and type of cooking programme used. • The oven light remains on for every cooking function. • Do not switch off the oven if you have set a programme for semi- automatic or automatic cooking as this will cancel the programme. Oven Controls and Use Temperature knob •... - Page 7 Fan Oven Using the circular element and the fan with a temperature between 500C and 2500C, this cooking functionblows the air into and around the oven cavity. Temperatures are achieved quicker, reducing or even removing the need for preheating. Both cooking temperatures and cooking times can be reduced for a more energy efficient cooking programme.
- Page 8 Warming Oven Using heat produced only by the bottom element, this natural heat is perfect for dough proving and blind-baking. Fan Assisted Oven Using the circular element and the fan with a temperature between 500C and 2250C, this cooking function blows the air into and around the oven cavity.
-
Page 9: Programming The Oven
Programming the Oven 1 Cooking time indicator 2 End of cooking time indicator 3 Minute minder indicator 4 Current time indicator 5 Decrease key 6 Mode key 7 Increase key fig. 1 Please note: • The alert beep will cut off after two minutes if it is not switched off manually. - Page 10 To set the minute minder: • Touch repeatedly until the minute minder indicator flashes. • Then touch to select the required duration for the minute minder. When the correct duration shows on the display, either touch or wait for approximately five seconds. The minute minder indicator will remain lit to confirm the minder minder is on.
- Page 11 Please note: At the end of the cooking programme, remember to turn off the oven manually. Automatic cooking The main oven can be set to switch on and off automatically at preset times up to a maximum of 10 hours. To set an automatic cooking programme, follow the steps for setting a semi- automatic programme above, and then: •...
-
Page 12: Care And Maintenance
Proprietary stainless steel cleaners are available. We recommend the CDA E-Cloth available from the CDA Sales Team for cleaning stainless steel surfaces as this has been designed to prolong the finish of your appliance. - Page 13 IMPORTANT: • Steam cleaners must not be used when cleaning this appliance. • Once care and maintenance is complete, ensure that all parts are correctly replaced before using the oven.
-
Page 14: Changing The Oven Lamp
Changing the Oven Lamp Before any maintenance is started involving electrical parts, the appliance must be disconnected from the power supply. If the oven has been in use, let the oven cavity and the heating elements cool down before attempting any maintenance. -
Page 15: Reversing The Door
IMPORTANT Never replace the bulb with bare hands as contamination from your fingers can cause premature failure. Always use a clean cloth or gloves. Please note: The bulb replacement is not covered by your guarantee. Reversing the Door This oven can be converted from left hand hinged to right hand hinged if necessary. - Page 16 Removing the Oven Door Inner Glass Move The oven door inner glass can be the inner removed to facilitate cleaning. glass from • Fully open the door. this side • Remove the four A fixing screws from the door hinge. •...
-
Page 17: Installation
Installation Important If the oven is being installed into a built under oven housing unit ensure that the front rail at the top of the unit is not installed as it could restrict ventilation. Ensure that air can flow freely around the housing area. If the oven is being installed into a fully enclosed built-under oven housing unit it may be necessary to cut a small slot in the top of the plinth fitted under the unit. - Page 18 to the housing by fitting screws into these holes. Remember the housing should not be free standing but be secured to the wall and/or adjacent fittings. How to install your oven Dimensions Oven Housing You will need the following housing Height (mm) Width (mm) area fit your oven correctly.
-
Page 19: Electricity Supply To Your Oven
Electricity Supply to DOUBLE POLE SWITCHED FUSE SPUR OUTLET Your Oven Warning! this appliance must be earthed. This appliance must be connected by a competent person, using fixed wiring via a double pole switched fused spur outlet, protected by a 13A fuse. We recommend that the appliance is connected by a qualified electrician, who is a member of the N.I.C.E.I.C. - Page 20 Please contact our Customer Care Department, or for Service on the details below. Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY T : 01949 862 012 F : 01949 862 003 E : service@cda.eu W : www.cda.eu...
