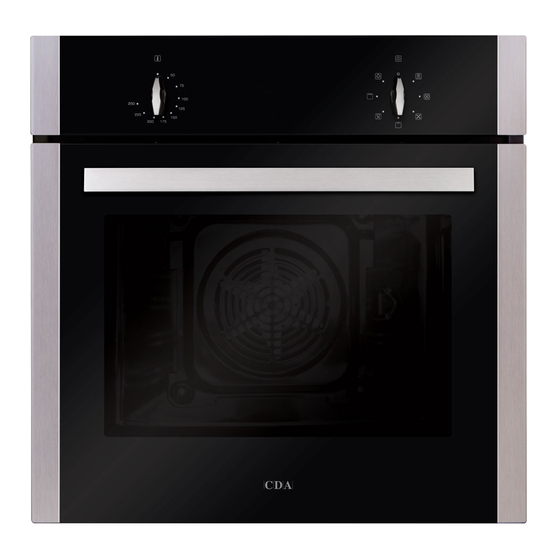

- Page 1 SC213SS Single oven Installation, use and maintenance www.cda.eu...
-
Page 2: Table Of Contents
Contents: Important information Safety instructions First use of the oven Oven controls and use Cleaning and maintenance Removing the appliance door Replacing the appliance door Removing the inner door glass Removing the shelf supports Changing the oven light bulb Installation Mains electrical connection Troubleshooting Energy Efficiency Information... - Page 3 Any other use could be dangerous and may lead to premature failure of the appliance. The CDA Group Ltd cannot be held responsible for injuries or losses caused by incorrect use or installation of this product. Please note that CDA reserve the right to invalidate the guarantee supplied with this product following incorrect installation or misuse of the appliance.
-
Page 4: Important Information
Appliance Model Serial Number EU Declarations of Conformity: This oven has been designed, constructed and marketed in compliance with safety requirements of EU Directive 2014/35/EU (Low voltage) and requirements of EU Directive 2014/30/EU. This appliance has been manufactured to the strictest standards and complies with all applicable legislation, including Electrical safety (LVD) and Electromagnetic interference compatibility (EMC). - Page 5 Important • Read the user instructions carefully before using the oven for the first time. • Follow the instructions for first use of the oven. • Clean the oven regularly. • Remove spills as soon as they occur. • Always use oven gloves when removing shelves and trays from the ovens.
-
Page 6: First Use Of The Oven
First use of the oven First use • The metal casing of this appliance has been coated with a preservative to protect it during transport and storage. This should be removed during installation by using a non-abrasive stainless steel cleaner. Always follow the instructions given with the cleaner being used. -
Page 7: Oven Controls And Use
Oven controls and use Fig. 1 Cooking function knob (B) To set the function, turn the cooking function knob (B in Fig. 1) to the required function. You will need to set a temperature on all functions except the light and defrost functions. The neon indicator next to the temperature knob will extinguish when the temperature has been reached. - Page 8 Half Grill This function radiates the heat from the grill element. This fully temperature variable grill can be set between 50°C and 250°C maximum. When grilling, please note: • Always grill with the oven door closed. • Put the grill pan as close to the grill as possible. •...
- Page 9 Full Grill This function radiates the heat from the grill element and the top element. This fully temperature variable grill is ideal for grilling a full family meal. It can be set between 50°C and 250°C maximum. When grilling, please note: •...
-
Page 10: Cleaning And Maintenance
Cleaning and maintenance Keeping your oven clean and well maintained helps to prolong the fault-free lifespan of it. It is important that, before any cleaning or maintenance is performed, you switch off the oven at the mains supply. Do not start any cleaning or maintenance until the oven has been allowed to cool completely. -
Page 11: Removing The Appliance Door
Suitable proprietary chemical cleaners may be used after first consulting with the manufacturers’ recommendations and testing a sample on a small area of the oven cavity. Abrasive cleaning agents or scouring pads/cloths should not be used on the cavity surface. IMPORTANT: •... -
Page 12: Replacing The Appliance Door
Replacing the appliance door • Hold the door to the appliance in the closed position and manoeuvre the hinges so that the part of the hinge, highlighted by the star in fig. 3, inserts into the hinge slot in the cavity frame. -
Page 13: Removing The Inner Door Glass
Removing the inner door glass With the door removed, the inner glass can also be taken out for cleaning purposes. • Use a flathead screwdriver or to unhook the door slat, as shown in fig. 5 • Remove the door slat, as per fig. 6, and place it somewhere safe where it will neither receive nor cause damage. - Page 14 • There are a number of rubber guides attached to the inner pane and these must be returned to their original positions when reassembling the door. Fig. 7 shows these guides and their position on and around the inner glass. •...
-
Page 15: Removing The Shelf Supports
Removing the shelf supports Important: Always remember to allow the oven to cool sufficiently, if it has been in use, before carrying out any maintenance. To remove the shelf supports • Take a firm hold of the shelf support in the middle. Place your thumb against the oven wall and lever the support out of the support holes... -
Page 16: Changing The Oven Light Bulb
Changing the oven light bulb Important: Before any maintenance is started involving electrical parts, the appliance must be disconnected from the power supply. If the oven has been in use, let the oven cavity and the heating elements cool down before attempting any maintenance. Never use screwdrivers or other utensils to remove the light cover. -
Page 17: Installation
Installation Important! If installing this oven below a hob, ensure that the air gap between the two appliances is observed. This gap is usually detailed in the hob’s manual. The installation of this appliance must be carried out by a suitably qualified person. - Page 18 of 75˚C above ambient (typically this is between 90˚C and 100˚C). When correctly installed ensure that there is a gap of 4 mm minimum between the sides of the oven and adjacent furniture doors. How to install your oven You will need the housing area in fig. 12 to fit your oven correctly. The oven is designed to fit into a cabinet of 600 mm width.
-
Page 19: Mains Electrical Connection
Mains electrical DOUBLE POLE SWITCHED connection FUSE SPUR OUTLET Warning! This appliance must be earthed. This appliance is intended to be connected to fixed wiring by a double pole switch, having a contact separation of at least 3mm in all poles and protected by a 13A fuse. - Page 20 Please note: • The mains cable must only be replaced by a qualified electrician or service engineer and must be of equivalent or better rating (i.e. 3 x 1.5 mm ² , HO5VV-F). • This appliance is intended to be connected to the mains supply with a cable of cross sectional area 1.5 mm ²...
-
Page 21: Troubleshooting
Contact CDA Customer Care. If any of the above steps do not resolve your issue, please contact CDA Customer Care to arrange a repair. Contact details are below. Please have to hand all the details from your appliance’s rating plate which can be found on the back of the oven and/or on the back of the instruction manual/warranty card. - Page 22 NOTES:...
-
Page 23: Energy Efficiency Information
(gas final energy) E & O E. All instructions, dimensions and illustrations are provided for guidance only. CDA reserve the right to change specifications without prior notice. - Page 24 For more information please contact: The Sales Department on 01949 862 010 or email sales@cda.eu Customer Care Department. The CDA Group Ltd, Harby Road, Langar, Nottinghamshire, NG13 9HY 01949 862 012 F: 01949 862 003 E: customer.care@cda.eu www.cda.eu...
