Page 1

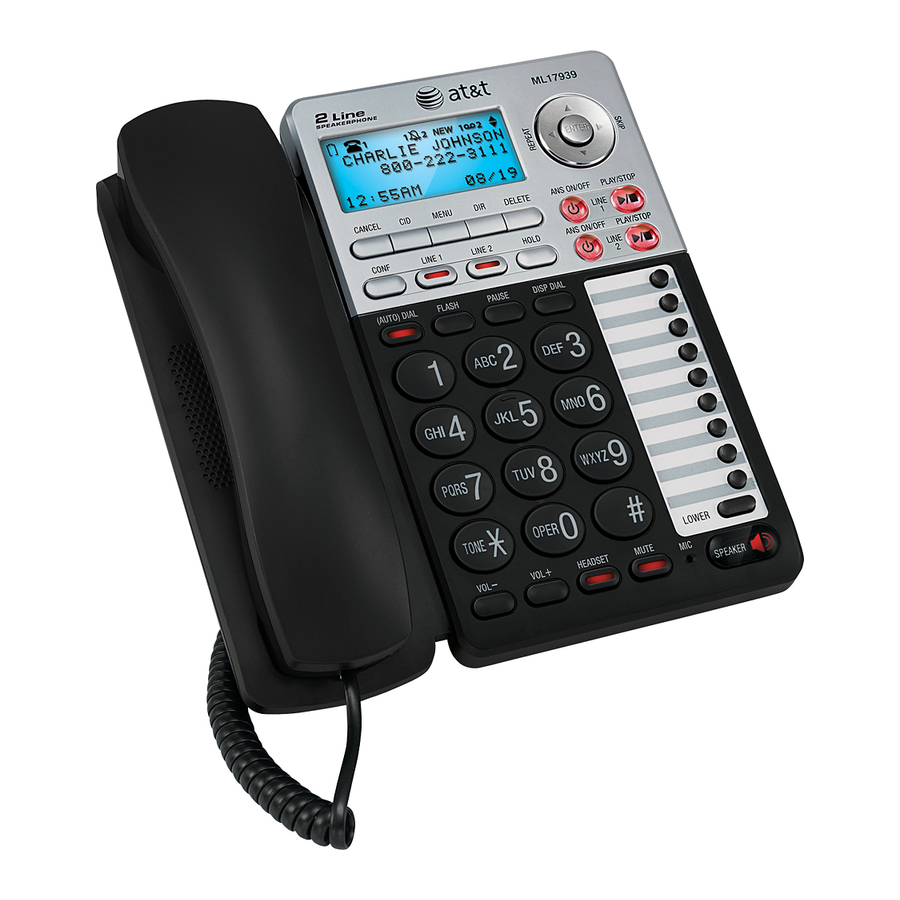

For More Info Click Here ===> Quick start guide ML17939/17959 Two-line corded telephone/ answering system with caller ID/call waiting http://www.ochimp.com/...
http://www.ochimp.com/ Installation preparation You must install the power See pages 4-5 for easy adapter before using the instructions. telephone. If you subscribe to high speed Internet service (DSL - digital subscriber line) through your telephone line, you must install a DSL filter between each telephone line cord and telephone wall jack (pages 4 and 5).
http://www.ochimp.com/ This quick start guide provides basic instructions. For additional installation options and complete instructions that enable you to use all features of this telephone, refer to your AT&T ML7939/7959 Two-line corded telephone/ answering system with caller ID/call waiting user’s manual. Optional backup battery installation Install three AA alkaline batteries (purchased separately) to use this telephone in the event of a power failure.
http://www.ochimp.com/ Telephone installation Telephone base installation Install the mounting bracket for tabletop use. Option 1: Insert the tabs into slots to install your telephone in a low tabletop position. Press the flexible tabs on the mounting bracket until it clicks into place. Option 1: Low tabletop position Option 2: Rotate the mounting bracket 80 degrees.
Page 5
http://www.ochimp.com/ Telephone installation Connect the telephone line cord(s) and the power cord to the telephone base. If you subscribe to high speed Internet service (DSL - digital subscriber line) through your telephone line, you must install a DSL filter between each telephone line cord and telephone wall jack.
Page 6
http://www.ochimp.com/ Telephone installation Option 2: If you have two one-line wall jacks, install your telephone base as shown below. Plug the other end of Plug the other end of the black telephone the clear telephone line cord (4-conductor) line cord (-conductor) into the wall jack.
http://www.ochimp.com/ Quick reference guide DELETE ENTER Press to delete the displayed directory, or call history entry. Press to select a menu item or to Press to backspace and erase a digit or character. save a setting. During message playback, press to delete the message currently playing. When the telephone is idle, press to delete all old messages.
http://www.ochimp.com/ Quick reference guide fLASH PAuSE During a call, press to answer an incoming call Press to insert a two-second when you receive a call waiting alert. dialing pause in a number stored in the directory or speed dial (AuTO) REDIAL memory.
http://www.ochimp.com/ Basic operation The telephone is set to use line by default for making calls. To change the primary line, see Set the primary line on page 8 of the user’s manual. When you answer a call, the telephone automatically selects the ringing line. Making, answering or ending a call Elapsed time Elapsed time...
Page 10
http://www.ochimp.com/ Basic operation To answer a call: Lift the handset, press SPEAKER • or HEADSET. -OR- Press the LINE button of the ringing line to answer the call with the preferred mode (see Choose the preferred mode on page 9 of the user’s manual).
Page 11
http://www.ochimp.com/ Basic operation Message playback /PLAY LINE 1/LINE 2 to listen to messages on the Press /STOP corresponding line. Options during message playback: Press vOL - or vOL + to adjust the speaker volume. • • Press /SKIP to skip to the next message. Press /REPEAT to repeat the message currently playing.
