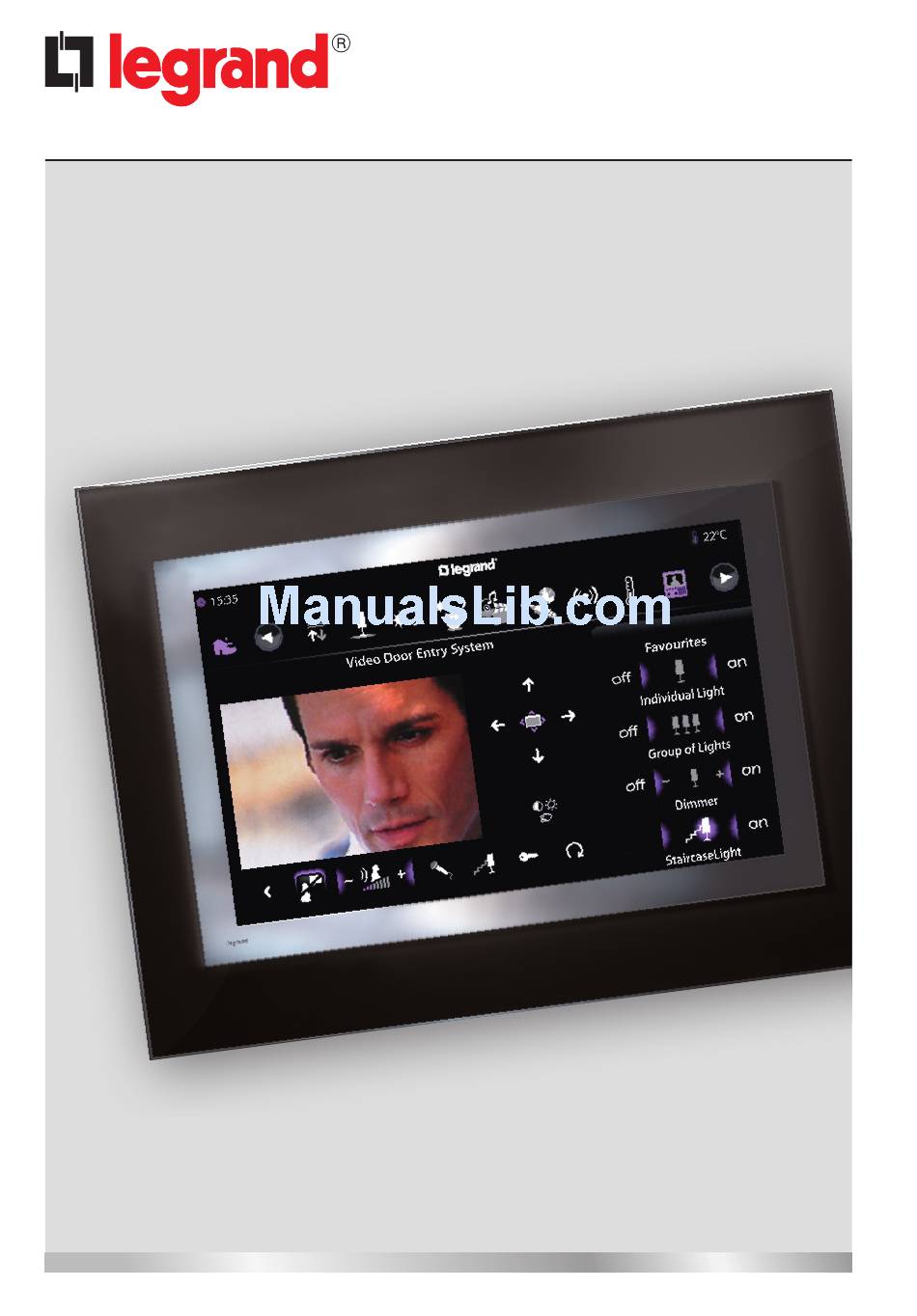

- Page 1 5739 62/63 Multimedia Touch Screen Installation Manual Part. U3571A - 09/09-01 PC...
-
Page 3: Table Of Contents
Multimedia Touch Screen Contents 1 Introduction 1.1 Warnings and recommendations 1.2 Box contents 2 Description 2.1 Front view 2.2 Rear view 3 Installation 3.1 Cover Plate Fitting 3.2 Wall installation with metal bracket supplied 3.3 Battery replacement 4 Configuration 4.1 Configuration via Software 4.2 PC connection... -
Page 4: Introduction
The Multimedia Touch Screen: • must be installed only indoors; • must not be exposed to dripping or splashing of water; • must be used exclusively on Legrand 2 wire digital systems. Box contents The box contains: • Multimedia Touch Screen; •... -
Page 5: Description
Multimedia Touch Screen 2 Description Front view WebCam USB port (future application) Microphone USB ports for USB PenDrive and Dongle Wi-Fi (future application) Mini-USB port for PC connection Secur Digital memory card port (max 2 GB no HC–SD) -
Page 6: Rear View
Rear view 1 2 3 PSTN Port for Sound System source output RJ45 port for Ethernet connection LAN connection LEDs PSTN telephone line port (future application) Video 2 wire SCS BUS port Power supply 1-2 port End-of-line ON/OFF micro-switch Stereo loudspeakers Bracket fastening screw 10 - Factory settings reset pushbutton... -
Page 7: Installation
Multimedia Touch Screen 3 Installation Cover Plate Fitting... -
Page 8: Wall Installation With Metal Bracket Supplied
3 Installation Wall installation with metal bracket supplied... - Page 9 634 35 audio SCS/BUS Additional power supply via terminals 1 – 2 is required: take care not to invert polarity. If the Multimedia Touch Screen Make sure the nut is posi- is the last component on the tioned at the bottom end...
- Page 10 3 Installation To complete the installation, turn the fastening screw underneath the Mul- timedia Touch Screen anticlockwise...
-
Page 11: Battery Replacement
Multimedia Touch Screen Battery replacement After removing the cover, insert the battery as shown below: NiMh: 7,2 V; 160 mAh Ni MH... -
Page 12: Configuration
PC connection To receive / transfer the configuration entered via the MultimediaTouchScreenConfig software or perform a firmware update, connect the Multimedia Touch Screen to the PC using a USB/miniUSB cable or the serial port (492 34) or an Ethernet cable. - Page 13 Multimedia Touch Screen Serial connection 492 34 PSTN Ethernet connection PSTN DC - In...
-
Page 14: Appendix
5 Appendix Technical data Local power supply (1 – 2) 18 – 27 Vdc BUS/SCS power supply 18 – 27 Vdc Maximum local absorption (1 – 2) 600 mA Maximum absorption from BUS/SCS 50 mA Operating temperature 5 – 45 °C Dimensions... - Page 15 Multimedia Touch Screen Notes...
- Page 16 : 33 5 55 06 87 87 Fax : 33 5 55 06 74 55 www.legrandelectric.com Installer stamp Legrand reserves at any time the right to modify the contents of this booklet and to communicate, in any form and modality, the changes brought to the same...
