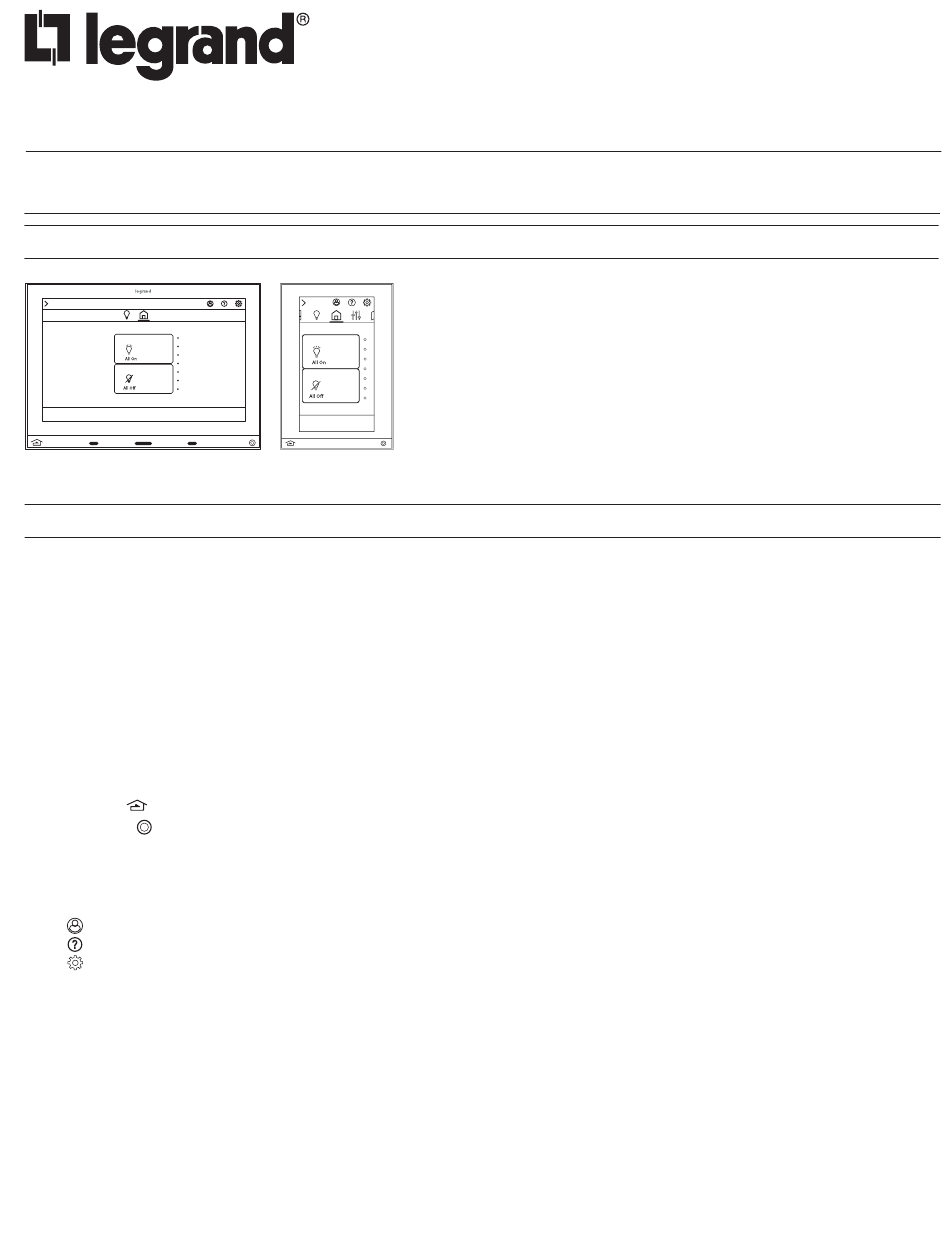

No: 050131 – 1/24 rev. 1
EQ73TB-TI-LITE / EQ41TB-TI-LITE • Les Numéros de Catalogue • Los Números de Catálogo:
Country of Origin: Made in China • Pays d'origine: Fabriqué en Chine • País de origen: Hecho en China
Project
EQ73-LITE uses landscape orientation only; EQ41-LITE uses portrait orientation only
Equinox platform provides built-in widgets using Legrand proprietary auto discovery methods for fast automatic screen design
Equinox 73/41 LITE fully incorporates Legrand's consistent user experience interface, eliminating learning curves normally
associated with switching between interface devices
Powered over PoE*/PoE+ Ethernet
- *Optional PoE Switch by others
Communicates over Ethernet Bus (InFusion controller and Equinox should be connected to the same local network)
Firmware upgradeable from Design Center over Ethernet
Built-in ambient light sensor for "active," AUTO mode screen brightness and off when dark option when "inactive"
Inactive mode dims or turns screen off in 1 minute if no activity
Built-in proximity activation, 6" maximum, sets screen to active brightness when approached
Dual operation mechanical buttons, bottom left and right;
- Left
navigates to default widget
- Right
may be programmed with a task from Design Center
Equinox 73/41 LITE use the same widgets as Android tablets and phones, and iPads
Multiple user profiles are supported on the system. Using a variety of users you can limit what is available to specific individuals
as well as limit permissions.
Top of screen displays:
- User details
- Access help topics
- Manage settings including appearance, access/permissions, areas and rooms, devices, events, groups, repair, schedules,
scenes, and systems
Main screen automatically displays widgets (order may be changed in user/settings directly from the app) including lighting,
scenes, shades, and HVAC
Raise/lower dimmable loads with graphical icons and text track color load status
Legrand
Equinox 73 LITE / Equinox 41 LITE LCD Touchscreen
Installation Instructions • Instructions d'Installation • Instrucciones de Instalación
OVERVIEW
Legrand's Equinox 73/41 LITE active matrix LCD touchscreen continues
Legrand's commitment to LCD in-wall control centers. The Equinox
Are...
73/41 Lite interface is a dedicated system portal to whole system control.
The 7" and 4" touchscreen displays media rich widgets in a dashboard
layout. Each widget's content has been carefully designed to provide
the ultimate user experience. Legrand's Equinox 73/41 LITE system
uses self discovering technology, eliminating countless hours of tedious
programming. Navigate and control, with real time feedback, lighting,
shades, timers, scenes, and more through a single layer navigation
experience.
FEATURES AND OPERATION OVERVIEW
1
®
, iPhones, and iPods
®

Advertisement

loading
Need help?

Need help?

Do you have a question about the Equinox 73 LITE and is the answer not in the manual?

Questions and answers

Summary of Contents for LEGRAND Equinox 73 LITE

  • Page 1 EQ73-LITE uses landscape orientation only; EQ41-LITE uses portrait orientation only • Equinox platform provides built-in widgets using Legrand proprietary auto discovery methods for fast automatic screen design • Equinox 73/41 LITE fully incorporates Legrand’s consistent user experience interface, eliminating learning curves normally associated with switching between interface devices •...
  • Page 2: Specifications

    EULA “In order to enhance the security of our products, Legrand ships its products with all insecure ports closed and insecure protocols disabled. You are free to configure your device as needed, but in doing so note that you may be decreasing the security of your device and any information contained in the device.
  • Page 3 EQUINOX73-LITE STANDARD INSTALLATION (USING EQ73ST-INSTALL) SHEETROCK MOUNTING (Shown semi-transparent) SCREWS BRACKET CAT5e/6 SCREWS MOUNTING BRACKET STEP 1. Mount left or right side of STEP 2. Secure to framing with screws STEP 3. Adjust the mounting bracket framing studs. The recommended and install CAT5e/6 PoE network for proper depth: set 1”...
  • Page 4 SPRING CLIP INSTALLATION SPRING CLIP Loosen this screw inside of the wall box on both sides and slide the mounting bracket in or out for proper depth MOUNTING BRACKET MOUNTING BRACKET Proper depth from bracket to front of finished wall is approx. 1”...
  • Page 5 EQUINOX 73-LITE BACK BOX MULTI-VIEW CAUTION: Left and right speakers of Equinox 73-LITE are exposed. Use extreme caution handling, installing and removing the Equinox 73-LITE. To avoid damage to either speaker, do not accidentally touch or push in on the speaker cones. 2.56”...
  • Page 6 EQUINOX 73-LITE RETROFIT STATION INSTALLATION STEPS Legrand’s Equinox 73-LITE retrofit install kit (EQ73RE-INSTALL) is designed to mount the Equinox 73-LITE touchscreen directly to sheetrock without the added cost of the bezel, saving time and money. Installation of the Equinox 73-LITE should be performed or supervised by a certified installer.
  • Page 7 EQUINOX 41-LITE STANDARD INSTALLATION PoE/PoE+ ETHERNET BUS SCREWS* EQUINOX 41-LITE TOUCHSCREEN Harv... Open Rest Ge... ETHERNET PoE or PoE+ RJ45 CONNECTOR 4 SQUARE JUNCTION BOX RING NETWORK PANEL EQUINOX 41-LITE *Use flat-head OR SWITCH screws provided LCD SCREEN US – 6-32 x 0.75” *Ethernet Bus: Power and communication;...
  • Page 8 PREPARING THE TOUCHSCREEN FOR CONFIGURATION WITH DESIGN CENTER 1. With the EQ73-LITE / EQ41-LITE powered, press the Menu icon in the upper right to access the setup menu. Select “About” and note the product serial number (this will be used to configure the matching station object in Design Center). 2.
  • Page 9 MULTI-VIEW LINE DRAWING - EQUINOX 73-LITE 2.1" RJ45 PoE Ethernet (53mm) 1.73" (44mm) 5" (127mm) >PC+ABSFR(40)< 7" .37" (178mm) (9mm) No End User Service MULTI-VIEW LINE DRAWING - EQUINOX 41-LITE 1.1” (28mm) 3.44” 0.44” (87mm) (11mm) 0.66” (17mm) 10/100 ETHERNET 1.59”...
  • Page 10 No. 050131 – rev. 1 1/24 © Copyright 2024 Legrand All Rights Reserved. 800.555.9891 © Copyright 2024 Tous droits réservés Legrand. www.legrand.us/vantage © Copyright 2024 Legrand Todos los derechos reservados.
