LEGRAND Wattstopper LMEQ-41 Installation Instructions Manual

No: IS-00721 – rev. 3
LMEQ-41
Country of Origin: Made in China
• Vertical screen orientation displays main room button screen, as a default, with all widgets appropriate for the space where the
touchscreen is located, in the widget bar
• Equinox platform provides built-in widgets using Legrand's proprietary Plug 'n Go™ auto-discovery for automatic screen design
• Power over Ethernet, PoE or PoE+ in conjunction with the LMTI-100-120 or LMTI-100-277
• Communicates over PoE, via Ethernet cable
• Firmware upgradeable via isolated Ethernet connection (not PoE)
• Built-in ambient light sensor for "Active," AUTO mode screen brightness, ability to dim or turn off/on all loads within a DLM room,
quickly select scenes, and adust correlated color temperature (CCT) in fixtures with Blanco™ controls. NOTE: Scenes utilizing
CCT are not supported at this time
• Built-in proximity activation, 6" maximum, may be programmed to execute a task with a hand wave across front of station
• Dual operation mechanical buttons, bottom left and right;
- Left navigates to default widget
- Right may be programmed with a Task, or emulate a main button from LMCS
• Administrative users are supported on the system.
- Administrators - All permissions and visibility into the system. Only one system-wide administrator can be assigned whose
password is set up at system startup. The admin password can be created or changed from within Equinox view. It is not
dependent on the first time initialization screen
• Top of screen displays:
- Access help topics
- Manage settings including appearance, access/permissions, areas and rooms, devices, events, repair, schedules,
scenes, and systems
• The main screen automatically displays widgets based on LMCS project file (order may be changed in user/settings directly from
the app) including, lighting, home, and scenes
• Raise/lower dimmable loads, CCT and intensity settings using sliders
Station Reset – simultaneously press and hold both mechanical buttons for three seconds until the screen goes dark, then release
•
• Station Reset into Service Mode – simultaneously press and hold both mechanical buttons for ten seconds
- Service Mode is automatically used when updating firmware from LMCS
- If the application code is corrupt it may cause the screen to lock, preventing LMCS from updating or reloading the
firmware. Use this option to reboot the screen to Service Mode allowing LMCS to update the firmware.
- To manually exit Service Mode use the Station Reset option (above)

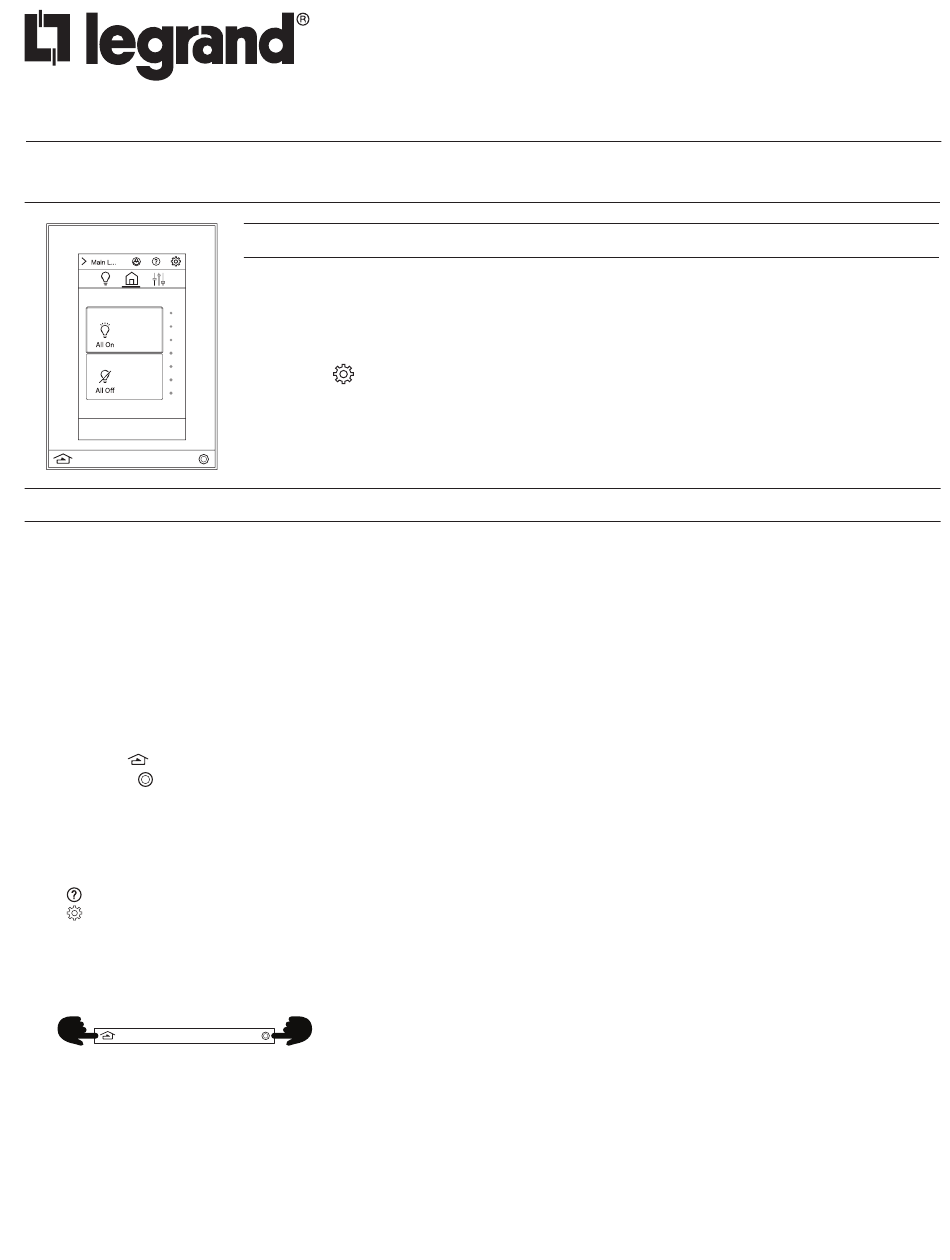

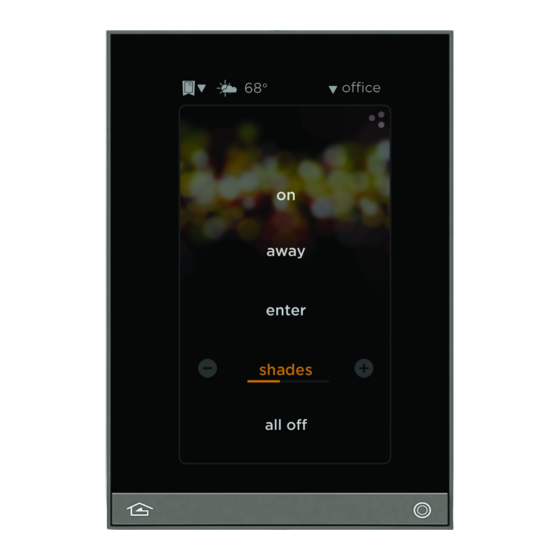

The LMEQ-41 is designed to be installed in a four square box with single-gang mud ring and is a
similar size to traditional keypads. Legrand's LMEQ-41 uses self discovering "widgets", eliminating
countless hours of tedious programming. The LCD capacitive screen allows for navigation and control
with real-time feedback. Widgets may be further personalized or additional controls setup directly on
the touchscreen, by selecting the Settings Menu in the upper right hand corner of the screen with the
gear symbol . In the settings menu, the system administrator can change or create scenes, logos,
and device settings. The interface uses intuitive gestures; swipe left and right to change widgets,
touch and release for normal button operation, or press and hold. The touchscreen has the ability to
dim multiple loads with a slider and adjust room parameters, etc.

FEATURES AND OPERATION OVERVIEW

NOTE: If buttons are held more than 5 seconds, the screen will boot to Service Mode,
and will not load the application code. Repeat manual reboot – without holding buttons
too long – to clear this mode.
Wattstopper
Digital Lighting Management 4.3" LCD Touchscreen
Installation Instructions

OVERVIEW

1
®
